electric start air cooled small petrol gasoline engine 9hp

Product Overview

Description

Techinical Data :



Model No.	168FB/168FB-DR	170F/170FD	173F/173FD	177F/177FD	182F/182FD
Engine type	4-stroke single -clinder,air-cooled
BorexStroke (mm)	68x54	70x56	73x58	77x58	82x64
Displacement(ml)	196	212	242	270	337
Compression Ratio	8.5:1	8.5:1	8.2:1	8.2:1	8.0:1
Theoretical Maximum Output Power	4.8kw/3600rpm	5.2kw/3600rpm	5.8kw/3600rpm	6.6kw/3600rpm	8.0kw/3600rpm
Rated output power	3.8kw/3600rpm	4.2kw/3600rpm	5.1kw/3600rpm	5.4kw/3600rpm	7.1kw/3600rpm
Horse Power	6.5Hp	7Hp	8Hp	9Hp	10Hp
Max Torque	11N.m/3000rpm	11.5N.m/3000rpm	14.5N.m/3000rpm	15.5N.m/3000rpm	21N.m/3000rpm
Ignition system	Non-contact Transistorized Magneto(TCL)
Start System	Recoil Start /Electric Start
Air Cleaner	Semi-dry type /Oil bath type
Fuel Tank Capacity	3.6L	3.6L	6L	6L	6.5L
Fuel Consumption	≤395g/kw.h	≤395g/kw.h	≤395g/kw.h	≤395g/kw.h	≤374g/kw.h
Oil Capacity	0.6L	0.6L	1.1L	1.1L	1.1L
Packing Detail
Dimension (LXWXH)mm	415x380x390	415x380x390	485x455x515	485x455x515	485x455x525
Net Weight	15kg/17kg	16kg/18kg	25kg/27kg	25kg/27kg	31kg/33kg





General Gasoline Engine and its Applications



Small size general gasoline engine could assort with plant equipment,small size agricultural machinery ,gardening machine,generator,construction machine,out-board machine etc . It features with small size,light weight ,cheap and easy to handle . Small size general engines could classified into three types by the number of its cylinder :single cylinder ,dural cylinders and 4 cylinders . Most of the engines are single cylinder,4 stroke and air cooled .



Currently,the types of general gasoline engines increased up to 39  ,which are widely used in lawn machines,hedge trimmers ,brush cutters,chainsaws ,tea garden machines,punching machines ,groomers,crushers,cultivators,water pumps ,troweling machines,plate compactors ,sprayers and pavement blowers etc .



The advantages of our engines

100%  output

stable performace

OHV design

low noise,low fuel consumption

100% steel crankshaft

all spare parts are from top suppliers of chongqing

Gurantted quality

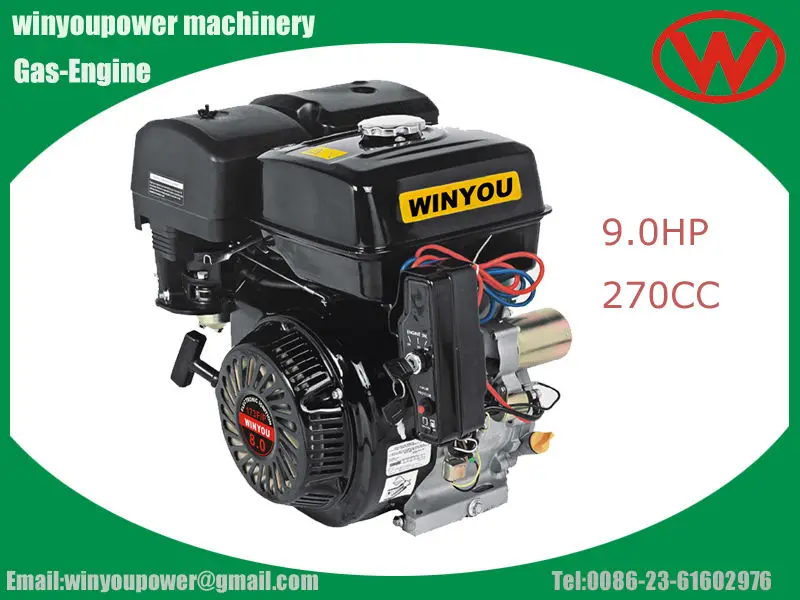

1.97.0hp, 270cc, 4 stroke,gasoline engine , key start ,with powerful and stable output.

2.The color of this engine is optional. we could do it upon our clients demand.

3.Minimum order quantity: 50 sets

4.OEM service is also acceptable. we'd glad to produce gasoline engines on which are customer's brand if quantity reach 200sets

5. We have an excellent technology team in our company to ensure to provide our clients with good quality gasoline engines



• Overhead valve (OHV) design, lower operation temperature, powerful drive and reliability and durability, and it saves more oil.
• Cast iron casing does not only effectively improve lubrication, but also makes engine more wear-resistant and prolongs engine life.
• Automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to engine.
• Metal cam and forged crankshaft makes engine more reliable and durable



Applications of Petrol/Gasoline Engine Model 177FD



9.0hp petrol engines could be mated with cultivators/tillers,water pumps,generators,plate compactors,hedgers,lawn machines,groomers,tea gardening machines,pavement blowers etc .

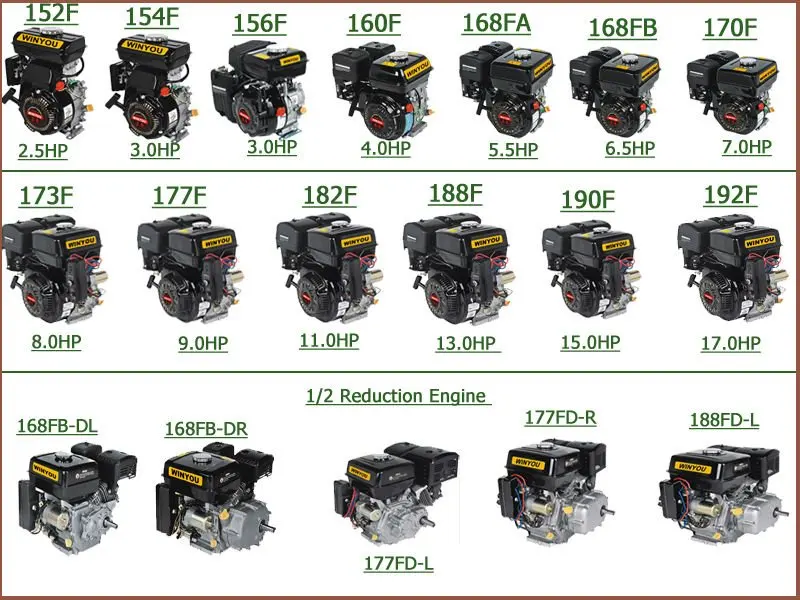

All kinds of our Horizontal shaft Petrol Engines



Company Introduction

We are a specialized factory to supply gasoline engines,diesel engines,gasoline tillers,diesel tillers,gasoline water pumps,diesel water pumps,gasoline Generators and grass cutters etc . Please visit our websites at

www. winyoupower.com             //cqweiyou.en.alibaba.com/
Why you should choose us :
1.10 years of manufacturing expenrience in the field of general machineries
2.Professional engineers and test equipments to ensure the quality of each machine
3. Factory direct selling at competitive prices
4. OEM service is available
5. Fast and efficient delivery service
6. Strictly quality control system

COMPANY INTRODUCTION :
Chongqing Winyou Power Co,.Ltd is one of the leading professional manufacturer of general machineris including engines(gas and diesel),power tillers (gas/diesel),water pumps(gas/diesel),generaters and grass cutters as well as other agricultural machines. Our products sell well in 30 countries of the world,including America,Europ,Africa,Midle East,Southeast Asia etc,enjoy a good reputation domestic
