70HP 4WD Farm Tractor with Front Loader

Product Overview

Description

70HP 4WD Farm Tractor with Front Loader

1. Why choose us?
FOTMA is the leading and professional supplier in China for 16hp-440hp tractors and various kinds of agricultural implements!
FOTMA has over than 16 years experience with tractors and agricultural machine!
FOTMA can supply the best price and professional service!
FOTMA has good reputation with all world customers!
FOTMA is 12 year Gold Member at Made In China!
FOTMA is 13 year Gold Member at Alibaba!

2. Product description
As one of the leading Chinese agricultural machinery brand, YTO tractors cover 17~200 horsepower wheeled tractors and 70~150 horsepower crawler tractors as well as their farm implements. In addition, it also produces harvest machinery of various models and types which are used for wheat, rice, corn, etc. It provides complete sets of equipment which are used for plowing, seeding, harvesting and field management. Its marketing and service networks cover various places of China, and moreover, it has established factories, plants, field offices, sales and service agencies in Asia, Europe, Africa, North America, South America and Australia, etc.

YTO Tractor was first built in 1955 and as the birthplace of the first tractor of China in 1958, was called to be the Kingdom of Tractors. After continuous efforts by several generations of staff for more than fifty years, it has now developed into a modern enterprise which can be able to provide series of agricultural machinery, construction machinery, power machinery, vehicle and spare parts & components. YTO brand was awarded as the Famous Brand of China by China Administration for Industry and Commerce in 1999, and won the prize of "China Top Brand" in 2006. In 2005, the sales volume of tractors is up to 164, 000, taking the first place in the same industry; The sales volume of farming construction machinery taking the first place in the same industry with 5480; 75, 000 diesel engines, being the first in off-road diesel engine industry; And the road roller takes the second place with the sales volume of 2050 rollers.

3. Features
1. Adopt YTO diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Double-function clutch, operate independently, high transmission capacity, effective and reliable, comfortable operation;
3. Gearbox using 4 × (4+2) engaging sleeve, shuttle-type gearshift, there are 16 forward gears, 8reverse gears, reasonable match between the gears, and have high efficiency;
4. Independent power take off device, smooth transmission, large capacity;
5. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
6. Adopt hydrostatic disc-type brakes, a large braking torque, the braking effect is good;
7. Adopt high pressure type lifting device, reliable, easy maintenance, multi-hydraulic output can be optioned;
8. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
9. New streamlined appearance, generous, modern, fashion.

4. Technical parameters

Model	YTO-X704
Tractor
Type	4x4
Overall dimensions (LxWxH) (mm)	4250x2145x2650
Wheelbase (mm)	2314
Min. ground clearance (mm)	370
Min. operating mass (with safety stand) (Kg)	3540
Tyre spec. front / rear	11.2-24 / 16.9-30
Wheel tread, front / rear	1569-2005 / 1500-2100
Steering	Full hydraulic
Brake	Oil immersed, disk type
Diesel engine
Model	LR4A3-23
Type	Four cylinder, vertical, water cooled, four stroke, direct injection combustion
Displacement (L)	4.33
Rated power / speed (Kw) / (r/min)	51.5 / 2400
Max. torque (N.m) / speed (r/min)	237 / 1500-1700
Bore x stroke (mm)	105 x 125
Transmission
Gear shift, forward / backward	12 / 4
Speed range (Km/h), forward / backward	1.61-26.57 / 4.19-12.59
PTO power (Kw)	44
PTO rotation speed (r/min)	540 / 720 or 540 / 1000
Clutch	11-inch, dry, double action
Implement
Three-point linkage category	Three-point linkage category II
Tilling depth control mode	Combined draft, position control and floating control
Lifting force (KN)	16
Options
OECD anti-turnover bar	OECD certified anti-turnover bar or anti-turnover bar with awning
Transmission with shuttle-type gear	12+12
Transmission with creeper gear	24+8
Hydraulic output	2 or 3 group

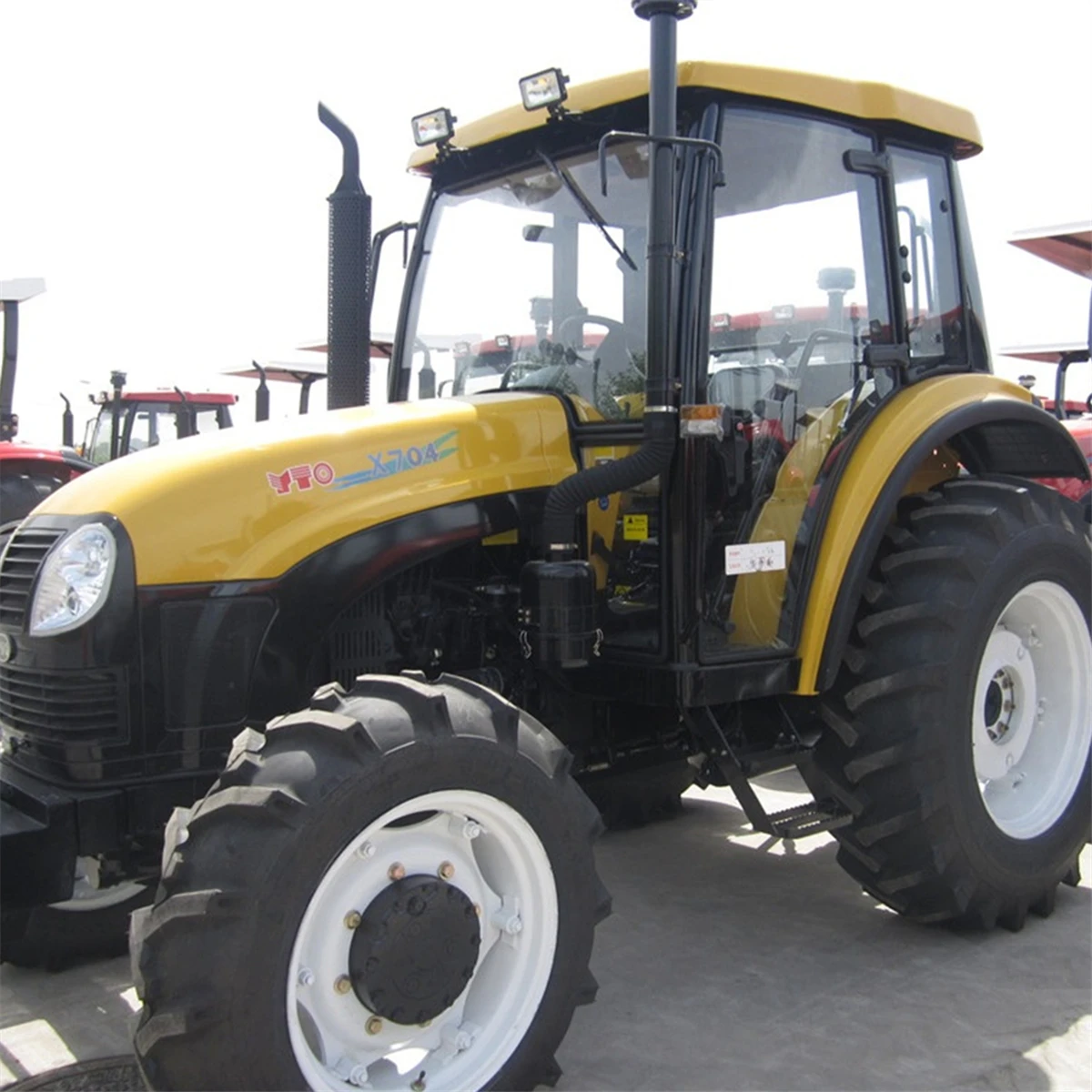

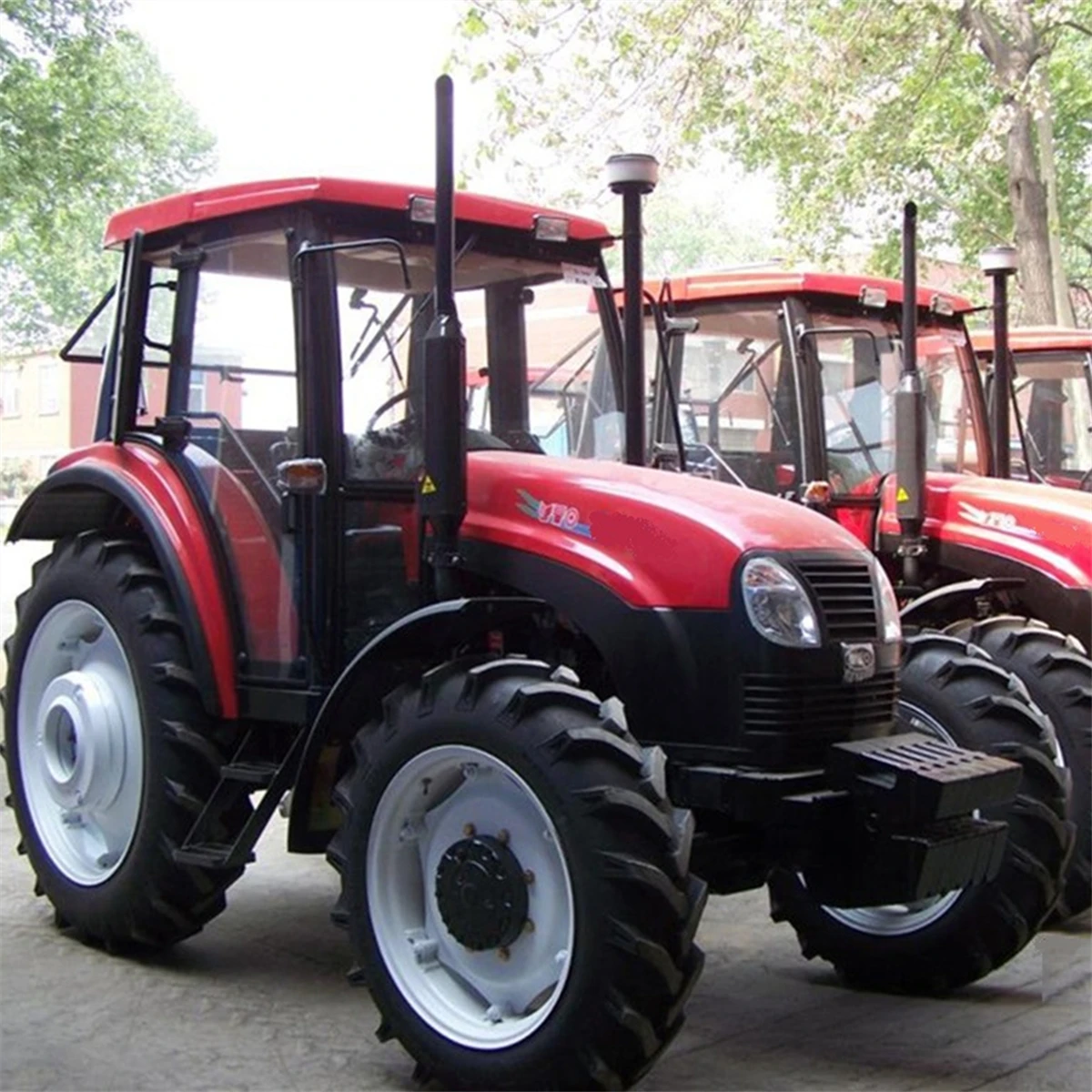

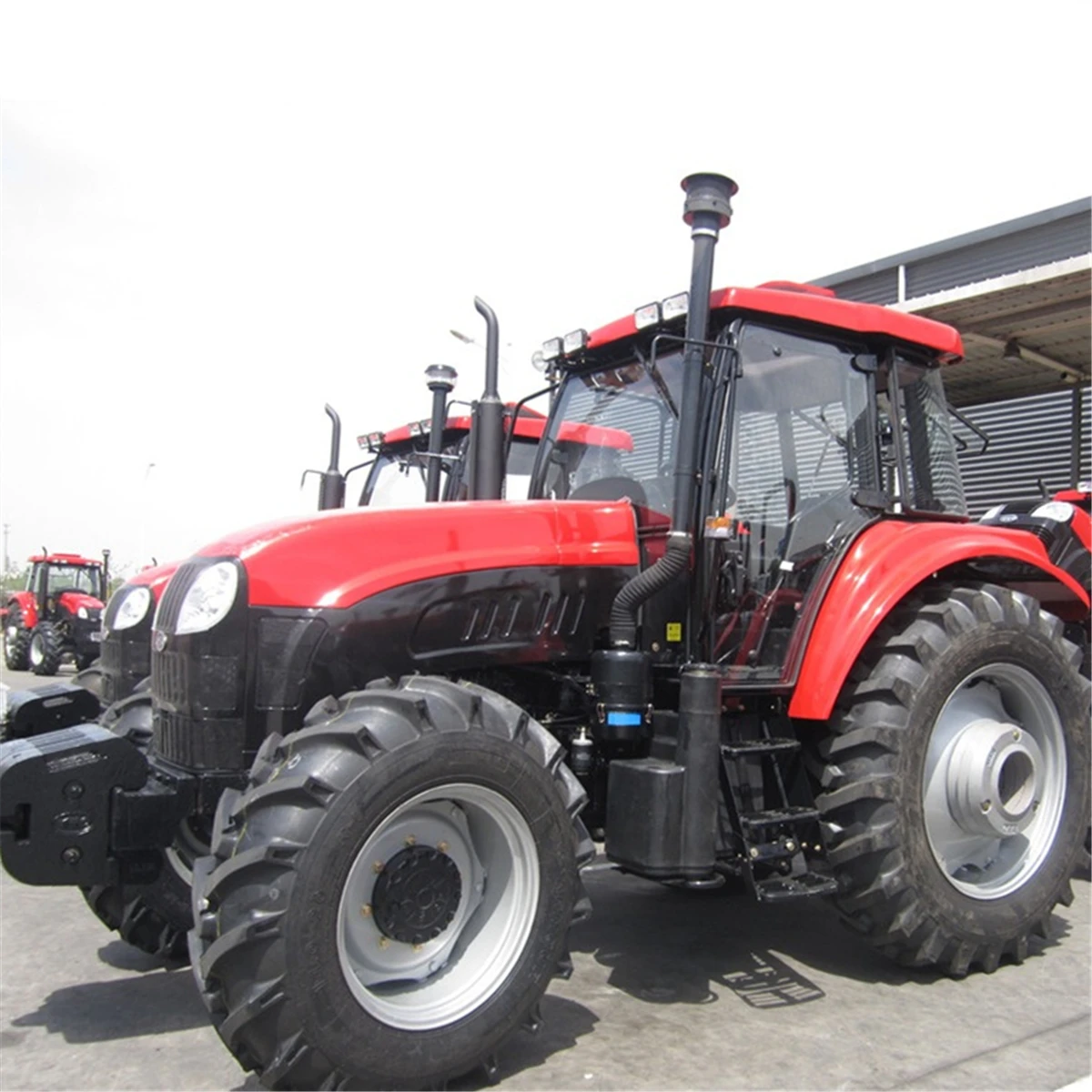

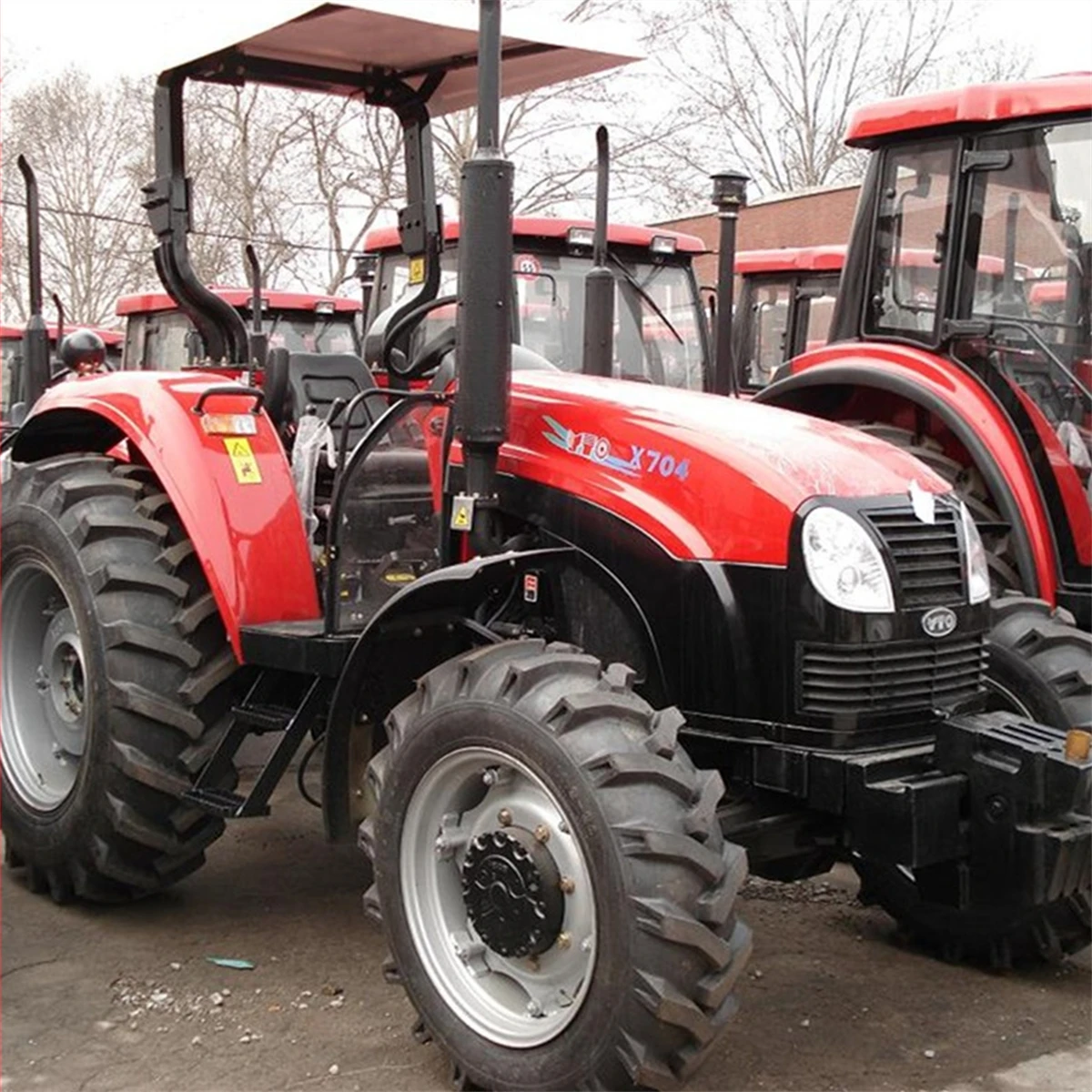

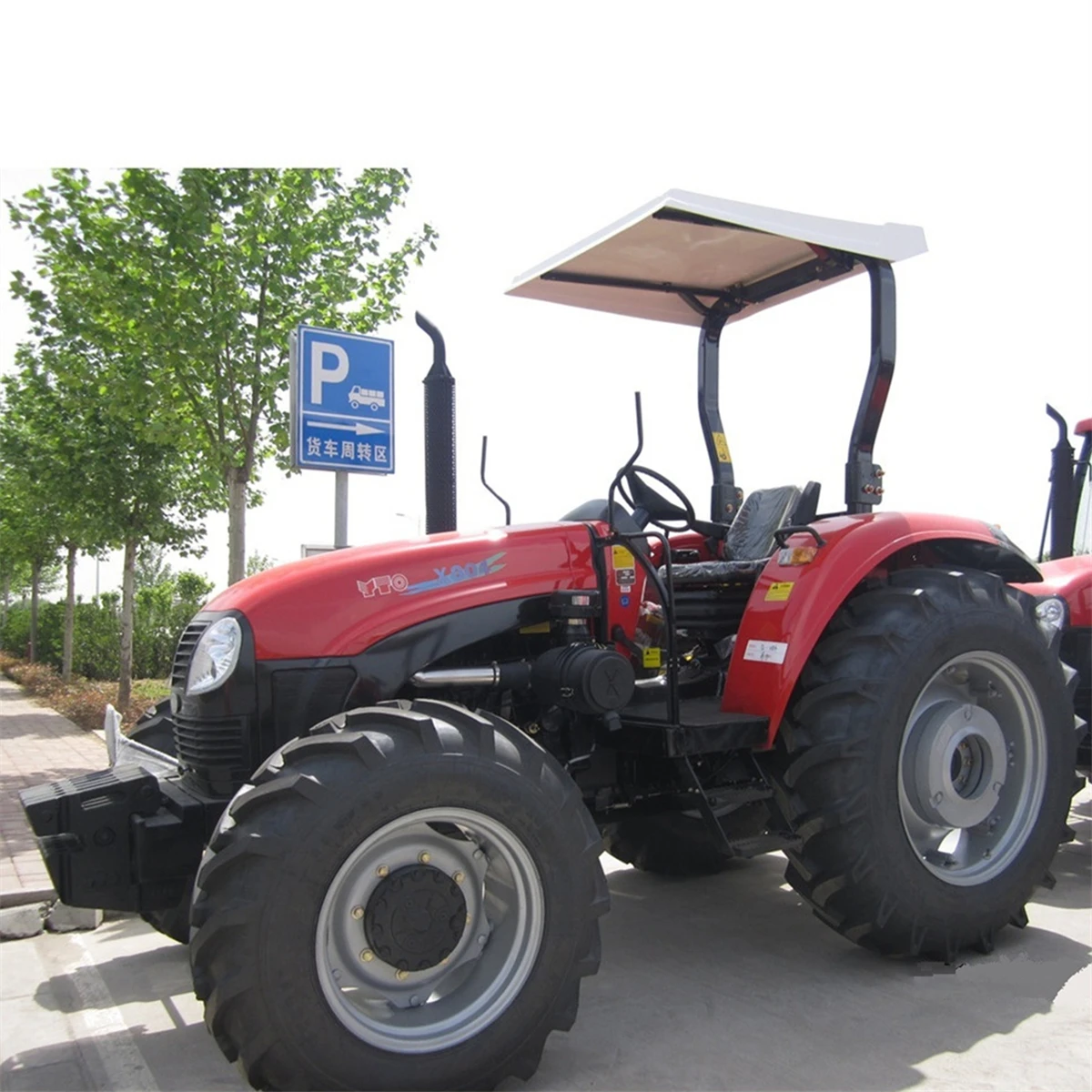

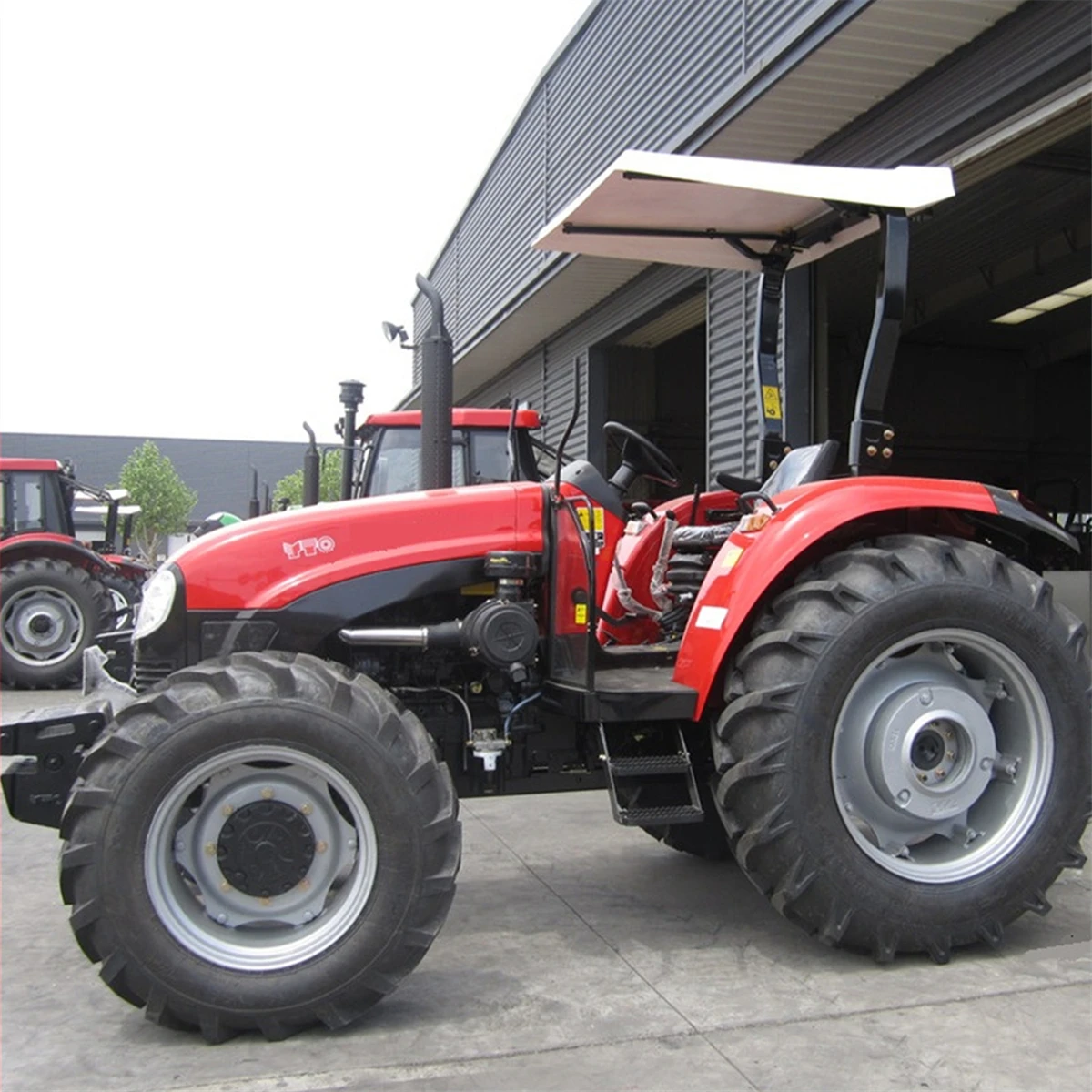

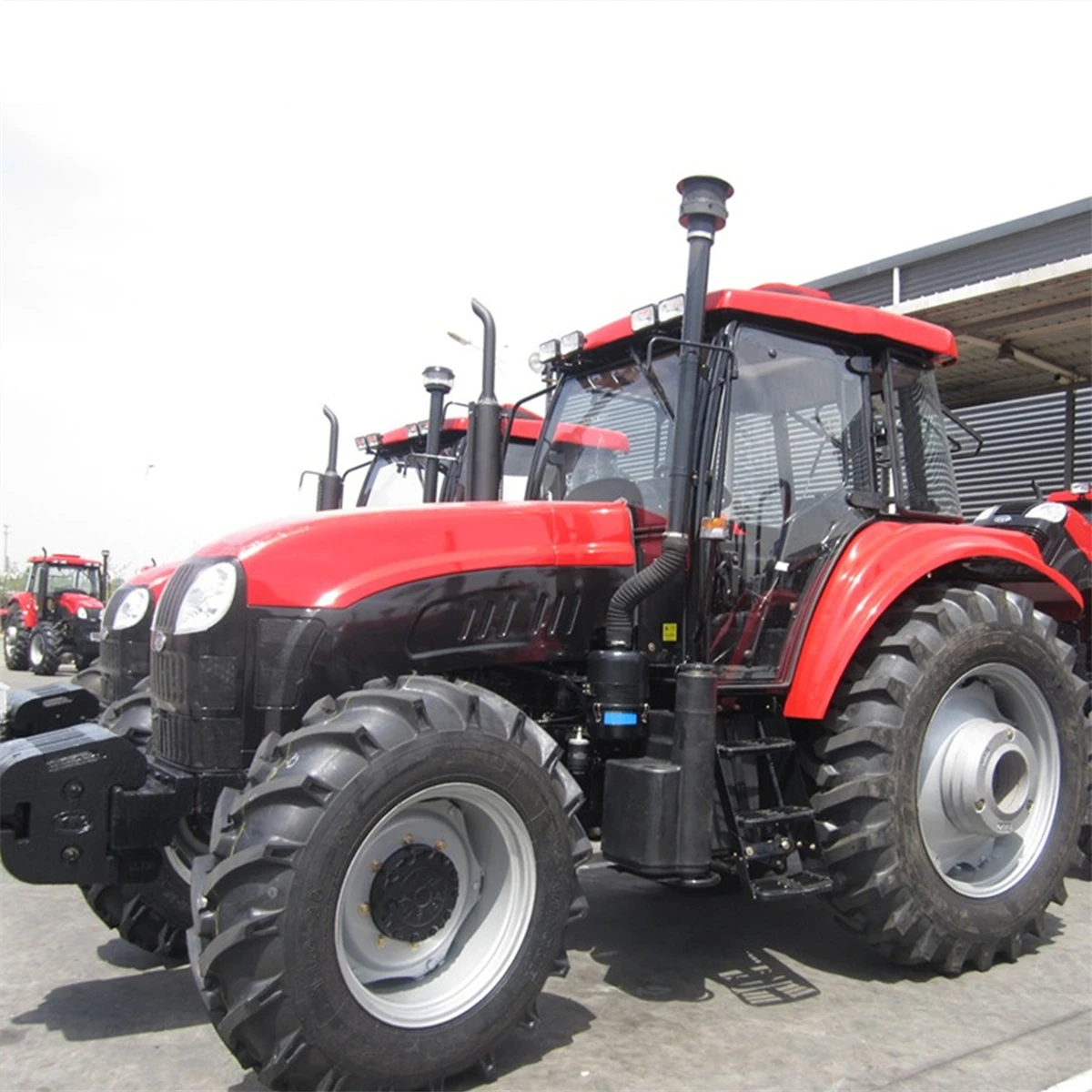

5. Photos
