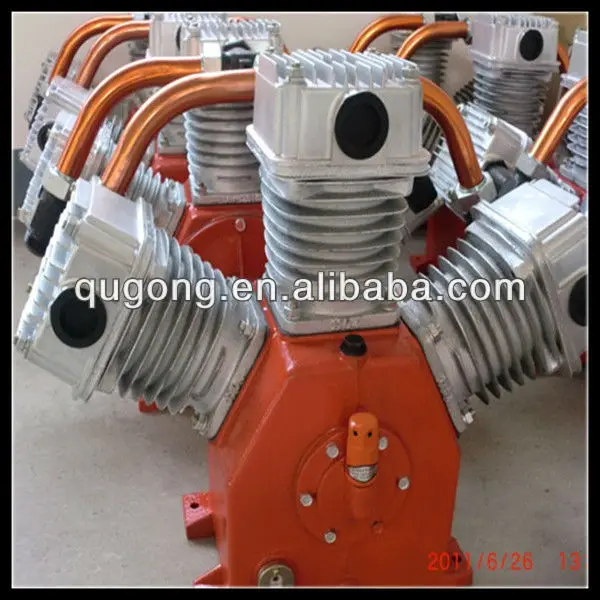

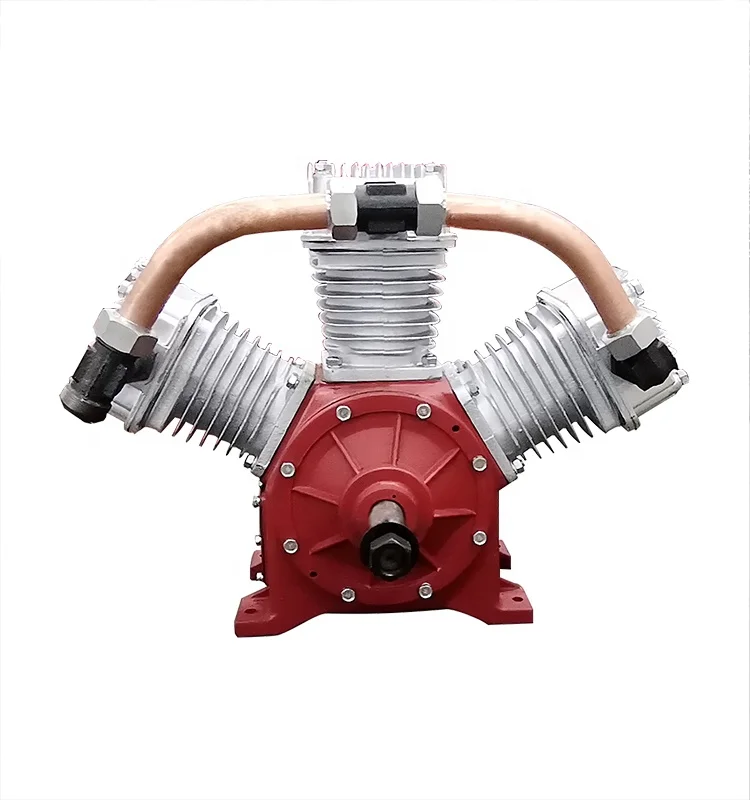

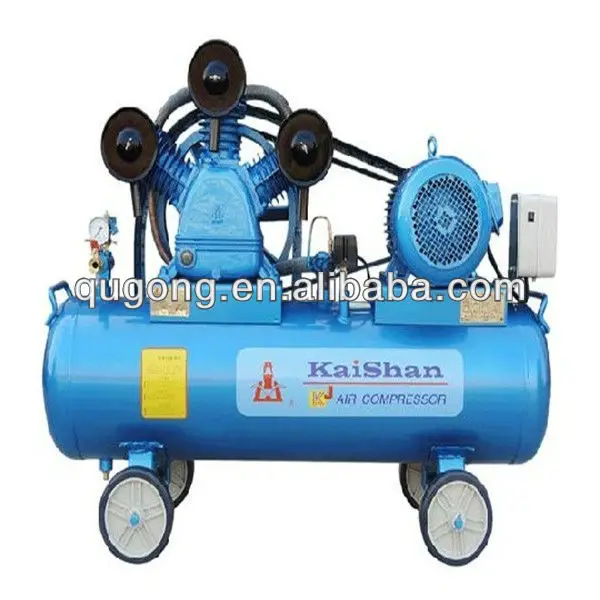

Kaishan 7.5KW high quality industrial piston 2 cylinder Air Compressor Pumps

Product Overview

Description

Kaishan 7.5KW high quality industrial piston 2 cylinder Air Compressor Pumps







1.Model: KJ-100

2.Capacity: 0.9m³/min
3.Suitable for 8 hours to work

4.One year warranty



Application



This seires air compressor widely used in pneumatuic lock, pneumatic tool, tire inflation,blowing process,spray, paint,sand bklsting and fluidic element.



Characteistics





a.Designed with low speed in operation, the air-compressor is quieter in motion and longer in lifespan



b.Feather valve is adopted with higher efficiency



c.The core of air cleaner is made of imported filter paper, which acts well in filtering and absorbing noise and is durable



d.The piston ring imported from Japan is introduce in designing pistol ring , which is durable and sealable .



                                                    High Efficiency; Less Noise; Durable; Long Life







KJ series compressor  Technical Parameters





No.	Model	Motor Power HP/kW	Capacity m3/min	Working Pressure MPa(kg/cm2G)	Air tank(m3/min)	Overall Dimention     mm×mm×mm	Weight(kg)
1	KJ-100	10/7.5	0.9	0.8(8)	0.19	1450×550×1060	240
2	KJ-75	7.5/5.5	0.67	0.8(8)	0.135	1450×550×1030	215
3	KJ-40	4/3	0.36	0.8(8)	0.11	1220×550×900	125
4	KJH100	10/7.5	0.8	1.25(12.5)	0.19	1450×550×1030	225
5	KJH-75	7.5/5.5	0.6	1.25(12.5)	0.135	1450×550×1060	205

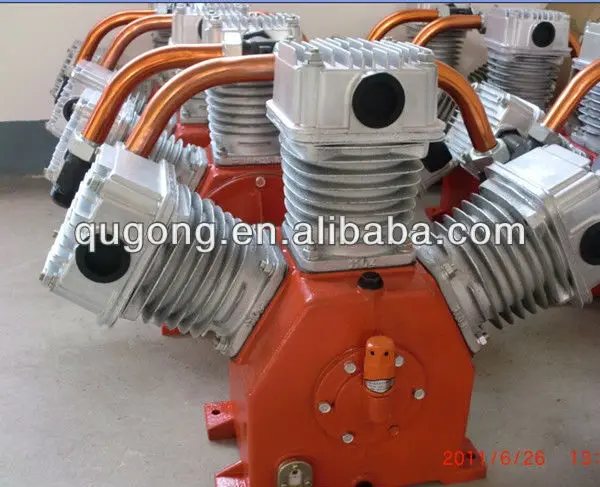

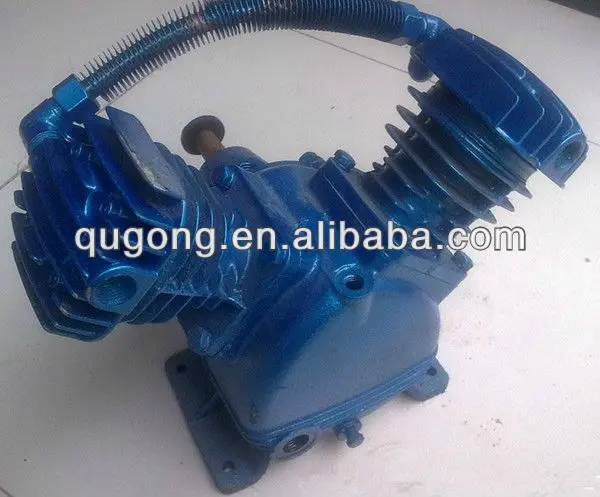

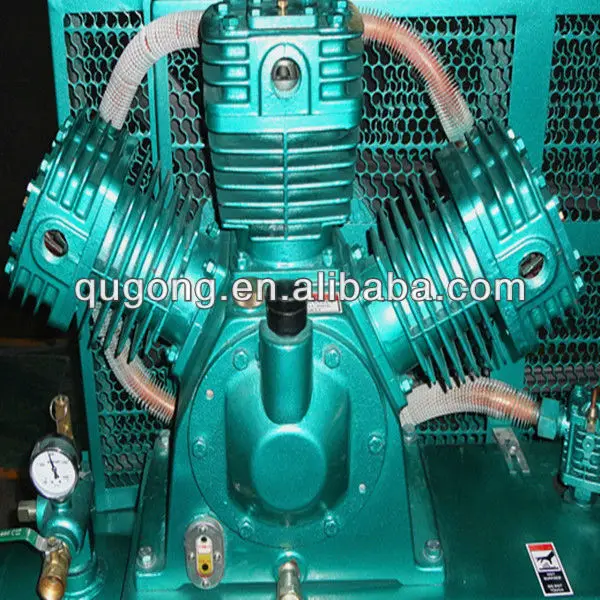

Compressor head specification



Model	Power		Cylinder (M*M)	Tank (L)	Exhaust Volume (L/min)	Working pressure (bar)
	KW	HP
K-0.18/8	1.5	2	65×2	100	180	8
K-0.25/8	2.2	3	65×2	100	250	8
K-0.36/8	3.	4	80×2	120	360	8
K-0.48/8	4	5.5	80×2	150	480	8
K-0.67/8	5.5	7.5	90×2	150	670	8
K-1.0/8	7.5	10	90×3	230	1000	8
K-1.5/8	11	15	100×3	230	1500	8
K-1.25/8	11	15	125×2  100×1	300	1250	8
K-1.6/8	15	20	130×2  110×1	300	1600	8
K-2.0/8	18.5	25	125×3 125×1	500	2000	8
K-0.4/12	4	5.5	80×2  65×1	155	400	12
K-0.6/12	5.5	7.5	90×2  65×1	230	600	12
K-0.8/12	7.5	10	100×2  80×1	230	800	12

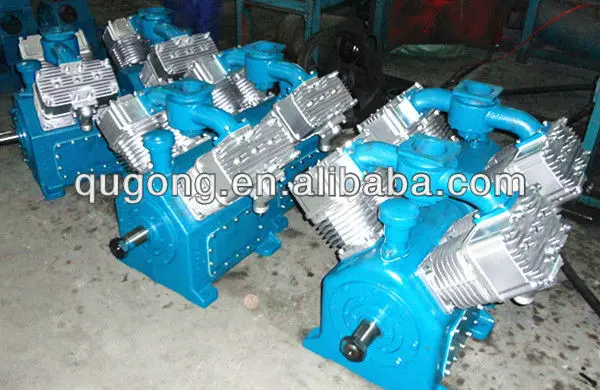

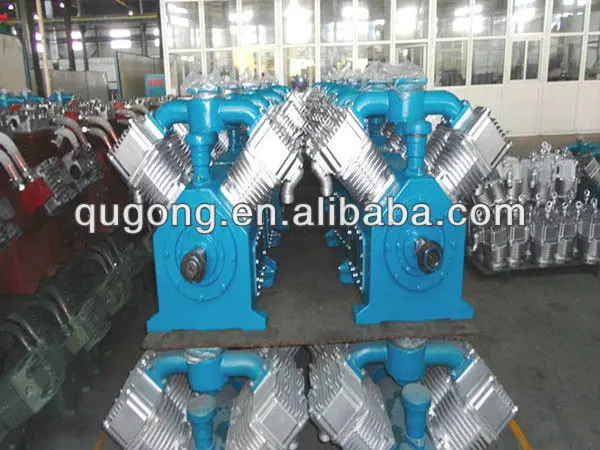

Factory Pictures



























 Certificate

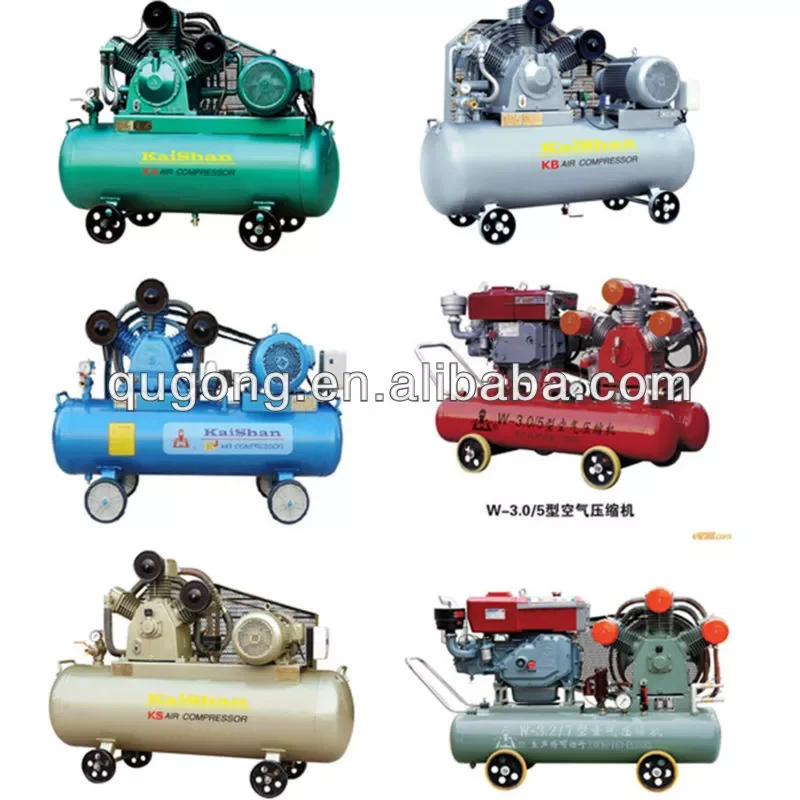

 Other products
