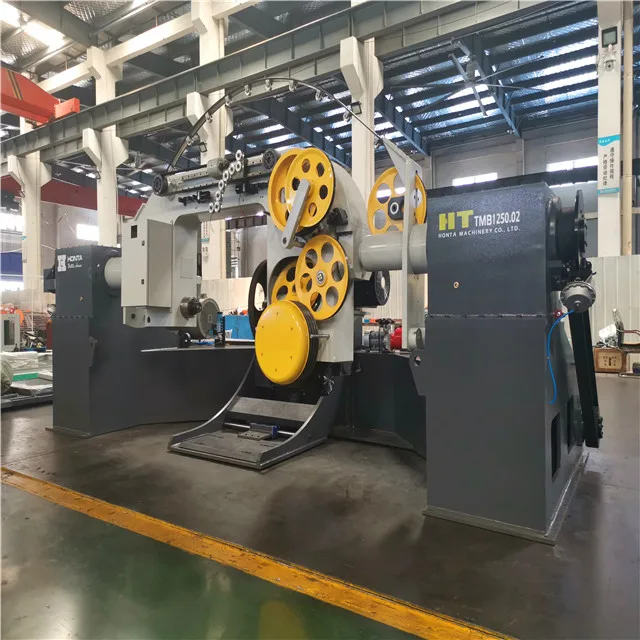

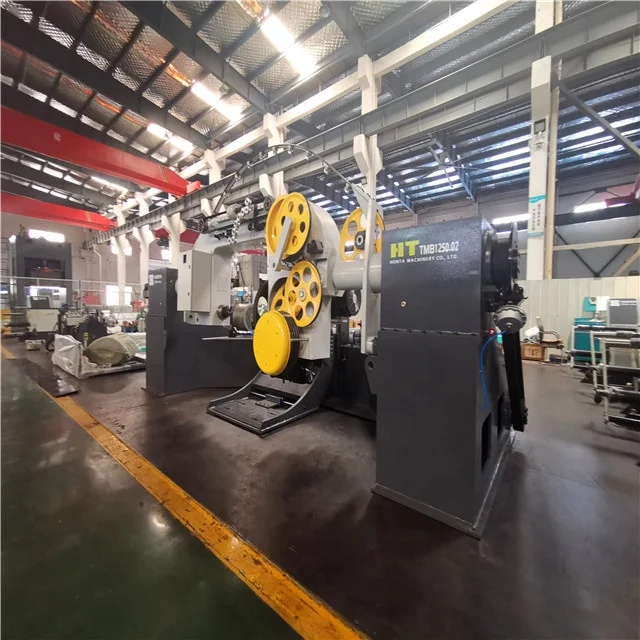

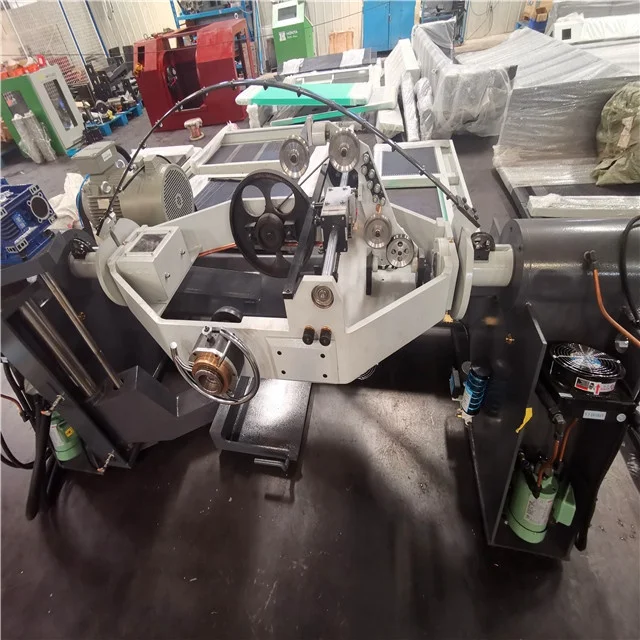

buncher twisting machine wire buncher
- Category: >>>
- Supplier: Kunshan City Hongtai Machinery & Electric Equipment Co. Ltd. [Jiangsu China]Kunshan
Share on (1005085379):
Product Overview
Description

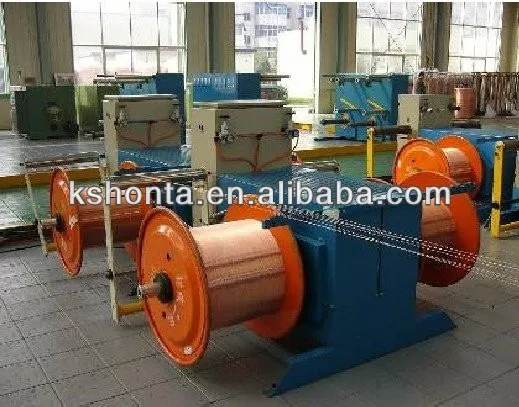

Technical data of HT-800P Double twist bunching machine:
Wire diameter range : φ 0.3- φ1.68mm
Stranding sectional area : 0.5- 16.0mm2
Take up bobbin : DIN 800mm (Φ127XΦ800 XΦ500)
Rotational speed : 1600rpm/3200TPM
Drive motor : 18.5 KWAC
Stranding pitches : 24 - 160mm
Pitch change : Manually change pulling capstans (coated Cr)
Bobbins loading and unloading : by hydraulic with motor
Transmission : by synchro tooth belt
Traverse method : polish rod traverse with adjustable width and distance.
Take-up tension control : magnetic particle clutch
Braking system : electromagnetic brake
Noise level : ≤ 85dB(A)
Center height : 1100mm
Stranding direction : left or right (S or Z)
Machine demension : approx.3770X1800X1900mm
Weight : about 7000KGS
Color/painting : upon customer’s request.

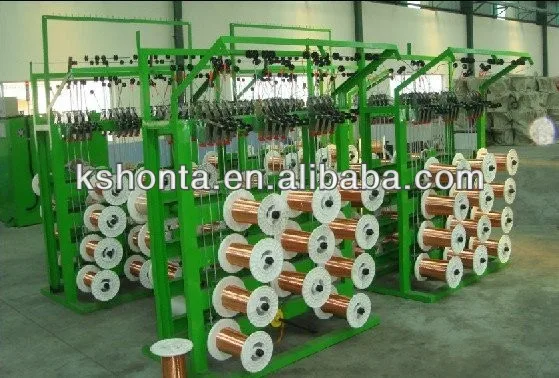

Matched pay-off rack:

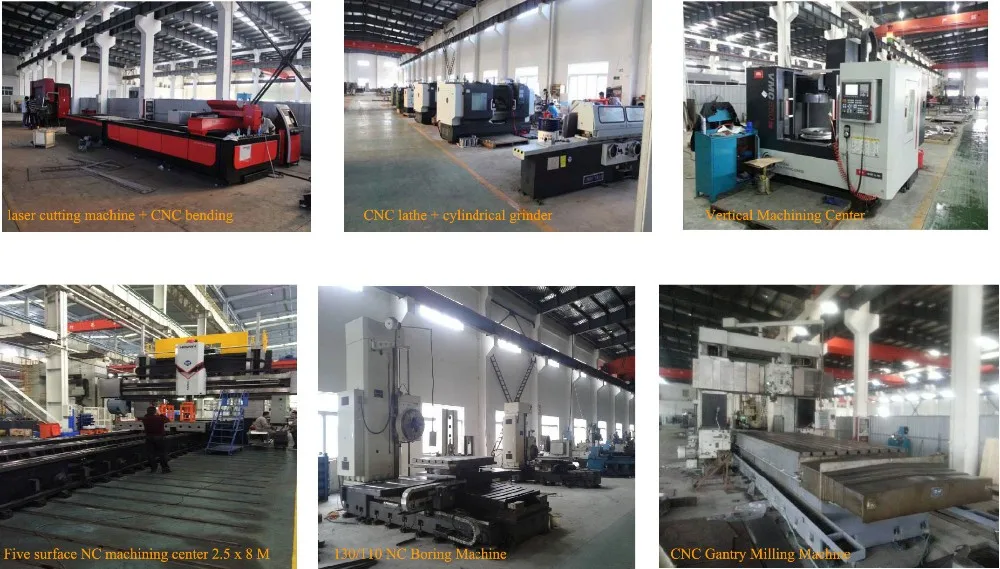

Machining Strength
Related Products
|
|
 |
 |
 |

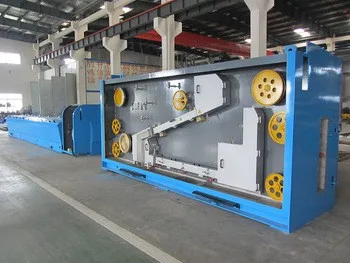

| 16-wire drawing machine | Boobins / spools/ reels | ||
 |
|
|
 |
| 8-wire drawing machine | 500/630 double twist bunching machines | Elctrolytic Tin Plating Line | Cable extruders |
Warranty
12 months counted from the date of signing the Certificate of Acceptance. But if due to the Buyer's reason, the commissioning and acceptance of the line is delayed, the guarantee period of quality shall be no more than 18 months from the arrival date of equipment at the destination port.
