SL40 machine tool for making steel tube/lathe machine/hydraulic chuck slant bed cnc lathe cnc horizontal lathe machine
- Category: >>>
- Supplier: Yancheng Yujie Machine Co. Ltd.
Share on (1005126823):
Product Overview
Description
Product Features
Features As Below

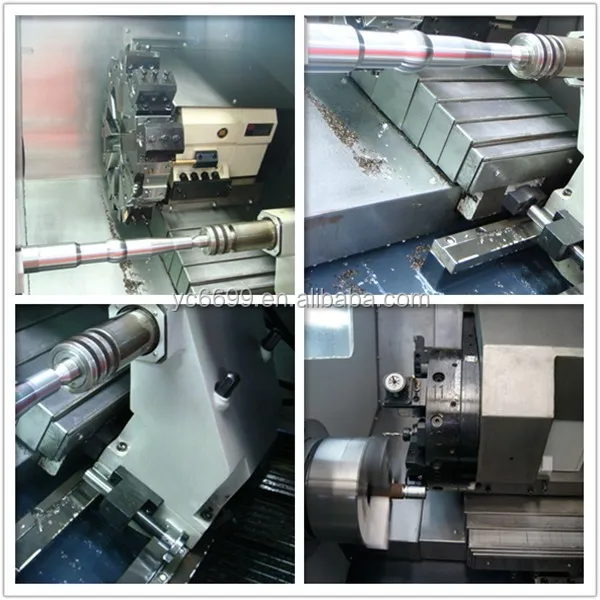

This machine is applied to precision machining of a shaft, disk type parts.

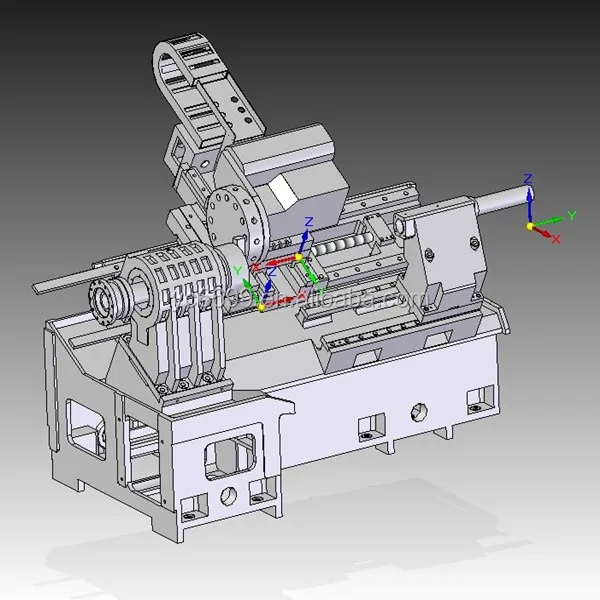

With the 45°overall high strength cast iron slant bed, smooth chip removal, good rigidity.
Precision high-rigidity linear rolling guide.

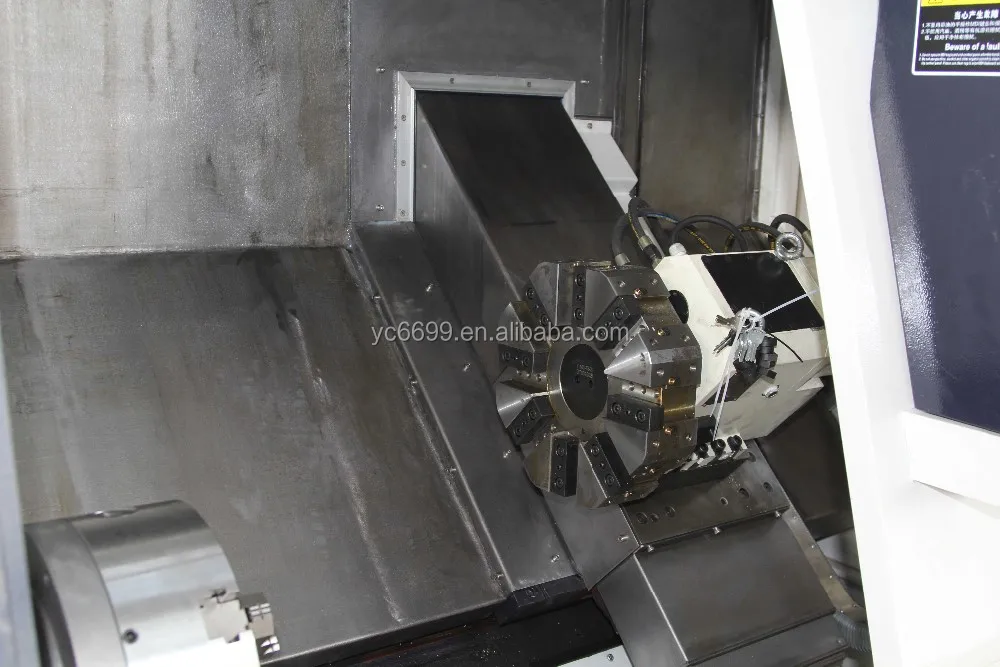

Ten stations hydraulic turret, the nearest tool change.
High-speed spindle unit(4000rpm).
Hydraulic tail-stock.
Specification
Parameters As Following
Specification | Unit | SL40 | SL50 | ||
Capacity | Max. swing over bed | mm | Φ540 | Φ640 | |
Max. swing over carriage | mm | 270 | 310 | ||
Max. cutting diameter | mm | 400 | 500 | ||
Max. cutting length | mm | 550 | 550 | ||
Spindle | Max. spindle speed | r/min | 4000 | 4000 | |
Spindle bore | mm | Φ65 | Φ65 | ||
Bar diameter | mm | Φ52 | Φ52 | ||

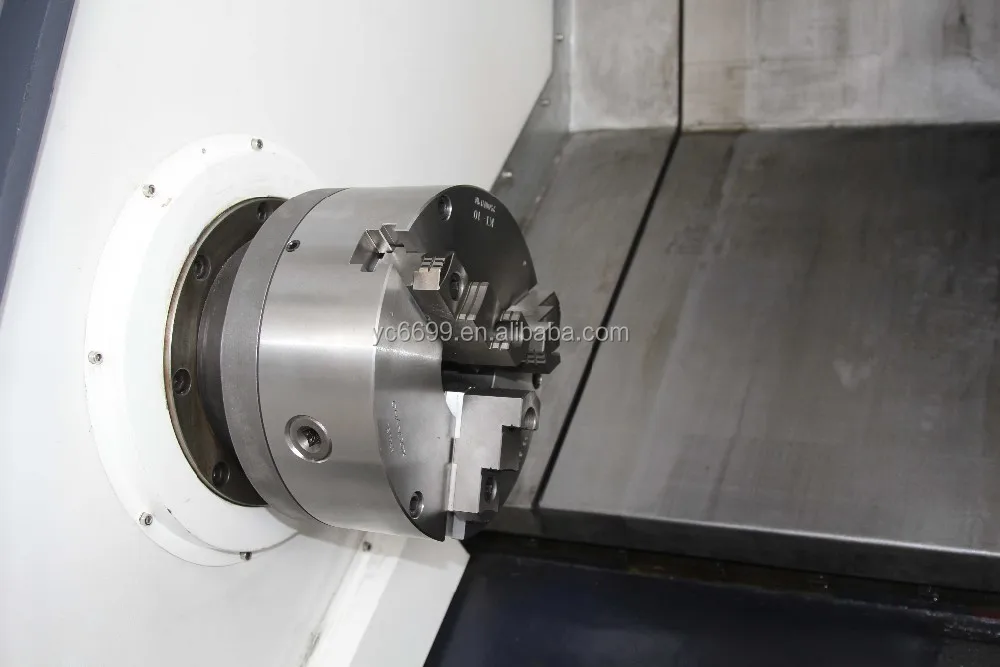

Hydraulic chuck | Inch | 8 | 10 | ||
Spindle motor power | kw | 7.5 | 11 | ||
Turret | Tool number | PCS | 8/10 | 8/10 | |
External diameter tools | mm | 20 | 20 | ||
Interior diameter tools | mm | 25 | 25 | ||
Travel | X Axis travel | mm | 220 | 270 | |
Z Axis travel | mm | 580 | 580 | ||
Feed | X/Z Axis rapid feeding | m/min | 18/18 | 18/18 | |
Cutting feed speed | mm/min | 1-5000 | 1-5000 | ||
Tailstock | Tailstock travel | mm | 450 | 450 | |
Tailstock type | - | Hydraulic | Hydraulic | ||
Railway | Degree of the slant bed | degree | 45 | 45 | |
Railway type | - | Liner rolling guide way | |||
Accuracy | Positioning accuracy for X/Z | mm | X:0.016;Z:0.02 | X:0.016;Z:0.02 | |
Re- Positioning accuracy for X/Z | mm | X:0.007; Z:0.008 | X:0.007; Z:0.008 | ||
Others | Weigh | kg | 3500 | 3900 | |
Overall dimension | mm | 2717×1580×1870 | 2717×1600×1920 | ||
Stand Accessories | Optional Accessories |
GSK980TC3 CNC control system | KND / FANUC / SIEMENS CNC control system |
8 position hydraulic turret | servo turret / living turret / Electric tool turret |
TAIWAN 3 jaws hydraulic chuck 10" | 3Manual chuck / Pneumatic chuck / Collect chuck |
7.5KW Servo spindle motor | 11KW Servo spindle motor |
Manual chip pan | Automatic chip convey |
Hydraulic station | None tailstock |
Warning light | Auto door and robot arm |
working lamp | Automatic bar feeder |
Product Description
Company Information
Yancheng Yujie Machine Co., Ltd. is a CNC lathe manufacturer based in china, was established in 2009, with original factory started from 1998. It is located in Panhuang Town, Yandu District Yancheng City Jiangsu Province. We are specialized in various kinds of machine tools for decades of years. We are doing business from researching, designing, manufacturing, testing and selling to after-sales servicing by the specification of ISO9000. we aim to provide the best service to our customers.
Our company owns ordinary lathe, CNC horizontal lathe, CNC vertical lathe, CNC slant bed lathe with high precision, CNC wheel repair lathe and other special purpose machines. Our products have obvious advantages and wide usages. It is superior to the same kind of machine tools for the large diameter of the spindle and attractive appearance with the application for different kinds of turning operations.
Yujie Machine aims to provide service to Europe, America, Russia, Middle East and Southeast of Asia with honesty, creative development, and excellent service . We are appreciated to establish a relationship with all friends and customers to share the updated technology.
Certifications
CE Certificate:
Packaging & Shipping
Standard wooden Case. Prevent damage produced in the process of collision.
Our Services
24 hours technical support by e-mail or mobile, free instruction and problem solving.
User manual ( English version) and detailed video.
On-the-spot training and installation can be met if required.
12 months warranty period, any quality problem, please contact us.
FAQ
Q: Is your company a factory or trading company?
A: Our company is a factory, doing international business for decades of years.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Yancheng City, Jiangsu Province, China with convenient transportation by flight, train, and bus.
All our customers, are warmly welcome to visit our company.
Q: How does your factory do on quality control?
A: Quality is our culture.
We pay much attention to quality controlling from the environmental-friendly raw material,skilled workers to advanced testing equipment.
