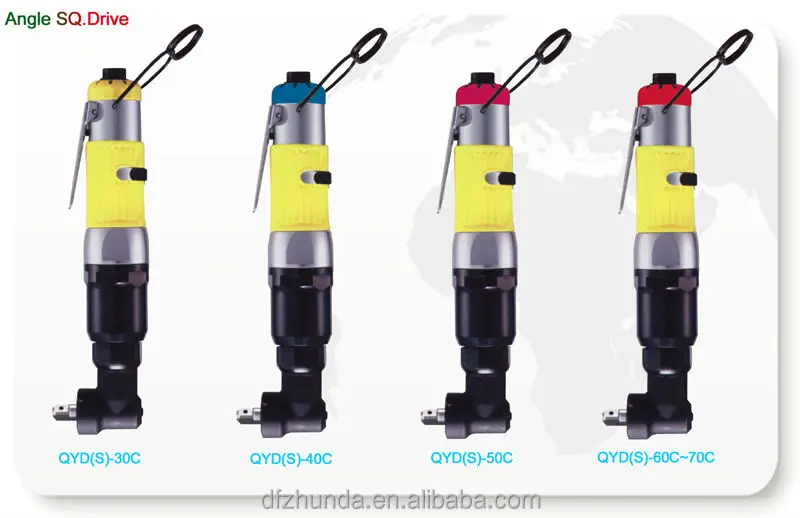

Angle Square Drive type Air impulse Screwdriver pneumatic tightening tools
- Category: >>>
- Supplier: Shaanxi Dongfang Aviation Instrument Co. Ltd. [Shaanxi China]Shaanxi
Share on (1006919393):
Product Overview
Description
Air Impulse Screwdriver
Angle SQ, Drive
Non Shut-off/Auto shut-off

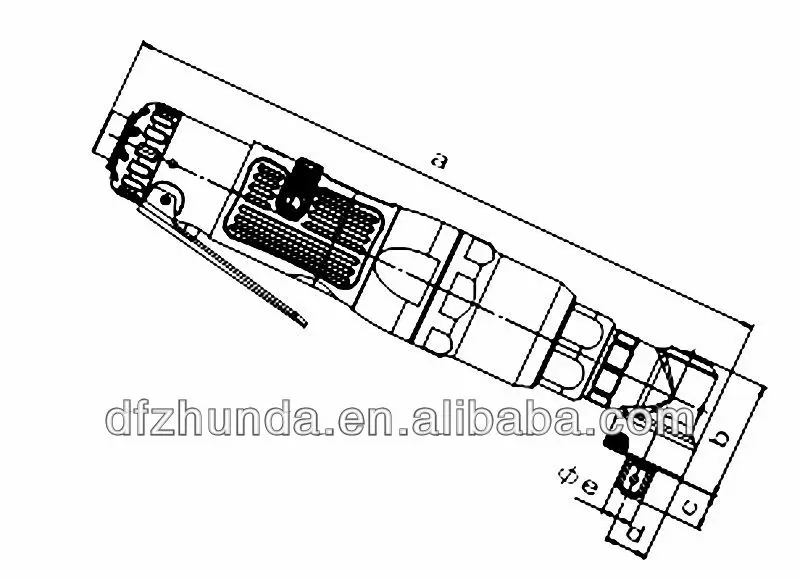

Size
Model | Hex Size mm(”) | Bolt Capacity | Torque Range N-m (ft-lb) | Bit Shank | Free Speed | Weight | Length | Noise Level | Average Air Consumption | Hose Size | Vibration Value | ||
5~6Kg/cm2 | 5Kg/cm2 | 6Kg/cm2 | Kg | mm | dB(A) | m3/min | ft3/min | m/s2 | |||||
QYD(S)-30C | 9.5(3/8”) | M6~M8 | 9.5~17(7~12.5) | 9mm | 4000 | 4300 | 1.2 | 253 | 76.5 | 0.32 | 11.3 | 6.5 | 16 |
QYD(S)--40C | 9.5(3/8”) | M8 | 14~24(10.3~17.7) | 9mm | 4400 | 4700 | 1.3 | 264 | 84.9 | 0.4 | 14.1 | 8 | 16.8 |
QYD(S)--50C | 9.5(3/8”) | M8~M10 | 20~31(14.7~22.8) | 9mm | 4200 | 4500 | 1.4 | 272 | 85.0 | 0.4 | 14.1 | 8 | 17.1 |
QYD(S)--60C | 9.5(3/8”) | M10 | 30~50(22.1~36.8) | 9mm | 1800 | 2000 | 1.6 | 281 | 80.1 | 0.4 | 14.1 | 8 | 17.4 |
QYD(S)--70C | 12.7(1/2”) | M10~M12 | 40~60(29.5~44.2) | 9mm | 2000 | 2200 | 1.6 | 281 | 81.7 | 0.4 | 14.1 | 8 | 19 |
QYD(S)--80C | 12.7(1/2”) | M10~M12 | 50~70(36.8~51.5) | 9mm | 2600 | 2800 | 1.7 | 281 | 90.1 | 0.45 | 15.9 | 8 | 19 |
Product Description
Note:
1. QYD type is Non Shut-off; QYDS type is Auto Shut-off
2. Air Inlet: NPT 1/4”
3. Recommended Air Pressure: 70~85 PSI(5 kg/cm2~6 kg/cm2) / 0.5MPa~ 0.6 MPa
4. Air Hose Size: 11mm×6.5mm×5m for QYD(S)-30~50 12mm×8mm×5m for QYD(S)-60~80
