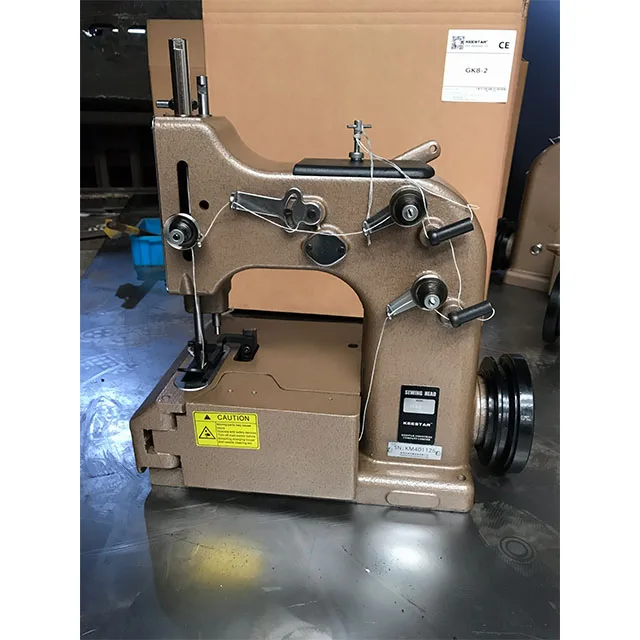

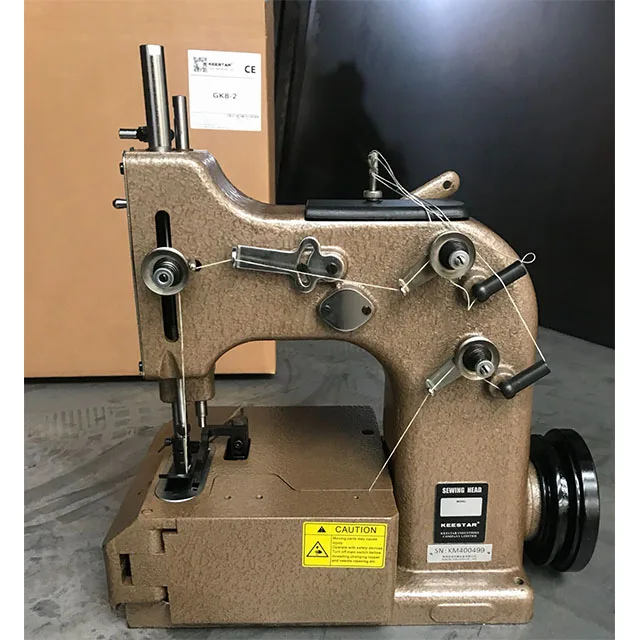

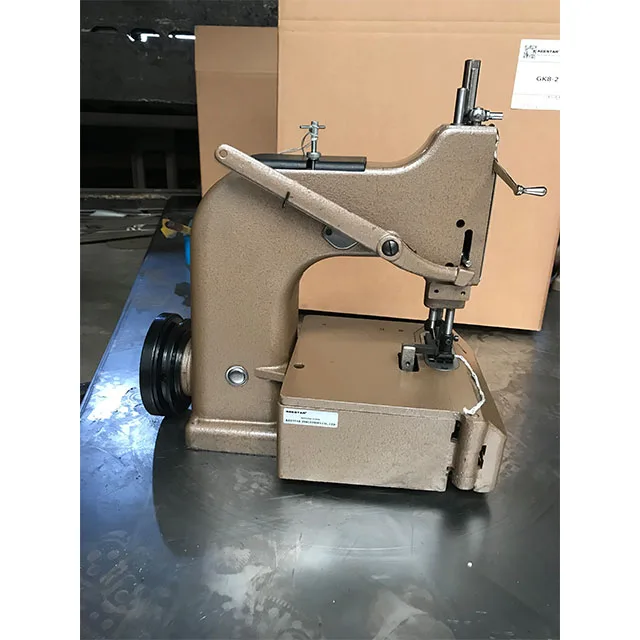

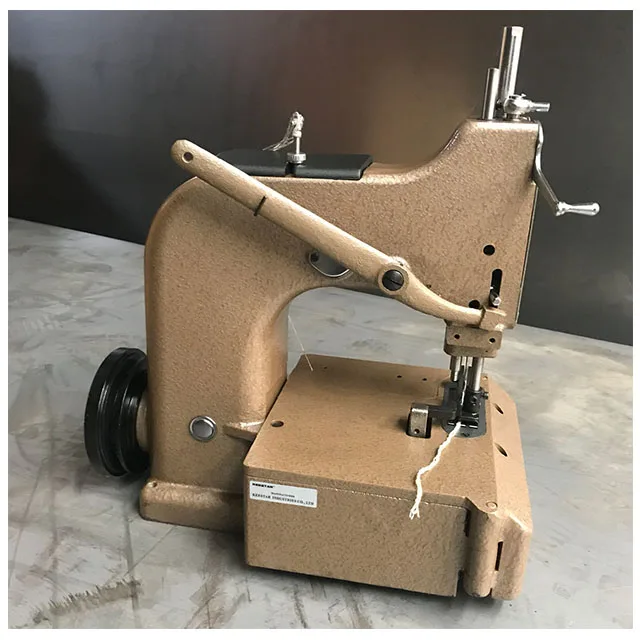

Keestar GK8-2 single needle two thread FIBC sack bag edge sewing machinery




KEESTAR MACHINE








PRODUCT DESCRIPTION











Application:



  1. Keestar GK8-2 is a single needle double thread heavy duty sewing machine with walking foot feed system.

  2. Its design makes it suitable for sewing all sorts of material with different weight of bags, especially suitable for sewing PP, woven poly, paper bags and heavy duty, multi-ply materials.

  3. Keestar GK8-2 could replace Newlong DR-3A and Union Special 80200AA sewing machine.



.

Feature:


  1. Single needle double thread chain stitch 401;

  2. Maximum sewing speed up to 1,300spm;

  3. Maximum sewing capacity up to 10mm (7/16in.), 30 plies of paper;

  4. Adjustable stitch length from 8 to 14mm;

  5. Built-in walking foot feed system;

  6. Easy maintenance semi-closed structure;

  7. Manual lubricating;

  8. Well assembly quality, ensure the stable running and long service life;

  9. Reliable PP bag sewing machine for all sorts of material with different weights;

  10. Special designed pedestal optional;

  11. Most popular PP bag sewing machine in China market;

  12. Upper and lower feed;

  13. Economic model.


Specification:

























































ModelGK8-2
Stitch Length8-14mm
Max. Sewing speed1,300spm
Max. Sewing capacity10mm (7/16in.)
Stitch TypeSingle Needle Double Thread Stitch 401
Feed MechanismWalking Foot
LubricationManual
NeedleGK8
ThreadPolyester 20/6, 20/9 (2×3, 3×3)
Net Weight37kg
Gross Weight40kg
Dimension400×215×430mm











Attention:



  1. Please oil the machine throughly before running;

  2. Please follow the safety instruction strictly before put the machine into operation.


Keestar Relative Models:


Bag sewing machine: DN-2HS, 80800CH, GK8-2


80800CDH is the double needle four thread version of 80800CDH


Overedge sewing machine: GN20 series


FIBC sewing machine:


80700 series(80700C2, 80700CD4H, 80700CD4HL, 80700CD);


81300 series(81300A1HL, 81300B1HL, 81300A1H, 81300B1H, 81300A2, 81300B2, 81300A,81300B);


81500


CL-F120


GK8-1 is single needle single thread version of Gk8-2.
