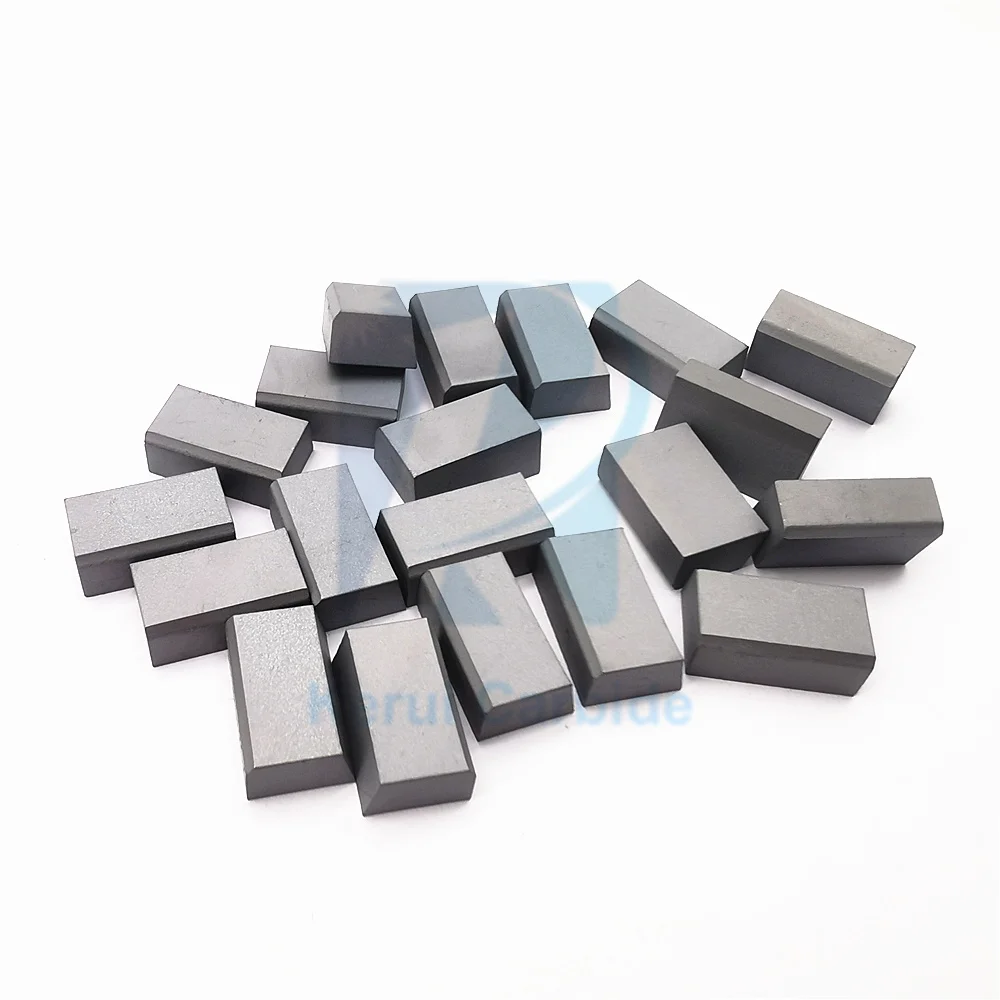

Brazed Tool Bits of Widia Carbide Welding Tips for Turning Process

Product Overview

Description

Brazed Tool Bits of Widia Carbide Welding Tips for Turning Process

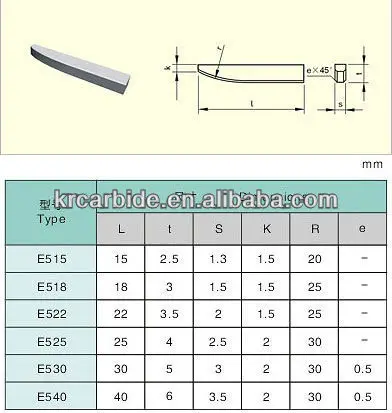

Type E  Tungsten carbide inserts:

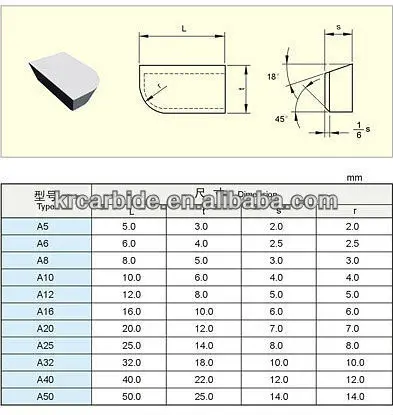

Specification:

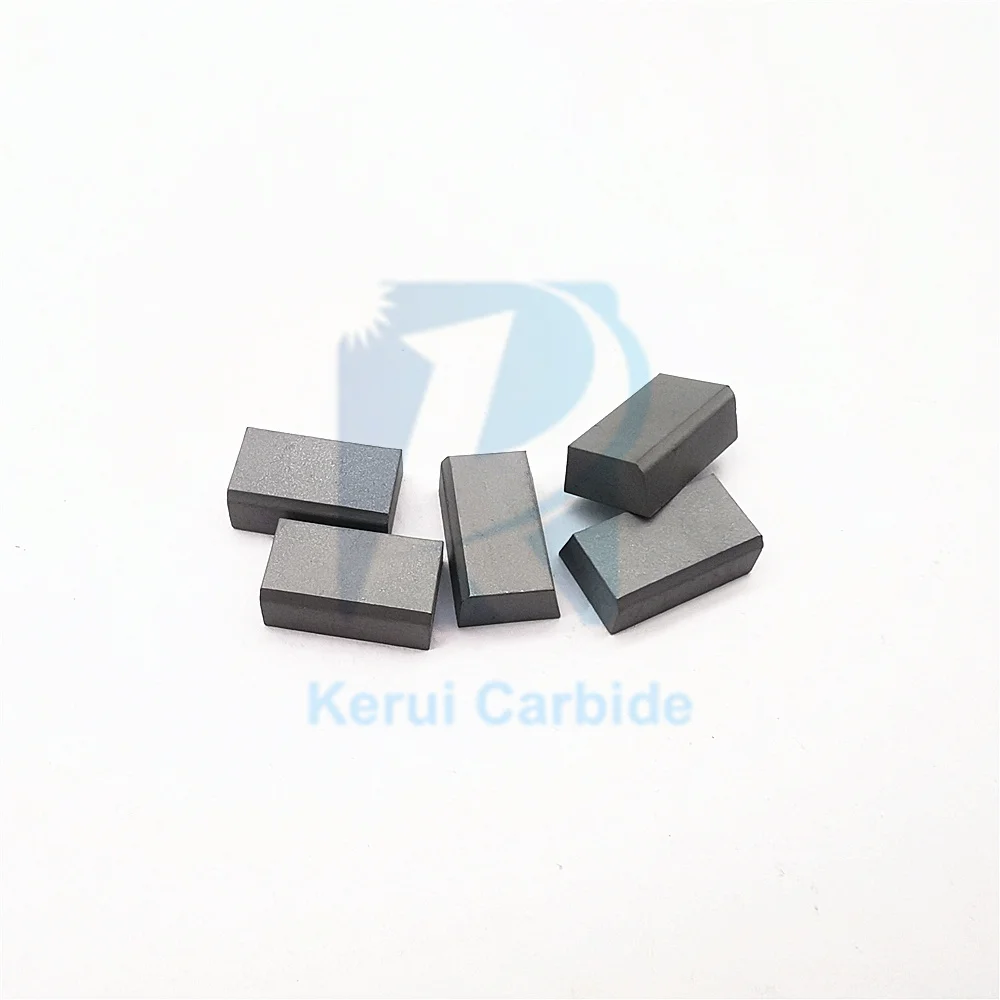

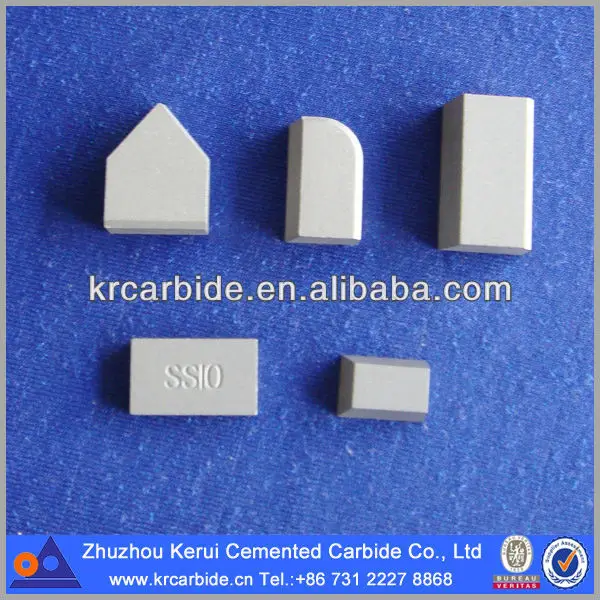

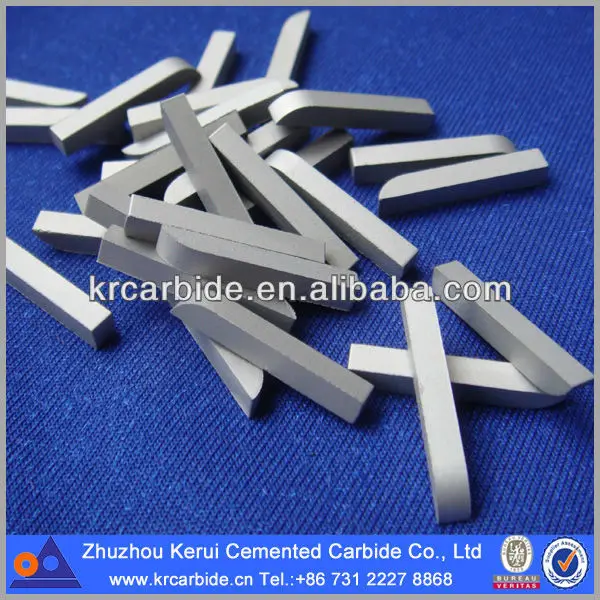

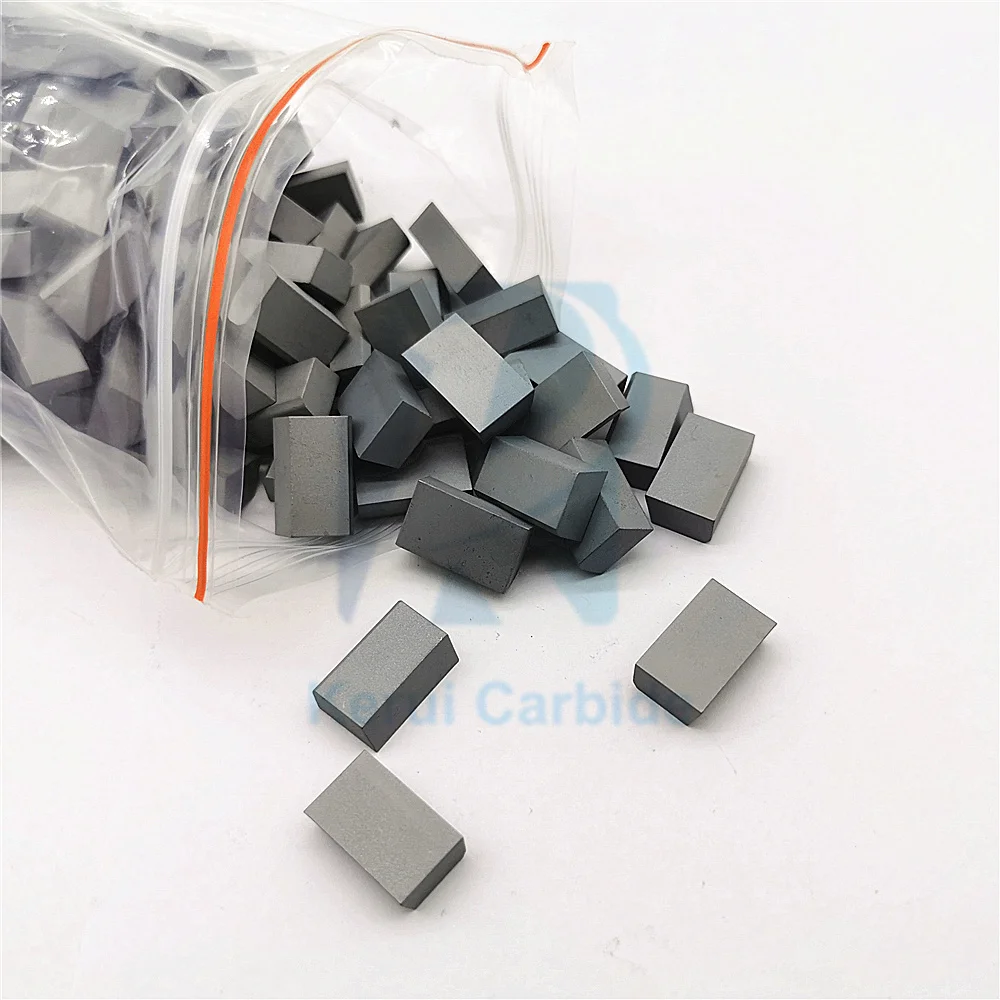

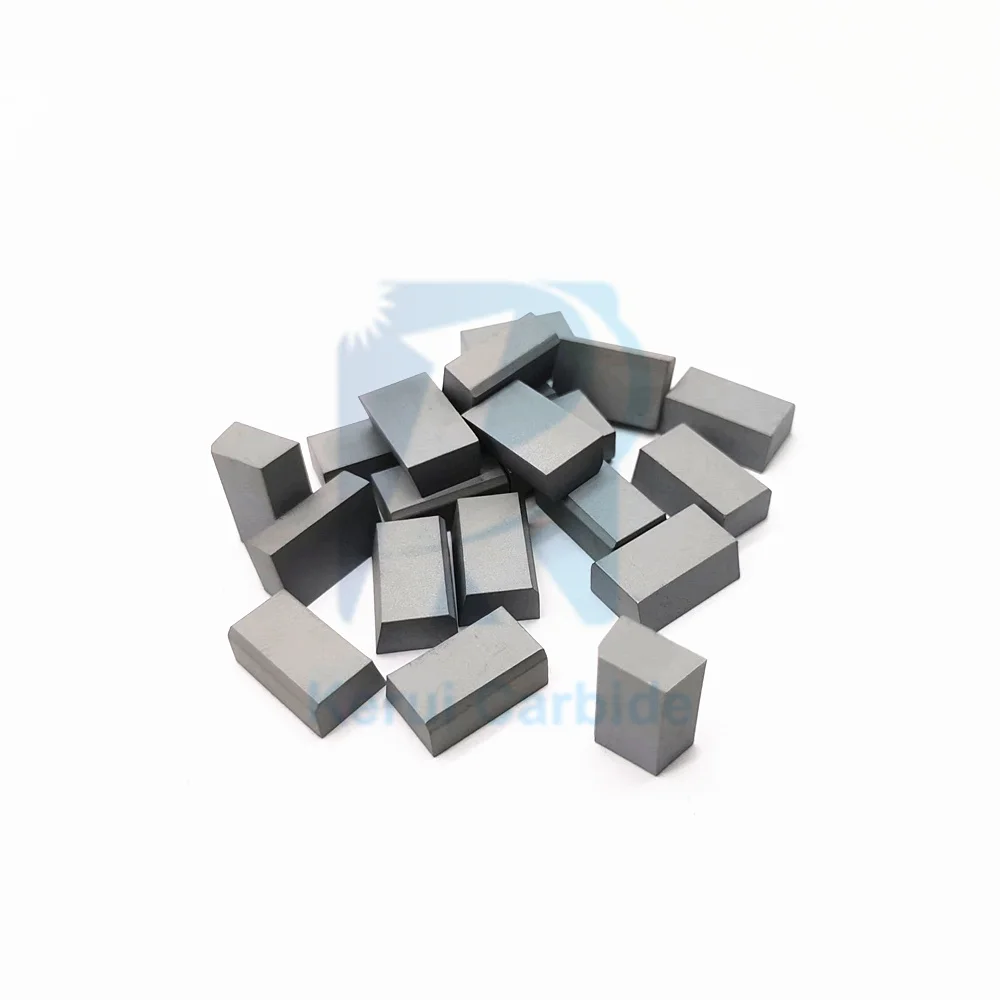

Detail pictures:



Physical and mechanical properties of main grades:



Grade	ISO grade	Density	Hardness	TRS
		(g/cm3)	(HRA)	(Mpa)
YG6	K20	14.95	91.0	1800
YG6X	K10	14.95	92.0	1800
YKM6A	K10	14.95	92.5	1800
YG8	K30	14.7-14.8	90.0	1950
YT5	P30	13	90.8	1900
YT14	P10-20	11.5	91.5	1500
YT15	P10-20	11.3	91.8	1450
YW1	M10-20	13.1	91.5	1600
YW2	M10-20	13.1	91.0	1600
YS25	P25	12.8	91.5	1900
YC30S	P30	12.8	91.0	2000
ZP35	P35	12.8	91.0	2000
YC40	P35	13.2	90.0	1850

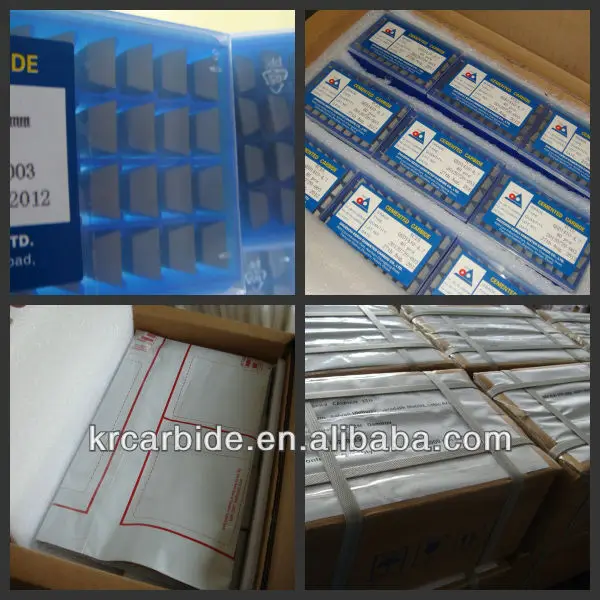

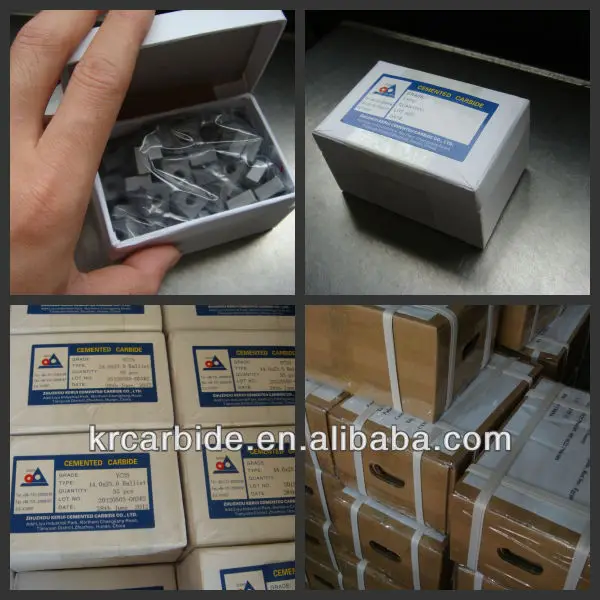

Packing & Transportation:

Paper box of packing way



 &   plastic pallet of packing way   for your choose:







ZhuZhou Kerui Cemented Carbide Co.,Ltd  is one of the most well-known Manufacture in China mainland-ZhuZhou Carbide Base.

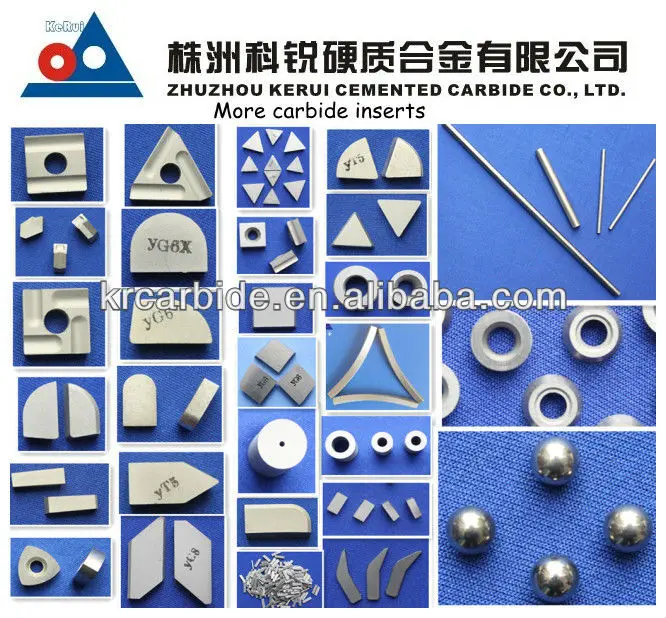

Our Tungsten Carbide inserts of Main product range covers:

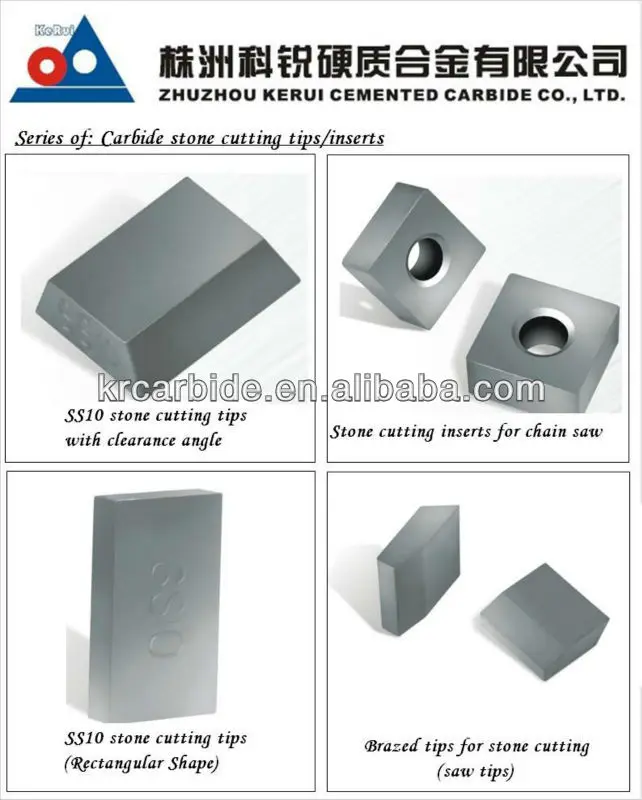

 brazed tips,milling inserts,stone cutting tips,carbide buttons,carbide bars for VSI crusher,wear parts,carbide die as well as carbide strips and rods etc.







Please feel free contact me for any inquiries,

We are free talk on line as belowing contact way:

Email: lindaguo at krcabide.cn

Tel:+86-73122278868

Mobile (WhatsApp/Wechat):+86-18973330019
