Steel Metal Roof Sheet Roll Forming Machine Price

Components of Machine and Main Description

Components of Machine

Main Description

1

Automatic hydraulic uncoiler(according the machine and your requirement)

1.Loading Capacity:Max:10 Tons

2.Main motor:5 KW

3.Coil Width:Max:1250mm

2

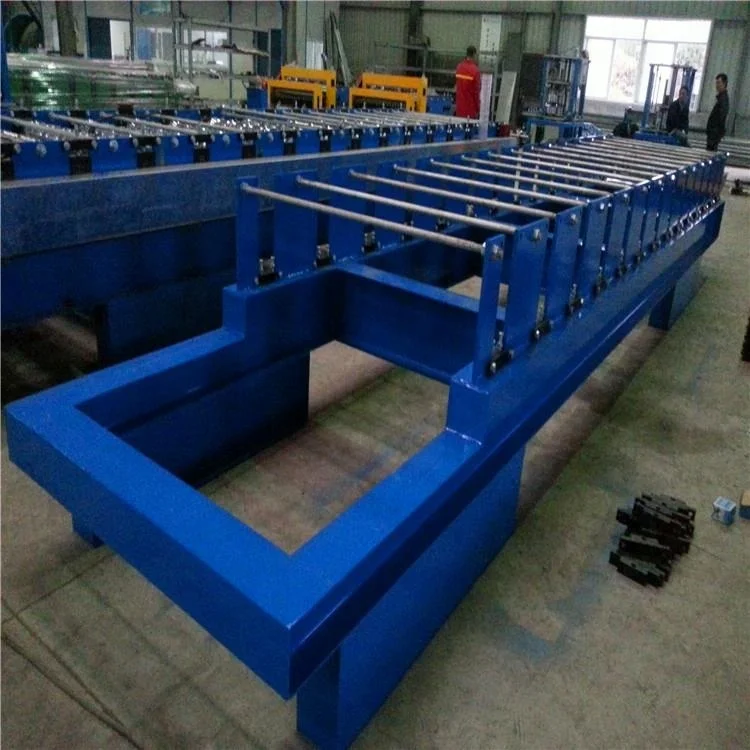

Entry Bench

Guiding the raw material into the roll forming machine smoothly

3

Feeding Section with guide

Easily for the raw material entry

4

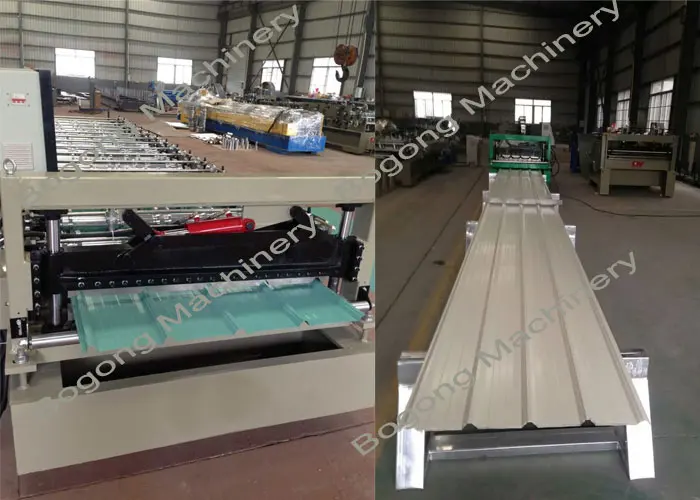

Main forming machine

Forming the panel according your requirement

5

PLC control system

Automatically control the quantity of sheet, cutting length, step length

6

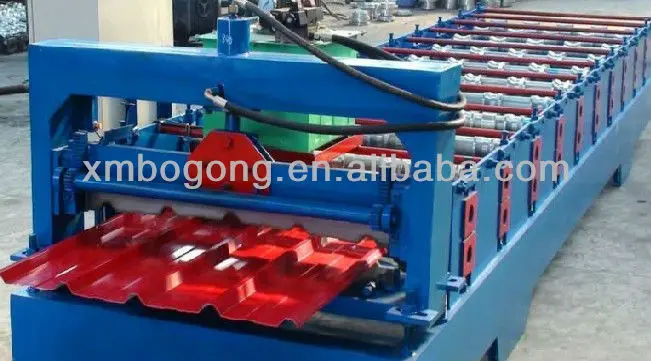

Cutting blade

Cutting the panel automatically

7

Product Rack

Can adjustable according the length of the panel (3 units)

8

Pressing device

Pressing the panel automatically

9

Mesh cover above roll former(optional)

Avoid hand go inside the forming machine

Feature:

1. Cutter Material: Cr12MoV mould steel with heat treatment

2. Shaft Material: 40Gr mould steel with heat treatment

3. Roller Material: 40Gr mould steel with heat treatment, hard Chrome Coated

4. Have fashionable, nice appearance and durable

5. Delivery time: 30% deposit and balance before delivery

6. Widely used in various industrial factory, villa building, civilian building, warehouse, etc

7. We can manufacture various kinds of machines to satisfy our customer, you can also provided the drawings what you want or the samples,  we will design the project for you accordingly
