USAGE

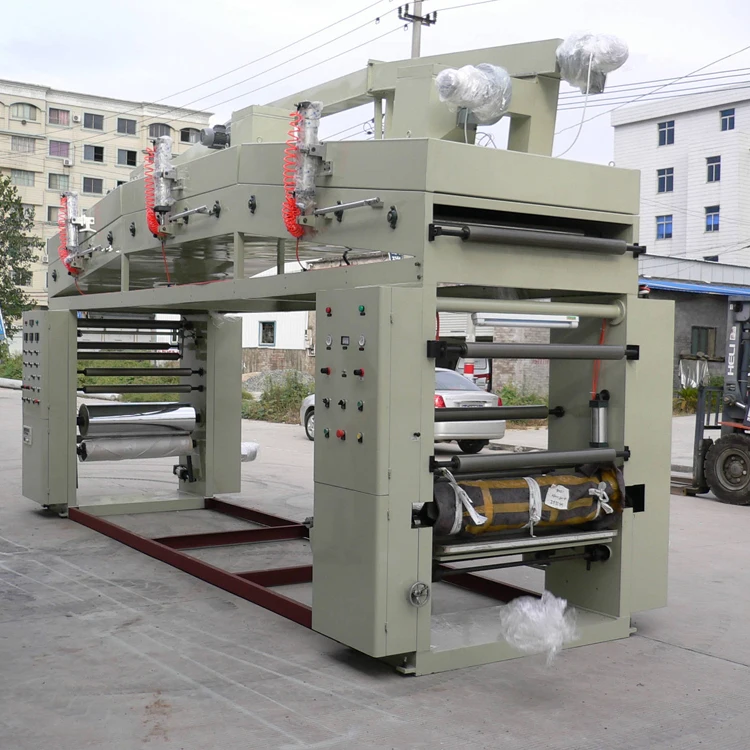

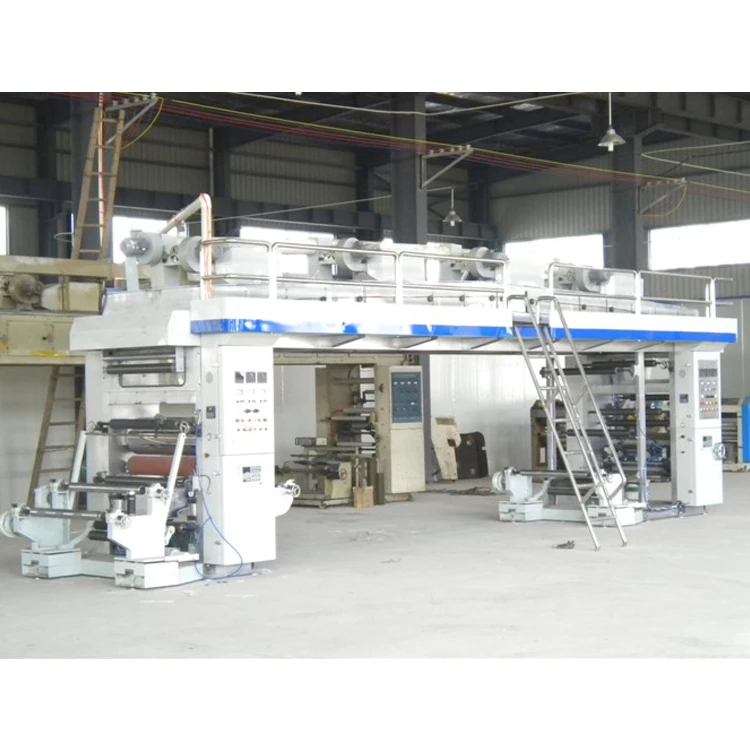

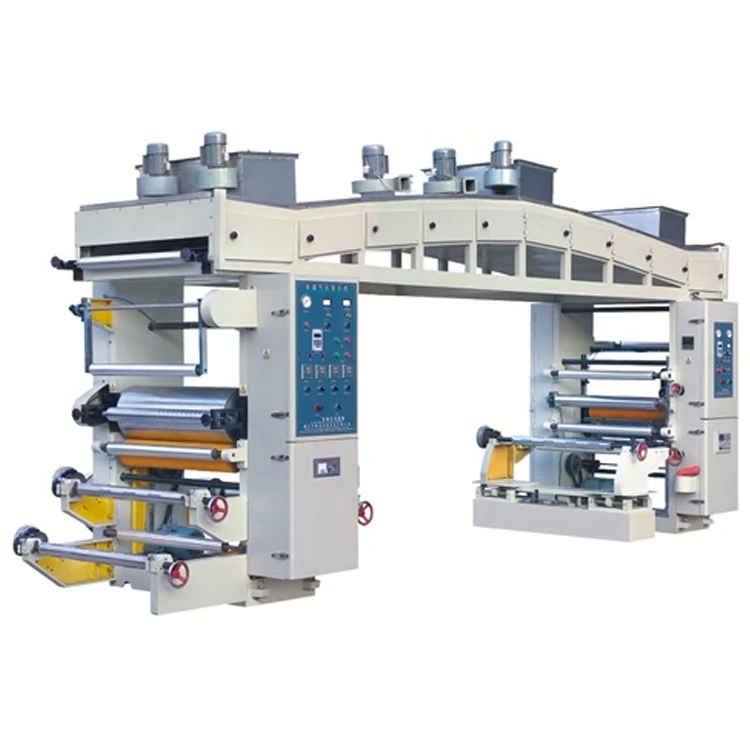

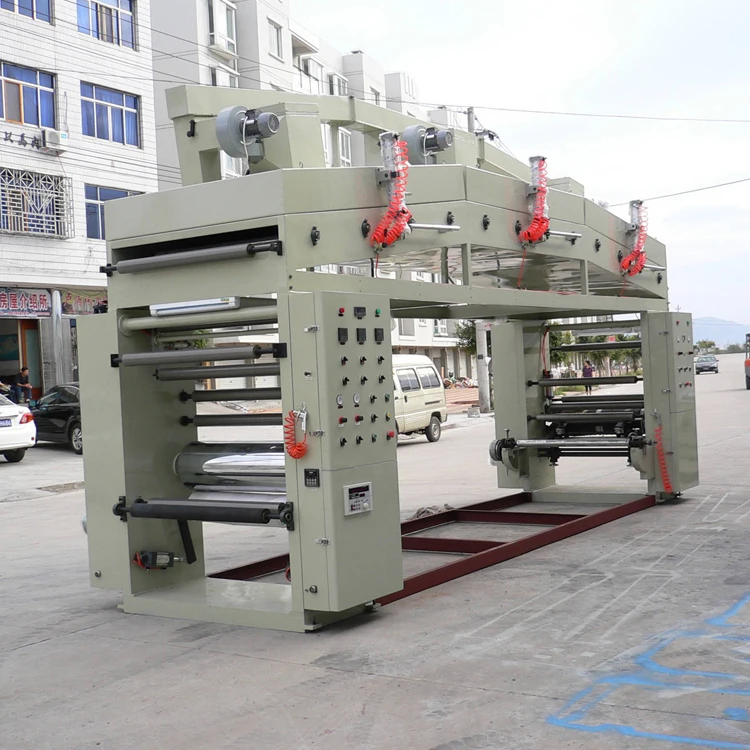

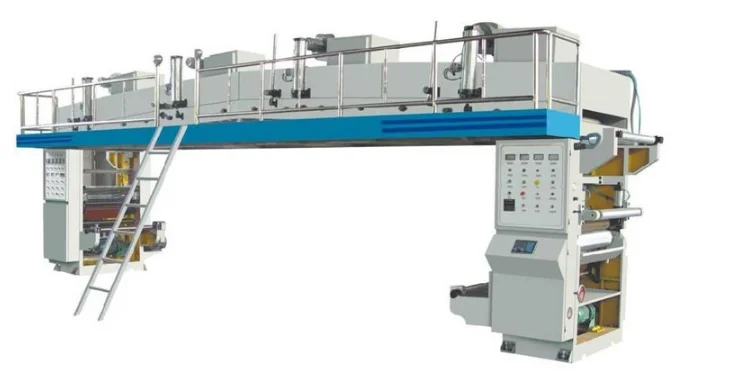

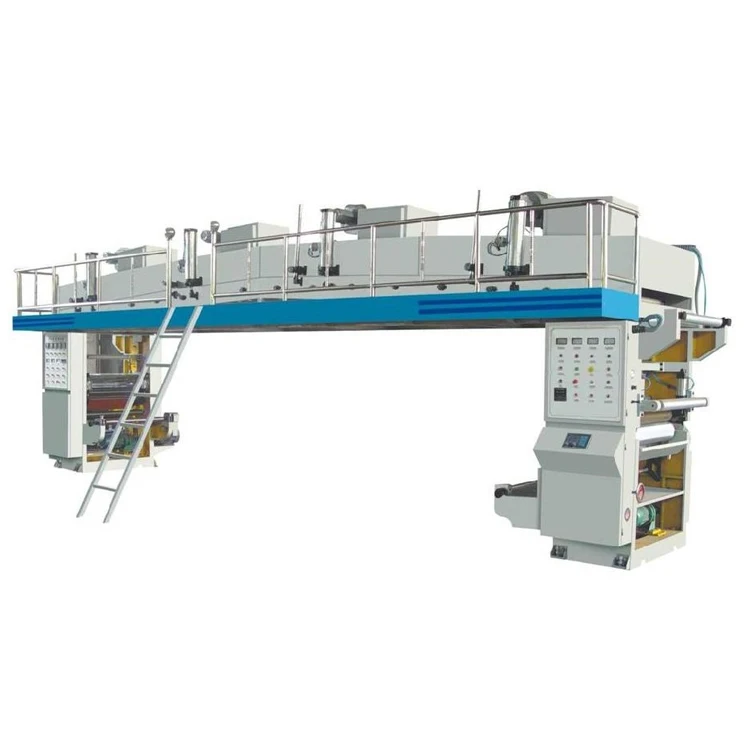

This machine is used for plastic, aluminum, paper-plastic etc. Such kinds roll materials dry laminating.
FEATURE
The drying system of this machine adopts hot air drying oven.
The control adopts Step Control, and oven channel rollers adopt linkage type, front and back pressure rolls.
Unwinding roll can use photo electricity deviation rectify system, Magnetic Tension Control. With dual-motor, dual-frequency speed adjustment.
This machine has Novel design, and fast speed, stable quality and reliable safety, and high accuracy in laminating.
Model | GF-600 | GF-800 | GF-1000 |
Number of Layers | Two | Two | Two |
Max. Laminating width | 600mm | 800mm | 1000mm |
Max. Rolling Diameter | φ500mm | φ500mm | φ500mm |
Max. Speed | 50-80m/min | 50-80m/min | 50-80m/min |
Total motor Power | 23kw | 31kw | 38kw |
Weight | 3500kg | 4100kg | 4800kg |
Overall Dimensions | 7500×1200×2520m | 8000×1430×2620m | 8500×1650×2620m |
Zhonglong plastic machinery company is professional, large and high standard manufactory of series plastic packing machines in China.
Our company was established in Year 1997, we have long history, reliable credit, and good technologies, within the years development, we also got several China national patents for plastic packing machines.
Our company professionally produce following equipment:
1.Plastic film blowing machine, like PE one and multi-layers film blowing machine, PP film blowing machine, PVC shrink film blowing machine, POF film blowing machine.
2.Bag making machines for T-shirt bags, Flat bags, Non-woven bags, Drawstring bags.
3.Printing machines: Rotogravure printng machine and flexo printing machine.
4.Plastic recycling machines like plastic granulator, plastic crusher, plastic agglomerator.
5.Plastic disposable cup making line, including sheet extruder, thermo forming machine and etc.
We welcome customers from local market and all over the world to visit our factory to inspect our ability and order machines from us.
We will always to supply our machines with best prices and high standard.
Thanks for visiting our website.
Q. Are we manufactory of trade company?
A. We are factory has big workshop space and long history.
Q. What kind machines we produce?
A. Our factory produce plastic machines, we have plastic film extruder, bag making machine, and plastic bag printing machine, plastic recycling machine, etc.
Q. What kind payment we accept?
A. Payment term like T/T, L/C, Western union, are all ok.
Q. Can we produce the machine as customer costom order?
A. Yes.
Q. Can customer send worker here to study the operation of the machine?
A. Yes.
Q. Can customer send technician here to inspect the machine and loading?
A. We welcome you to visit us for this purpose.
Q. Can we send technician abroad to install the machine and train the workers?
A. Yes. we can send technician by the order of customer.
Q. How long we need to produce the machines?
A. According to different machine model and configuation, we need different time, like 5 days to 2 months.
