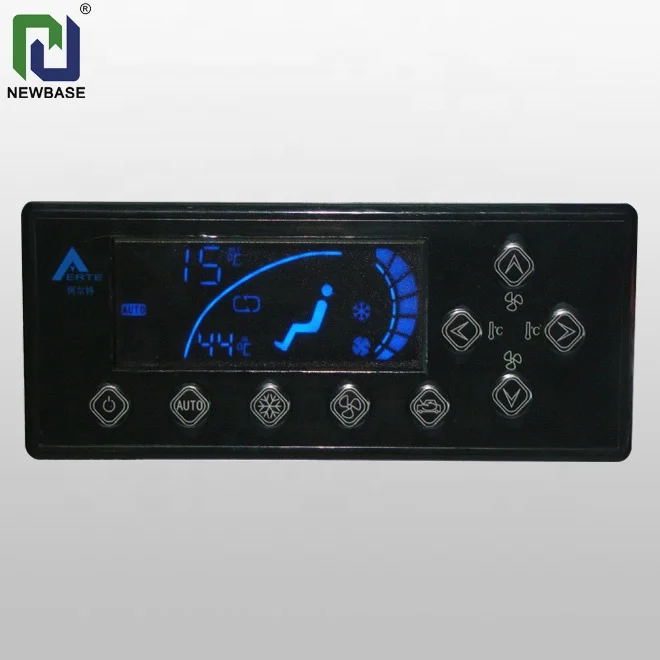

Manufacturer AC/Heat control plate OEM ODM CK200211 bus air conditioner controller(LCD display)

Power supply

24V(DC20V-DC32V)

Power consumption

3W

Current

Max.150mA

Dimensions

168X66X55mm

Input

1) Interior temp. sensor 1 (25°C,Rb=5K,B=3274)

2) Defrost sensor (25°C,Rb=5K,B=3274)

3) Pressure sensor

4) A/C power(generator)

5) ACC(battery)

6) Backlight power

Output

1) Condenser fan (max. 0.3A)

2) Fan high  (max. 0.3A)

3) Fan medium  (max. 0.3A)

4) Fan low  (max. 0.3A)

5) Fresh air on  (max. 0.3A)

6) Fresh air off  (max. 0.3A)

7) Compress clutch(max. 0.3A)

8) Excitation  (max. 0.3A)

Display

LCD(red/green/blue)

Ambient temperature

-30°C—80°C 5%-95%RH Non-condensing

Storage temperature

-10°C—70°C 5%-95%RH Non-condensing

Display precision

Set temp for dual digit display, accuracy 1°C; Interior temp dual digit display, accuracy 1°C

Temperature test standard

Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at 4°C

Connector

Plug DJ7171-3-21

Faceplate level

IP43

EMC level

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

330g
