die casting machine used for brass alloy casting
- Category: >>>
- Supplier: Ningbo Dongfang Die-Casting Machine Tool Co. Ltd.
Share on (1011697071):
Product Overview
Description

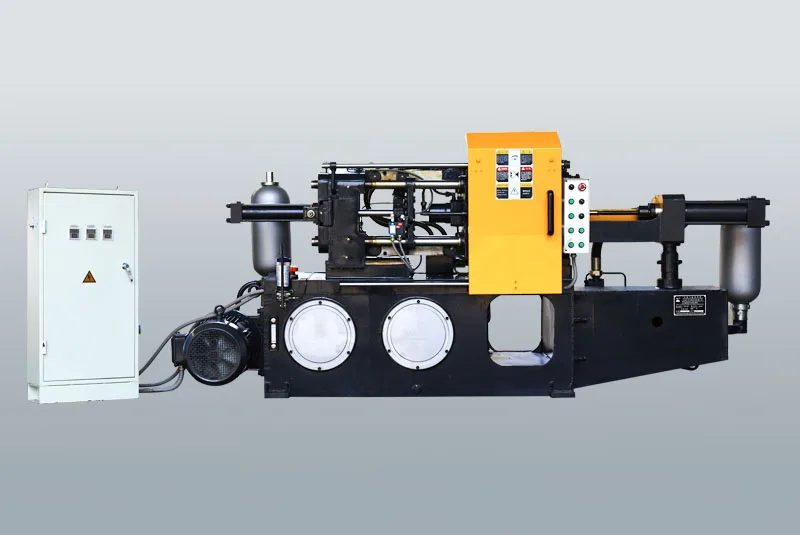

Features and applications of 25Ton copper/brass small size die casting machine
250Kn/25T Cold Chamber Die Casting Machine
Suitable for aluminum,zinc and copper alloy

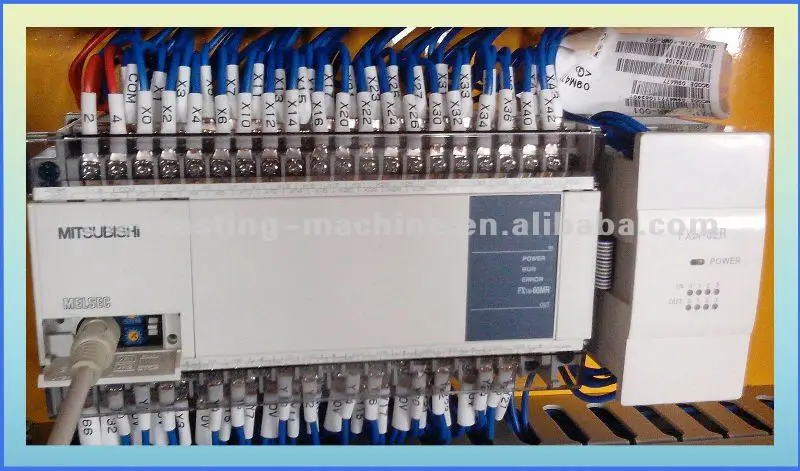

Electronics control
hydraulic drive for die casting
2-step injection system
Two kinds of driving modes as manual and semiauto
This small size die die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum,zinc and copper in industries of automobiles, motorcycles,meters and instruments,hardware and military supplies.
Electronics control,hydraulic drive,locking that is tensile,operational safety,2-step injection system that is fast and slow speed can be separately adjusted.
There're two kinds of driving modes as manual and semiauto. It is a kind of small size pressure die casting machine for Aluminum,zinc,copper alloy.

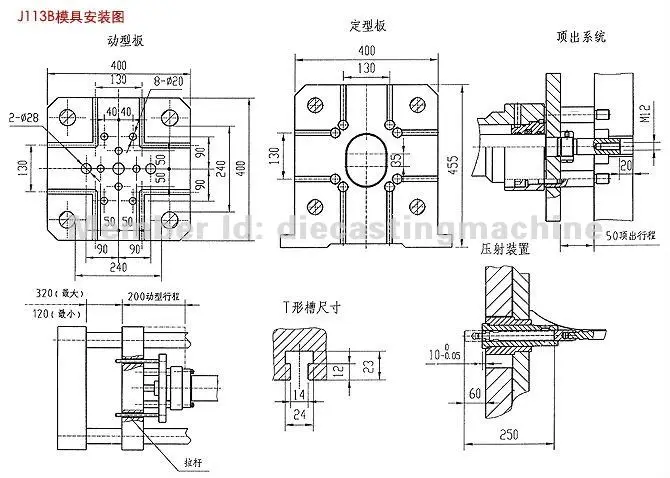

SUBJECT | UNIT | J113B | ||
Die lock force | kN | 250 | ||
Size of moving platen (HXV) | mm | 400X400 | ||
Inner space between bars(HXV) | mm | 240X240 | ||
Thickness of die block(Min./Max.) | mm | 120/320 | ||
Stroke of moving platen | mm | 200 | ||
Ejection stroke | mm | 50 | ||
Ejection force | kN | 26.9 | ||
Injection force | kN | 35 | ||
Injection stroke | mm | 250 | ||
Diameter of shot sleeve | mm | 25 | 30 | / |
Fluid metal dosage per shot(AL) | kg | 0.3 | ||
Injection pressure (Min.~Max.) | MPa | 49.5~71.3 | ||
projecting area of casting | cm2 | 50.5 | ||
Dry cycle | s | 4 | ||
Pipe line pressure | MPa | 7 | ||
Motor power | kW | 7.5 | ||
Machine weight | kg | 2000 | ||
Overall dimensions(LXWXH) | mm | 3030X1060X1300 | ||
FAQ
Q:Are you a manufacturer of a trade company?
A:We are a manufacturer.And we have our own Export rights.
Q:If we don't know how many tons machine will be suitable for our products ,what we should do ?
A:It 's no proplem.You can send us the the weight ,size and the materials of your products and our professional master will recommend the most suitable machine with you .
Q:How is your delivery time?
A:Generally ,we can dilivery the machine within 7-10 days after receiving your advance payment.
But it also depends on the iterm and the quantity of your order.
Q:How about the payment terms?
A:Generally ,the 30% T/Tdeposite ,the balance 70% T/T before delivering the goods.
Q:How about your warranty and after-sales services?
A:We have one one year warranty for the machine .Our professional masters could overseas to help to install and debug the machine also providing free training until you have got the skill.
Q:How about your packing ?
A:Generally ,the machines are in nude packing and the spare parts are in wooden cases.
If you want to know more details pls contact us without hesitate.
