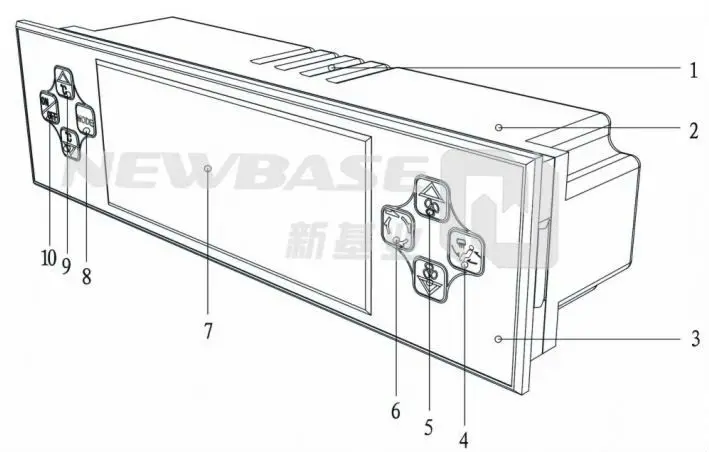

A/C Switch, CG220213 truck cabin hvac air conditioner internal climate control panel

Power supply

DC24V(DC20±1V~ 32±1V)/DC12V(DC10V-DC16V)

Power consumption

2.5W

Current

Max.200mA

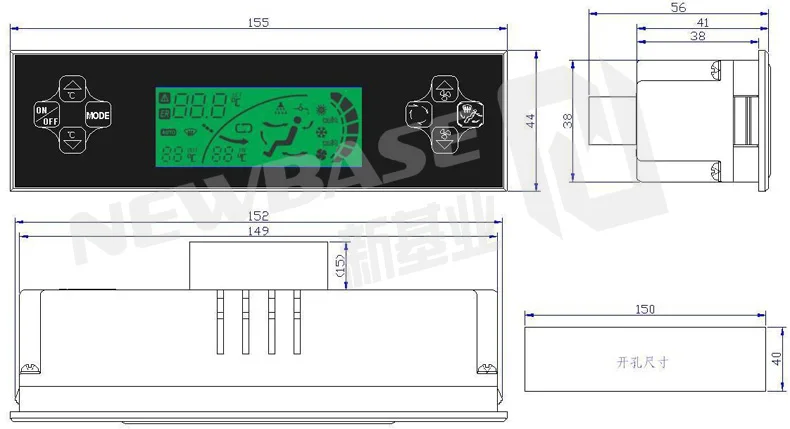

Dimensions

155X44X41mm

Input

1) Inside temp. sensor(25°C,Rb=5K,B=3274)

2) Defrost sensor(25°C,Rb=5K,B=3274)

3) high /low pressure switch

4) ACC(battery)

Output

1)Demist output (max 0.3A)

2)Cooling output (max 0.3A)

3)Front blow state (max 0.3A)

4)Back blow state (max 0.3A)

5)Heating output (max 0.3A)

6)Blow feet state (max 0.3A)

7)Fresh air output (max 0.3A)

Display

Blue LCD

Ambient temperature

-30°C—80°C 5%-95%RH Non-condensing

Storage temperature

-10°C—70°C 5%-95%RH Non-condensing

Display precision

Dual digit display of set temp., accuracy 1°C; dual digit display of inside temp. accuracy 1°C

Humidity test standard

Temp. control based on the temp. of return air inlet, the defrost sensor controls defrost temp., defrost on at 2°C, defrost off at 4°C

Connector

Plug  DJ7131-3-21

Faceplate level

IP43

EMC level

EN50081&EN50082-2

Security level

Applied to EN61010-II, Pollution degree: II

Weight

145g
