Easy operation tin can welding machine for 18liter square petrol oil can making
- Category: Seam Welders >>>
- Supplier: Suzhou First Packing Machinery Co. Ltd.
Share on (1015091202):
Product Overview
Description
Product Name:tin can welding machine for 18liter square petrol oil can making
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems
Suzhou First Machinery provide a complete range of tin can making machines and components-including slitters,transfer system,welding machines,seam protection systems,body formers and endmaking systems
3 Piece Metal Packaging Industry
Suitable:Food Chemical,Latex Paint,Motor Oil,Putty,Vacuum Cleaner,Ventilation Pipe.
Material:Tinplate,Galvanized, Stainless Steel,Cold Roller Sheet
Type:Round/Square/Conical/rectangle
Product:Cans,Pails,Drums or Irregularly Shaped Containers
Size:0.25~25Liter
Products Description

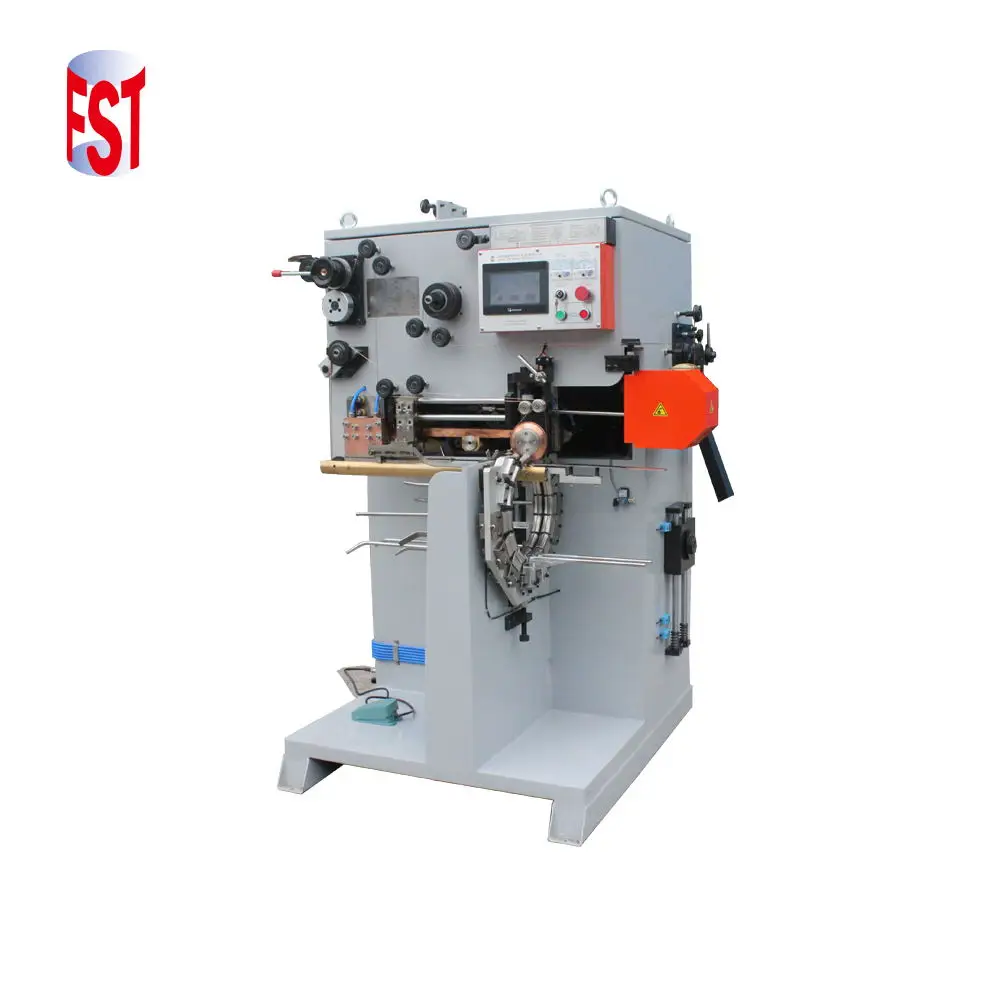

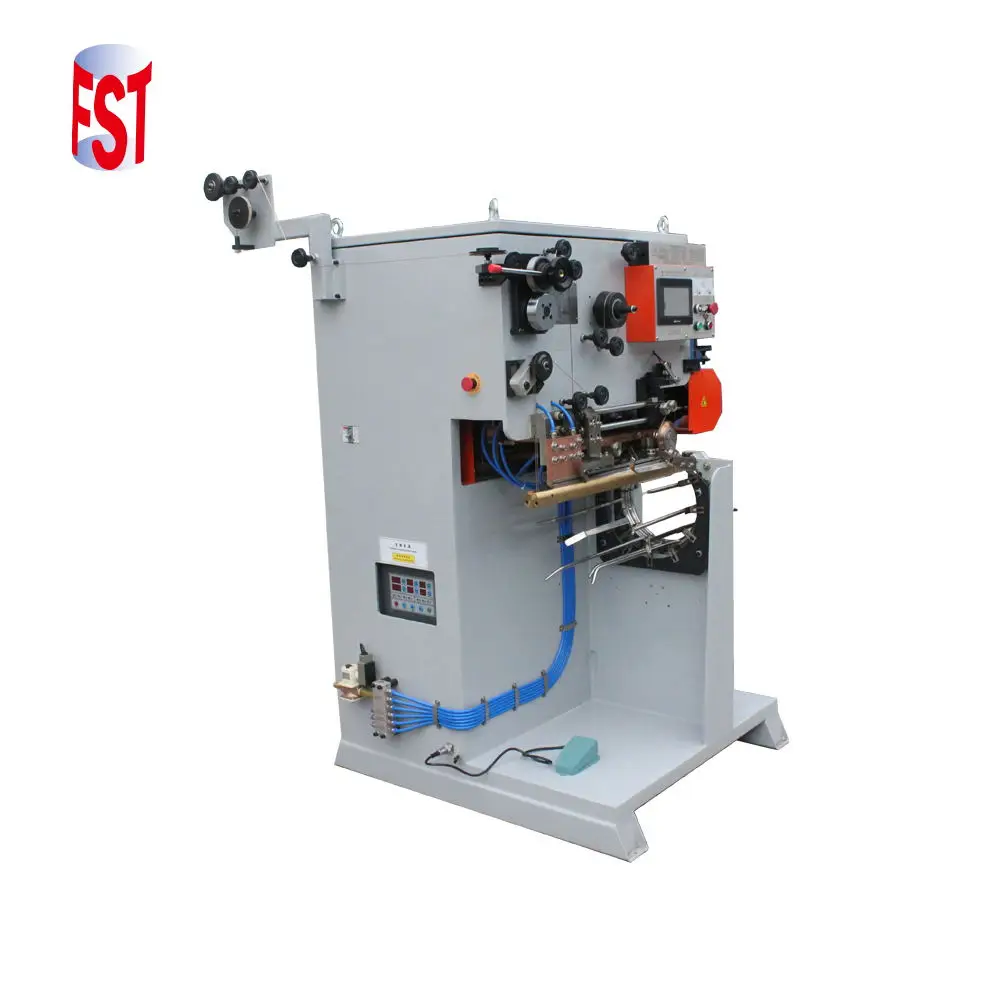

FB2000 Semi automatic Tin Can Seam Welder
FB2000 Semi automatic Tin Can Seam Welder is a special equipment for metal tin can making industry,use to welding tin can body,change the calibrating tool can welding different size of cans.
Features:
1/Panasonic PLC and Mitsubishi frequency conversion speed governor control system,
2/Welding frequency is adjustable with constant current and attenuation function at front & back end
3/Sensor can precise control the welding current location at front & back end,change copper wire speed.
4/Change the gauge tooling can welding different size of cans.
5/Comprehensive monitoring the equipment running,with failure self-detected alarms and provide solution system.
2/Welding frequency is adjustable with constant current and attenuation function at front & back end
3/Sensor can precise control the welding current location at front & back end,change copper wire speed.
4/Change the gauge tooling can welding different size of cans.
5/Comprehensive monitoring the equipment running,with failure self-detected alarms and provide solution system.
PLC:Panasonic in Japan
Frequency Converter:Mitsubishi in Japan
Photoelectric Switch:Panasonic in Japan
Rotary Encoder:OMRON in Japan
Water Detection Switch:SMC in Japan
Low-voltage Electrical Appliances:Schneider in France
Low-voltage Electrical Appliances:Schneider in France
Welding Wheel Material:Beryllium Copper
Z-bar Material:Carbide
Product Paramenters
Model | FB2000-A | FB2000-B |
Input Power | 3N 380V/50Hz 15KVA | 3N 380V/50Hz 15KVA |
Welding Speed | ≤12m/min | ≤12m/min |
Productivity | 15cans/min | 30cans/min |
Diameter Range | Φ65~Φ290mm | Φ52~Φ180mm |
Height | 420mm(500mm) | 400mm |
Welding Thickness | 0.28~0.42mm | 0.18~0.4mm |
Overlap | 0.6~1mm | 0.4~0.6mm |
Copper Wire | Φ1.5 T2 | Φ1.5 T2 |
Cooling Water | 0.3Mpa 8~10L/min ≤20℃ | 0.3Mpa 8~10L/min ≤20℃ |
Net Weight | 1350kg | 1350kg |
Dimension | 1350x1450x2000mm | 1350x1450x2000mm |
Recommend Products
Exhibition
2015 Cannex in Guangzhou~2017 Metpack in Germany~2018 Cannex in Guangzhou
Company Profile
Suzhou First Packing Machinery Co.,Ltd.was founded in 1997,It's a professional company which specialize in designing and manufacturing tin can making equipment,the products are widely used in petroleum,chemical,paint,
coating,ventilation duct and etc.
