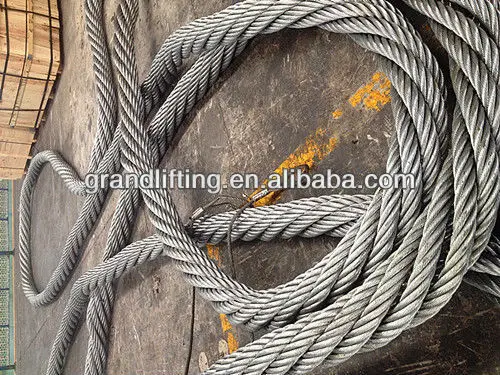

Stainless Steel Wire Rope

Product Overview

Description

1) standard: DIN,JIS ,T/S  etc

2) construction: 6*12+7FC,6*24+7FC

3) diameter(mm): 2mm-60mm

4) nominal tensile strength(Mpa): 1570/ 1670/ 1770 /1870 /1960 /2060

5) main application: Suitable for vertical well drilling hoisting , cage channel of vertical well drilling, port load and unload derrick, and tower crane







Construction	mm	kg/100m	TS:1570	TS:1670	TS: 1770
6*12+7FC	8	16.1	21	22.3	23.7
	9	20.3	26.6	28.3	30
	10	25.1	32.8	34.9	37
	11	30.4	39.7	42.2	44.8
	12	36.1	47.3	50.3	53.3
	13	42.4	55.5	59	62.5
	14	49.2	64.3	68.4	72.5
	16	64.3	84	89.4	94.7
6*24+7FC	8	20.4	28.1	29.9	31.7
	10	31.8	44	46.8	49.6
	12	45.8	63.3	67.3	71.4
	14	62.3	86.2	91.6	97.1
	18	103	142	152	161
	20	127	176	187	198
	24	183	253	269	285
