CUT50D DC Dual Voltage 110V&220V mini inverter air plasma cutter
- Category: >>>
- Supplier: Shanghai Rongyi Welding Corporation
Share on (1021666192):
Product Overview
Description
Features of CUT50D DC Dual Voltage 110V&220V mini inverter air plasma cutter:
1. MOSFET inverter and precision constant current feedback control technology, soft switch, DC output, 100 kHz of inverter frequency;
2. Wide working voltage range, strong adaptability to electricity power grid, high ability of interference resistance, automatic voltage compensation, stable cutting current and steady arc;
3. Compact structure, portable, energy saving, easy for maintenance
4. 110/220v duel automatic input voltage, automatic input voltage shift;
5. Intensive arc, high cutting speed, narrow and smooth kerf, continuous current regulation, little distortion for work-piece, safety and reliable for operation;
6. Applicable to automatic cutting equipment;
7. Suitable for carbon steel, stainless steel, aluminum, copper, etc.

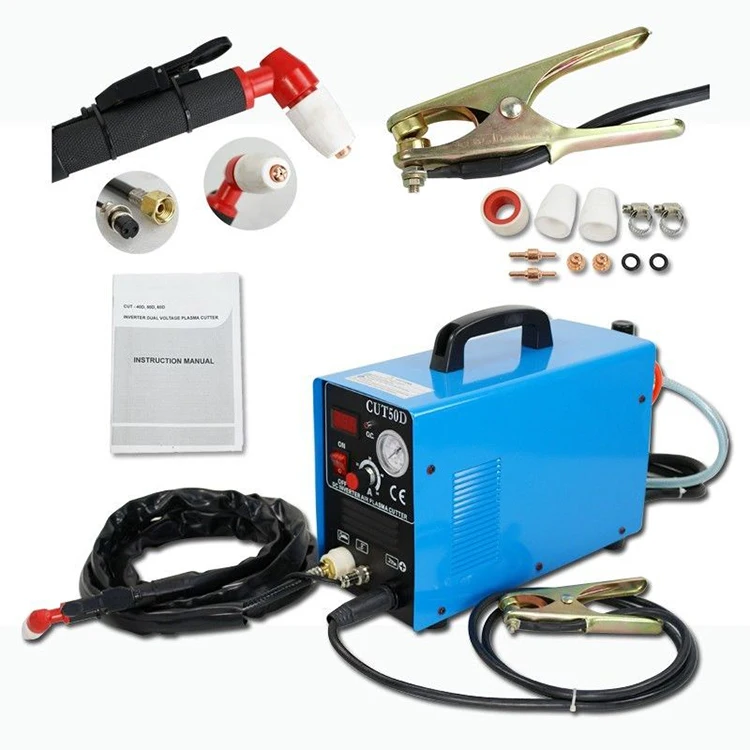

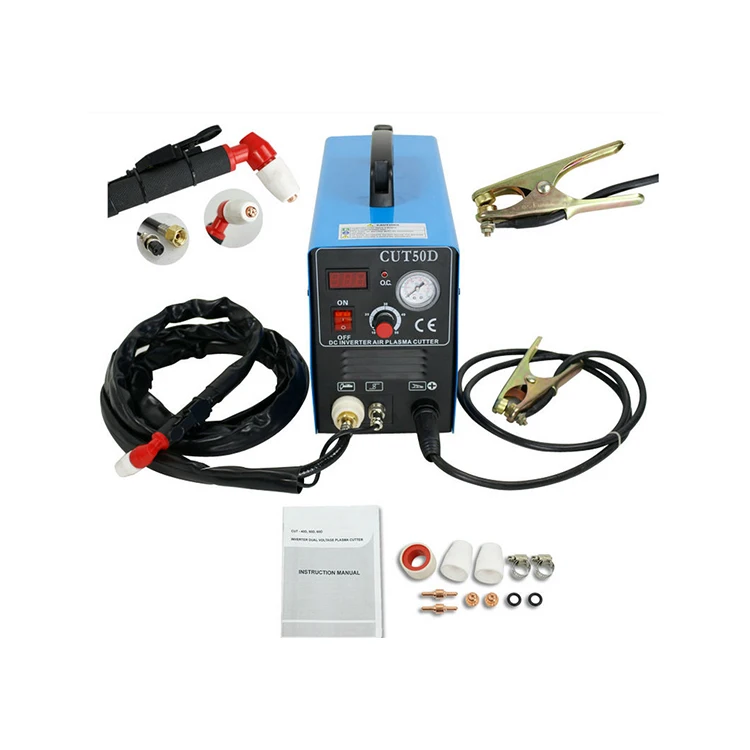

8. Complete accessories: air cooling cutting torch, earth clamp, compressed air regulator, etc.
Parameters of CUT50D DC Dual Voltage 110V&220V mini inverter air plasma cutter:
Spec. | CUT50D | ||
Power supply voltage | 1-ph AC 110/ 220±10% V |
| |
Power frequency | 50~60 Hz | ||
Power supply capacity | 6.3 kVA | ||
Rated input current | 28 A | ||
No-load voltage | 230 V | ||
Output current range | 20-50 A | ||
Output voltage range | 88-100 V | ||
Duty cycle | 60% | ||
Efficiency | 85% | ||
Tip hole diameter | 1.0 mm | ||
Arc striking model |
| ||
Cosφ (η) | 0.93 | ||
Air pressure | 0.4 MPa | ||
Cutting thickness | Steel | 1-10 mm | |
Aluminum | 1-7 mm | ||
Copper | 1-5 mm | ||
Air flow | 110 L/min | ||
Insulation grade | B | ||
Protection grade | IP 21 S | ||
Net Weight | 9.2 kg | ||
Dimensions (mm) | 385*155*295 | ||
* BUY WITH CONFIDENCE.
* QUALITY MACHINES MANUFACTURED BY RONGYI.
* FULL SERVICE AND PARTS BACK UP.
* 12 MONTHS WARRANTY.
The data in the above table is only for reference. Please subject to the nameplate
on the device.
