QKF JM Precision Cross Slide Vise for Milling/Drilling Machines from Jiangsu

Product Overview

Description

We're the factory, our main advantages is

a.new designs development!

b.the best prices!

c.QCC Management!



d.The shortest delivery time!!!

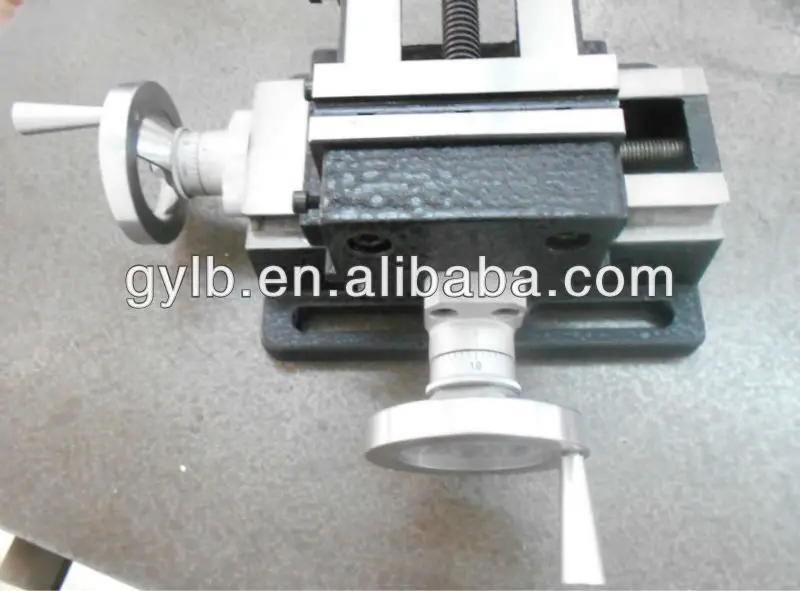

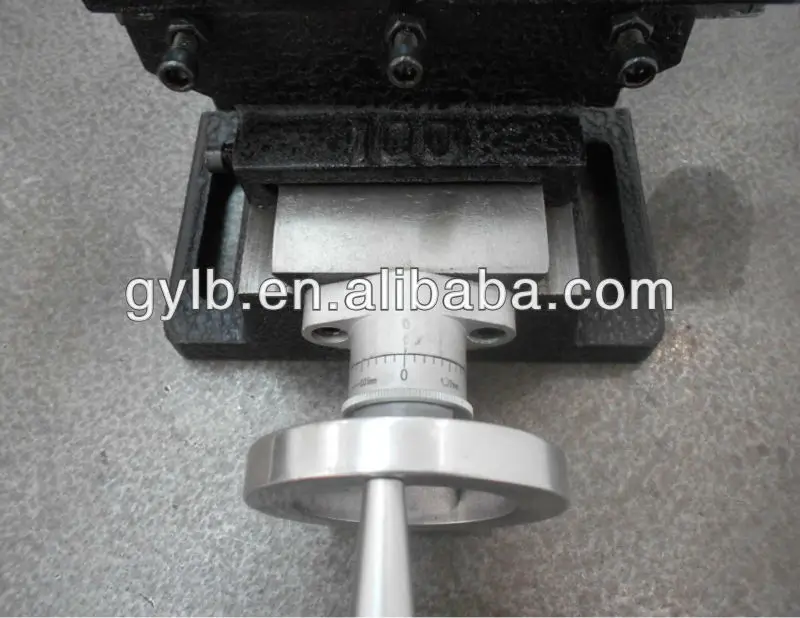

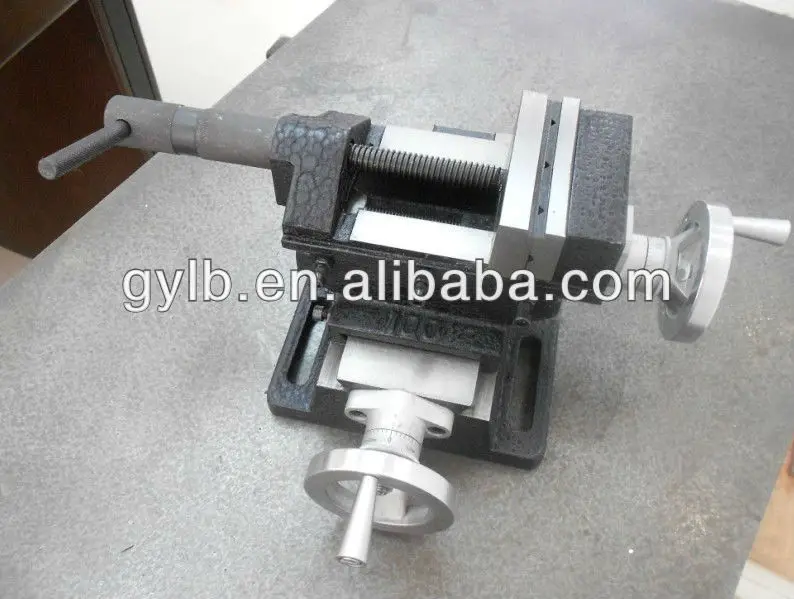

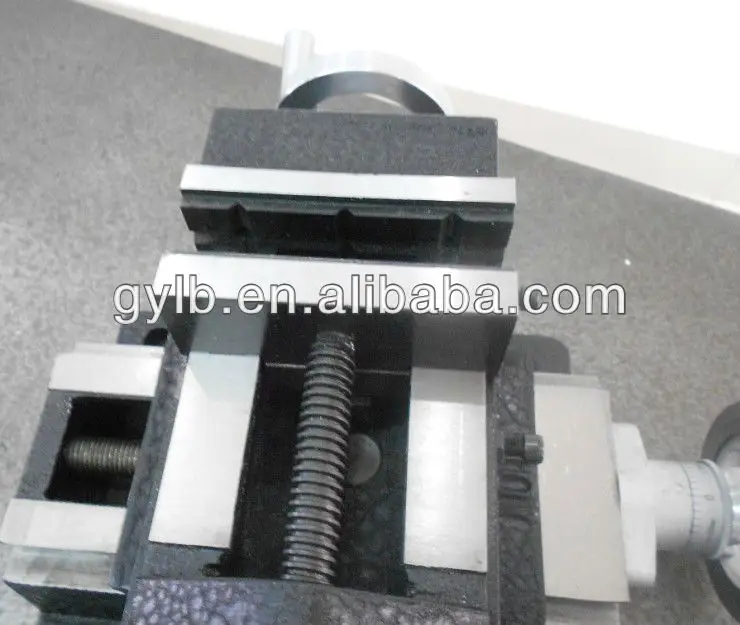

PHOTO SHOWS:







Product Name:  QKF-JM Cross Slide Vise

Description:

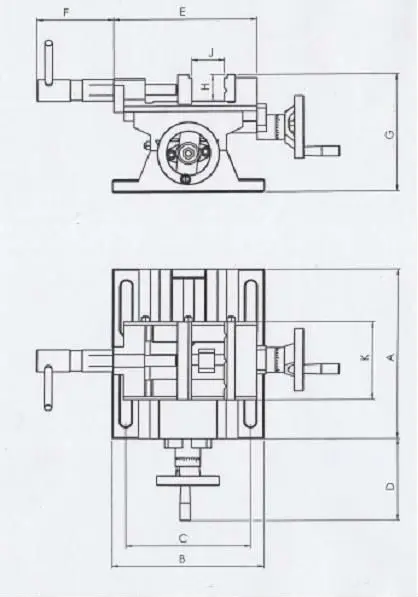

Model	A	B	C	D	E	F	G	H	J	K	X travel	Y travel	QTY/ctn	Packing size	NW./GW.
4	218	175	140	105	184	100	156	34	85	100	140	80	1	37*31*19.5	10.7/14
6	270	205	170	105	245	135	170	40	135	150	150	110	1	47*36.5*21	15.5/18
8	320	235	200	105	284	165	185	54	165	201	160	140	1	54*42*24	23.5/28



Sample Charge:



1.Samples charge:According to your design . Sampling time:3-5days



Manufacturing process :
