water treatment 35w Corona 3g,5G SPA Ceramic Tube Ozone Generator Parts From Trume Technology

Product Overview

Description

Products Name : Ceramic tube 3G / H , 5G/H ozone Suite Ozone Generator



Products Parameters:

model:TS-3GAX

Power consumption:35W

tube size :  155*68*68MM

power size:138*56*40MM

cooling way: air-cooled

air flow:10L/min

ozone density :2.2mg/L

ozone production:1.3g/H

sets Weight:0.92kg

 tube weight:0.52kg

Power weight:0.4kg

Oxygen flow:3L/min

ozone density :20mg/L

ozone production:3.6g/H

model:TS-2GAX	air-cooled	air flow:10L/min	Oxygen flow:3L/min	sets Weight:0.92kg                tube weight:0.52kg                Power weight:0.4kg
Power consumption:35W		ozone density :2.2mg/L	ozone density :20mg/L
tube size:155*68*68MM            power size:138*56*40MM		ozone production:1.3g/H	ozone production:3.6g/H



The following ceramic tube ozone generator features:

High efficiency: narrow discharge gap (0.5MM-0.8MM) the ozone conversion rate, low noise.
Low power consumption: high-voltage high-frequency corona discharge, the power consumption rate of 8 ~ 10KW.h/kgO3
Small size: effective conservation of volume, compared with the production of products, the tai liters technology ceramic ozone unit volume 1/3-1/2.
No breakdown: pipe operating voltage is only 10% of its breakdown voltage, high dielectric constant.
High quality: dielectric material with imported high purity alumina sintered at high temperature, high-precision internal and external burnish processing, uniform discharge, 316L stainless steel electrodes and closely firmware the PTFE gas nozzle, corrosion-resistant high-purity fluorine rubber ring seal , external air cooling aluminum alloy cooling technology using the latest sunflower, effective heat dissipation, long working hours ozone ultra-low attenuation <5%, long life, up to 20,000 hours.

Products Appliance :

1.Ozone Products Machine

2.Ozone Disinfector Machine

3.Ozone Sterilizer Machine

4.Hotel Deodorizer Machine

5.Hospital Sterilizer Products

6.SPA and Hot Tub

7.Ozone Water Dispenser

8.Washer Machine

9.Dishwasher

10.Drinking water Purification

11.Aquaculture

12.Swimming Pool Disinfector Machine

13.Big Ozone Generator

14.Sewage disposal Facility

15.industrial water treatment

16.waste water treatment

17.Public Sterilization machine

18.killing germs bectera machine

19.water purifier machine

20.water cleaning products

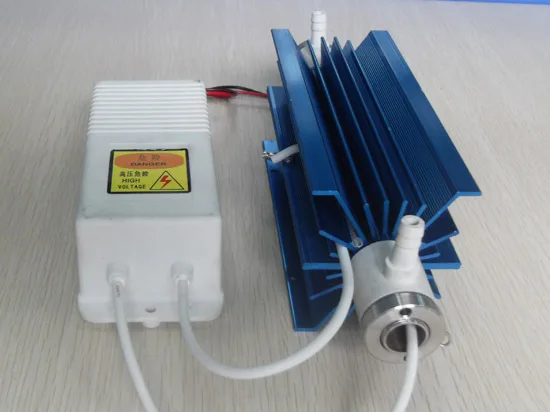

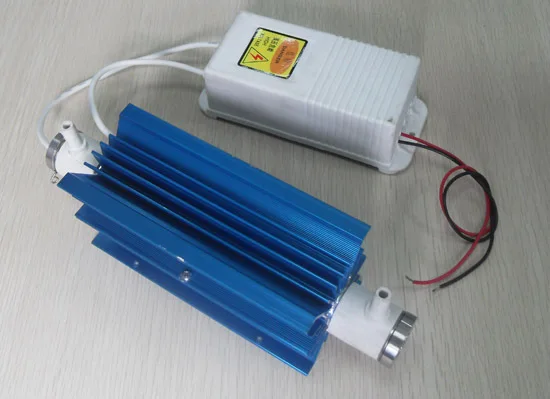

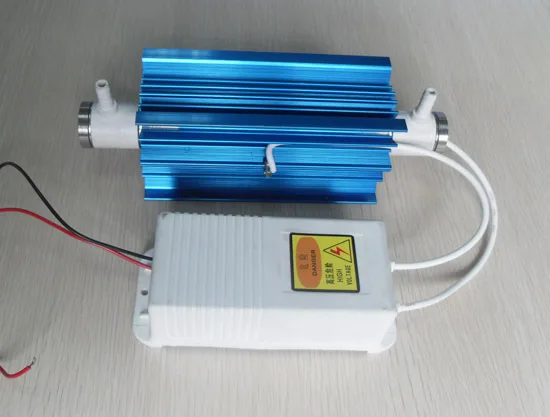

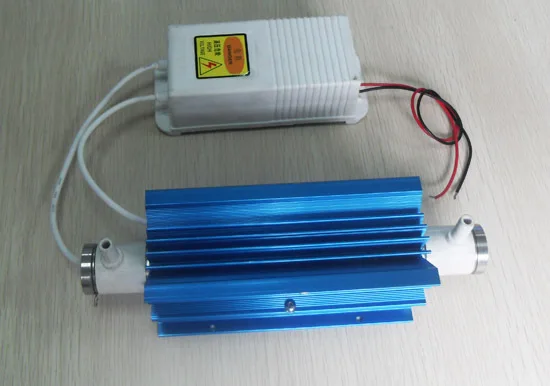

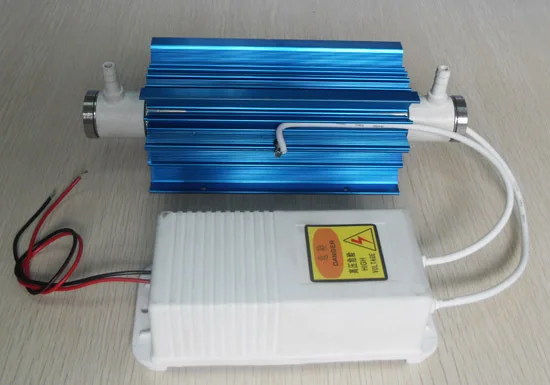

Products views :
