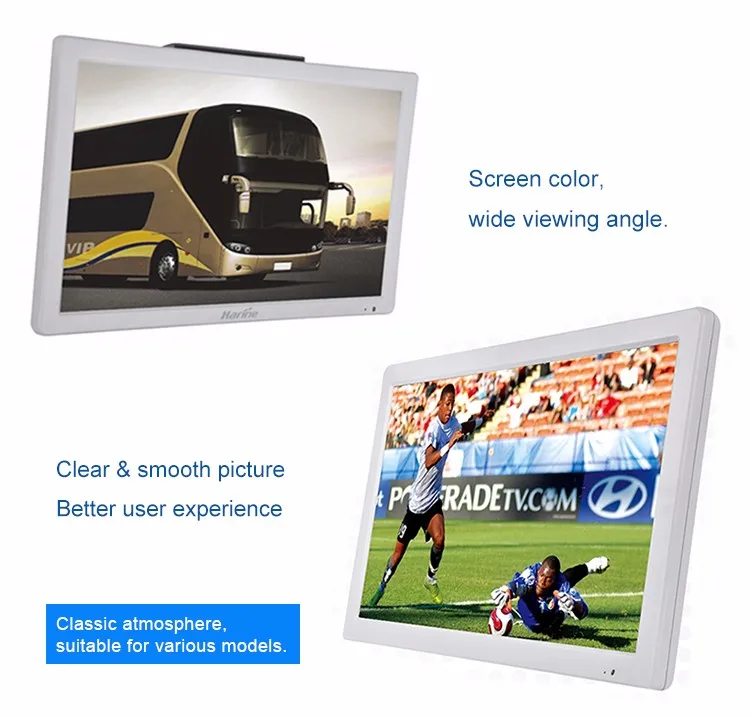

lcd auto monitor with av input for bus, coach ceiling monitor

Product Overview

Description

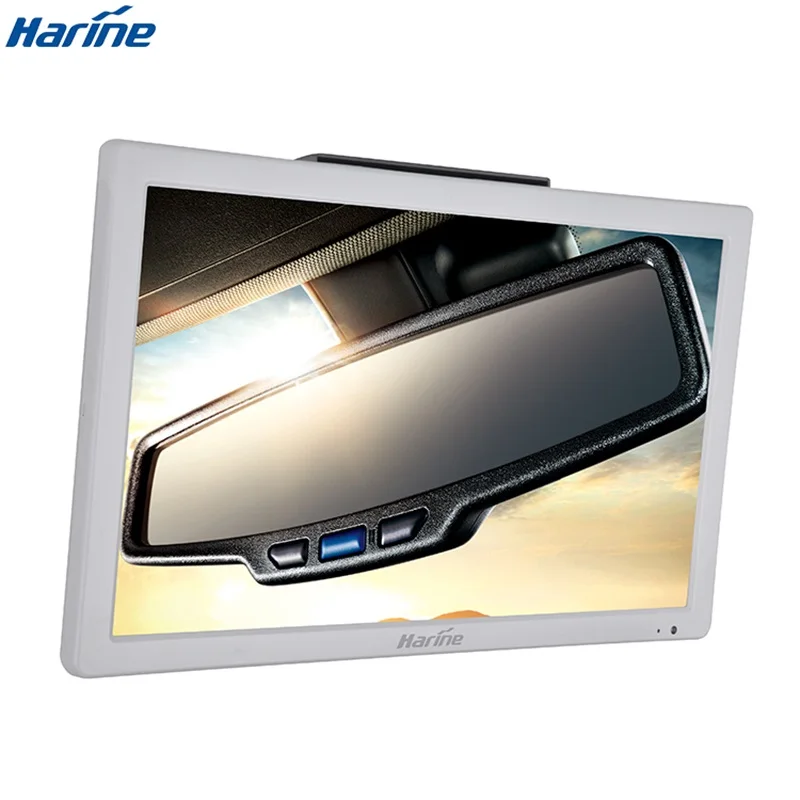

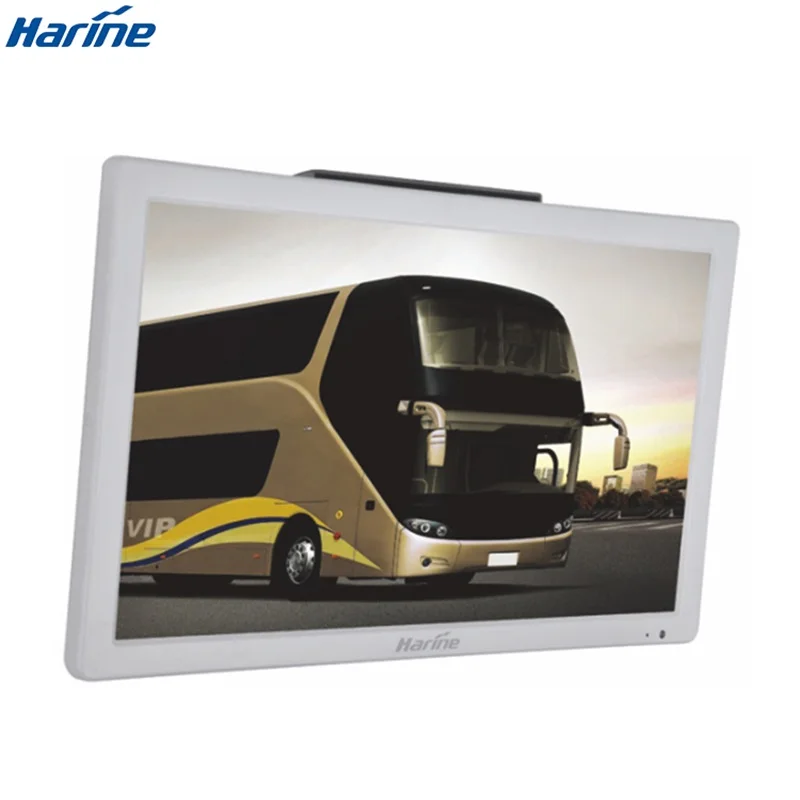

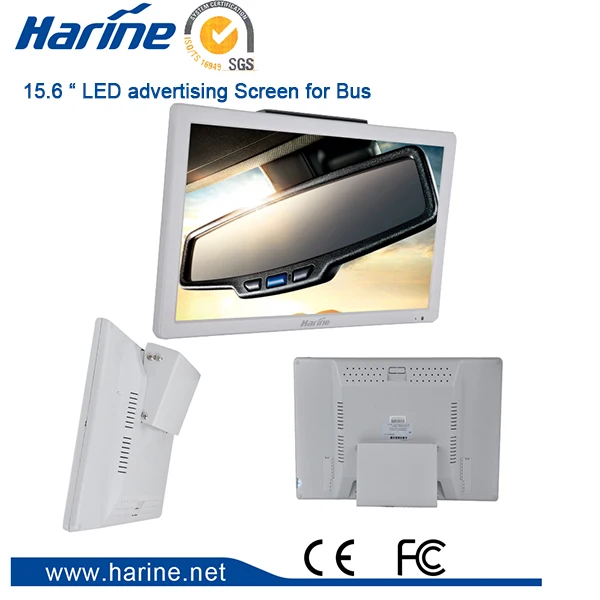

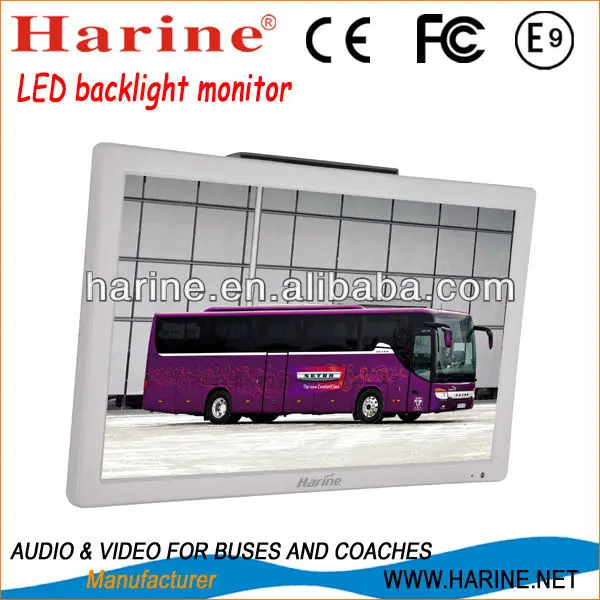

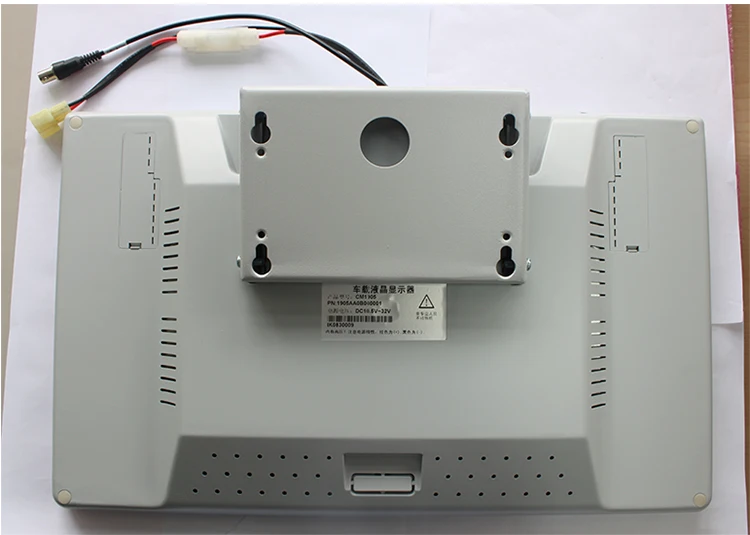

Fixed LED backlight monitor for bus



size for choose : 15.6 inch  18.5 inch  21.5 inch



Detail	Fixed LED backlight monitor
Display Screen	15.6 inch	18.5 inch	21.5 inch
LCD Screen	TFT LCD screen	TFT LCD screen	TFT LCD screen
Aspect Ratio	16:9	16:9	16:9
Resolution	1366(H)×3(RGB)×768(V)	1366(H)×3(RGB)×768(V)	1920(H)×3(RGB)×1080(V)
Contrast Ratio	600:1	1000:1	1000:1
Brightness	220cd/m2	250cd/m2	250cd/m2
Response period	8ms	5ms	5ms
View Angle	U:15/D:35   L/R: 45	U: /D:80   L/R: 85	U: /D:80   L/R: 85
Light Source	LED backlight	LED backlight	LED backlight
OSD Language	OSD Multilingual optional	OSD Multilingual optional	OSD Multilingual optional
Analog Adjustments	Brightness, Contrast, Chrome	Brightness, Contrast, Chrome	Brightness, Contrast, Chrome
Color System	PAL/NTSC auto	PAL/NTSC auto	PAL/NTSC auto
Video Input	CVBS;( VGA; YPbPr, HDMI optional )	CVBS;( VGA; YPbPr, HDMI optional )	CVBS;( VGA; YPbPr, HDMI optional )
Image Display	16:9	16:9	16:9
Interface	CVBS;( VGA; YPbPr, HDMI optional )	CVBS;( VGA; YPbPr, HDMI optional )	CVBS;( VGA; YPbPr, HDMI optional )
Power Supply	DC+10.5—32V	DC+10.5—32V	DC10.5—32V
Product Dimension	L:389×W:236.5×H:41mm	L:463×W:283×H:46mm	L:530×W:321×H:47mm
Net Weight	2.9KG	4.4KG	5.5KG
Packing Dimension	L:460×W:120×H:315mm	L:535×W:125×H:360m	L:600×W:130×H:395m
Gross Weight	4.5KGS	5.6KGS	6.7KGS
Operating temperature	-10~60°C	-10~60°C	-10~60°C
Storage Temperature	-20~80°C	-20~80°C	-20~80°C
Power Consumption	Less than 20 W	Less than 25 W	Less than 30 W
