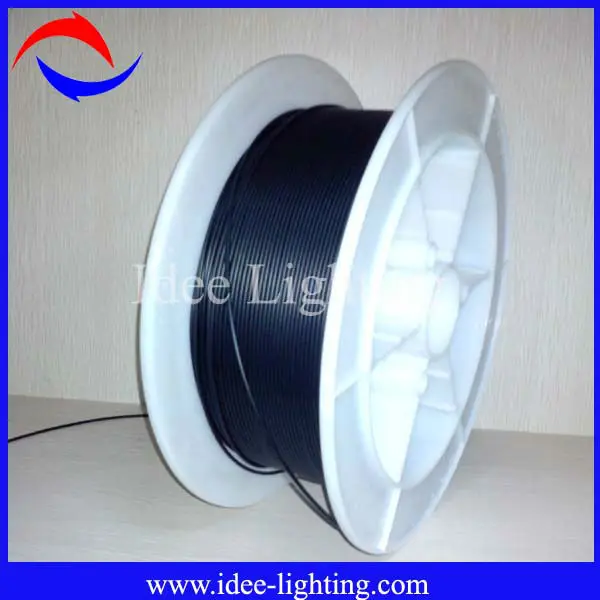

1.0/2.2mm end glow fibre optic lighting cable

Product Overview

Description

LED  1.0/2.2mm end glow fibre optic lighting cable



Fiber Optic light cable Feature

1, waterproof

2, can put in concrete directly

3, no current

4, easy install

5, special tool for the cable.

6, can use as long as 20 meters

7, Flexible and durability





Fiber Optic light cable Application

1, swimming pool

2, Sauna room

3, room ceiling

4, Floor

5, wall



Product Code	fiber dia.(mm)	Outer dia.(mm)	Attenuation (dB/KM)	Jacket materials	Temp.(°C)	Spool length (m)
CC-0500	0.5	1.0 ±0.07	≤210	Black PE	-50~+70	6000
CC-0750	0.75	2.2 ±0.07	≤200	Black PE	-50~+70	2500
CC-1000	1.0	2.2±0.07	≤200	Black PE	-50~+70	2500
CC-1500	1.5	3.0±0.07	≤200	Black PE	-50~+70	700
CC-2000	2.0	3.8±0.07	≤200	Black PE	-50~+70	350
CC-3000	3.0	5.0±0.07	≤200	Black PE	-50~+70	150







Model	Light Engine	fiber optic QTY and Dia	Fiber length	Cover square	points/Sqr M
K-4-001	16W LED light engine	40pcs:1.0/2.2mm with black PE	2m	2*2m	10
K-4-002	16W LED light engine	42pcs:1.0/2.2mm with black PE	3m	2*3m	7
K-4-003	16W LED light engine	60pcs:1.0/2.2mm with black PE	2m	2*2m	15
K-4-004	16W LED light engine	60pcs:1.0/2.2mm with black PE	3m	2*3m	10





Fiber optic swimming pool

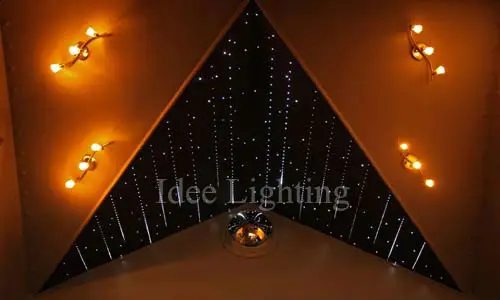

fiber optic  Star ceiling



Fiber optic Star light wall

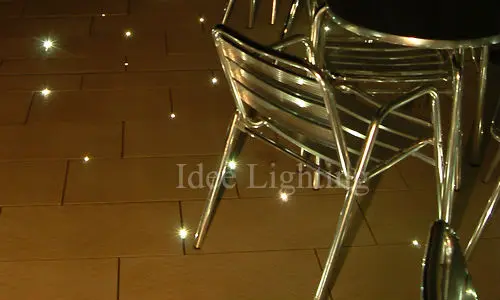

Fiber Optic groud light

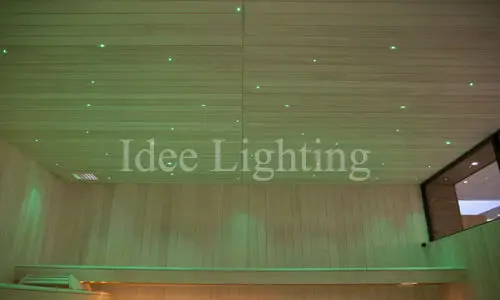

Fiber Optic Sauna Romm Light



Fiber Optic lIght Source
