RULE CUT 32 x 2





♦ Specification

      AE      AD          BE           BD           TE         TES
  19×2.0   19×2.0   19×2.0   19×2.0     -----    -----
  19×2.5     -----   19×2.5   19×2.5     -----    -----
  32×2.0     -----   32×2.0   32×2.0    32×2.0    -----
    -----     -----     -----     -----     -----  32×2.2
  32×2.5     -----   32×2.5     -----    32×2.5    -----
   -----     -----   32×3.0     -----    32×3.0    -----
   -----     -----   50×2.5     -----    50×2.5    -----
   -----     -----   50×3.0
     ------    --------    -----





BE is the basic type profile for cutting single-layer leather or the similair materials.



BD (double edge profile) for lether cutting



AE is the symmetric profile for single-layer cutting



AD is double edge symmetric profile for leather cutting





♦ Hardness

   Thickness        Body Hardness       Edge Hardness
    2.0mm             HRC 38         HRC 52~55
    2.2mm             HRC 35         HRC 52~55
    2.5mm             HRC 35         HRC 52~55
    3.0mm             HRC 34         HRC 52~55





♦ Bending angle

  Thickness   2.0mm   2.2mm   2.5mm   3.0mm
  Bending angle    120o    100o    100o    100o





♦ Packing

  Thickness     2.0mm     2.2mm     2.5mm    3.0mm
  Packing   80m/coils   80m/coils   75m/coils   60m/coils





♦ Application

 Usually used in shoes making, leather, artificial leather, textiles, rubber, plastics, fabrics and ect.





♦ Cutting Profile



  edge profile

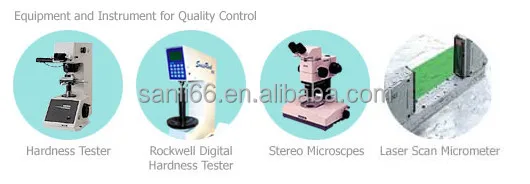

Quality Control

SANLI Steel Rule combines Excellent Bendability and Ideal Hardness. The HF-treated cutting edge guarantees long cutting life. The edge is sharpened by a grinding process which provides a sharp and clean finish.



quality control.jpg









 BE 19×2.0, 19×2.5







 BE 19x2.0 2





Workshop View

QQ20131220112813

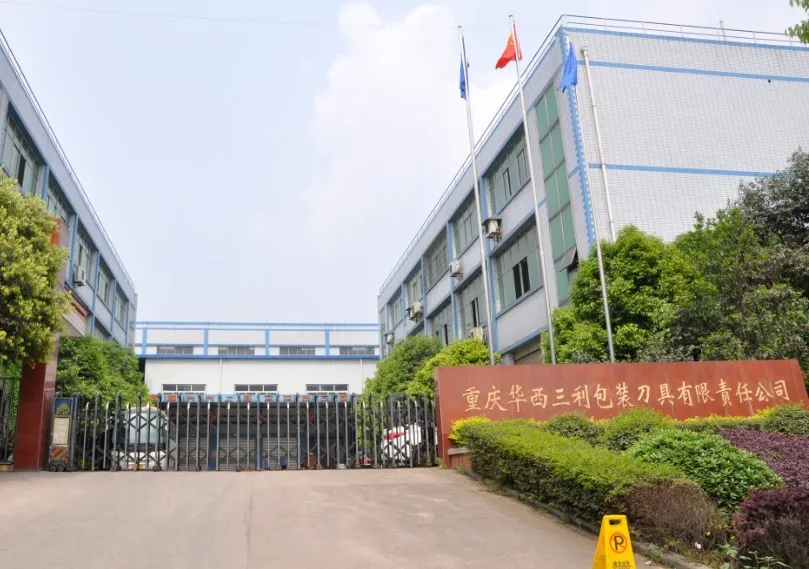

                                                                  Factory Gate





                                                         Heat Treatment Line





2

                                                     Heat Treatment Line





grinder

                      Grinder from Germany for grinding edge, extremely sharp





2

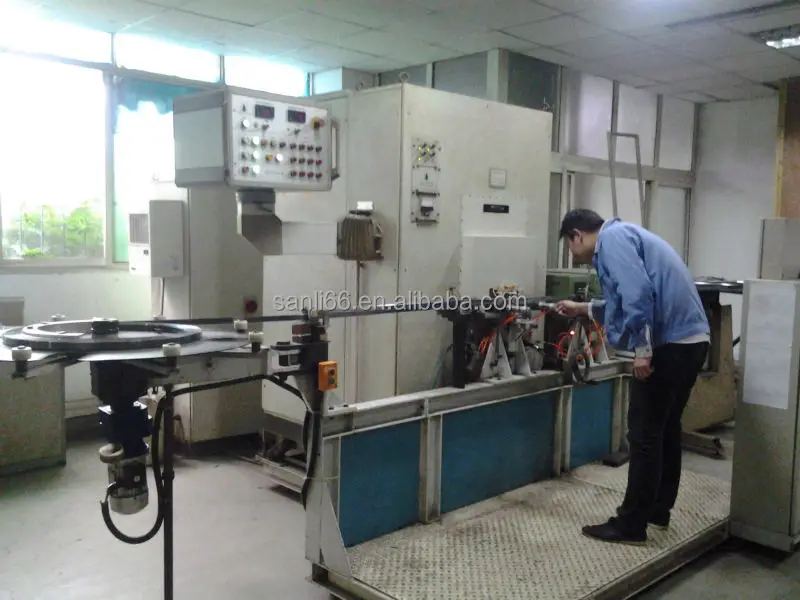

         High Frequency Induction Edge Hardening Machine from Germany
