Product Overview
Description

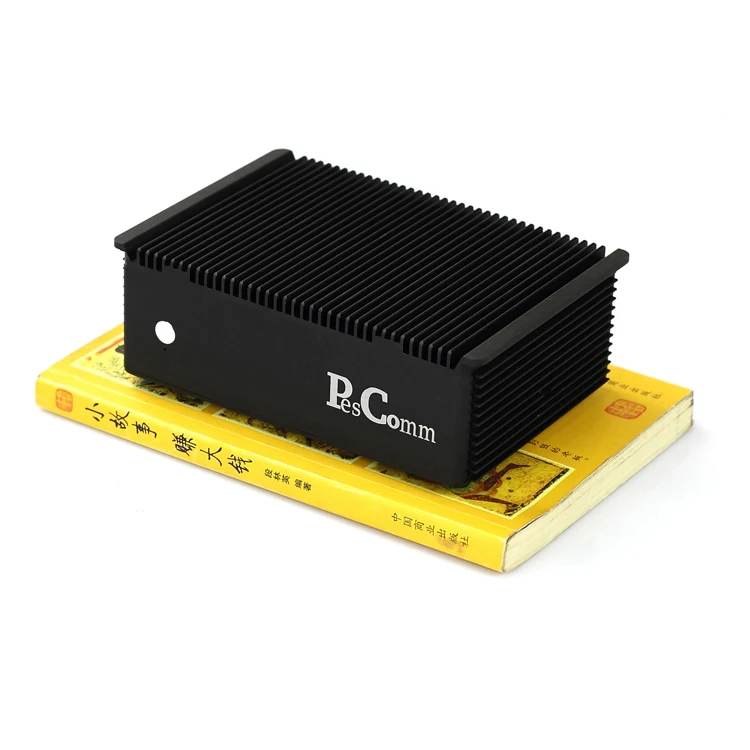

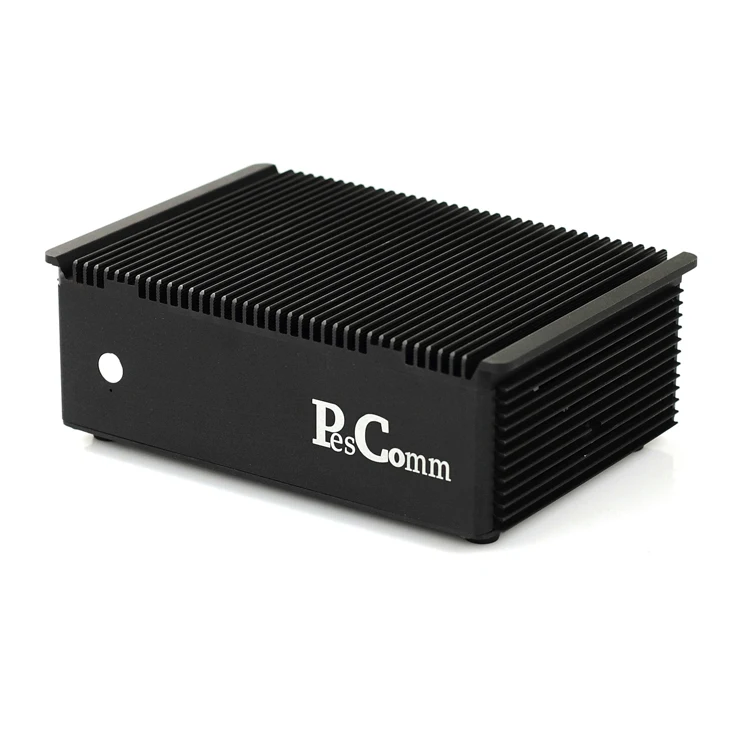

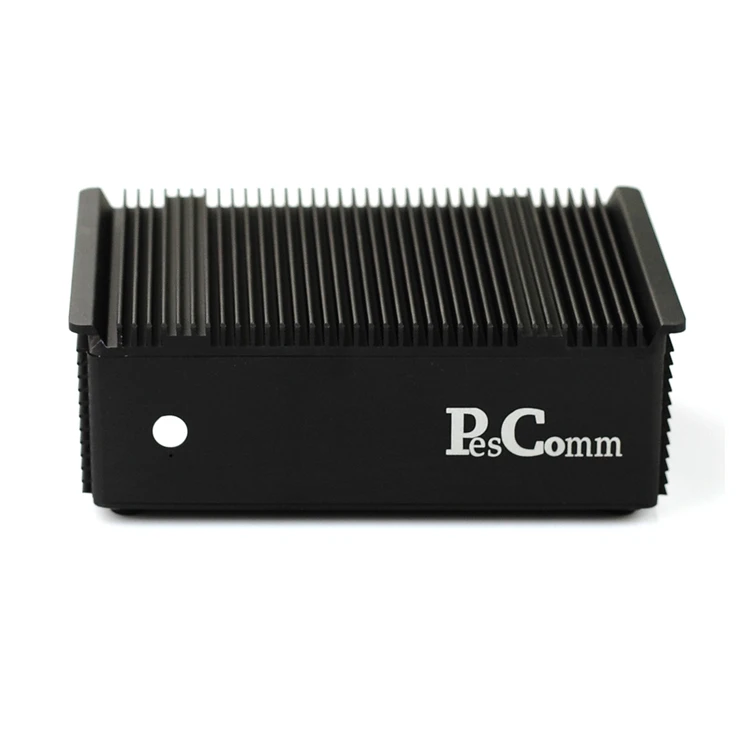

Micro hardware computer case, Mini itx computer case / pc case , Aluminum fanless mini case

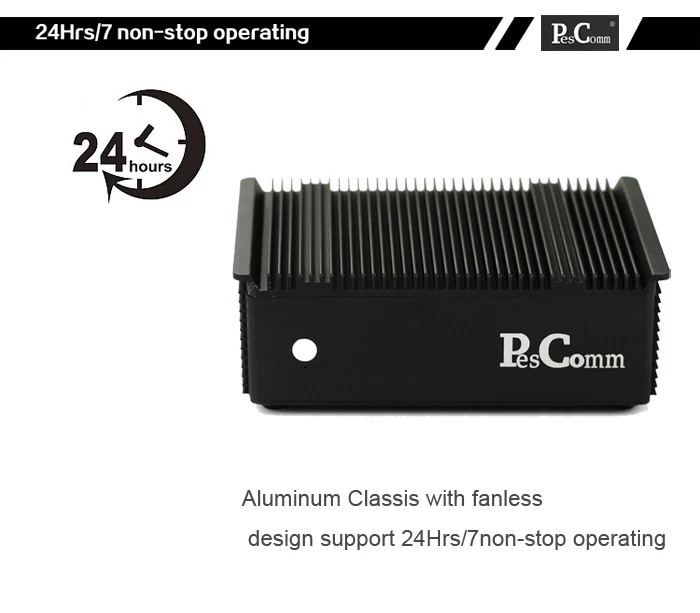

mini case and Aluminum chassis design,
Cheap and low power
With wide voltage 8~28V .
with HDMI , RJ45,WIFI, PCI-E,COM,RS232,RS422,RS485,USB2.0 ...
Linux/Win xp/Win7 / Win8 os support , X86 solution
4*USB2.0 + 2*RJ45 or 6 x USB 2.0+2x RS232 or 4 x USB 2.0+5x RS232
176 mm (W) x 110 mm (D) x 59mm (H)
use for Industrial / office / home..
CPU : D2550,N2800,D2700 ..
Product Description

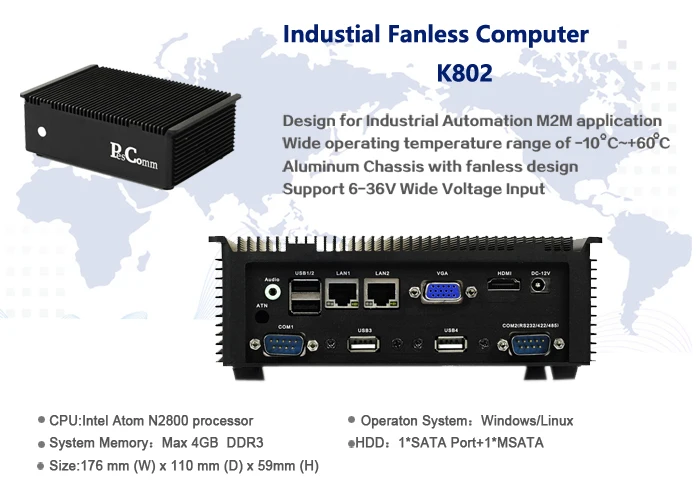

| Main Board | •Intel® Atom™ N2800 Dual Core processor, 1.86GHz, 1M Cache •Integrated Intel GMA 3650 |
| Main Memory | •1 x DDR3 , support up to 2 GB DDR3 1333/800 |
| Storage | •1 x 2.5" SATA HDD drive bay |
| Lan | •Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan |
| Audio | •Realtek ALC662 |
| Watchdog Timer | •255 levels, 0~255 sec |
| BIOS | •AMI 16MB DPI Flash ROM |

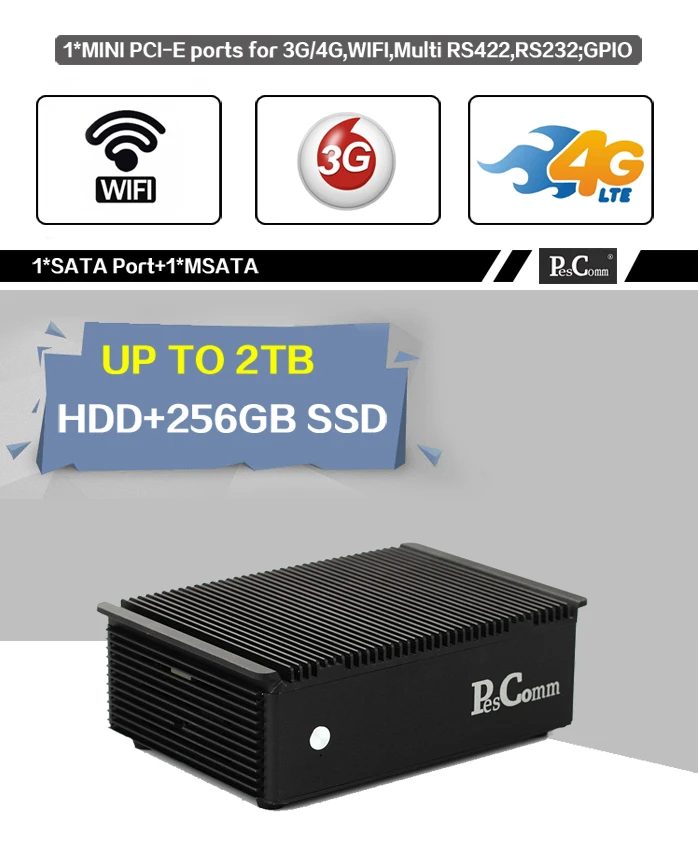

| Expansion | •2 x Mini-PCIe socket onboard •Default: support optional Wi-Fi module •Option: support 3G module |
| I/O Interface-Front | •Power on/ off switch |

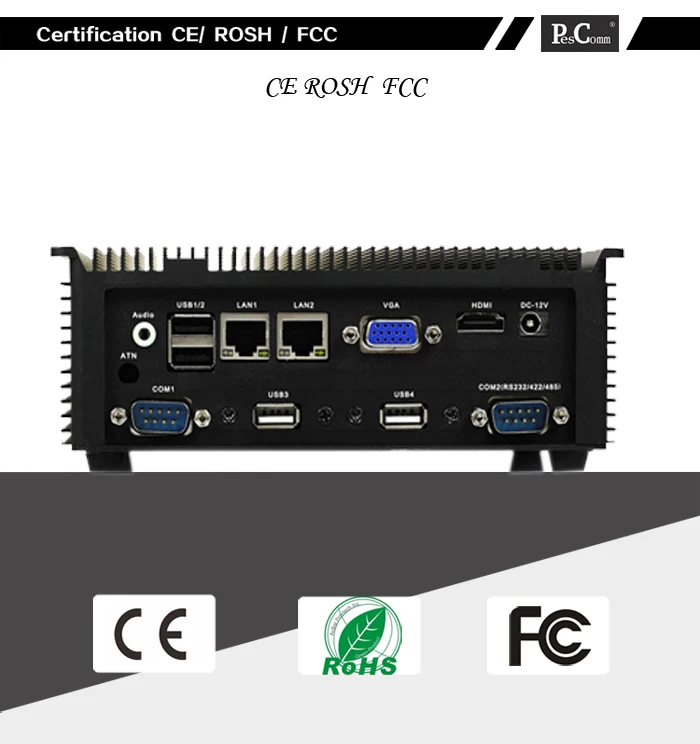

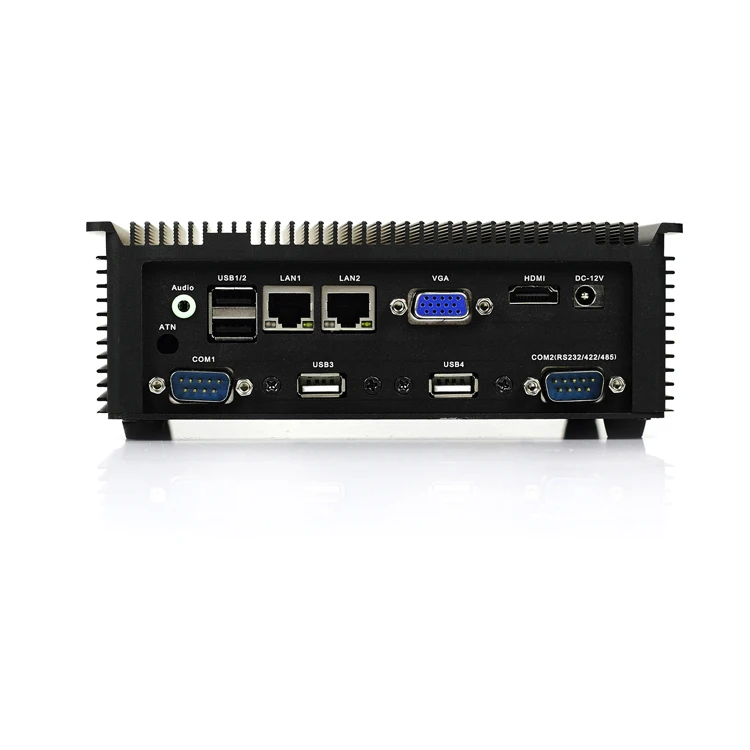

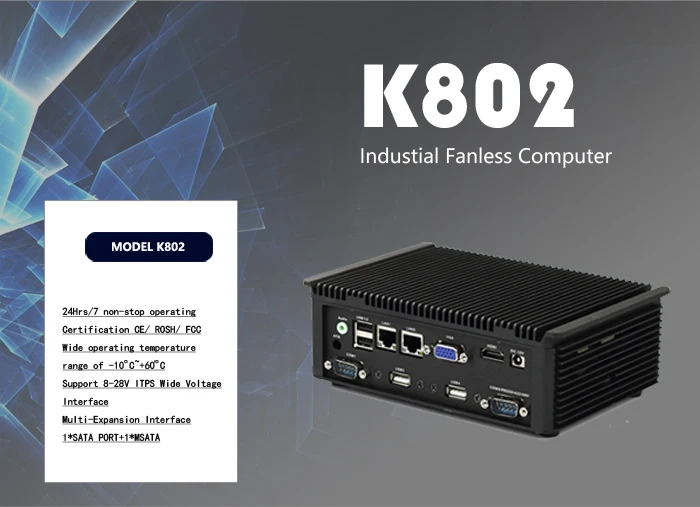

| I/O Interface-Rear | •4 x USB 2.0 •2 x RJ45 •1 x VGA •1 x HDMI •1 x Audio •2x COM •1x 12V DC IN •1x Antenna holes (Either optional Wi-Fi or Mobile wireless module) |
| Power Requirements | •12V DC IN |
| Dimensions | •176 mm (W) x 110 mm (D) x 59mm (H) |
| Construction | •Aluminum Chassis |
