RJ11 pots phone line over fiber converter with single mode fc
- Category: >>>
- Supplier: Beijing Human Information Technology Co. Ltd.
Share on (1025960372):
Product Overview
Description

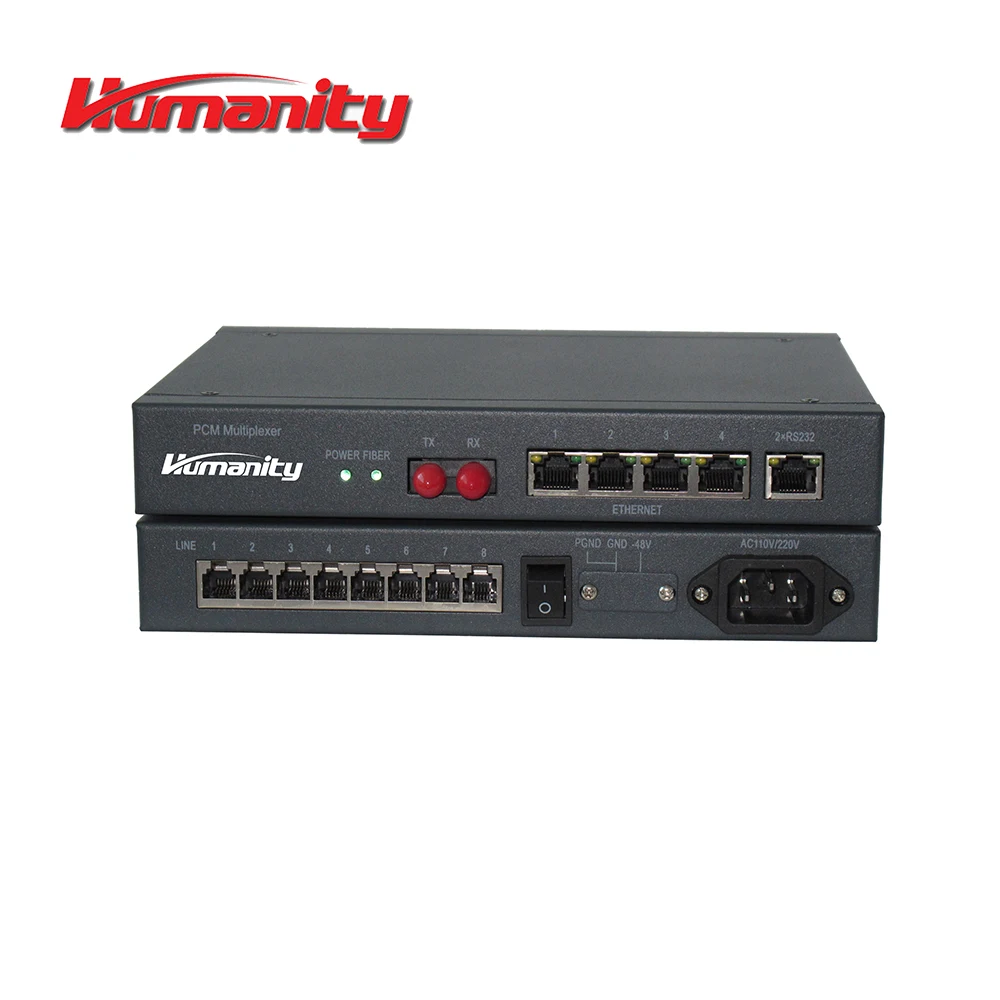

Humanity POTS (RJ11) phone line over fiber converter single mode FC
HM-PN Humanity PCM multiplexer fiber transmission, Voice Multi-service Multiplexer , for FXO FXS phone can realizes 8xFXO/FXS+4x100M Ethernet+2xRS232 over fiber. They are mainly used in public security, military, water conservancy, electric power, oil field etc.
Main Features
- Compact design with standalone box. Smaller than 1U 19inch.

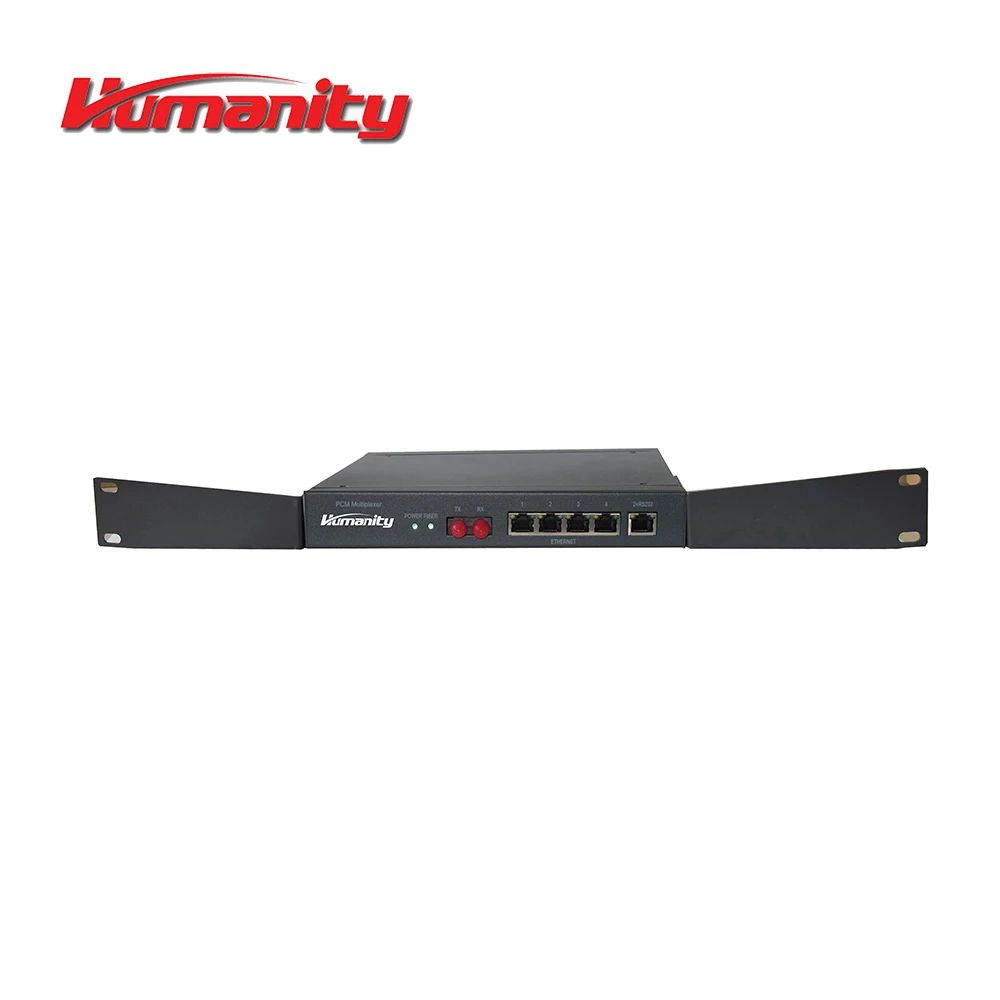

- Longer mounting brackets available to be in 19inch cabinet.
- Supporting 4 fast Ethernet ports with VLAN.
- 2xRS232 available together with phone and Ethernet over fiber
- Perfect alarm and status indicator function.

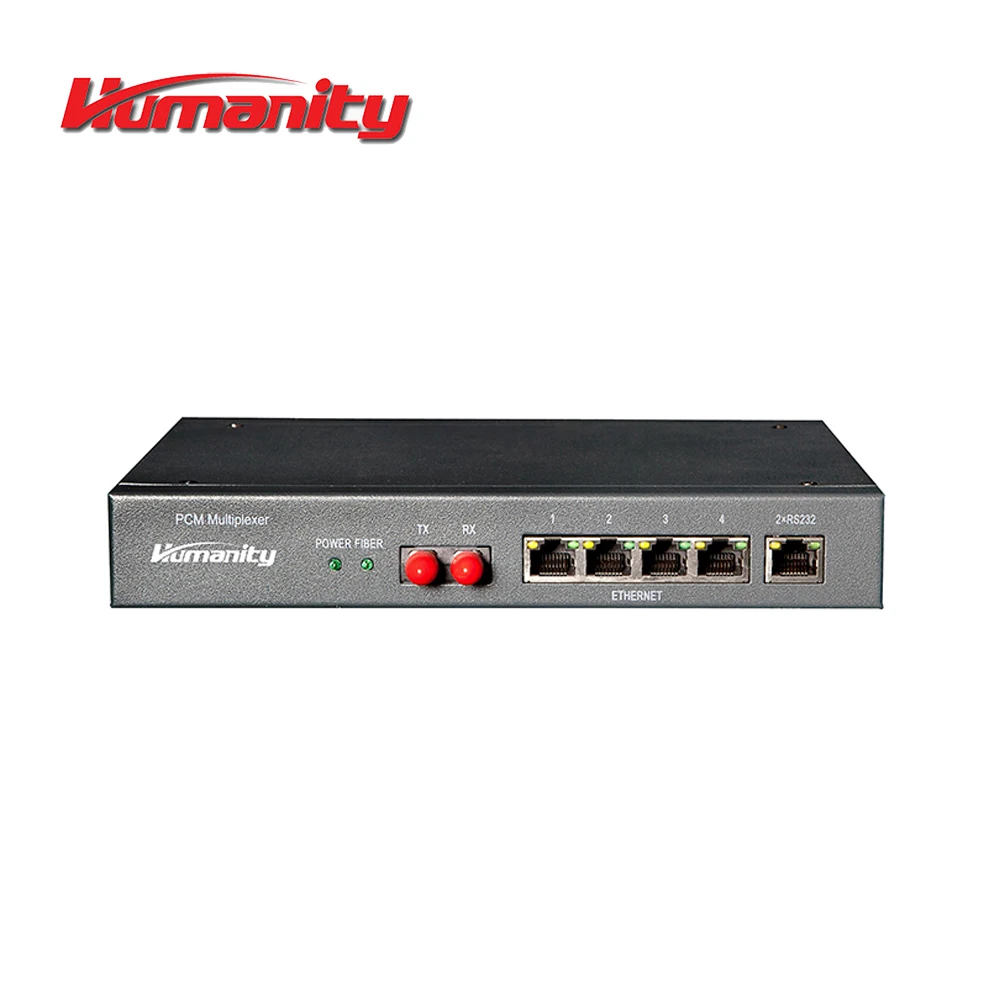

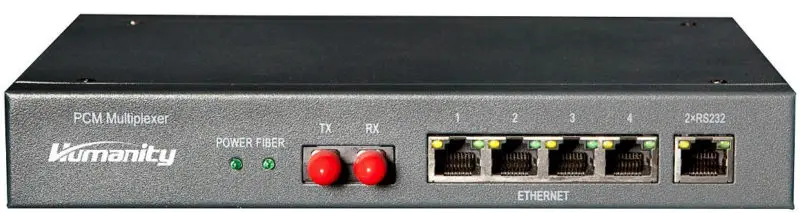

Front Panel
A: Fiber port. Default with dual fiber, single mode, 40km, 1310nm, FC
B: 4xEthernet port with VLAN
C: RS232 port. One RJ45 ports for 2xRS232.

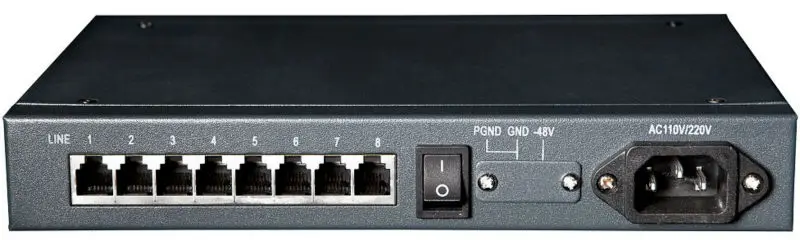

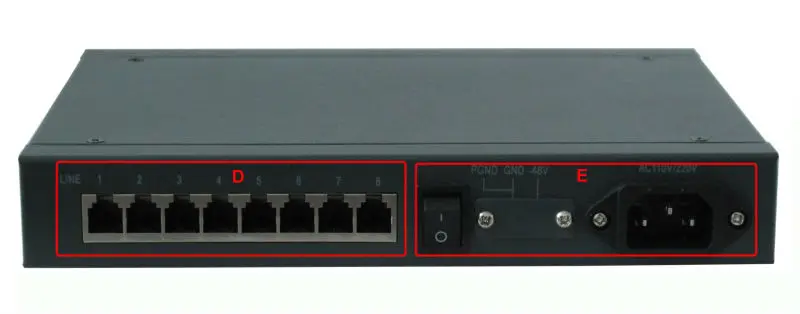

Rear Panel
D: 8xFXS/FXO phone. The connectors are RJ11.
E: AC, DC power
Technical Specifications
Optical | Default: FC, dual fiber, single mode, 40km, 1310nm. Optical module is option when in order. |
Rate: 150Mbps | |
Phone (hotline or FXO/FXS) | Connector: RJ11 |
Impedance: 200Ω+680Ω 0.1uF | |
Frequency character: 300-3400Hz(-0.6-+3dB) | |
Weighted noise: ≤-65dBmop | |
Interface loop resistance: ≤1800Ω | |
Ethernet | 4 Ethernet |
Connector: RJ45 | |
Share 100M | |
RS232 | Maximum 2 channel RS232 |
Connector: 1xRJ45 | |
Transmitting output voltage: ±15V | |
Receiving input voltage: ±15V | |
The maximum rate of transmitting and receiving: 115.2Kbps | |
Power | AC, DC or AC and DC power redundancy option |
Environment | Working temperature: 0 ~ 70°C |
Relative humidity: ≤90%(25°C) |

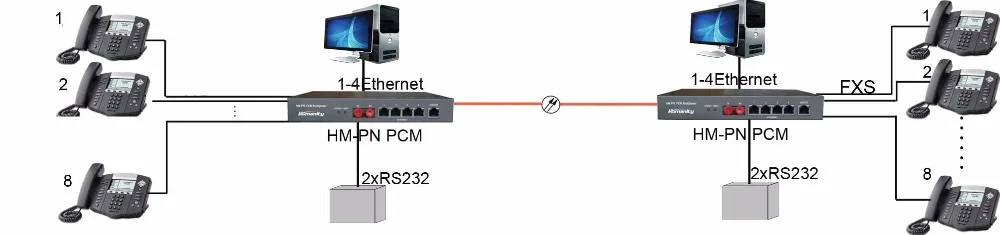

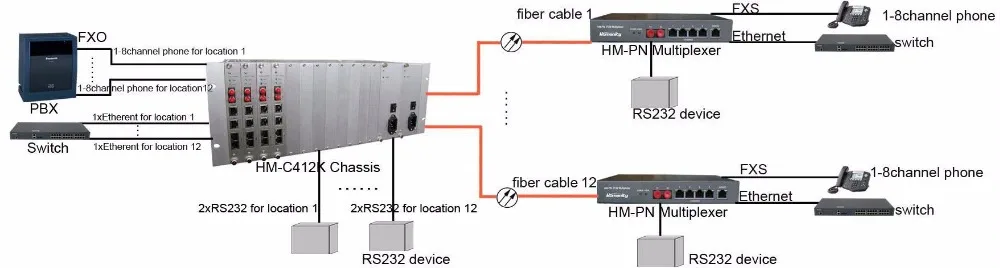

Application Diagram
Order Information
| Model | Description |
| HM-PN04 | 4channel FXO/FXS+4Ethernet PDH multiplexer |
| HM-PN08 | 8channel FXO/FXS+4Ethernet PDH multiplexer |
| HM-PN16 | 16channel FXO/FXS+4Ethernet PDH multiplexer |
| HM-PN32 | 32channel FXO/FXS+4Ethernet PDH multiplexer |
