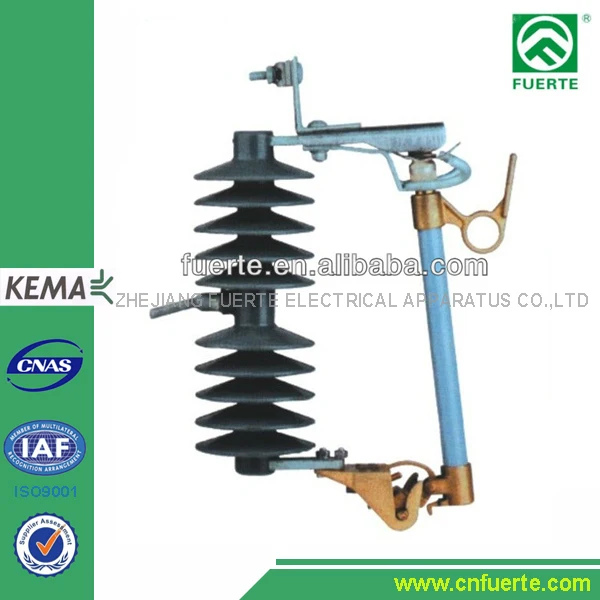

Polymeric DDLO Fuse Cutout 27KV FSC 45
- Category: >>>
- Supplier: Zhejiang Fuerte Electrical Apparatus Co. Ltd.
Share on (1026046851):
Product Overview
Description

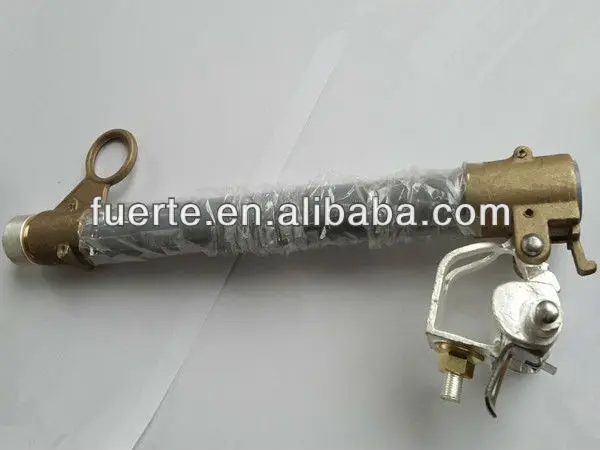

Drop out Fuse Cut Out Safe with Fuse holder 24KV FSC-44
Technical parameter:
Type | Rated voltage (KV) | Rated current (A) | Breaking current (A) | Impulse voltage (BIL) | Power-frequency withstand voltage( kV ) | Leakage distance (MM) | Weight (KG) | Dimensions (CM) |
FSC-45 | 27 | 100 | 6000 | 170 | 70 | 620 | 7.3 | 48×35×12 |
FSC-45 | 27 | 200 | 8000 | 170 | 70 | 620 | 7.3 |
We focus on details:

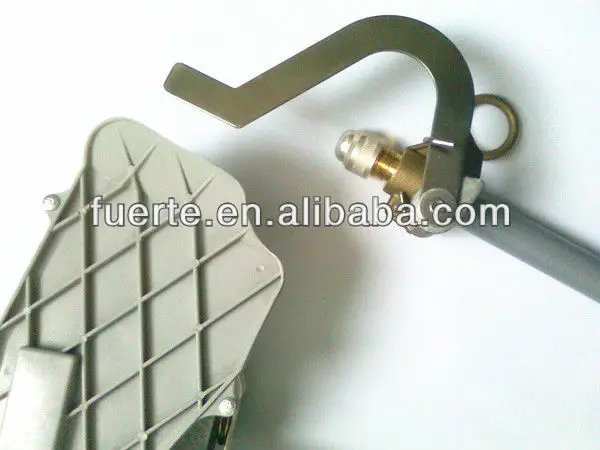

The arc extinguishing chamber can be made as per order.
Purchase notice:
1. On sale porcelain and polymer cut-out fuse series.
2. Various designs available.
3. Customized designs accepted.
4. Safe usage is No.1 .
