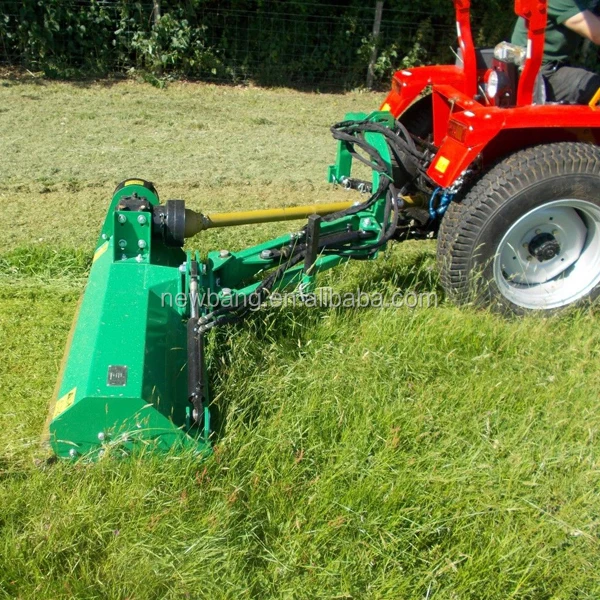

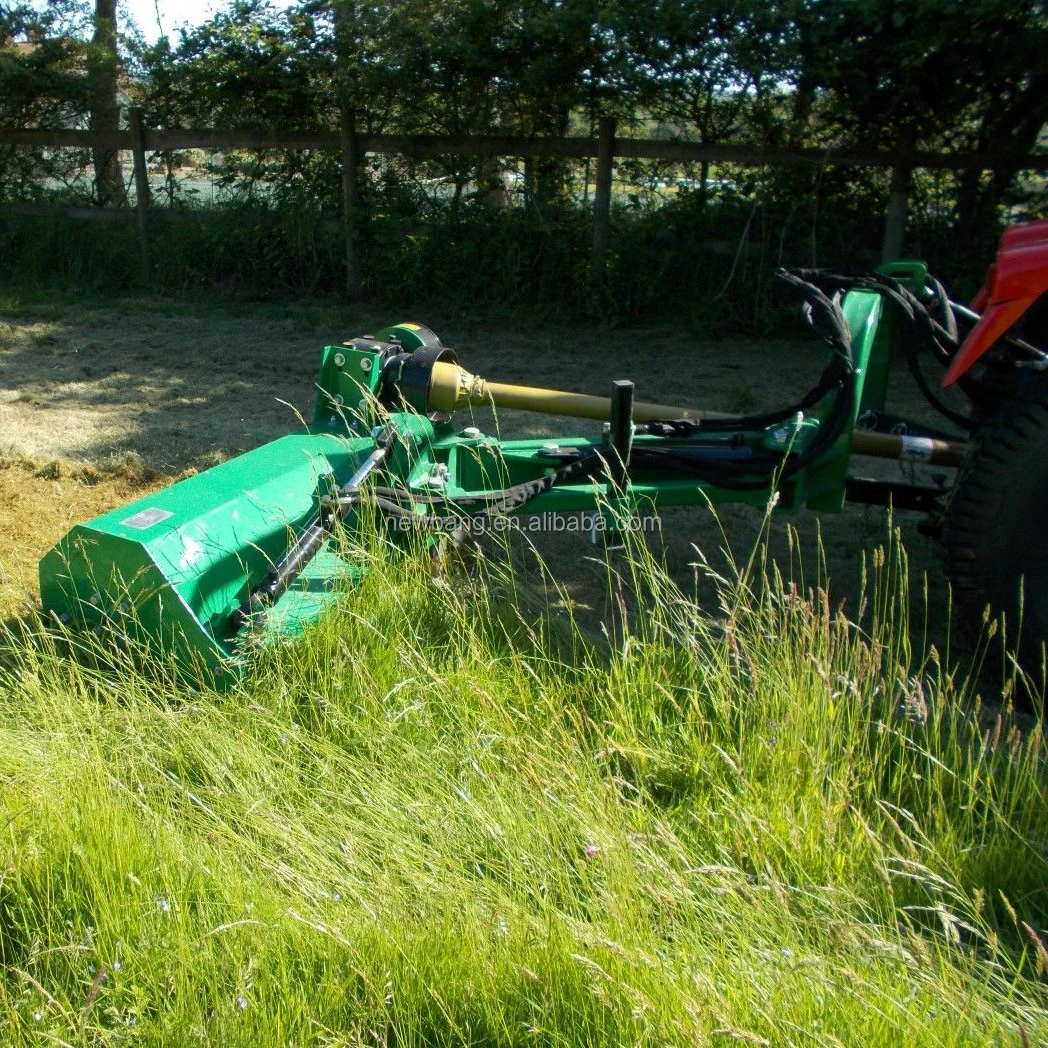

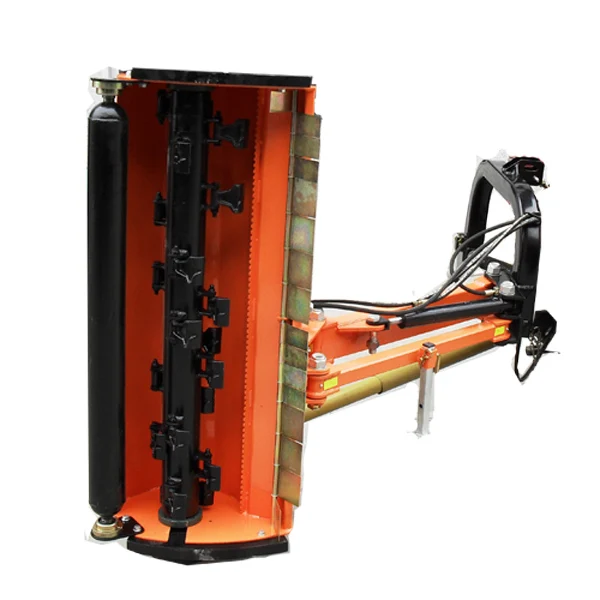

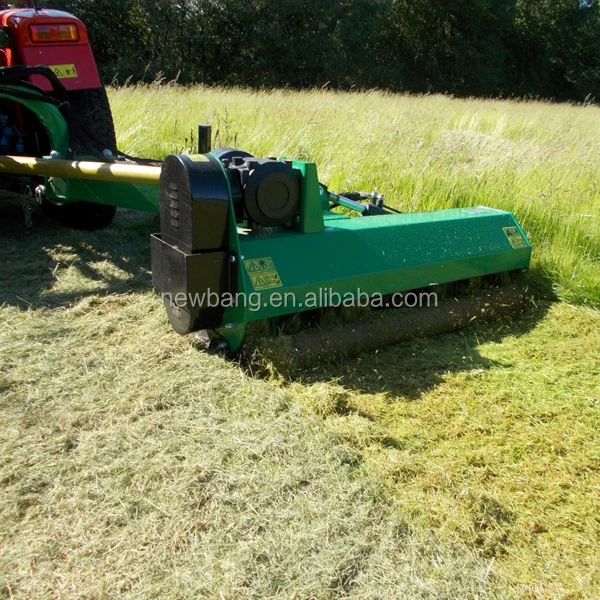

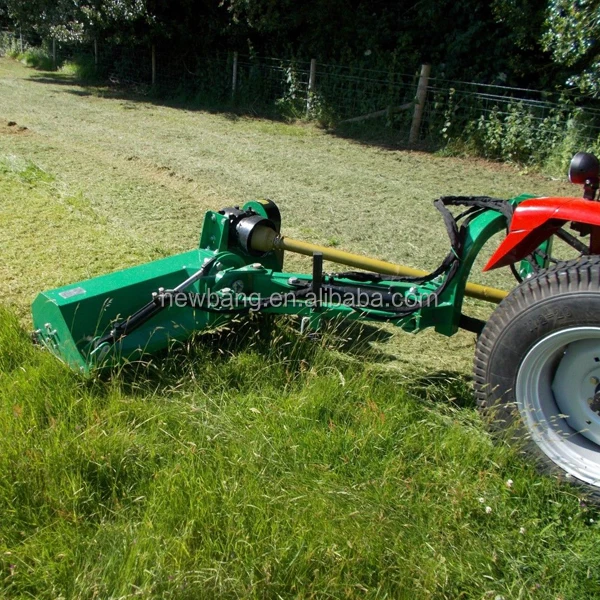

AGL Series Flail Mower

Product Overview

Description

AGL Series Flail Mower



1. Standard 3Pt. Category 1 hitch mount. Designed for 30HP+ Rated Tractors
2.This Ditch Bank Flail Mower is designed for those ditch banks that just don't look right after you've mowed because the deck doesn't sit flat
3.Designed for cutting grass & brush and it's great for eating blackberries and other roadside applications like triming the hedges
4.Works well on the flatland, comes with Grass Blades with precise blade overlap or Upgrade to Hammer/Mulching to Destroy up to 2"~3" saplings and Brush
5.Horizontal Pivot Offset to the right is 44" & Vertical Pivot is 140 degrees, see spec details below
6.Adjustable finished cutting height
7.Balanced Rotor and Shaft
8.Comes with Standard 6 Spline 540rpmPTO Shaft w/ Shear Bolt





MODEL	AGL-125		AGL-145
SPECIFICATION	Inch	Metric	Inch	Metric
Structure Weight	551lb	250kg	595lb	270kg
Tilt-Up Angle	90°		90°
Tilt-Down Angle	55°		55°
Cutting Width	4.10'	1250mm	4.75'	1450mm
Flail Type	Y Blade / Hammer
Number Of Flails	Hammer: 20 / Y Blade: 40		Hammer: 24 / Y Blade: 48
Vertical Extending Distance	4.64'	1415mm	4.64'	1415mm
Horizontal Extending Distance	6.14'	1870mm	6.79'	2070mm
PTO Speed	540r/min
Tractor HP	20-40hp		30-50hp
