API 5CT Grade J55/K55 steel Oil casing pipe (manufacture)
- Category: >>>
- Supplier: (Xinxiang) Huadong Screen Co. Ltd.
Share on (1026494794):
Product Overview
Description
Product Description
Casing pipes are used for oil and gas wells. Steel casing pipes and tubing are applied to furnishing and installing cased tunnels, where they indicate to pass other utilities or obstructions without open excavation. Steel casing pipes and tube have smooth wall and a minimum yield strength of 35,000 psi

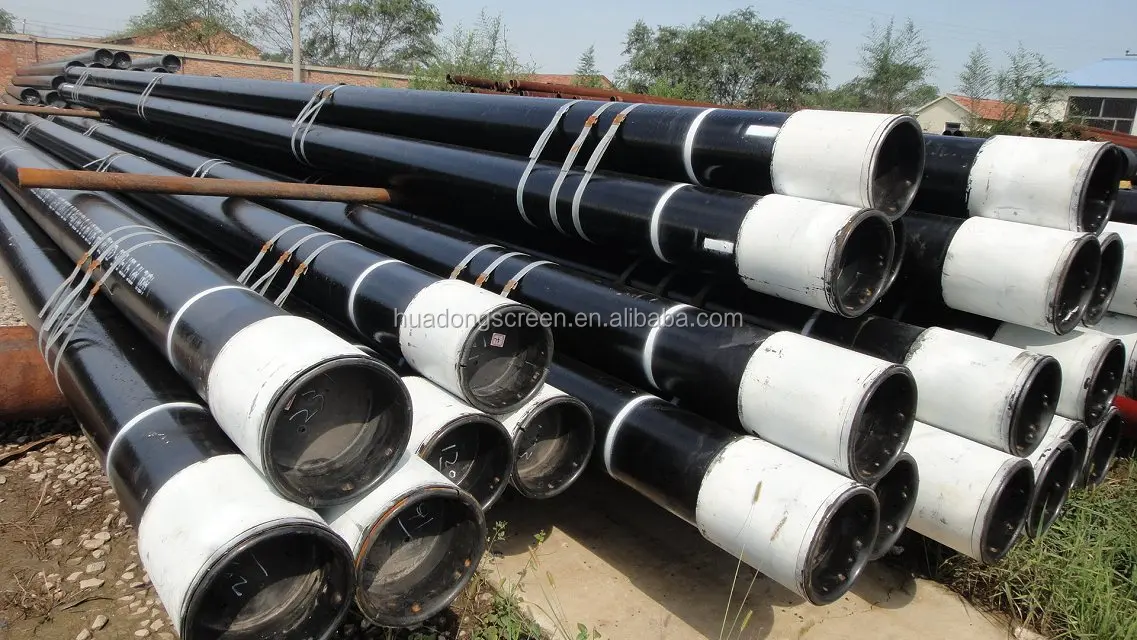

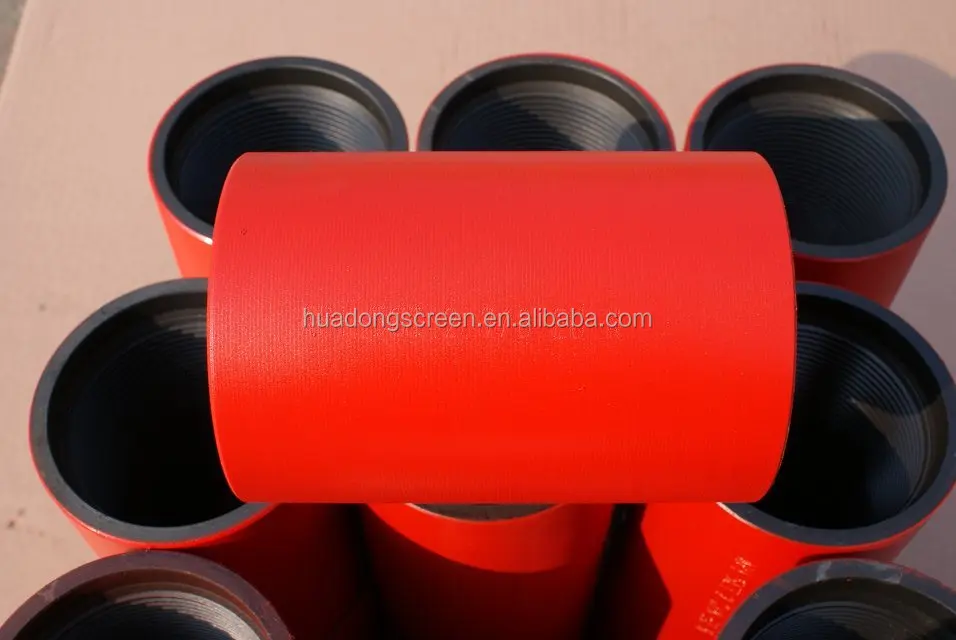

Corrosion-proofing water-based paint is applied on the outside pipe surface to protect against atmospheric corrosion during transportation and storage. The pipes can be delivered with metal or composite caps at both ends for thread protection.
Technique Parameters
Casing Technical Specification (Standard API Spec 5 CT) | |||||||
Size | Outside Diameter | Inside Diameter | Grade | Wall Thickness | |||
in | mm | in | mm | in | mm | ||
4-1/2 | 4.500 | 114.30 | 4.000 | 101.60 | J55K55N80 | 0.250 | 6.35 |
3.920 | 99.57 | J55K55N80 | 0.290 | 7.37 | |||
5 | 5.000 | 127.00 | 4.408 | 111.96 | J55K55N80 | 0.296 | 7.52 |
4.276 | 108.61 | N80P110 | 0.362 | 9.29 | |||
4.126 | 104.80 | N80P110 | 0.437 | 11.10 | |||
5-1/2 | 5.500 | 139.70 | 4.892 | 124.26 | J55K55N80 | 0.304 | 7.72 |
4.778 | 121.36 | N80 | 0.361 | 9.17 | |||
4.670 | 118.62 | N80 | 0.415 | 10.54 | |||
7 | 7.000 | 177.80 | 6.366 | 161.70 | J55K55N80 | 0.317 | 8.05 |
6.276 | 159.41 | J55K55N80 | 0.362 | 9.19 | |||
6.184 | 157.07 | N80 | 0.408 | 10.36 | |||
9-5/8 | 9.625 | 244.48 | 8.755 | 222.38 | N80 | 0.435 | 11.05 |
8.681 | 222.50 | N80 | 0.472 | 11.99 | |||
10-3/4 | 10.750 | 273.05 | 10.050 | 255.27 | H40J55K55N80 | 0.350 | 8.89 |
9.850 | 250.19 | J55K55N80 | 0.450 | 11.43 | |||
13-3/8 | 13.375 | 339.72 | 12.615 | 320.42 | J55K55 | 0.380 | 9.65 |
12.415 | 315.34 | J55K55N80 | 0.480 | 12.19 | |||
Our Services
1. cargo track service during transporting.and feedback service after cargo is loaded on board
2. flexible terms of payment by T/T or L/C
3. big discount for repeat customers
4. smooth delivering procedure

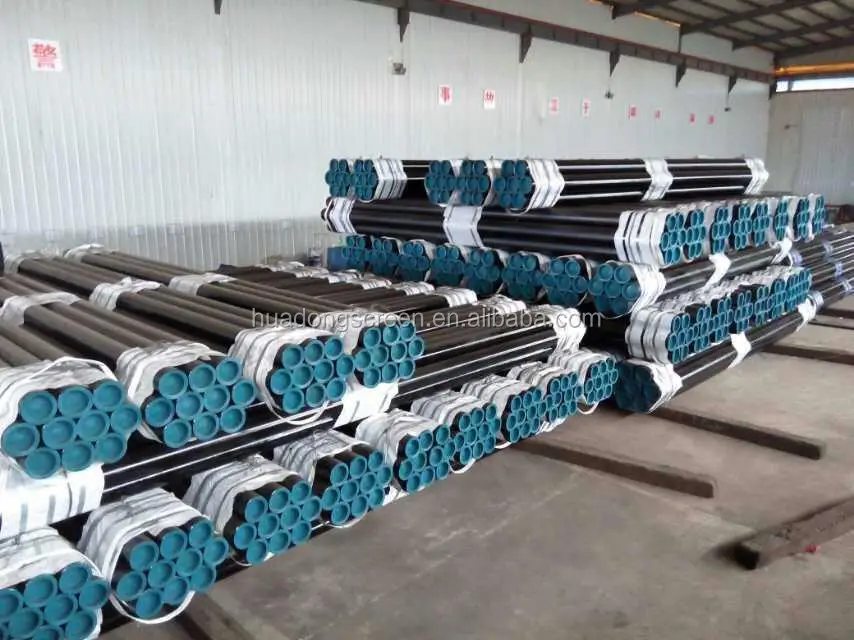

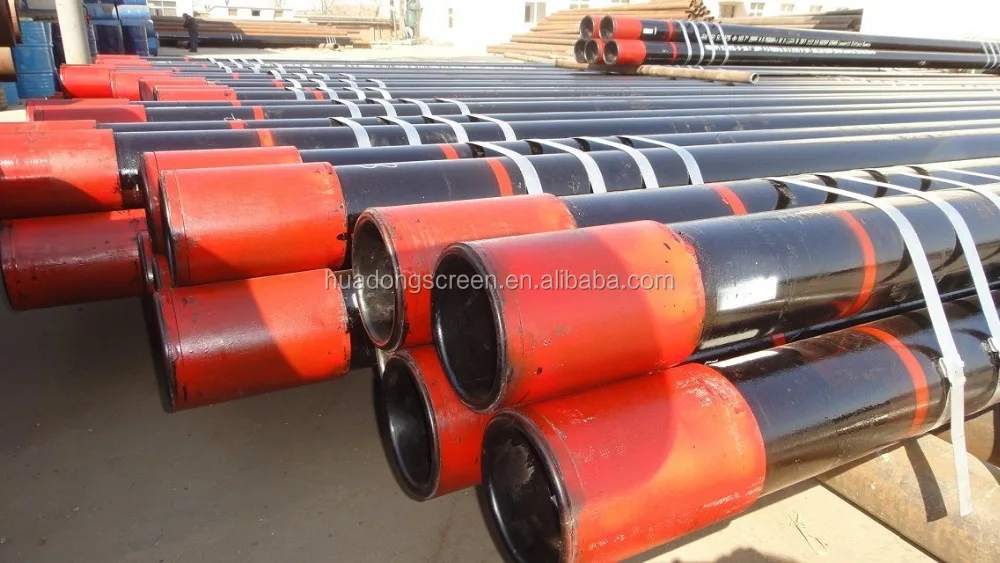

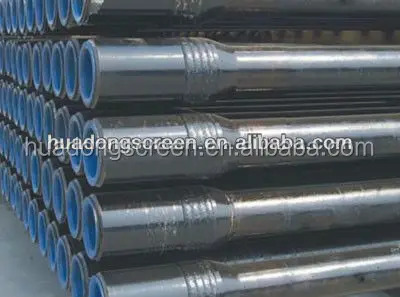

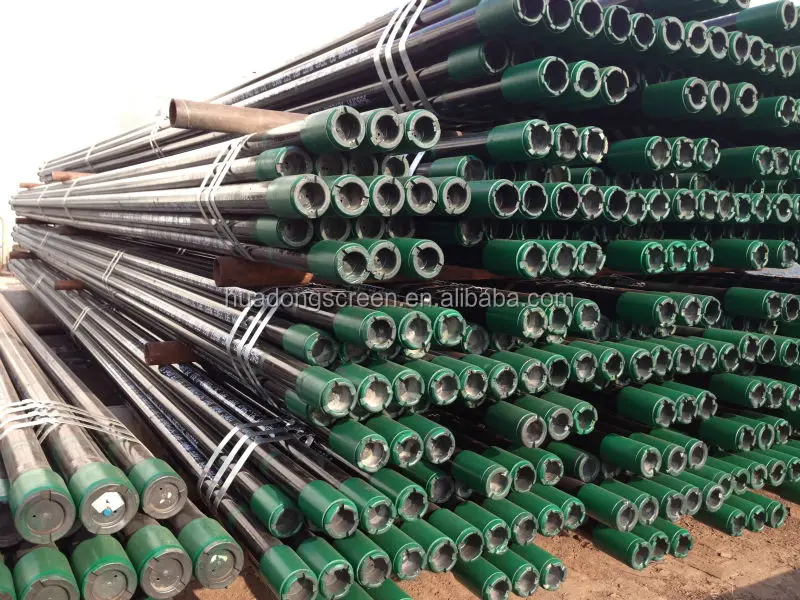

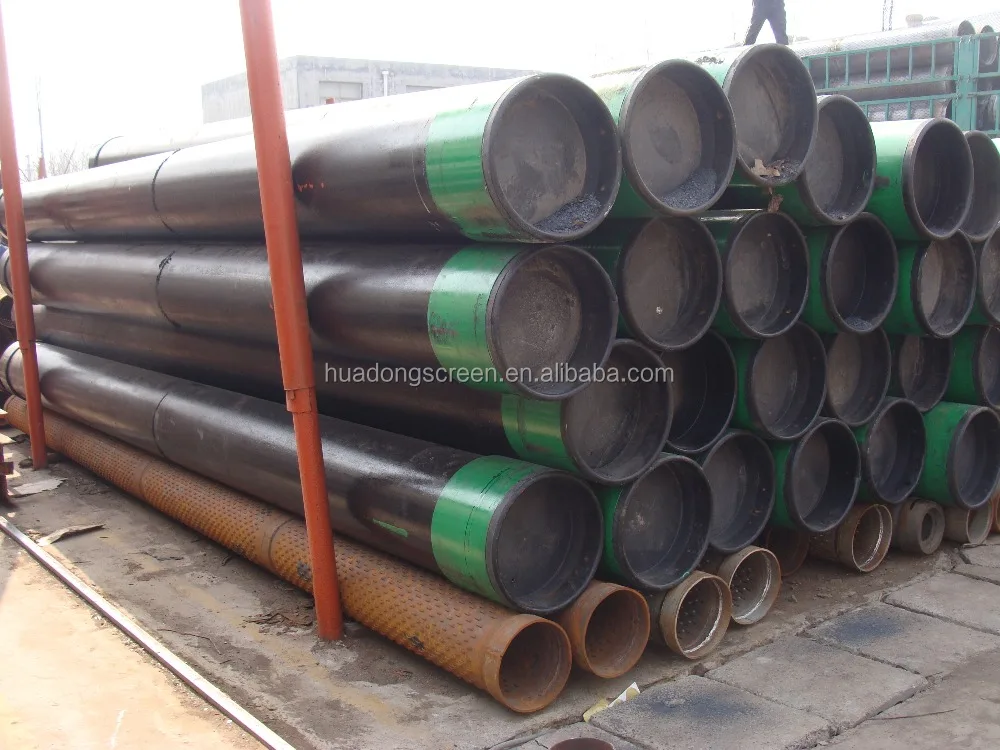

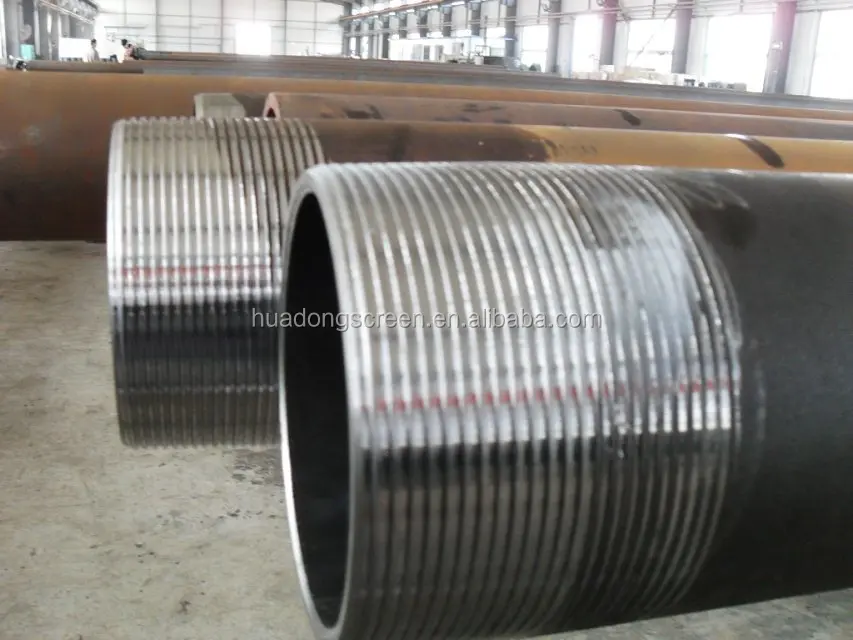

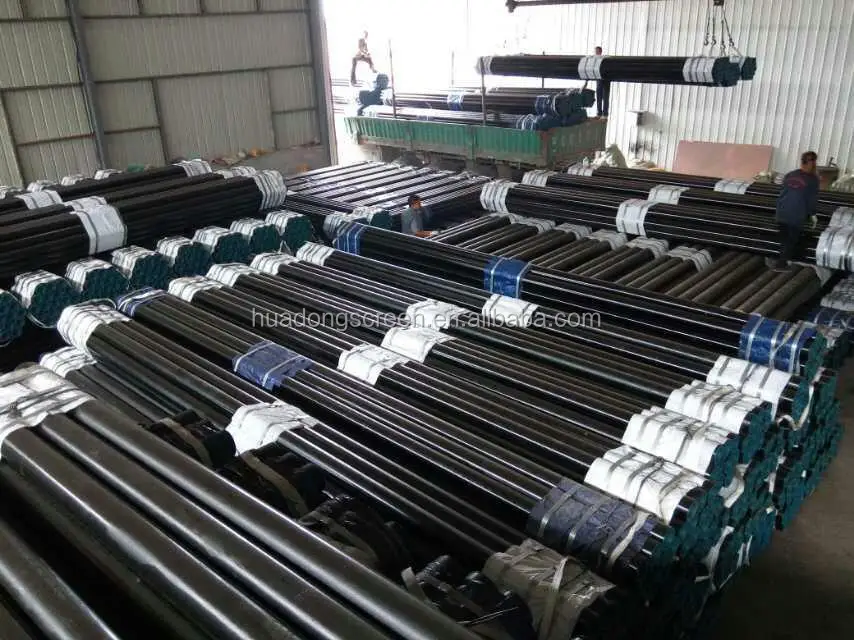

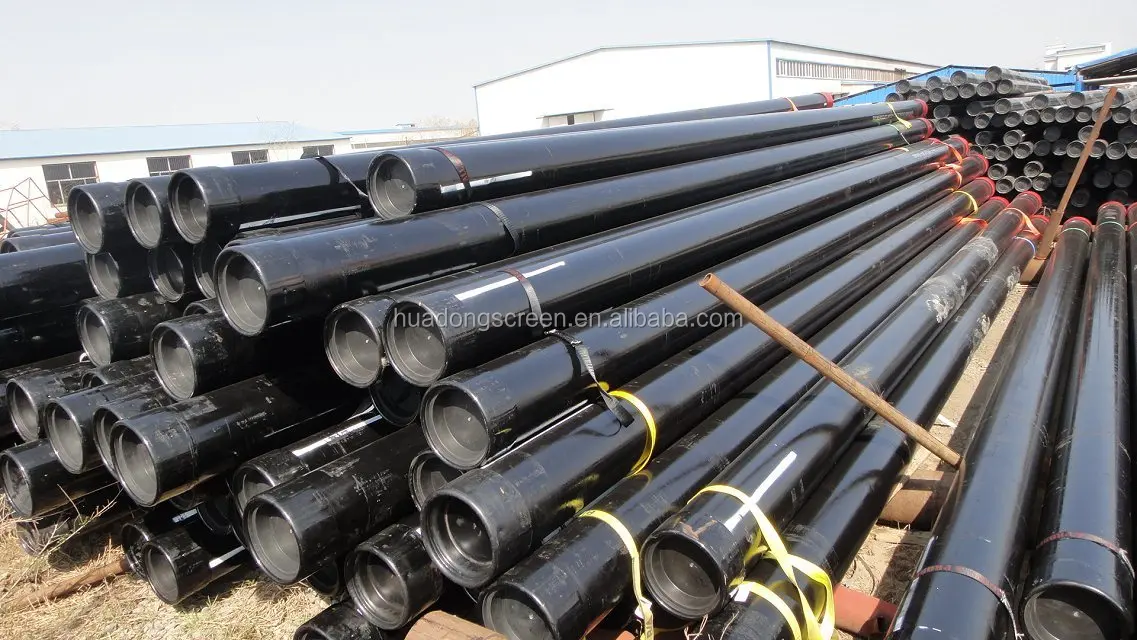

Detailed Images
We provide with 24-hour service and await your calls respectfully! My What's App is+8615037392551, My skype is dalianmao0517.
