CNC tenon and mortiser machine & cabinet connection machine
- Category: >>>
- Supplier: Foshan Shunde Zhiyang Machinery Manufacture Co. Ltd.
Share on (1027418391):
Product Overview
Description

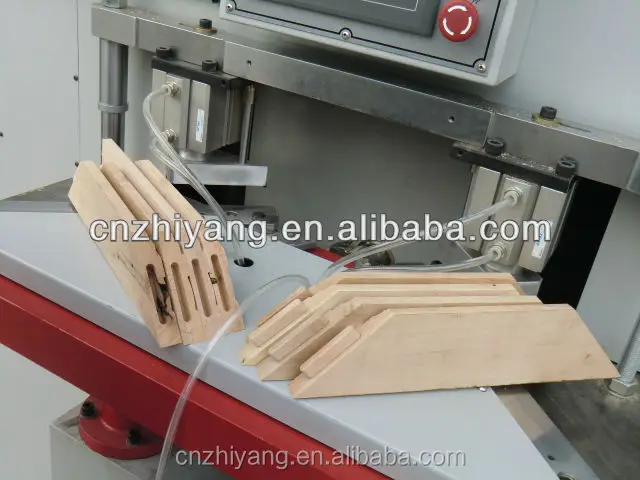

CNC tenon and mortiser machine
can cut 45 degree mitre!
Suitable for processing cabinet!
ZY600
Specifications
|
Installed power |
Tenoning motor : 5.5kw |
|
Mortising motor :3.7kw |
|
|
Total installed power:8.5kw approx |
|
|
Hourly production( theoretical) : up to 160 pcs./hour (40 doors/hour) |
|
|
Cycle time(teno + cut w.slot): 15-20" |
|
|
Cycle speed is variable and can be altered by means of the CNC |
|
|
CNC: |
|
|
Model: mc405 |
|
|
Power supply: 30 24 Vac-50/60HZ |
|
|
Display : LCD mono chrome 10.2" |
|
|
Tenoning Motor: |
|
|
Cutterblock rotation: 9000/12000RPM |
|
|
Shaft dimensions: 30mmφ |
|
|
Tool dimensions hogging cutter:130mmφmax |
|
|
Tenoning tool body: 90mmφmax |
|
|
Mortision Motor: |
|
|
Bit rotation: 9000/12000/18000Rpm |
|
|
Mortision bit shank ER25 collett minφ3mm/maxφ16mm |
|
|
Tenon dimensions(variable ,in function to the size of toll used) |
|
|
Tenon width :0-150mm |
|
|
Tenons depth:10-45mm |
|
|
Table dimension: 880*370mm |
|
|
Fence adjustment:0°or 45° |
|

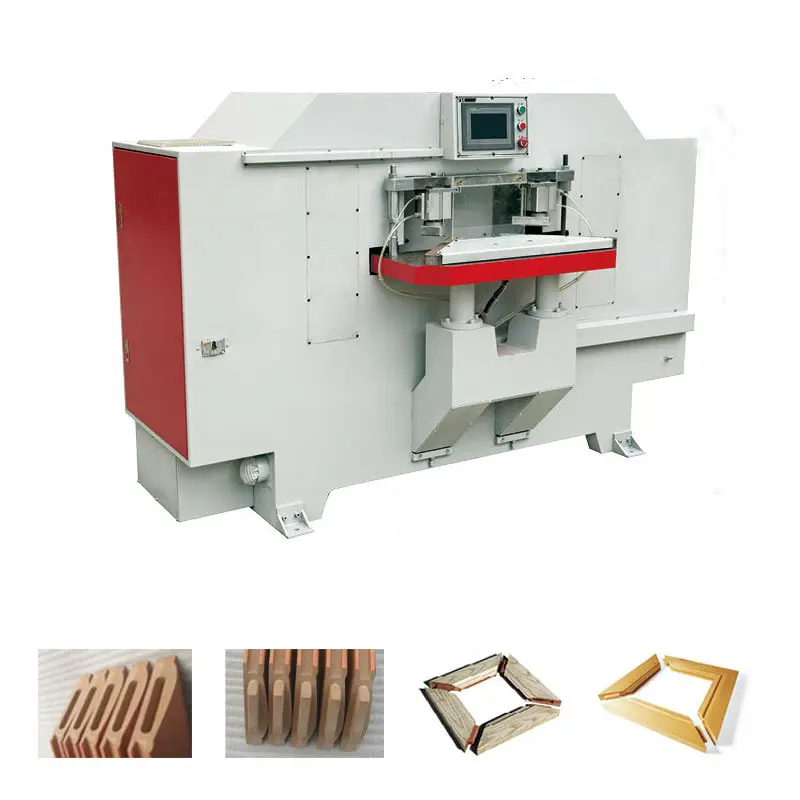

ZY600 is the lasted design innovation for the production of kitchen cabinet Doors with mortised and tenoned mitered frames. A combination of new features makes operation and se-up fast and simple, and also enables users to manufacture products with mortise and tenon other than 45 degrees, such as table top, window, and mirror frames.
ZY600 is fully cnc controlled which allows you to mortise ,tenoner or miter in any combination, with one machine, one operator ,infinite adjustments are quick and simple with cnc.
