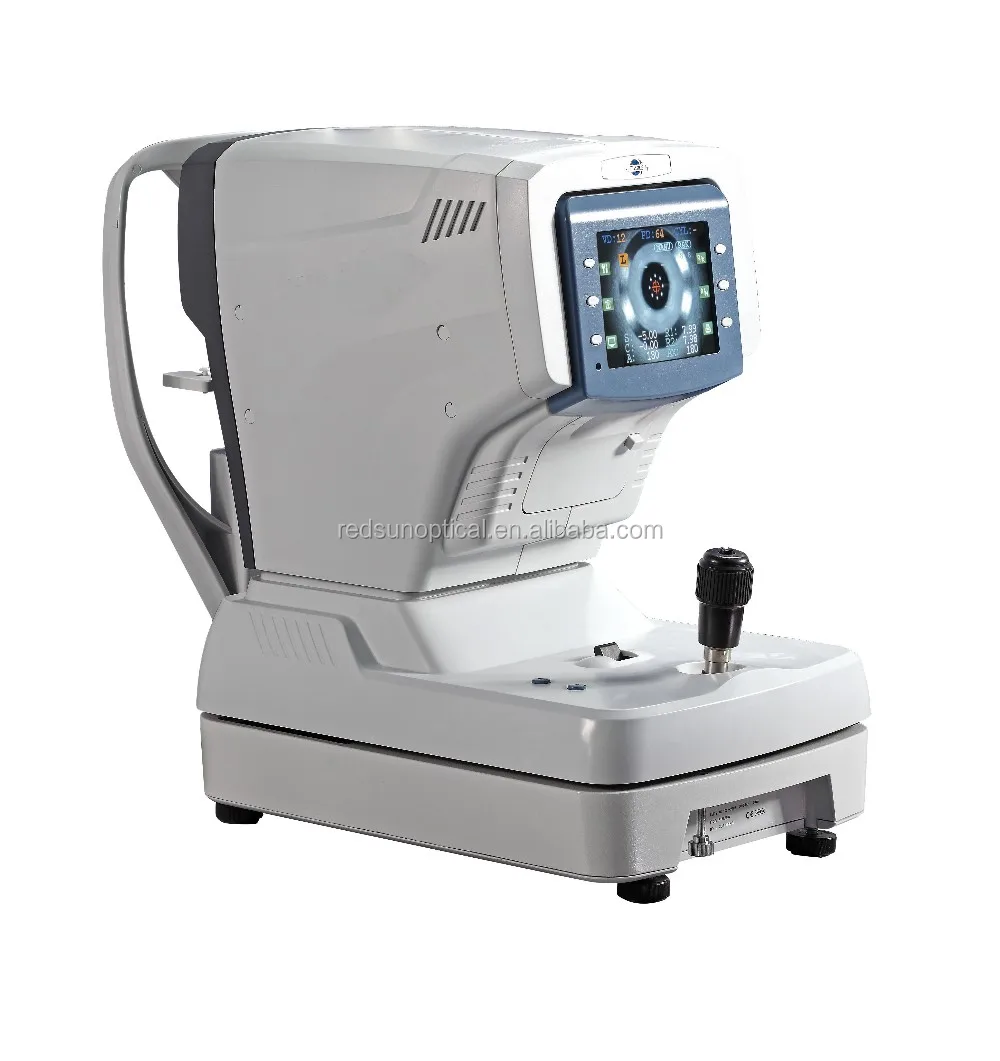

KR9200 ophthalmic equipment auto ref/keratometer auto refractometer

Product Overview

Description

Auto ref/keratometer



(KR-9200)



This model can connect to the CV-7000,CV7200 Auto phoropter, RS1000/1001/1500/1501 Auto chart projector.

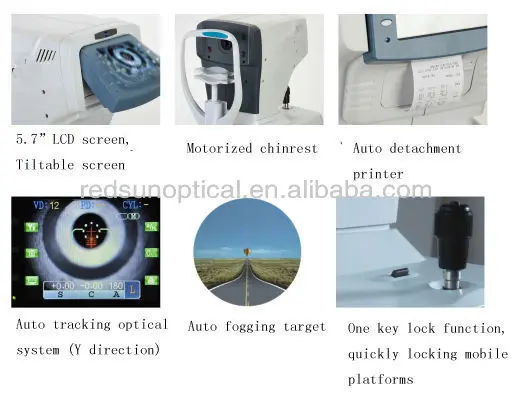

1.tiltable color screen.with keratometer function
2.auto detachment printer
3.auto tracking optical system
4.motorized chinrest



With keratometer function.

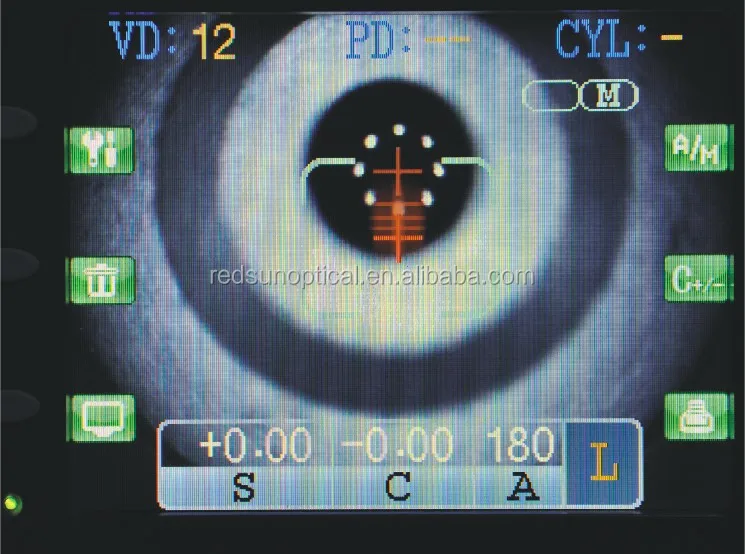

Auto tracking optical system

Use the ARM processor and the latest domestic image processing, the system is fast and the image is clear.

Japan’s mature optical path system, , humanized automatic mist measurement process , to reduce the error caused by adjustment, more precise measurements.

Light rack with integral casting , CNC machining, measuring system, is more stable , good consistency.

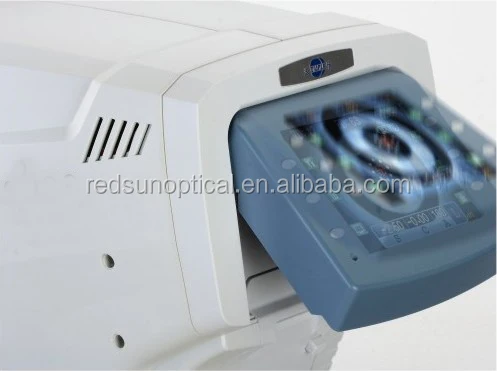

5.7” tiltable color LCD for user friendly operability.

PD Automatic measurement function, automatically PD value.

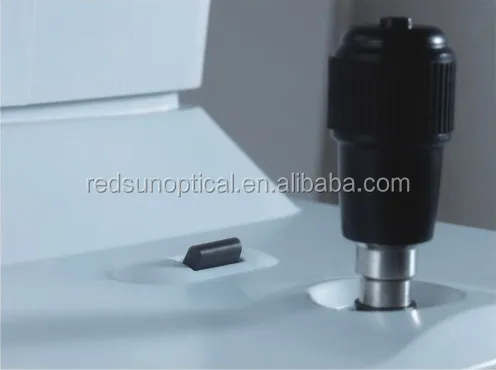

One key lock function, quickly locking mobile platforms.

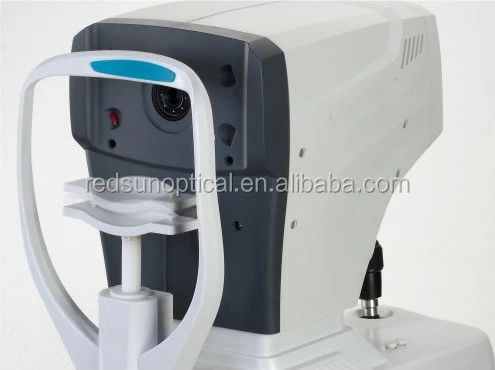

Motorized chinrest

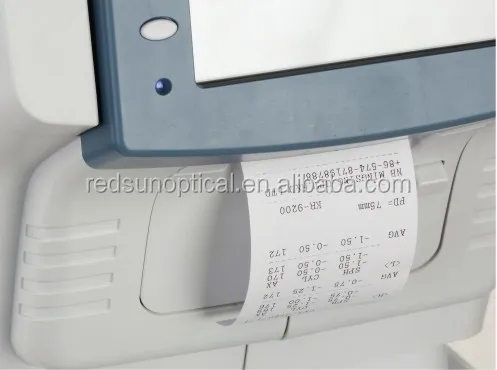

Auto detachment printer





Specifications

Measurement mode	K/R mode	Refractive and Keratometer measurement.
	REF mode	Refractive measurement
	KEF mode	Corneal curvature measurement
Refractive measurement	Vertex Distance	0.0,12.0,13.75,15.0 mm
	Sphere	-20.00~+20.00D (0.12/0.25D step)(VD=12mm)
	Cylinder	0.00~±10.00D (0.12/0.25D step)
	Axis	1°~180°(1° step)
	Pupil Distance	30~85 mm
	Min. pupil diameter measurable	2.0mm
	Target	Automatic fogging target
Corneal curvature measurement	Radius of curvature	5~10mm(0.01mmstep)
	Corneal Refraction	33.00~67.00D(0.12/0.25Dstep)
	Corneal Astigmatism	0.00~-15.00D(0.12/0.25Dstep)
	Angle of corneal	1°~180°(1°step)
	Corneal diameter	2.0~12.00mm
Hardware specification	Monitor	5.7 inch Color LCD
	Printer	Auto detachment printer
	Power saving function	OFF, 5, 15 mins (selectable)
	Power supply	AC110~220 V,50/60HZ
	Dimensions/weight	288(W)*500(D)*480(H)mm/14kg
