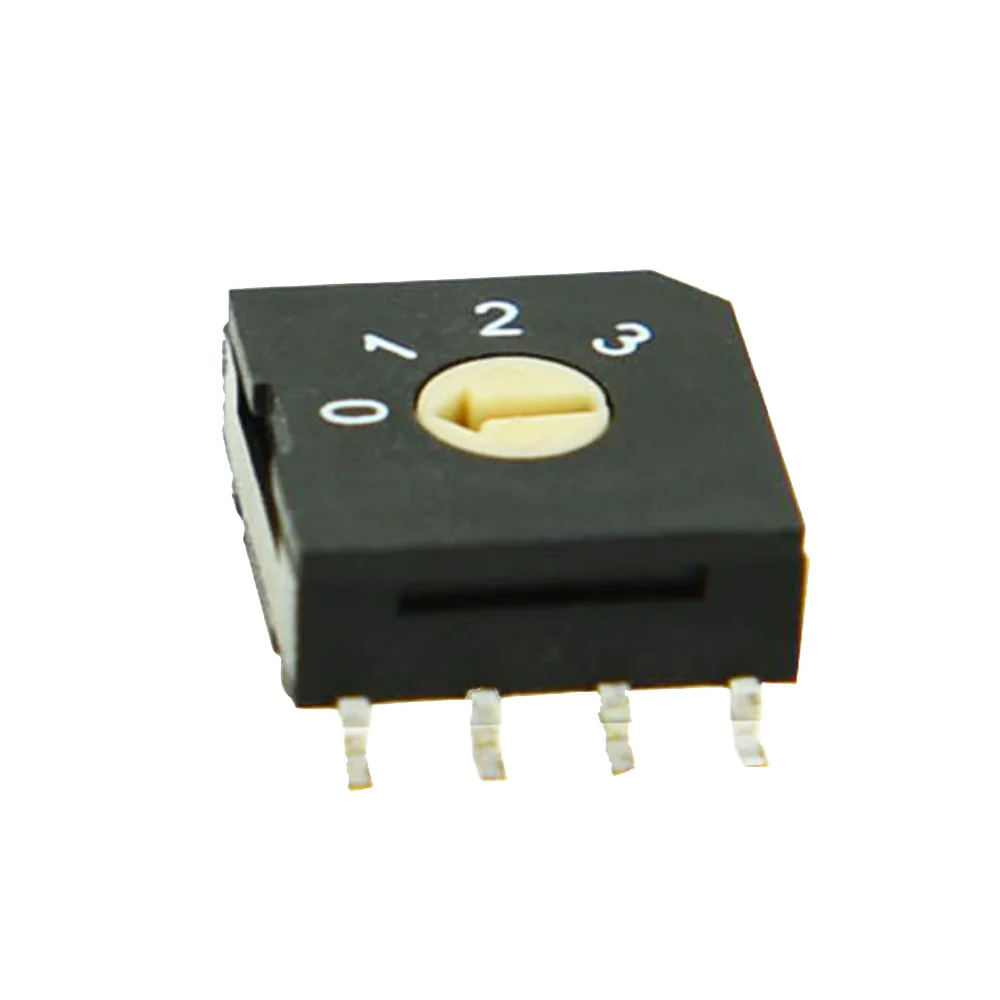

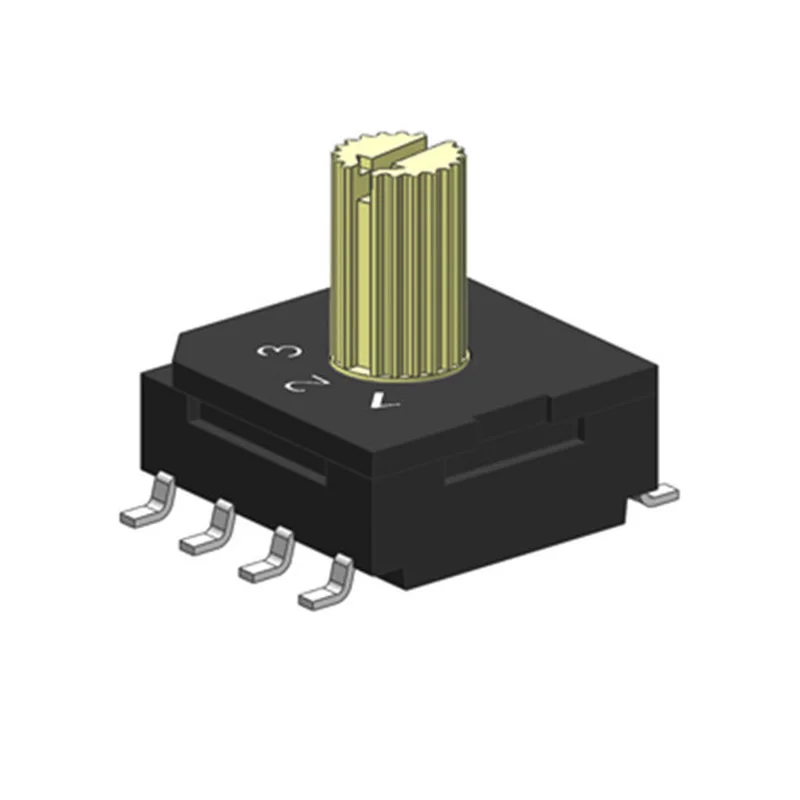

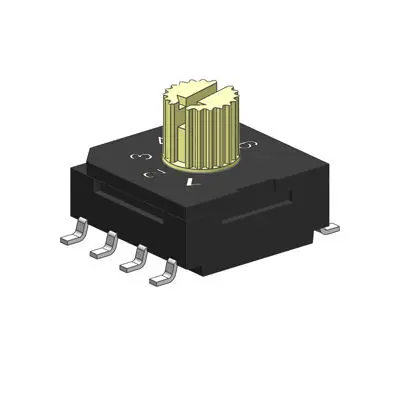

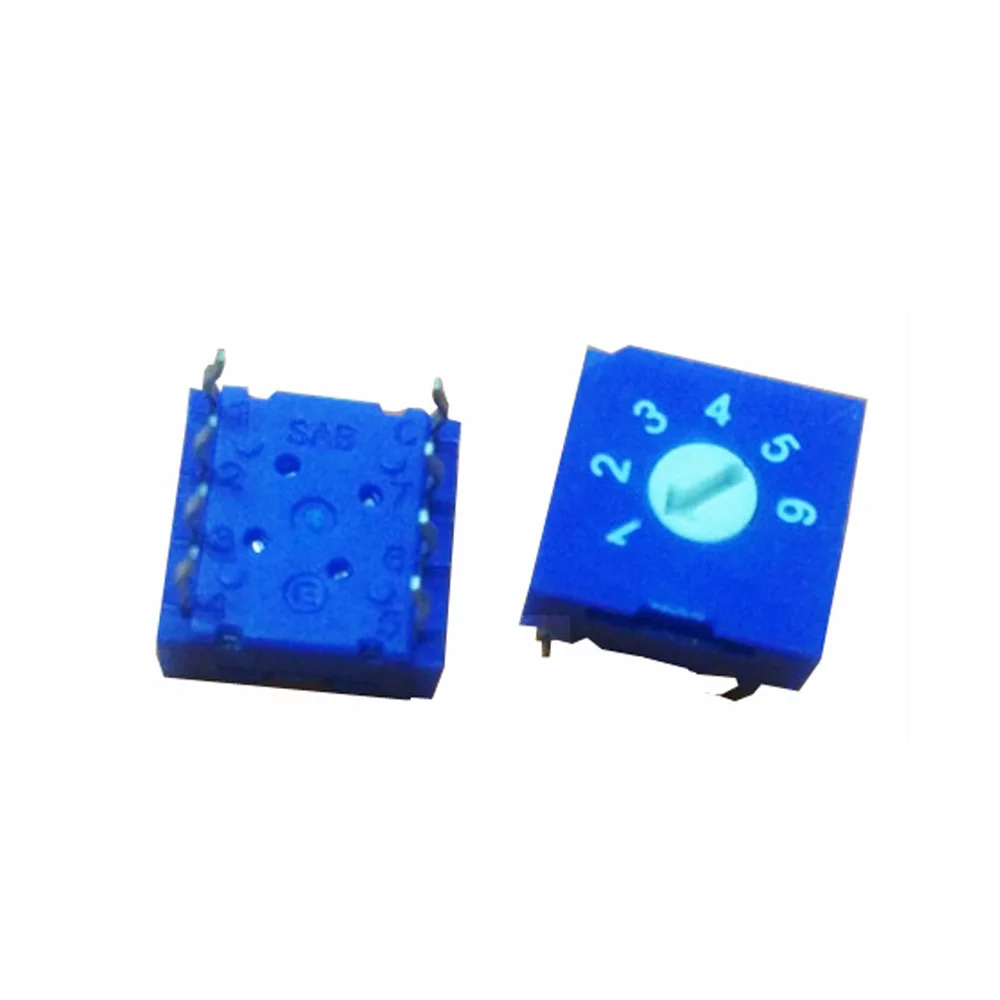

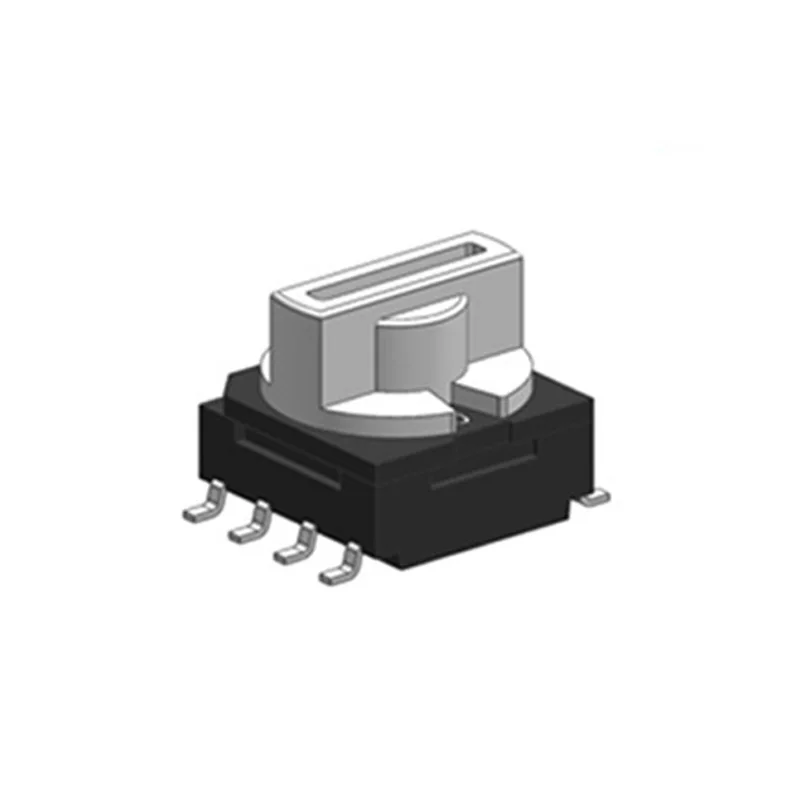

RS8163S Rotary Potentiometer Selector Switch with 1,2,3,4,5,6 Code

Product Overview

Description

RS8163S Rotary Potentiometer With Switch 1,2,3,4,5,6 Code



RS8163S Rotary Potentiometer With Switch 1,2,3,4,5,6 Code
Mechanical
Steps Code	3,4,5,6,7
Dimensions	10mm x 10mm(Length x Width)
Rotor	Flat, 0.5mm, 3mm, 7mm  and  Wheel types
Operation Force	250fg/cm max.
Operation Temp	- 25deg C to 85deg C
Storage Temp	-40deg C to 85deg C
Electrical Life	20,000steps
Terminal	SMD Style
Dustproof and Waterproof meet IP67



      RS8163S Rotary Potentiometer With Switch 1,2,3,4,5,6 Code

  Feature :

1.nice for being able to select up to 16 different states in a small package.

2.With only 6 pins (2 of which are common), you can select 16 positions.

3.The switch is breadboard compatible and has a nice solid feel to it.





      RS8163S Rotary Potentiometer With Switch 1,2,3,4,5,6 Code
