Low pressure fuel dispenser MSF 20F/25F solenoid valve
Low pressure fuel dispenser MSF-20F/25F solenoid valve
Low pressure fuel dispenser MSF-20F/25F solenoid valve

Low pressure fuel dispenser MSF 20F/25F solenoid valve

Share on (1029645685):


Price:

Quantity:


Product Overview

Description

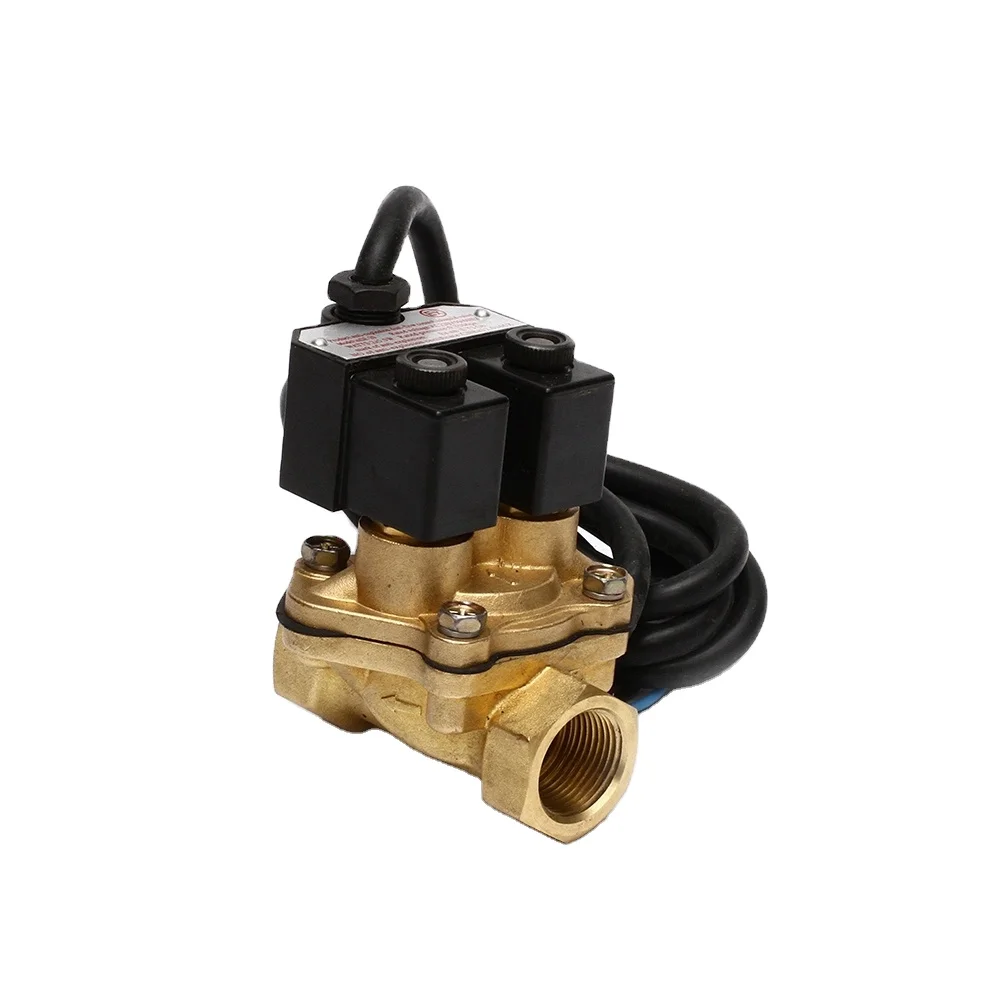

Low pressure fuel dispenser MSF-20F/25F solenoid valve








Main Features






Controlled by built-in overlapped or parallel-connected electromagnetic precursor valve, with advanced craft and reliable action;
Diaphragm of main valve adopts imported special rubber, with high anti-corrosion and resisting low temperature at -40°C;
Special stainless steel magnetic material never rust or generate remanent magnetism;
Close the main valve when the working pressure is 0.3-0.4MPa, and the small flow system will be 3-3.5L/min, which can be designed according to users' requirements.

Technical Specification



































TypemSF-20FA,mSF-20FBmSF-25FA,mSF-25FB
MediumGasoline , Kerosene , Diesel
Working Pressure0.035MPa--0.35MPa
Flow3--50L/min80-90L/min
Working VoltageAC220V AC110V DC24V DC12V
Diameter20mm 3/4''25mm 1''


Product Images: tatsuno solenoid valve / fuel dispenser solenoid valve / casting solenoid valve





fuel dispenser solenoid valve.jpg
