Product Overview

Description

2024 hot 35W solar led street light price with pole /solar light for outdoor/ led street light module



1.CIF lagos USD20~USD380
2. PHOCOS IP68 controller
3. warranty 5 years
4. free maintaince battery Product Description







Description of design

1. This system configuration is suitable for area that peak sunshine for five hours, three continuous rainy days.



2. The energy of Solar street lighting is form solar radiation, Whether the sunlight that exposure to solar panels is abundant or not directly affect lamp lighting effects, so solar panels can exposure to sunlight at any period of time , so when Select where to install the lamp, you should avoid tall buildings or other objects that can block the panels.



3. In order to ensure its beautiful characteristic and its ability that receive better solar radiation, we suggest that you should clean the dust on the solar panels every half of one year , but don't rinse area from the bottom up.



4. Battery is placed on the top of the pole, and it’s good for battery heat-dissipation, shortening the length of the cable, reducing pressure drop, easy installation & anti-theft.

Product obtained CE ,SONCAP, ISO and MCS certificate application range

The road, City Road, Pedestrian Lane, Squares, Schools, Parks, Gardens, Residential areas, lant and other places of outdoor lighting.







******************************************************************************************************************************************

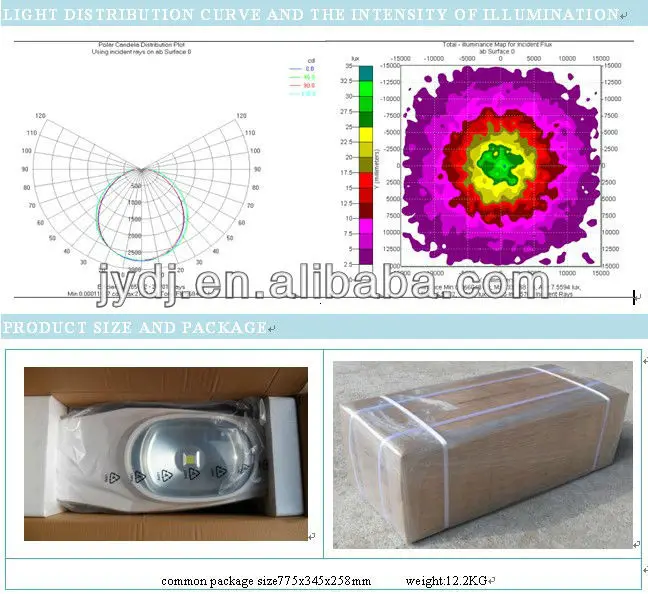

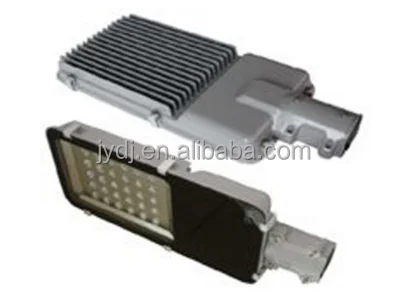

1. LED Description

LED lamp shade is a transparent shade and made of polycarbonate plastic injection molding material, high strength, good light ; using LED as the light source, and LED is light emitting diodes, has the characteristics of high efficiency and long life.At present, the lamp is shaping up as a mainstream lighting products of new generation.



   Using vacuum coating launcher ; high purity aluminum reflection cavity, light shell and heat dissipation body ; high strength of tempered glass cover ; high-power LED light source ; efficient constant - current source.



Use intellectual property rights to encapsulate the single integrated high power (35 w) LED light source, applying the unique light source design of multiple single chip integrated single-mode , and choose imported high brightness chip;

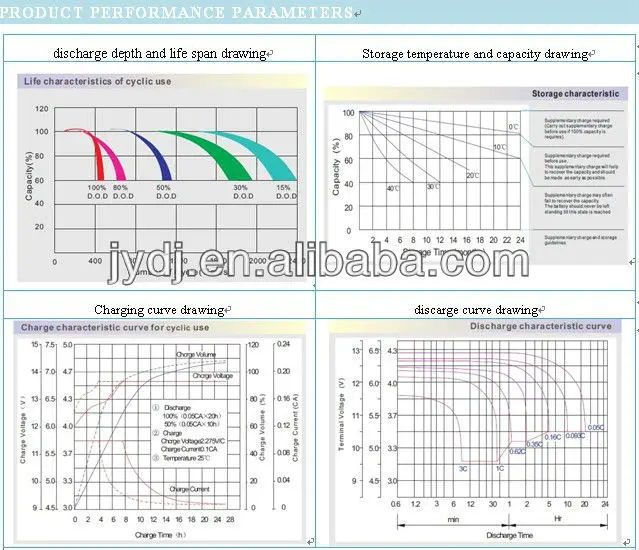

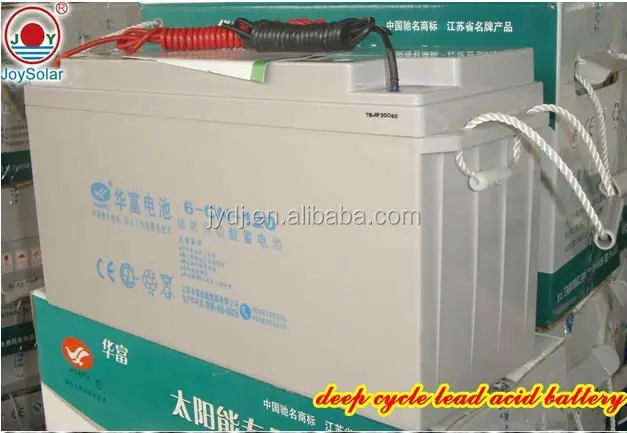

2. Battery Description

Gel battery is able to bear overfull charge or overfull discharge, able to bear shaking,shock resistance, Long storage life. High quality alloy plate grid and unique electrolyte formula, Delicate and perfect processing and manufacturing technology, Make the battery has a large capacity,good deep discharge performance,charge acceptance ability,low temperature starting ability,low self-discharge rate,Good performance of resistance to temperature change,,long life characteristics and so on.

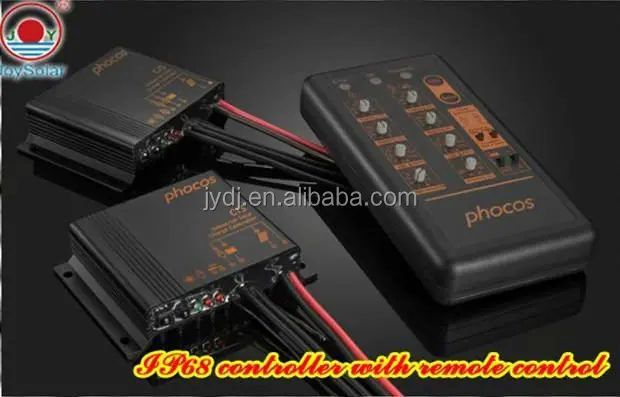

3. Controller Description

CIS controller is special designed for solar street light, provide perfect, multiple protection for solar street lamps’ electrical systems, and through good control strategy, effective extend the system’s power supply time.
*protection grade: IP68, effective dust-proof and water-proof
*sturdy and durable aluminium alloy case, anti-corrosion
*four stages charge control(main charge,powerful charge,equalizing charge,float charge)
*Single and double street light output contro l flexible
*infrared remote controller (CU) set, simplicity and convenience operator
*LED status indicate
*at night all the time,morning and twilight double time light-operated/time control timing function
*external temperature sensor, automatic temperature compensation
*output power regulatory function, saving energy and protecting environment.

*compact structure, small volume, easy to install

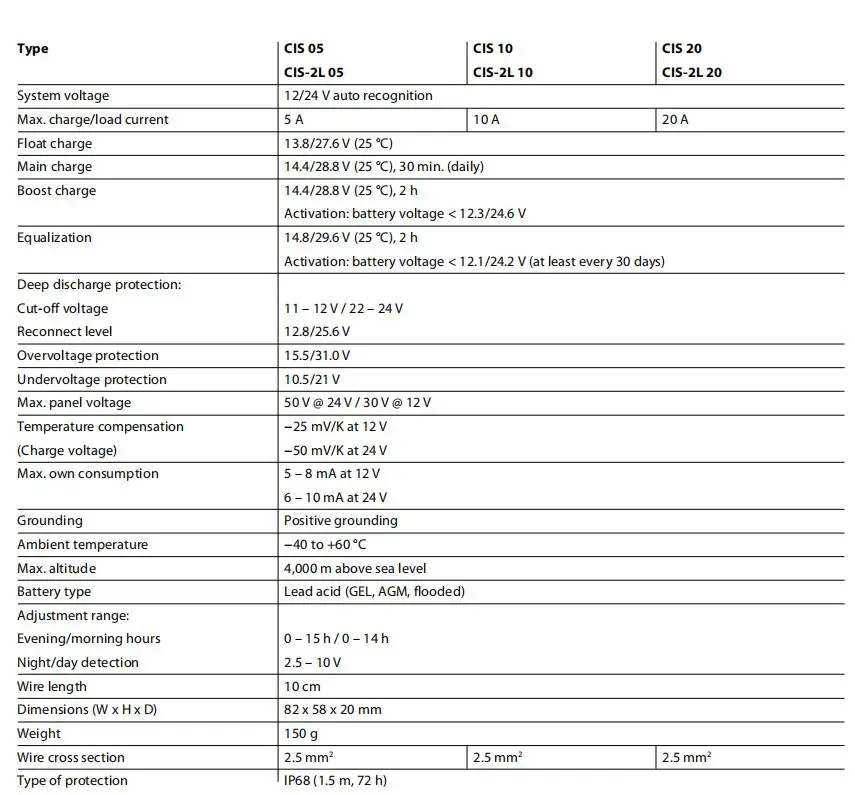

parameter:



PRODUCT FUNCTION

*Over protection: could chose LVD mode or SOC mode

*Overvoltage protection: 12V system 15.5V, 24V system 31V cut off the load

*Low-voltage protection: 12V system 10.5V, 24V system 21V cut off the load

*Over-current protection: When the actual current is 110% greater than the rated current, Delay of 120 s to cut off the load

   When the actual current is 150% greater than the rated current, Delay of 10 s to cut off the load

   When the actual current is 200% greater than the rated current, Delay of 3 s to cut off the load

*Short-circuit protection: When the actual current is three times greater than the rated current, immediately cut off the load

*Reverse polarity protection

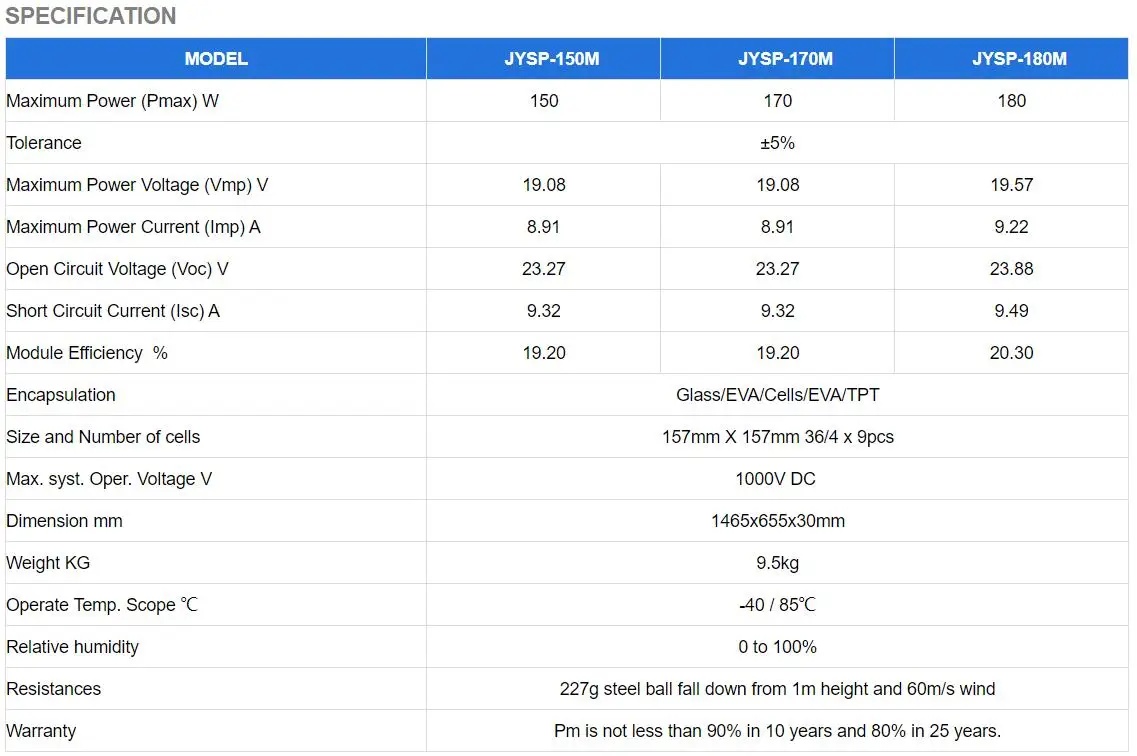

4. Solar panel Description



1. We could ensure the conversion efficiency of solar panel with high efficiency polycrystalline cells and high transmittance tempering glass, this not only reduce solar power supply system installation cost ,but also increase unit system area electric-power output .

2. Solar power float ±3% , it could ensure our customer get the power from solar panel, reduce the power loss caused from mismatching power, improve system output function and bring more benefit for customer .

3. Obtained and so on, we keep authentication high consistent with standard testing in actual production.

4. 5 years’ warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.





product constitution

Solar panels are made of monocrystalline or polycrystalline silicon solar cells, series connection or parallel connection, then hot-pressed and sealed by tempering glass and EVA,TPT, equipped with aluminum alloy frame, have the characteristic of the wind-resistant, hail resistant and easy installation. The panel is widely used in solar lighting, lamps, household power supply, road transport, building and photovoltaic power station, etc.



1. Tempering glass

2. EVA

3. soler cell

4. back veneer

5. junction box

6. aluminum alloy frame

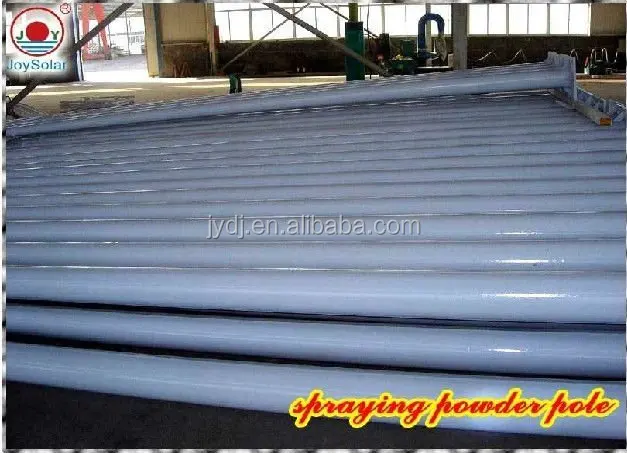

5. Pole and other fitting

Components surface is sprayed with the powder after hot galvanized anti-corrosion treatment, white color (or other colors on custom’s request), smooth surface, non-discolouring , no pinhole hang, no flow, no peeling phenomenon ; Galvanized layer thickness is not less than 85 microns, the coating thickness is not less than 100 microns.













6. CERTIFICATE for solar led light price

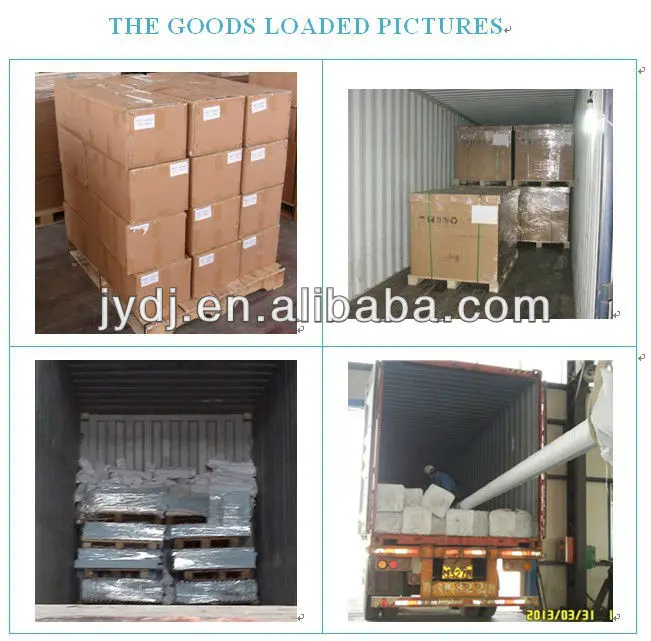

7. Packaging & shipping for  solar led light price

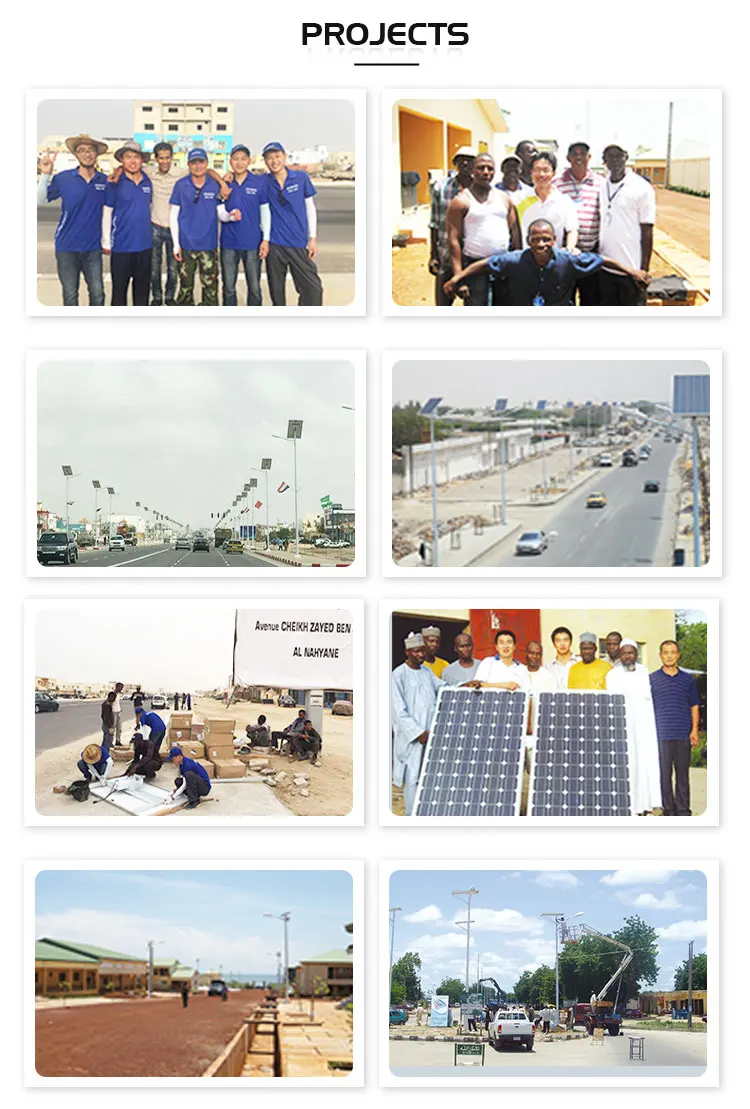

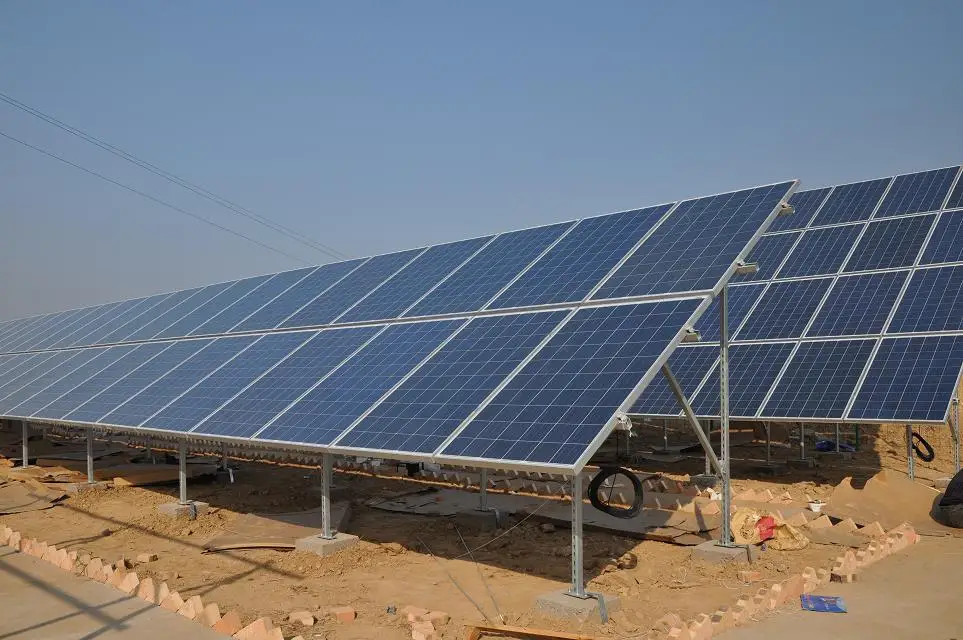

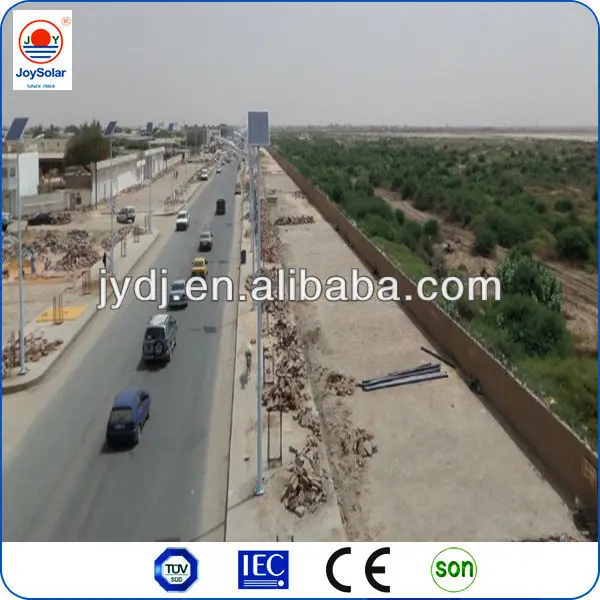

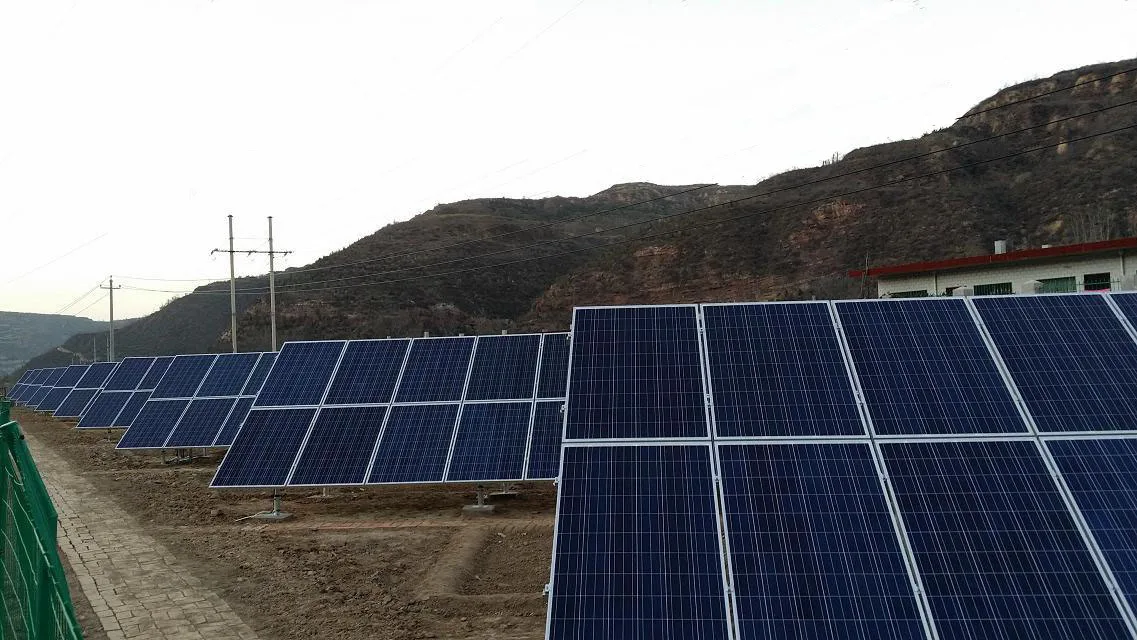

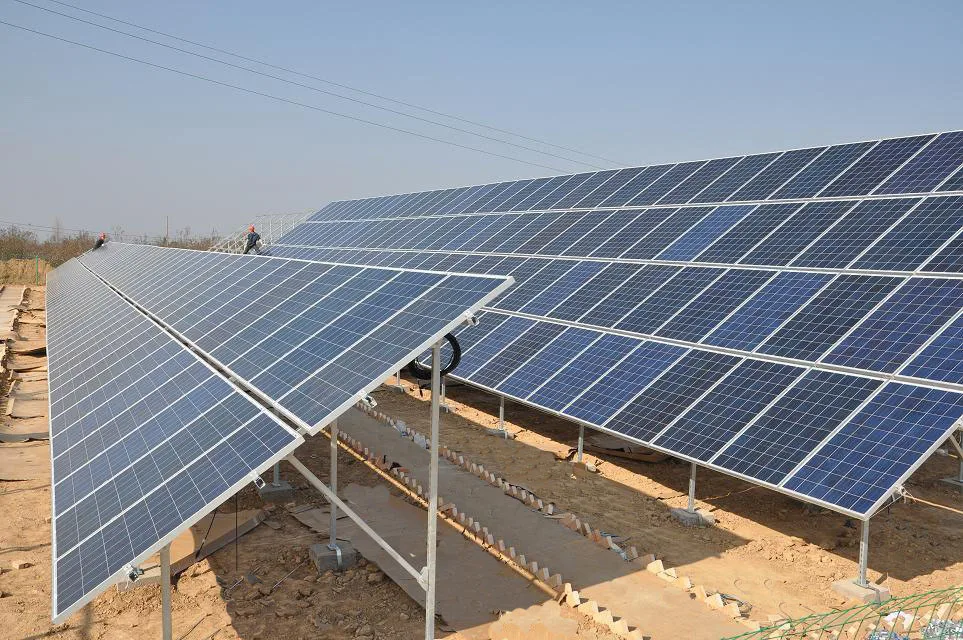

8. project Picuture for  solar led light price







       Welcome to contact with us at any time, thanks.
