Hot!Top Quality 2013 Zhejiang Automatic High Speed Side Sealing TNT DHL EMS Courier Plastic Bag Making Machine

Product Overview

Description

 FEATURE:



1) Unwinding install EPC, easy for material feeding



2) Bottom gusset device, which can gusset max size from bottom is 85mm



3) Printing tracking adopts photocell from SICK FROM GERMANY.



4) Strong film



5) Such products are also used by hospitals, laboratories, police, prisons and retailers for the safe keepings of evidence, money and valuables.



6) Speed of host machine adjusted by frequency conversion



7) With Folding device, Perforation line device, Adhesive tape adding device



8) Material tension is automatically controlled through magnetic powder



9) Minicomputer control system to preset the length of pouch, length measurement display and automatic stop function when reaching the set length.



10) Touch buttons panel



11) Adopts Servo motor, Yaskawa, Japan.



Main technical parameters:



1. Jet printer to print such as the fabrication date, lot number, etc





Model	KD-800
Max. Dia. of feeding reel	600mm
Film thickness:	0.03-0.1mm,
Max bag width	650mm
Max bag length	750mm
Speed	70pcs/min
Total power	10KW
Weight	2500KG
Overall dimension(L*W*H)	7500*1700*1880mm

 Our Factory have More Than 10 years Experience on bag making machines

welcome to visit our website, i will be very glad to answer your any questions , please contact with ME (kiki lin )  :  skype: tinva005

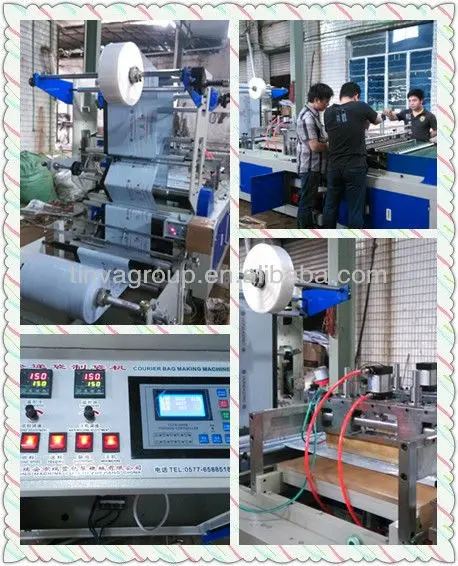

Machine:

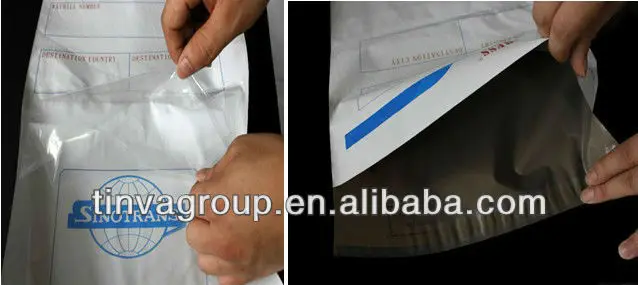

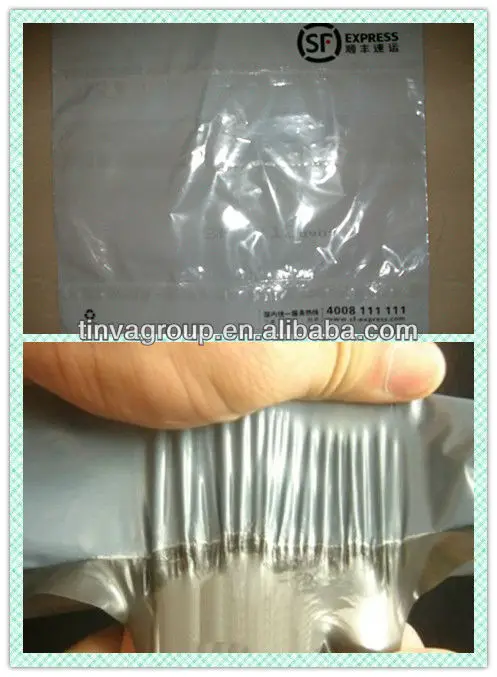

 product:
