Price for precast concrete slab making machine for floor slab/Hollow core slab prefab house

Product Overview

Description

Precast concrete Hollow core slab making mahine for Floor slab/roof slab

008615866626003



INTRODUCTION

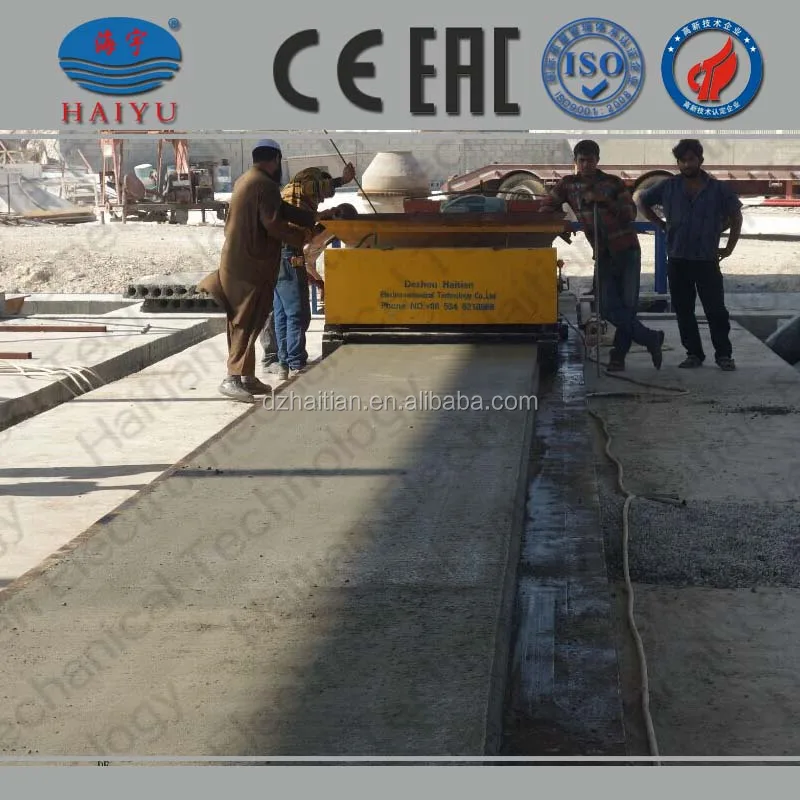

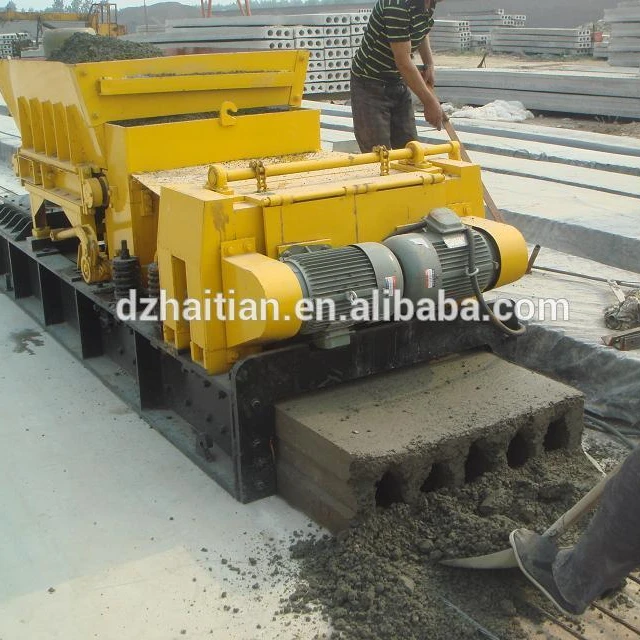

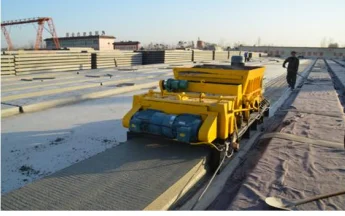

The machine works on the concrete flat platform powered by the motor. The incompact materials are pushed into the forming place by the speed reducing convening and the slider’s repeatedly moving on straight, then the materials push each other to air out.

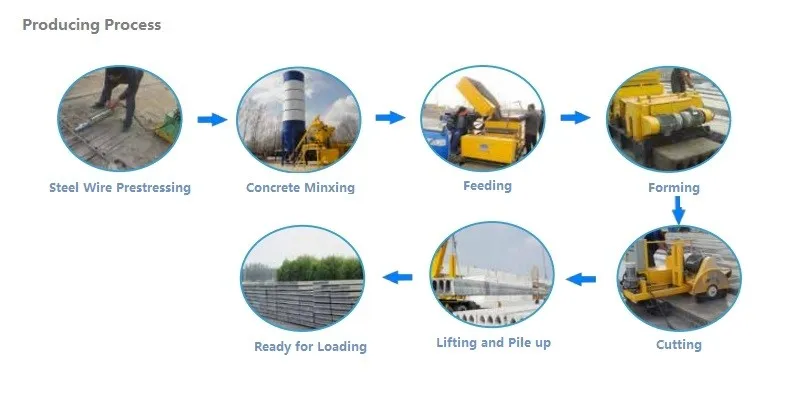

The continuously working of vibration plate will highly classify the concrete. At the same time, the reaction of pushing materials by slider will move the whole machine go along with the steel wire overcoming the frictional resistance. The concrete slab is forming during the process behind the machine. After maintenance of a few days, it can be cut in to concrete slabs.

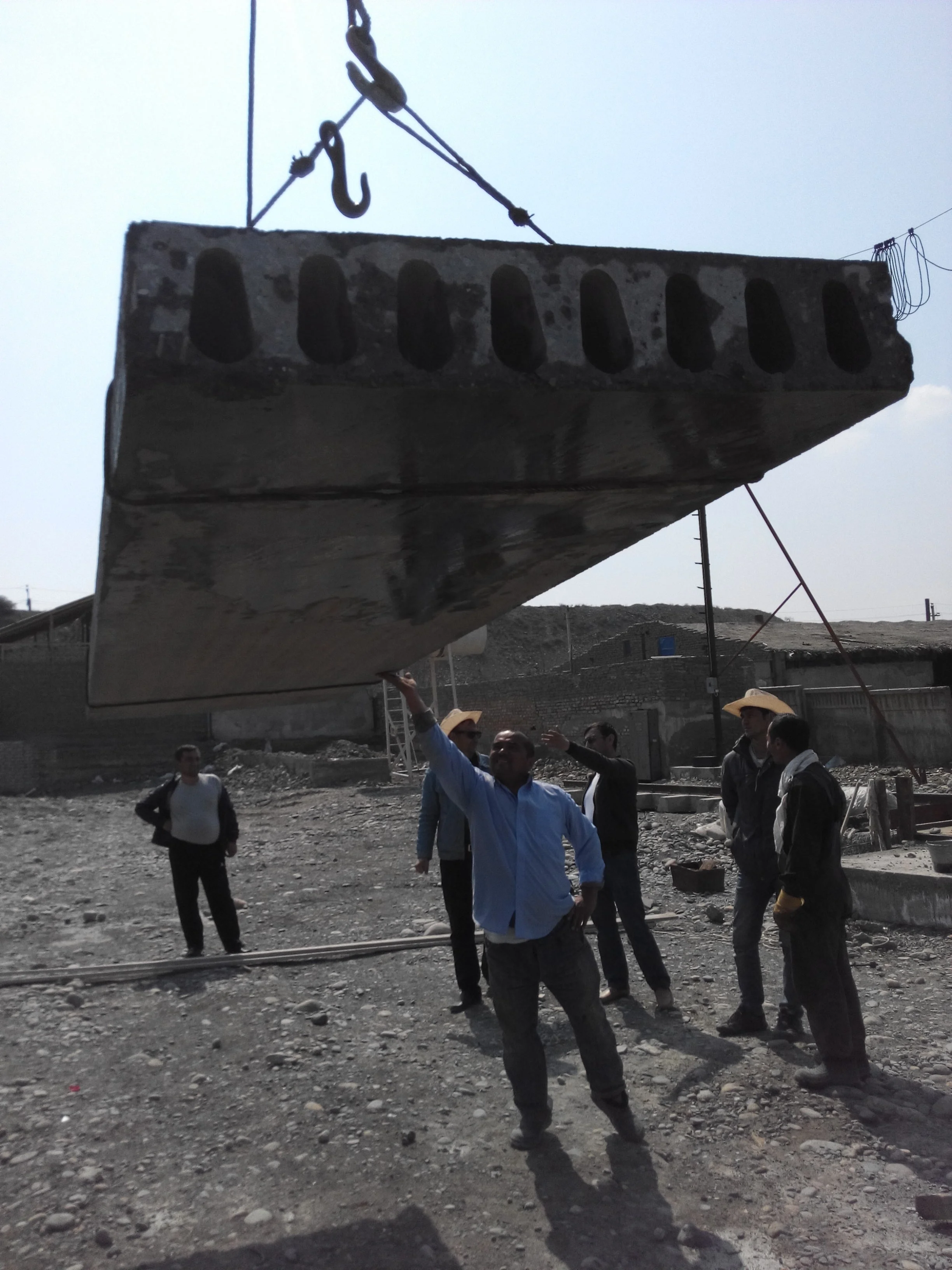

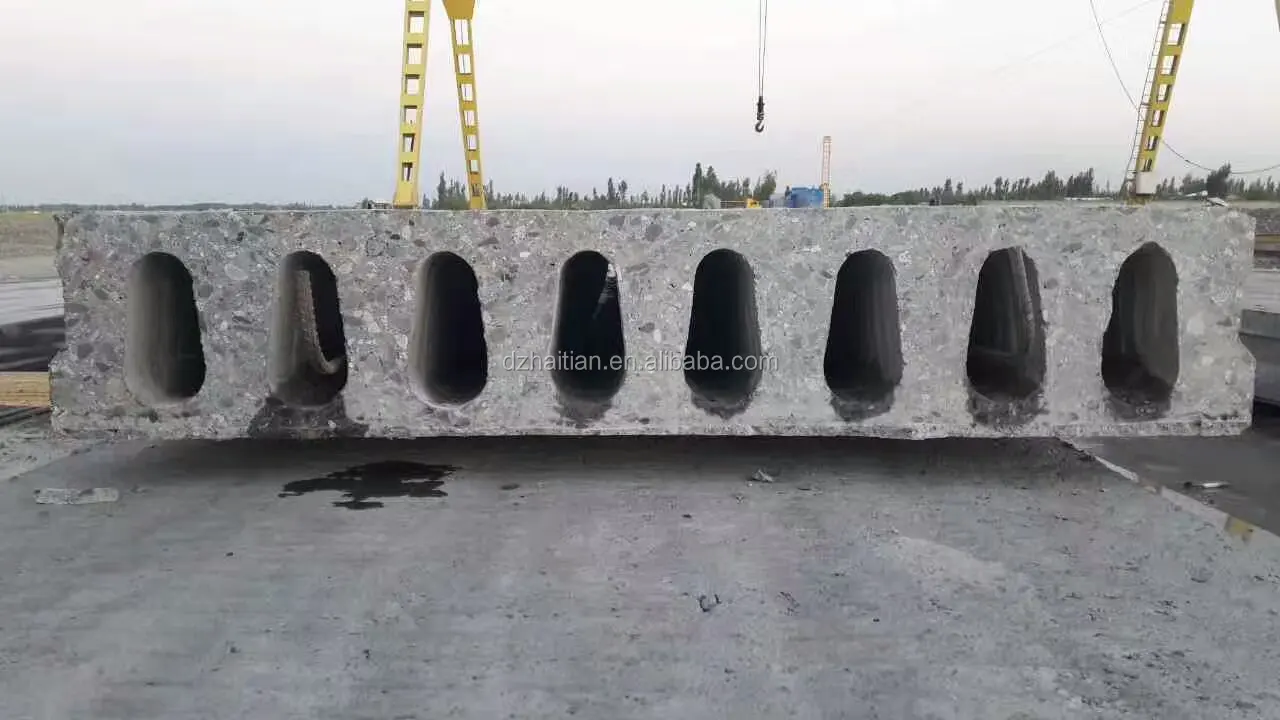

Haitian is a professional producer of pre-stressing concrete hollow core slab forming machine. It characters as bellow: suitable design, easy for operation and maintenance, durable spare parts etc. With smooth surface, solid construction ,high strength and precise dimension ,the hollow core slab meets all the national specification requirements required .The dimension range of the slabs are as bellow: Length is from 4.2m to 18m, width are 600mm,900mm and 1200mm, the thickness is 120mm,150mm,180mm,200mm,250mm, 300mm and 380mm.It became the best and economical choice of the factory who produce high strength hollow core slab for workshop, school, hospital, shopping mall, office building, warehouse and residence.

POPULAR TYPES AND PARAMETERS

No.	Model	Size of Slab (mm)	Power (kw)	Weight / meter (kg)	No. of Steel Strands, Steel Rope Ø, Span in Meter, & Max. Load Carring Capacity kN/m2
1	TW 120-600	Thickness - 120 Width - 600	8.5	100	8 Nos. 5 mm 4.5 mtr 4.6 kN/m2 6 Nos. 7 mm 4.5 mtr 6.54 kN/m2 6 Nos. 7 mm 6 mtr 2.27 kN/m2
2	TW 150-600	Thickness - 150 Width - 600	10.5	125	5 Nos. 7 mm 4.5 mtr 8.27 kN/m2 7 Nos. 7 mm 6 mtr 4.94 kN/m2 5 Nos. 9.5 mm 6 mtr 5.23 kN/m2
3	GLY  150-1200	Thickness - 150 Width - 1200	18.5	250	12 Nos. 7 mm 4.5 mtr 10.98 kN/m2 12 Nos. 7 mm 6 mtr 4.54 kN/m2 10 Nos. 9.5 mm 6 mtr 6.19 kN/m2
4	GLY  180-1200	Thickness - 180 Width - 1200	18.5	270	10 Nos. 9.5 mm 6 mtr 9.72 kN/m2 8 Nos. 12.7 mm 6 mtr 12.83 kN/m2 10 Nos. 12.7 mm 7.5 mtr 8.72 kN/m2
5	GLY  200-1200	Thickness - 200 Width - 1200	22	300	10 Nos. 9.5 mm 6 mtr 11.36 kN/m2 8 Nos. 12.7 mm 7.5 mtr 8.11 kN/m2 10 Nos. 12.7 mm 9 mtr 6.36 kN/m2
Sr. No.	Model	Size of Slab (mm)	Power (kw)	Weight / meter (kg)	No. of Steel Strands, Steel Rope Ø, Span in Meter, & Max. Load Carring Capacity kN/m2
6	GLY  250-1200	Thickness - 250 Width - 1200	33	315	8 Nos. 12.7 mm 7.5 mtr 11.15 kN/m2 10 Nos. 12.7 mm 9 mtr 9.16 kN/m2 10 Nos. 12.7 mm 10.5 mtr 5.76 kN/m2 10 Nos. 12.7 mm 12 mtr 2.86 kN/m2
7	GLY  300-1200	Thickness - 300 Width - 1200	40	380	12 Nos. 9.5 mm 7.5 mtr 11.59 kN/m2 10 Nos. 12.7 mm 9 mtr 8.63 kN/m2 10 Nos. 12.7 mm 10.5 mtr 6.60 kN/m2 12 Nos. 12.7 mm 12 mtr 5.60 kN/m2
8	GLY  380-1200	Thickness - 380 Width - 1200	39.5	480	14 Nos. 9.5 mm 9 mtr 10.20 kN/m2 10 Nos. 12.7 mm 10.5 mtr 7.64 kN/m2 10 Nos. 12.7 mm 12 mtr 5.91 kN/m2 12 Nos. 12.7 mm 13.5 mtr 4.58 kN/m2
