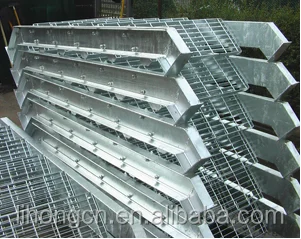

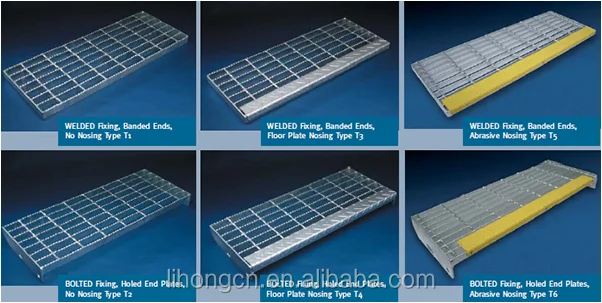

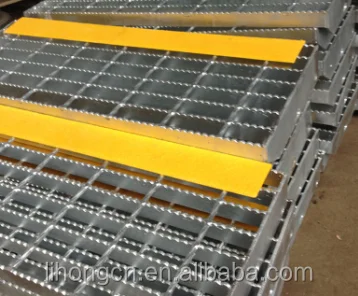

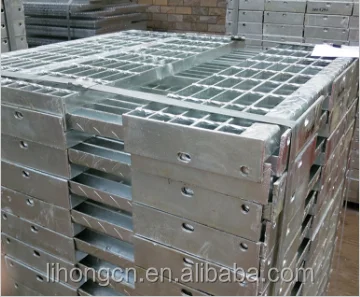

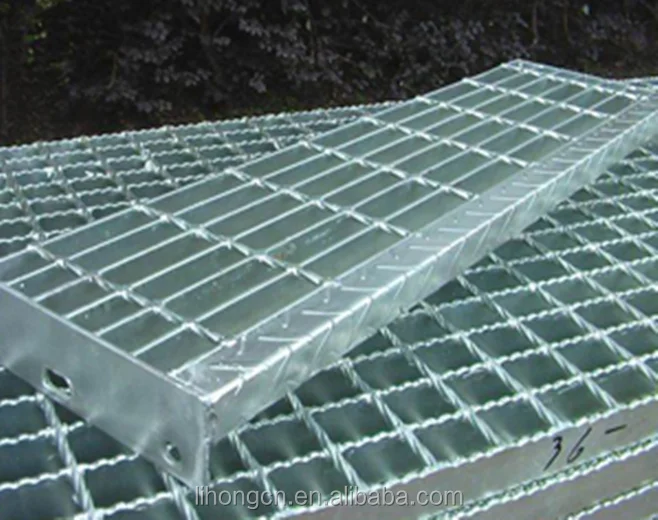

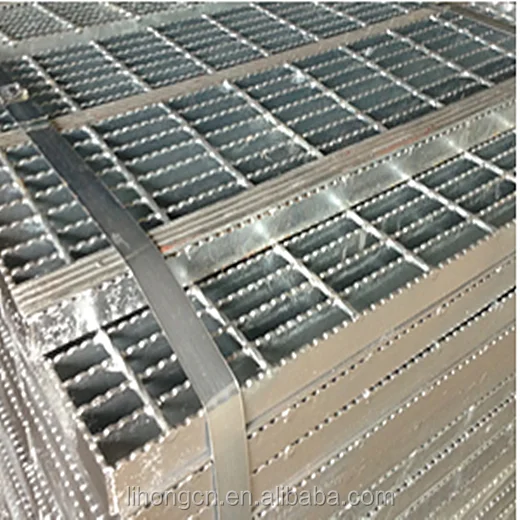

galvanized steel grid stair tread,steel lattice stair tread, steel grilles

Product Overview

Description

steel grid stair tread.
steel lattice stair tread,
steel grilles stair tread,

ISO9001-2008 & SGS Company, GRATING SPECIALIST, YOUR GRATING SOLUTIONS !************************************************************



 We are a leading professional manufacturer of high quality steel grating for construction project at competitive price, located in Ningbo \ near to Shanghai \ of China. Ningbo Lihong Steel Grating Co.,Ltd has approved ISO9001-2000 Quality Management System in 2001.  60% of products is exported to the worldwide. There are many regular grating customers in USA / Ohio, Houston, Charlotte, Middle East /Kuwait, UAE, Saudi A /, AUS, Europe and Southeast so on.

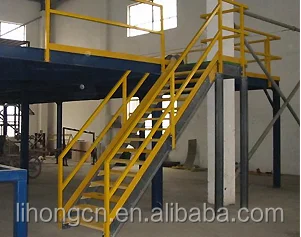

We produce three kinds of steel gratings, they are Plain Style Steel Grating, Serrated Style Steel Grating and I Bar Type Steel Grating. They are widely used in steel structure platforms, stair treads, sidewalks, drainages and well covers etc. We can design and manufacture standard steel grating and in customized shapes per client's requirements.



Ningbo Lihong Steel Grating Co., Ltd

ISO9001-2008 & SGS Company

STEEL GRATING SPECIALIST, YOUR GRATING SOLUTIONS



No.	Item	Description
1	Bearing Bar	25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'', 1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1 1/2''x1/8'' etc
2	Bearing Bar Pitch	12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc.
3	Twisted Cross Bar Pitch	38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
4	Material Grade	ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400,  Mild steel & Low carbon steel, etc
5	Surface Treatment	Black, self colour, hot dip galvanized, painted, spray coating
6	Grating Style	Plain / Smooth, Serrated /teeth, I bar, serrated I bar
7	Standard	China: YB/T 4001.1-2007,  USA: ANSI/NAAMM(MBG531-88), UK: BS4592-1987,  Australia: AS1657-1985, Germany: DIN24537-1-2006, Japan: JIS
