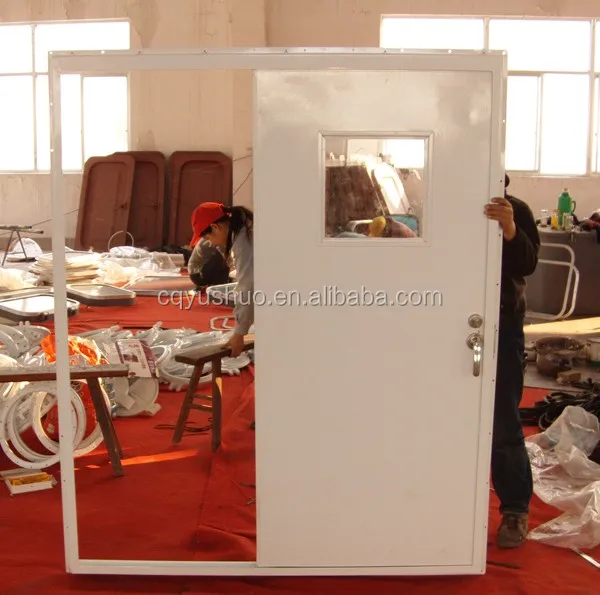

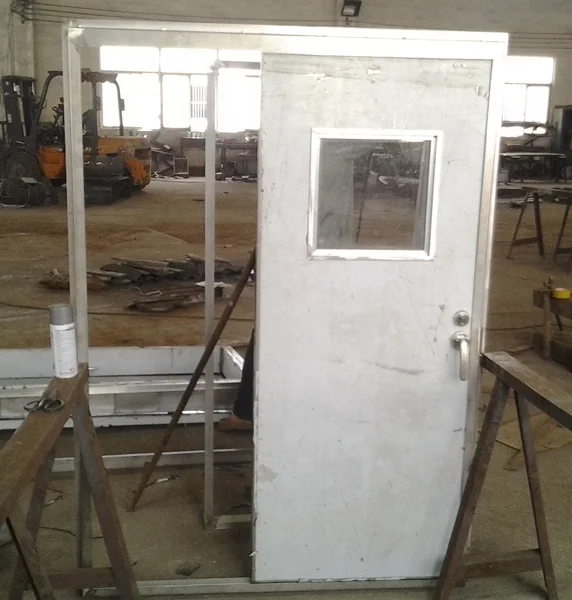

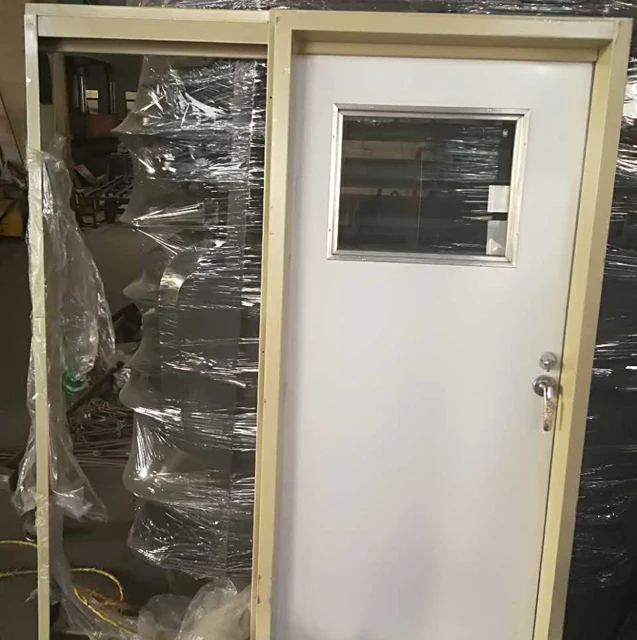

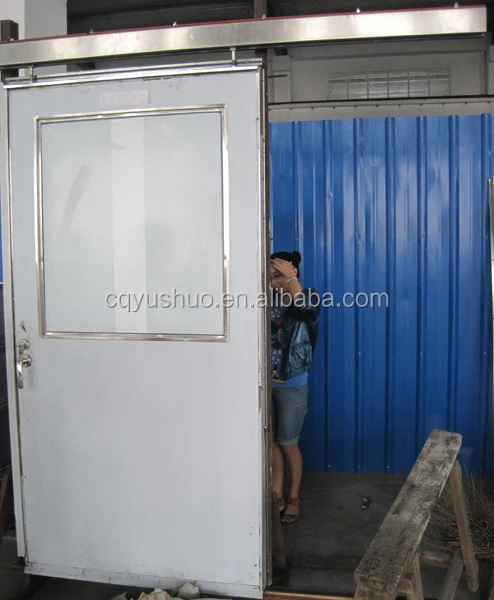

Marine Ship Boat Sliding H120 Steel Fire Door
- Category: >>>
- Supplier: Chongqing Yushuo Import & Export Business Co. Ltd.
Share on (1033292076):
Product Overview
Description
Marine Ship Boat Steel Conventional Weather Tight Door with Portlights
Meet requirements of IMO, SOLAS
Passed standard fire test, easy operation
Application: used for bulkheads or combination of bulkhead and ceramic cotton with hydrocarbon fireproof requirements
Option: pneumatic or manual operation
Max. Size: 800x2100mm
Core material: ceramic fibre
Door leaf: 2 or 3mm painted mild steel/ stainless steel
Door frame: 3 or 4mm painted mild steel/ stainless steel, welded or bolted
Available certificates: GL, DNV, CCS, BV,ABS, LR, KR, RS, etc
Available in natural finish, primed or coated in accordance with client request.
Sizes and colors will customize according to your requirement

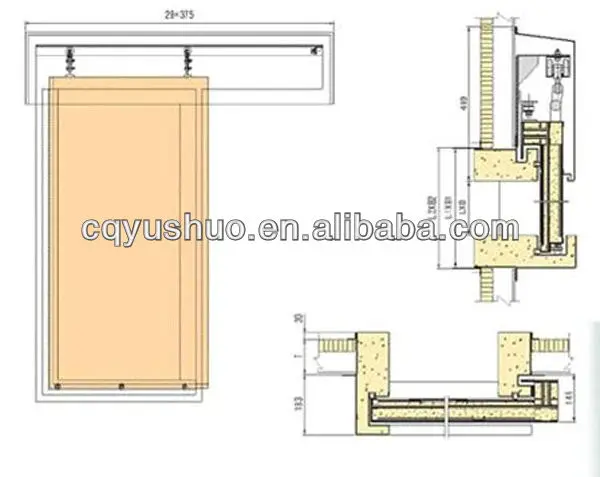

Specifications | |||||
Product No. | Nominal Size | Size of Frame | Cutout in Steel Wall | D | Weight |
| B×L | B1×L1 | B2×L2 | kg | ||
CQYS010-HS001 | 700×1700 | 900×1900 | 905×1905 | T+203 | 180 |
CQYS010-HS002 | 750×1750 | 950×1950 | 955×1955 | 204 | |
CQYS010-HS003 | 800×1800 | 1000×2000 | 1005×2005 | 224 | |
