Xenon 200W Lamp

Product Overview

Description



Xenon 200W Lamp

Short Arc Xenon Lamp 50W-350W

APPLICATIONS:Advertising Projection,Architectural/Spotlight,Stage Lighting,Cine Projector,Searchlight,Medical Treatment.

FEATURES: Compact quartz xenon lamp, Maximum light output,Ozone-free Xenon Lamp





Spec.	Operating current	Operating voltage	Luninous Flux	Average Life time	Wind cooling speed	polar distance		No.
Type	(A)	(V)	(lm)	(h)	(M/sec)	(mm)		fig.
XHH50	4	12.5	1300	500	5	0.6		2
XHH75	5	14	1400	500	5	1.5		2
XHH150	8.5	18	3200	800	5	2.6		3
XHH150/TC	8.5	18	3200	800	5	2.6		1
XHH250/T	16	17	4800	800	5	2		4
XHH250/TC	16	16	4800	800	5	2		1
XHH250	16	16	4800	800	5	2		3
XHH350/TC	16	22	11500	800	5	3		1
XHH350	16	22	11500	800	5	3		3

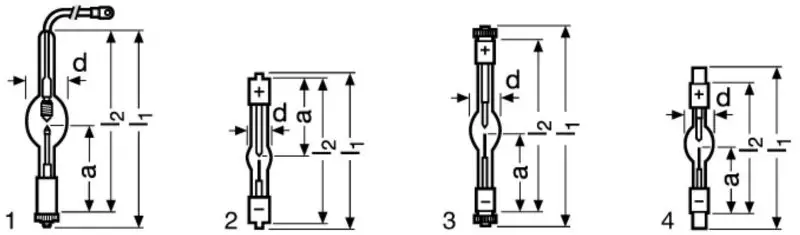

Spec.	Diam-eter	Overal Length	Mounting Length	Height of light center	Lamp Base			Cross Ref.
	d	l1	l2	a	Anode	Cathode
TYPE	(mm)	(mm)	(mm)	(mm)
XHH50	13	80	70	35	SFa9-2	SFa7.5-2		/
XHH75	13	95	80	35	SFc9-4	SFa9-3		/
XHH150	20	150	127	57	SFc12-4	SFc12-4		/
XHH150/TC	20	127	115	57	cable	SFc10-4		/
XHH250/T	22	226	192	93	SFa16-8	SFa16-10		/
XHH250/TC	22	138	125	65	cable	SFc15-5		/
XHH250	22	150	125	65	SFc12-4	SFc13-5		/
XHH350/TC	22	138	125	65	cable	SFc13-5		/
XHH350	22	155	130	65	SFc13-5	SFc13-5		/
