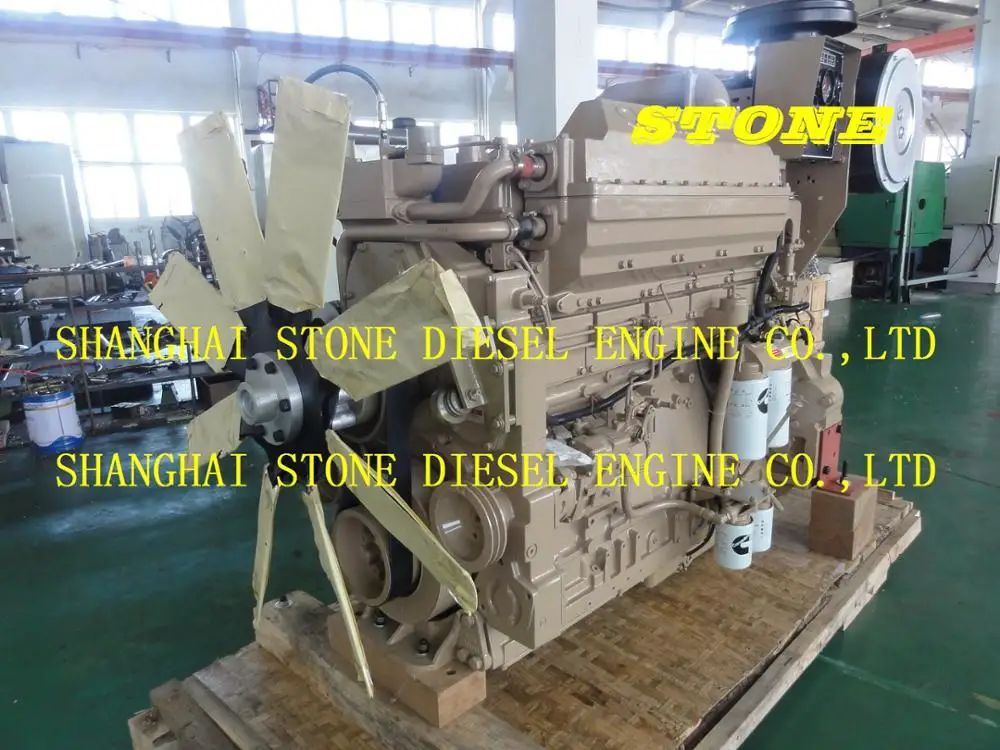

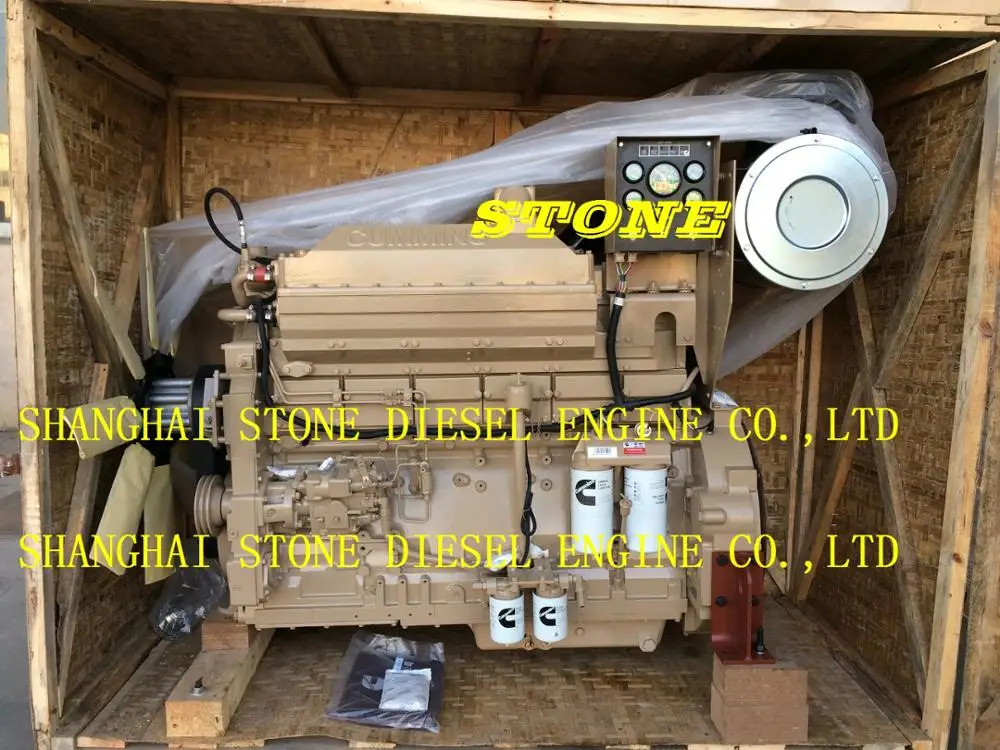

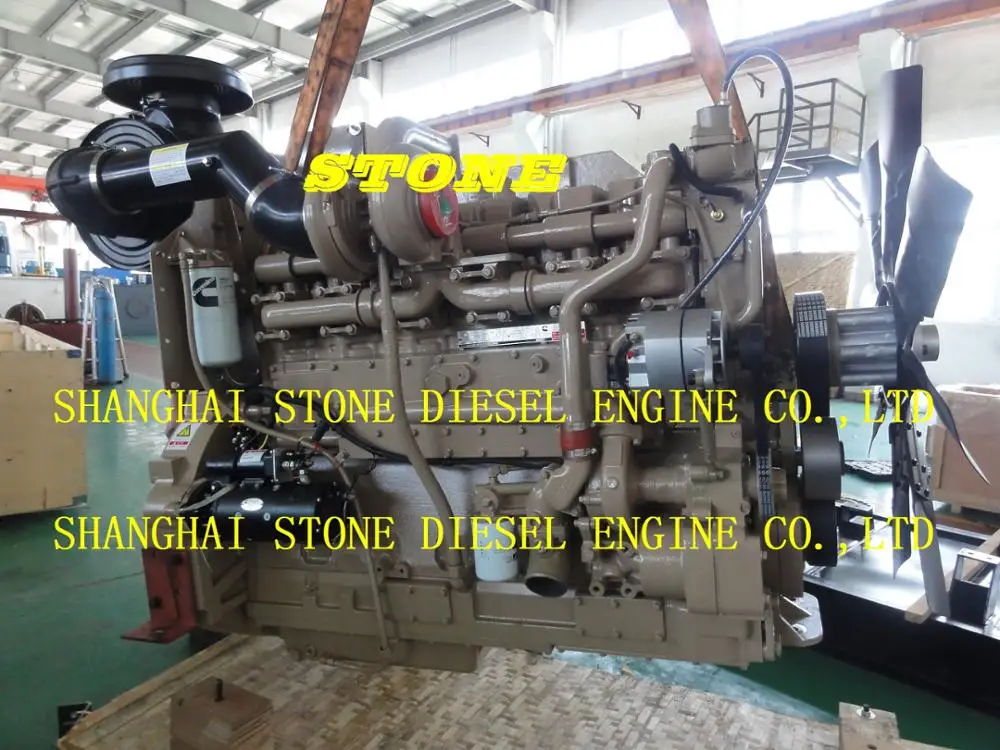

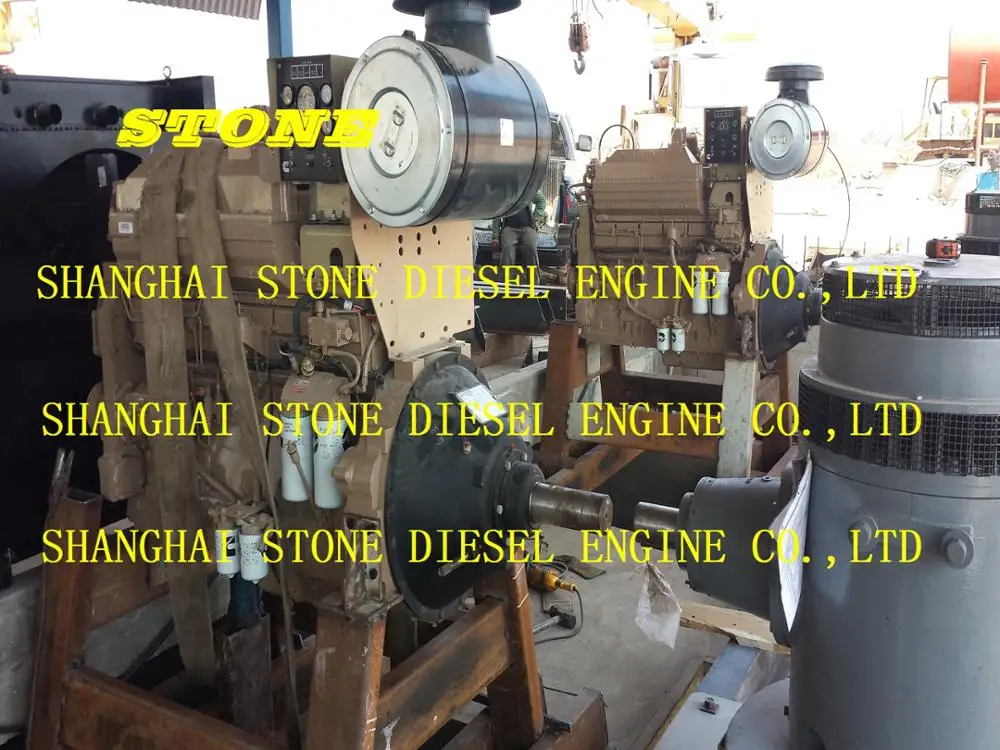

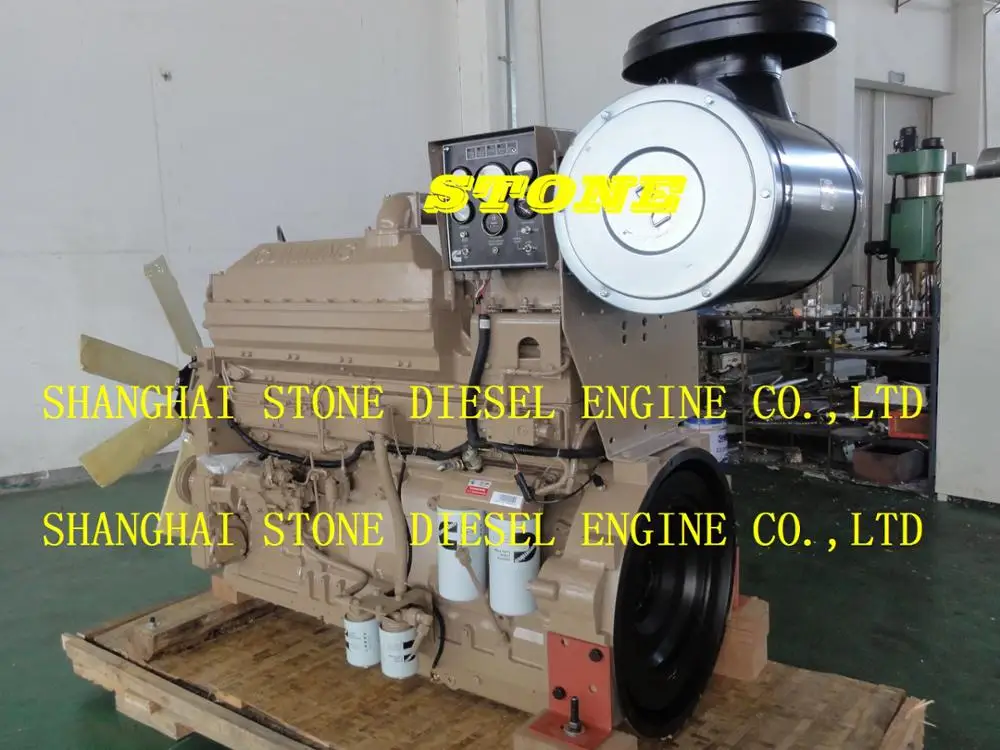

single stage double suction centrifugal split pumps with cummins KTA19 diesel engine

single stage double suction centrifugal split pumps with cummins KTA19 diesel engine

Category: >>>
Supplier: Shanghai Stone Diesel Engine Co. Ltd.

Price:$4,700.00 - $5,000.00

Quantity:

Product Overview

Description

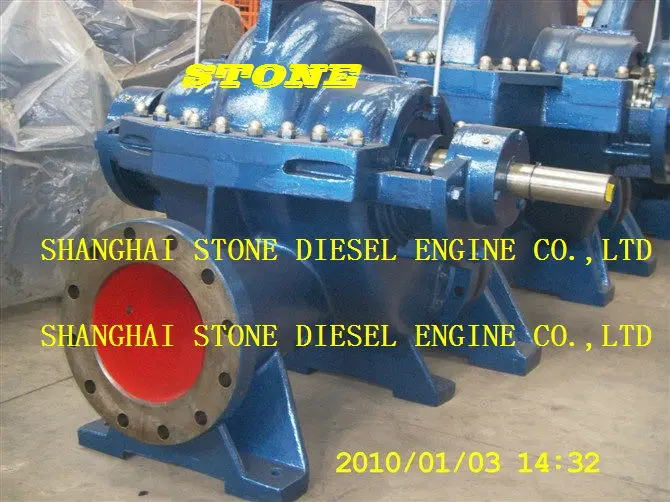

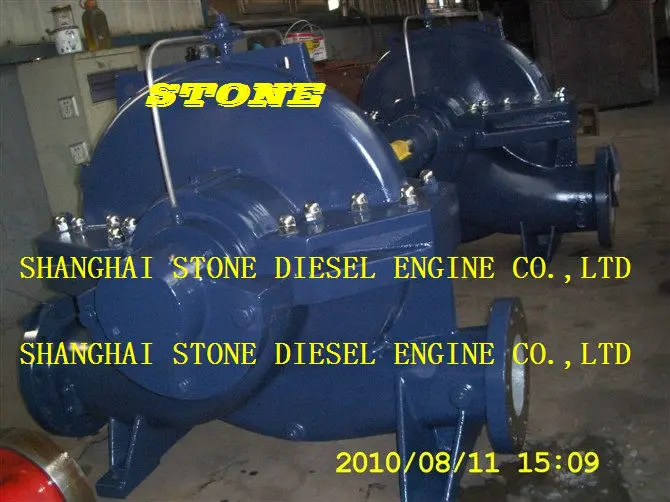

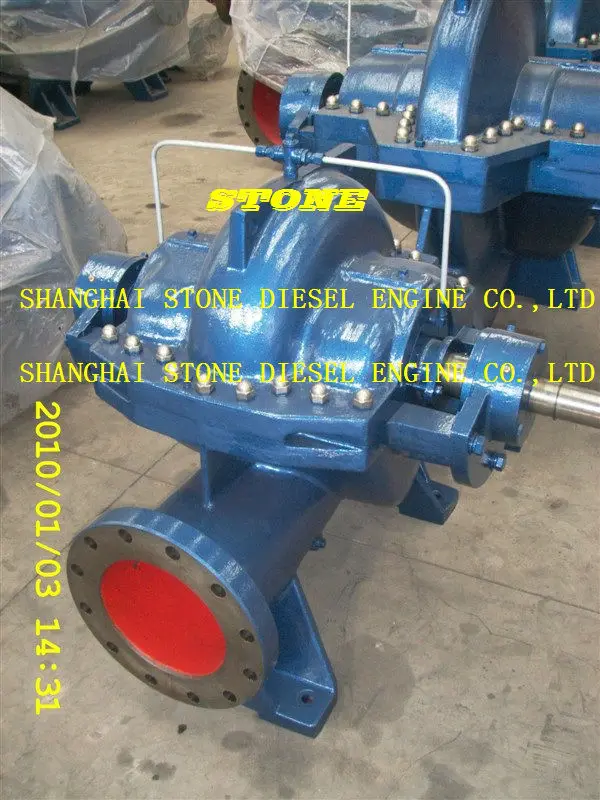

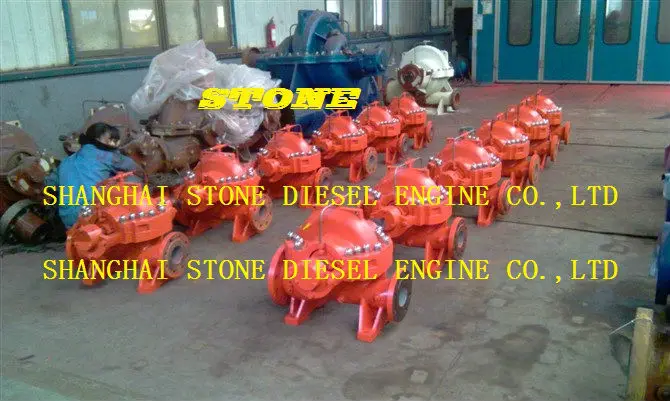

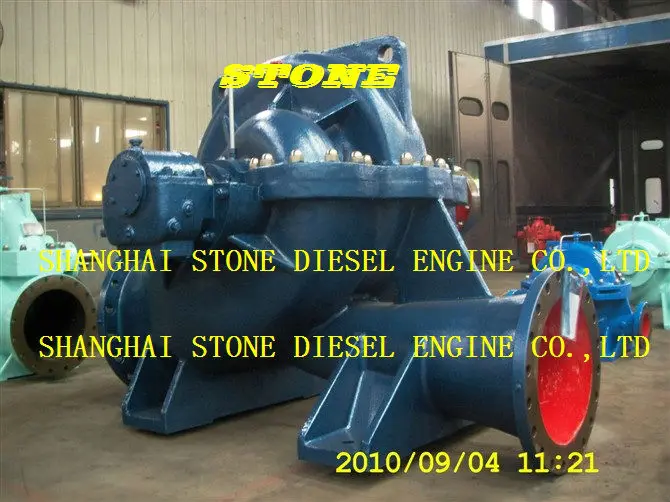

1. General: XS type pump is a new generation of high performance single- stage double-suction centrifugal split pumps. They are mainly used in delivering liquids of the water plant, airconditioner circulation water, heating pipe network system, building water supply, irrigation and drainage of pump stations, power plants, industrial water supply system, fire protection, ships industry and mine. It is a new substitute of SH, S, SA, SLA and SAP.
2. Main Performance Parameters: Pump outlet diameter 80-1400mm Capacity: 50-22140m3/h Head: 7-200m Liquid Temperature: -20-200 Solid parameter: ≤ 80mg/L Permissible pressure: ≤ 2.5Mpa.
3. Description of Pump Type:

For example: XS 250-450 A-L-R(M. F)- J

XS: Model

250: (mm)pump outlet diameter

450: (mm)impeller diameter

L: Vertical mount

F: Anti-corrosive

M: Anti-abrasive

R: For heating water

J: Mechanical seal.
4. Structure Features:

1). Type XS pumps work stably with less noise and vibration, may be properly work at raising speed due to short spacing between both side supports, thus they can be widely used.

2). The pipelines arrangement of type XS pump looks simple and beautiful due to inlet and outlet at the same line.

3). The same rotor of type XS pumps can be operated in reverse direction to avoid damage to the pumps by water hammer.

4). Unique design of high temperatare form: Using middle support, thickening the pump casing, using cooling seals and oil lubrication bearing, make XS pump suitable for working at 200 degree, especially for suppling heating net system.

5). Type XS pump can be vertically or horizontally mounted acoording to different working condition, with mechanical seals or packing seals.

6). With industrial design, the outline of XS is clear and beatitiful in line with modern aesthetics.

7). The efficiency of XS pumps are 2%~3% higher than the same type pumps due to adopting advanced hydraulic model and thus reduce the operating costs significantly.

8). The NPSH of type XS pumps are 1-3 meters lower than the same type split pumps which reduced the foundation costs and extend the using life.

9). Choosing import brand bearing, and other parts material chosen by customer, make the pump suitable for any operation condition and reduce the maintenance cost significantly.

10). It is not necessary to adjust mechanical seals, so it is very easy and simple to replace them.

11). It is rapid and simple to assemble and dismount the rotor parts due to using elastic prestress assembling.

12). It is unnecessary to make adjustment to any clearance when assembling.

XS80-210J

XS80-210

XS80-270J

XS80-270

XS80-370

XS100-250J

XS100-250

XS100-310

XS100-375
