factory LED Dimmable 48VD poultry lighting 6W 8W 10W 12W 14W T60 T80 BULB waterproof IP67C

Product Overview

Description

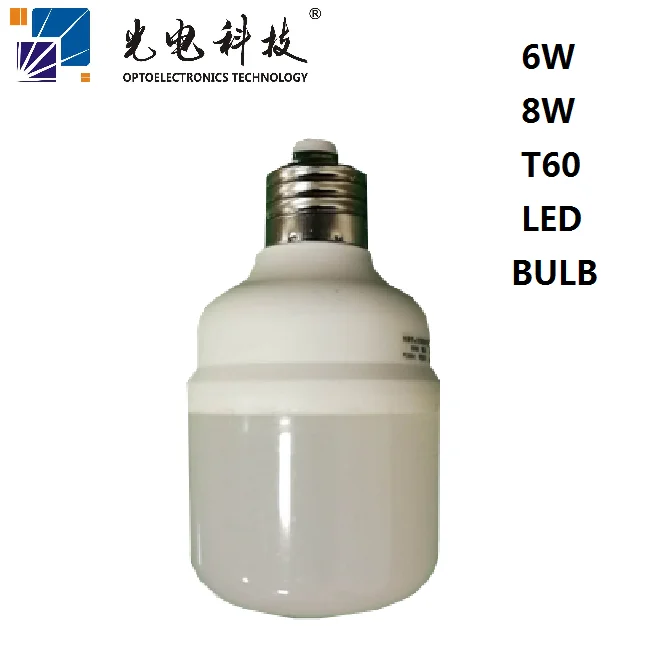

T60/T80 LED BULB

Feature:

·  Professional poultry lighting scheme design.

·  Use Special Spectrum, let broiler quiet reduce stress response, improve immune function, high survival rate.

Scope of application: Broiler, Broiler Breeder, Egg hen, Egg Breeder, Brooding

Type of poultry house: Open cage, Flat Breeding, H-shaped cage, A-shaped cage

Technical parameters:

Model	FBYZ-042-018(T60)	FBYZ-028-022(T80)
Power	6/8 W	10/12/14/16 W
In-put Voltage	48VDC	48VDC
CCT	3000-5000 K	3000-5000 K
Optical efficiency	≥80 lm/W	≥100 lm/W
Life	30000 h	30000 h
Waterproof grade	IP66	IP66
Operating temperature	-20~45Deg.	-20~45Deg.
Size	Φ60×115 mm	Φ80×148 mm

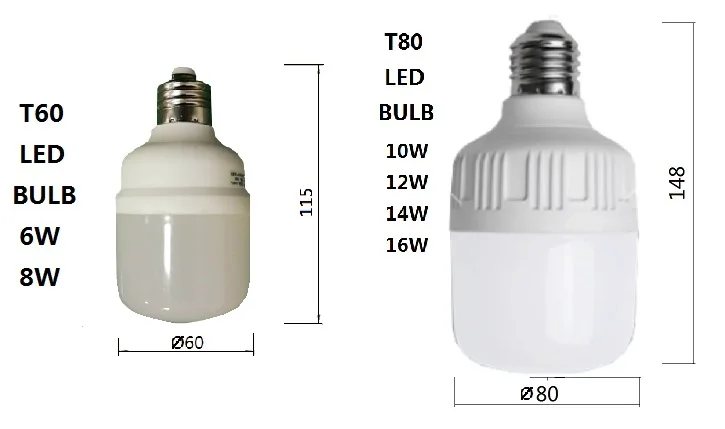

Out-line Dimension: (Unit: mm)

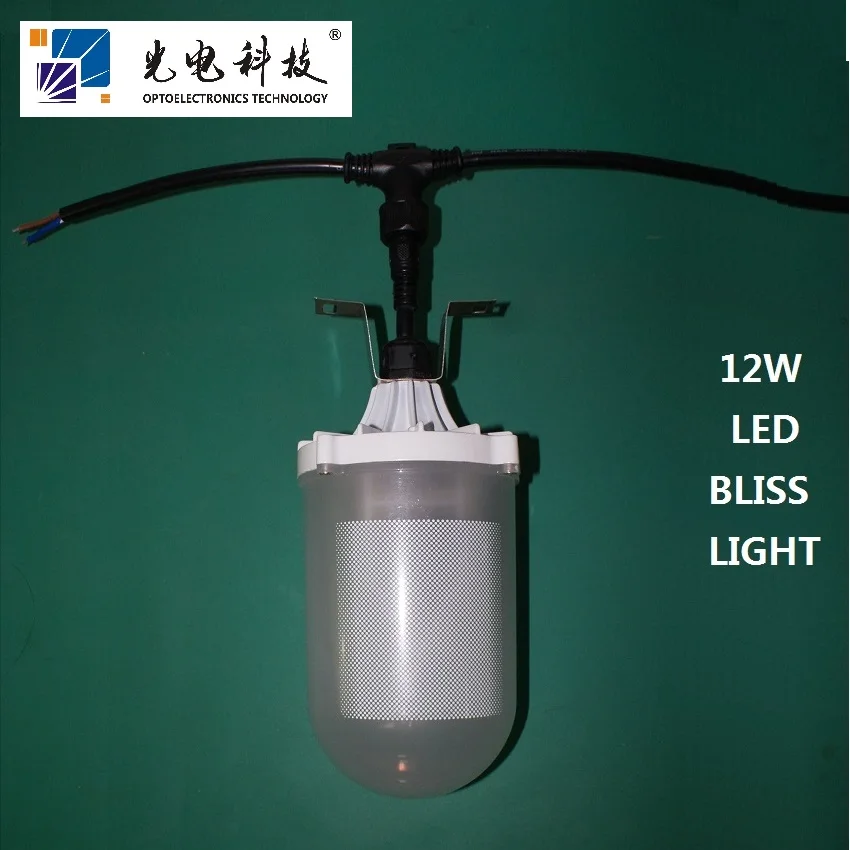

 FBYZ-030-012 LED BLISS LIGHT



Feature:

·  Professional poultry lighting scheme design.

·  Use Special Spectrum, let broiler quiet reduce stress response, improve immune function, high survival rate.

Scope of application: Broiler, Broiler Breeder, Egg hen, Egg Breeder, Brooding.

Type of poultry house: Open cage, Flat Breeding, H-shaped cage, A-shaped cage.

Technical parameters:

Parameter	Value	Unit
Power	12	W
In-put Voltage	48	VDC
CCT	3000-5000	K
Initial luminous flux	≥1200	lm
Life	30000	h
Waterproof grade	IP67	--
Operating temperature	-20~45	Deg.
Size	Φ100×290	mm

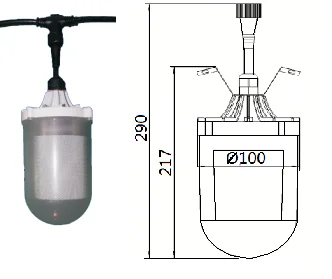

Out-line Dimension: (Unit: mm)

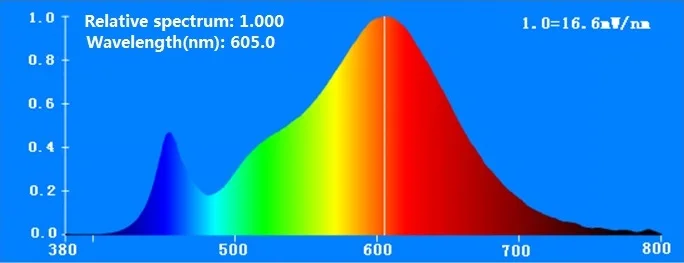

LED Spectrum:

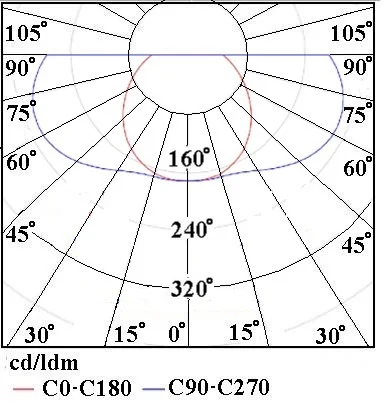

Light Distribution Curve:

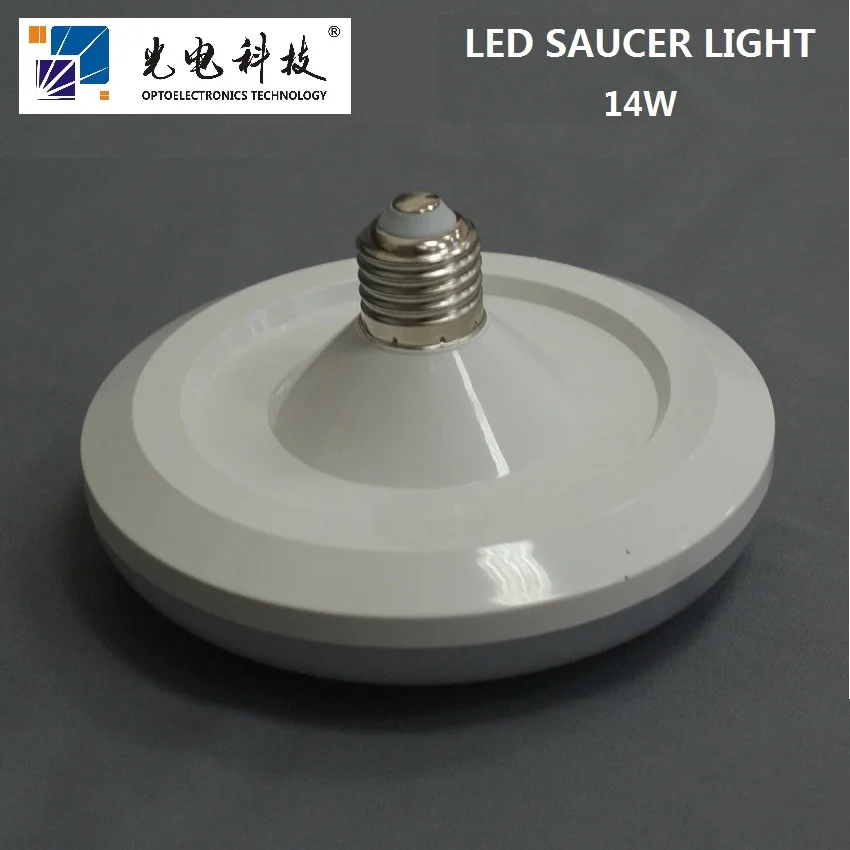

FBYZ-042-032 LED SAUCER LIGHT

Feature:

·  The flying saucer breeding lamp is novel in shape and convenient to install. It can provide high luminous flux for customers. The luminous flux can reach over 1600lm.

·  Customers with high light intensity requirements can choose this flying saucer lamp, which saves the cost of replacing the lamp when washing the shed and the cost of electricity for the number of lamps. It is equipped with a three-way waterproof connection line when installed, the lamp can achieve IP66 waterproof grade.

Scope of application: Pig

Type of poultry house: Flat Breeding

Technical parameters:

Parameter	Value	Unit
Power	14	W
In-put Voltage	48	VDC
CCT	3000-5000	K
White Initial luminous flux	≥1600	lm
Life	30000	h
Waterproof grade	IP66	--
Operating temperature	-20~45	Deg.
Size	Φ150×80	mm



Out-line Dimension: (Unit: mm)









We, Shaanxi Electronic Information Group Optoelectronics Technology Co., Ltd. are a state-owned enterprise of Shaanxi Electronic Information Group Co., Ltd., a large state-owned military electronics company with a registered capital of RMB on e hundred sixty five million. We are mainly engaged in design,production, sales, construction and technical services of LED street lamps, tunnel lights, landscape lights, intelligent control products, special lighting products for breeding, epitaxial wafers and chips, forming a "project-led, special lighting, packaging, epitaxy chip-based products" business development pattern.

We adhere to scientific and technological innovation, relying on the strong background of the state-owned large military electronics industry leading enterprises, relying on the technical support of Xi'an Jiaotong University, Xi'an University of Electronic Science and Technology, Northwestern University, Northwestern Polytechnical University, Shaanxi University of Science and Technology. The level of R & Dand Testing is leading the way in LED semiconductor lighting. The products are widely used in the field of LED lighting and exported to overseas international markets.

We are a national high-tech enterprise, and has passed ISO9001 international quality management system certification, ISO14001 environmental management system certification, OHSAS18000 occupational health and safety management system certification. Many products have obtained CE, FCC, TUV, RoHS and other certifications. We obtained more than 30 national patents. We have the level 1of qualification of urban and road lighting engineering contracting, level 3 of qualification of mechanical and electrical equipment installation engineering contracting, level 3 of qualification of electric power construction general contracting and four qualifications of contracting and repairing. It has mature contract energy management mode and large-scale engineering projects. He has rich experience in contracting construction.

Professional Poultry Breeding Intelligent Environment Control and Lighting Control Field: To provide professional poultry breeding customers with a variety of intelligent environment regulator and LED lighting products and lighting system overall solution design, manufacturing, integration, construction and other services, to become a one-stop supplier of integrated control system, make the system realize scientific and intelligent control, and become the first-class professional poultry breeding environment and lighting intelligent control system design, research and development, production and sales base.
