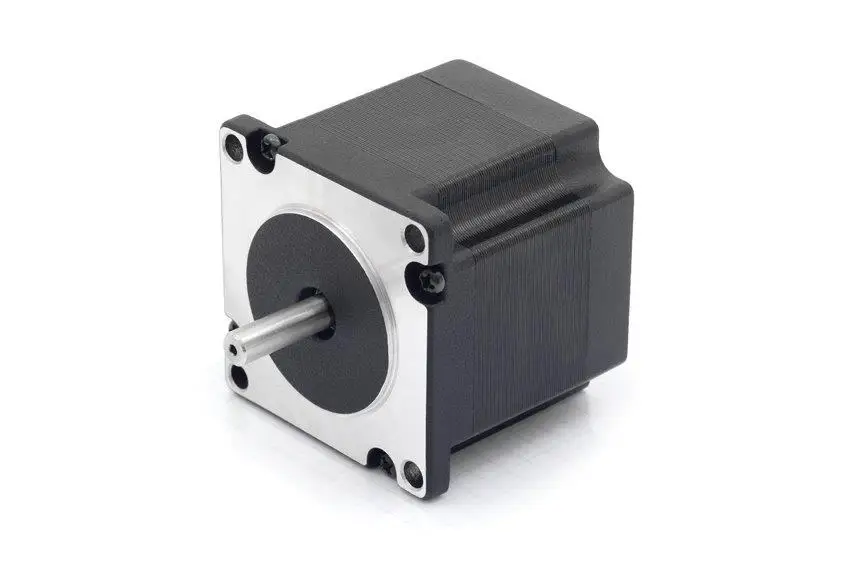

Nema 23 Stepper Motor (0.9degree)
- Category: >>>
- Supplier: Changzhou Fulling Motor Company Limited
Share on (1036063772):
Product Overview
Description
Product Description

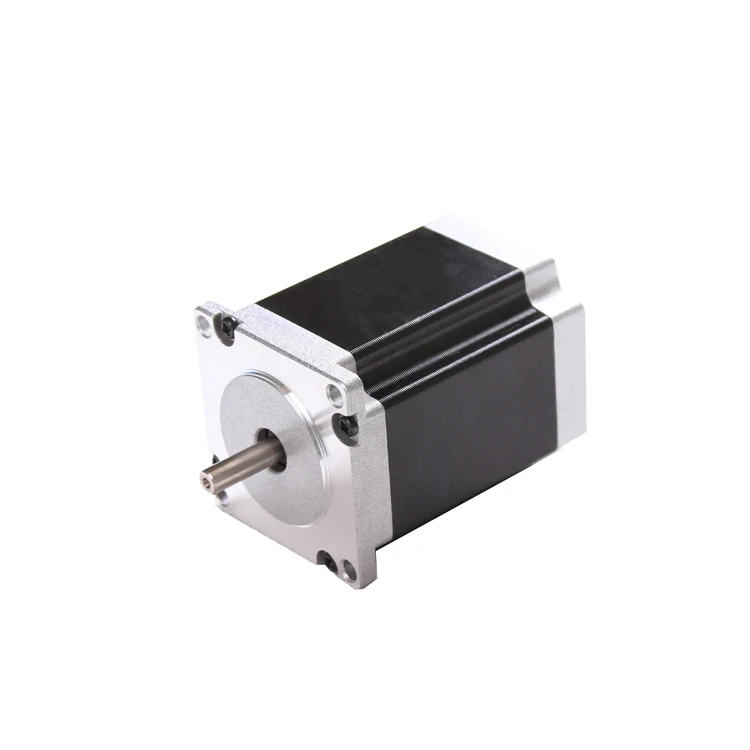

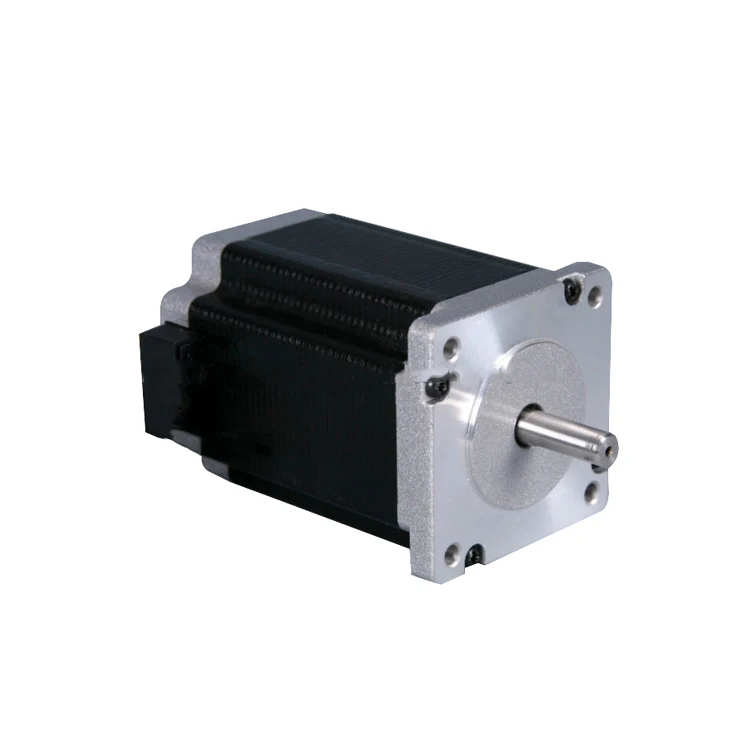

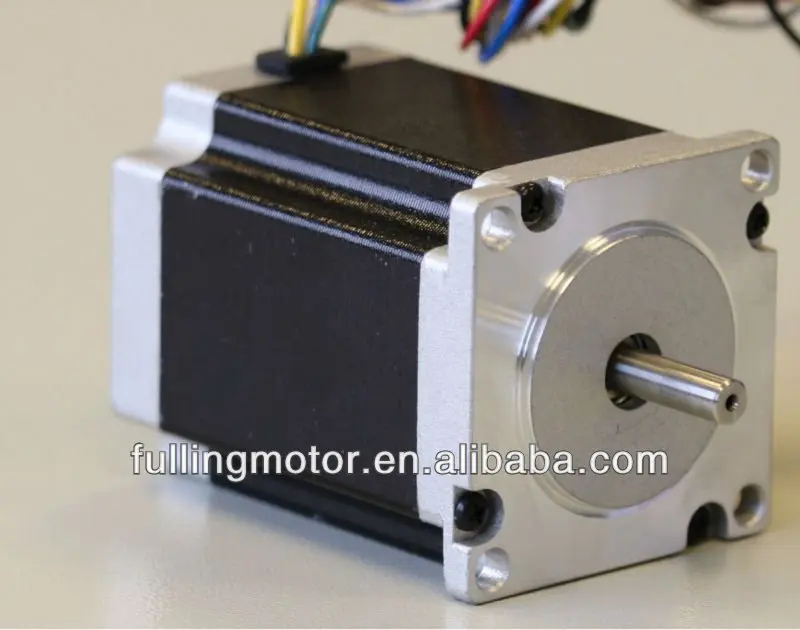

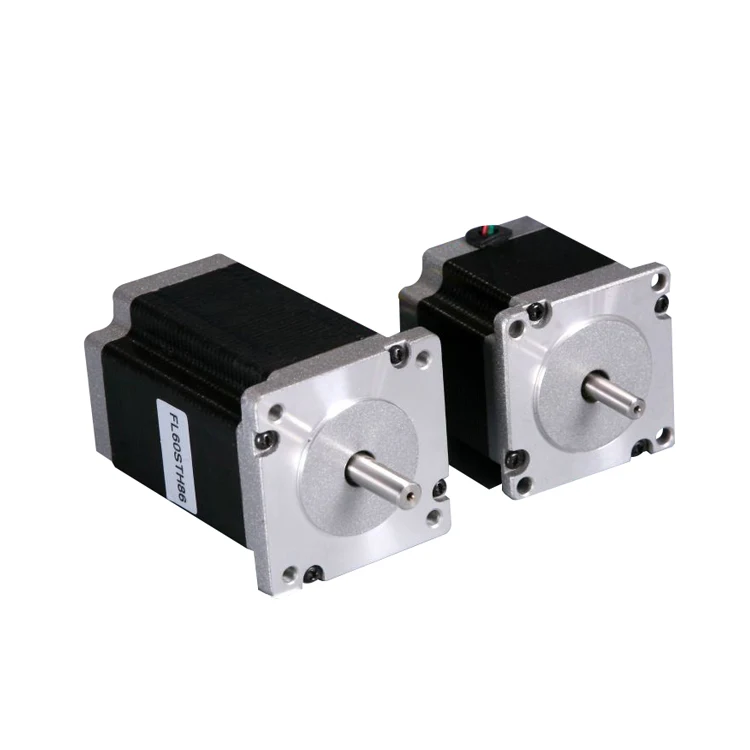

0.9.Size 57mm High Torque 2 phase Stepper Motor (square)
Stepper motors,Stepping Motor,Step Motor
1) CE and RoHS approved
2) TS16949
3) We can develop customized products
| Item | Specifications |
Step Angle | 0.9. |
Step Angle Accuracy | ±5% (full step, no load) |
Resistance Accuracy | ±10% |
Inductance Accuracy | ±20% |
Temperature Rise | 80.C Max.(rated current,2 phase on) |
Ambient Temperature | -20.C~+50.C |
Insulation Resistance | 100MΩMin. ,500VDC |
Dielectric Strength | 500VAC for one minute |
Shaft Radial Play | 0.02Max. (450 g-load) |
Shaft Axial Play | 0.08Max. (450 g-load) |
Max. radial force | 75N (20mm from the flange) |
Max. axial force | 15N |
Size 57mm Hybrid Stepping Motor (square)Specifications
| Model No. | Rated | Current | Resistance | Inductance | Holding | # of Leads | Rotor | Weight | Detent | Length | |
| Voltage | /Phase | /Phase | /Phase | Torque | Inertia | Torque | |||||
| Single Shaft | Double Shaft | V | A | Ω | mH | Kg-cm | g-cm2 | kg | g-cm | mm | |
| FL57STH41-1006MA | FL57STH41-1006MB | 5.7 | 1 | 5.7 | 8 | 3.9 | 6 | 120 | 0.45 | 0.21 | 41 |
| FL57STH41-2006MA | FL57STH41-2006MB | 2.8 | 2 | 1.4 | 2.2 | 3.9 | 6 | ||||
| FL57STH41-3006MA | FL57STH41-3006MB | 1.9 | 3 | 0.63 | 1 | 3.9 | 6 | ||||
| FL57STH41-2804MA | FL57STH41-2804MB | 2 | 2.8 | 0.7 | 2.2 | 5.5 | 4 | ||||
| FL57STH56-1006MA | FL57STH56-1006MB | 7.4 | 1 | 7.4 | 17.5 | 9 | 6 | 300 | 0.7 | 0.4 | 56 |
| FL57STH56-2006MA | FL57STH56-2006MB | 3.6 | 2 | 1.8 | 4.5 | 9 | 6 | ||||
| FL57STH56-3006MA | FL57STH56-3006MB | 2.3 | 3 | 0.75 | 1.9 | 9 | 6 | ||||
| FL57STH56-2804MA | FL57STH56-2804MB | 2.5 | 2.8 | 0.9 | 4.5 | 12 | 4 | ||||
| FL57STH76-1006MA | FL57STH76-1006MB | 8.6 | 1 | 8.6 | 23 | 13.5 | 6 | 480 | 1 | 0.68 | 76 |
| FL57STH76-2006MA | FL57STH76-2006MB | 4.5 | 2 | 2.25 | 5.6 | 13.5 | 6 | ||||
| FL57STH76-3006MA | FL57STH76-3006MB | 3 | 3 | 1 | 2.6 | 13.5 | 6 | ||||
| FL57STH76-2804MA | FL57STH76-2804MB | 3.2 | 2.8 | 1.13 | 5.6 | 18 | 4 | ||||
We can make Customer Desige Motors
Related Products
Company Information
Our Services
Packaging & Shipping
FAQ
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: No Moq , 1PC OK . Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
