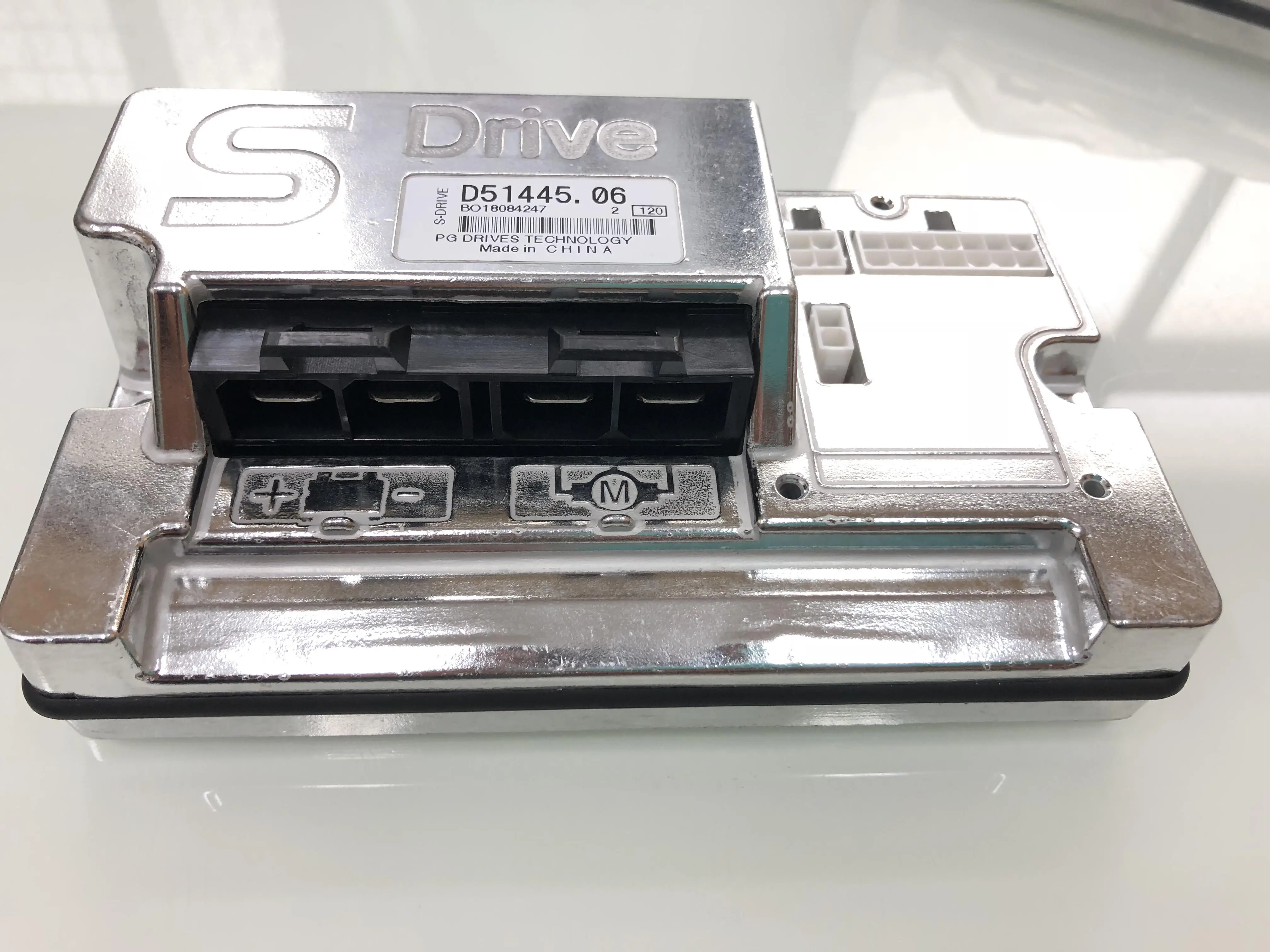

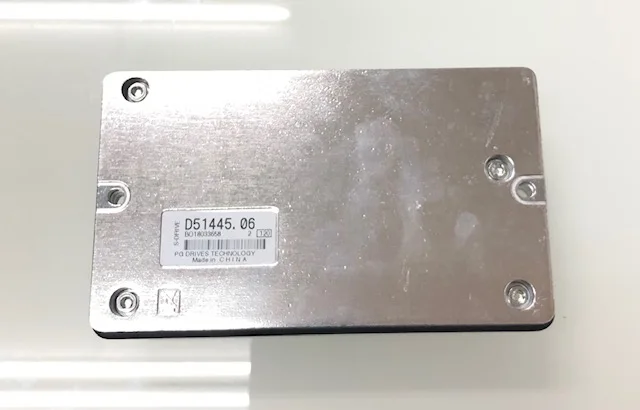

PG Controller S Drive Mobility Scooter Controller D51445.06 S120 120A Handicapped Scooter Controller

Product Overview

Description

• PG Drives Controller S-Drive Mobility Scooter Controller S120 4-Wheel Electric Handicapped Scooter Controller


• Water resistant sealing system


• Dimensions: L153 X W90 X H45 (mm)


• Weight:700g


• Without a controller terminal cover case.


• Supply Voltage: 24Vdc


• Operating Voltage: 16Vdc to 28Vdc


• Peak Voltage: 35Vdc


• Reverse Battery Voltage: 40Vdc


• Output Current: 120A / 140A


• PWM Frequency: 20kHz ± 1%


• Brake Voltage: 24Vdc


• Brake Current: 1.25A max. continuous


• Battery Charging Current: 9 Arms max.


• Moisture Resistance: Electronics to IPX5


• Operating Temperature: -25°C to +50°C


• Storage Temperature: -40°C to +65°C


• Safety: Multiple hardware & software strategy


• Designed to ISO7176/14
