60 Minutes Using Air Breathing Apparatus/SCBA

The RHZKF series of positive pressure breathing apparatuses are self-contained open breathing apparatuses. This series of products, which are ideal personal breathing protectors for the  fireman and emergency rescuer, are widely used in such sectors as fire fighting,chemical industry, shipping, petroleum, smelting, electricity, warehouse, lab, mine, for the fireman and emergency rescuer to perform effectually rescue and relief work under the conditions of heavy smoke, poison gas, steam and hypoxia, etc.

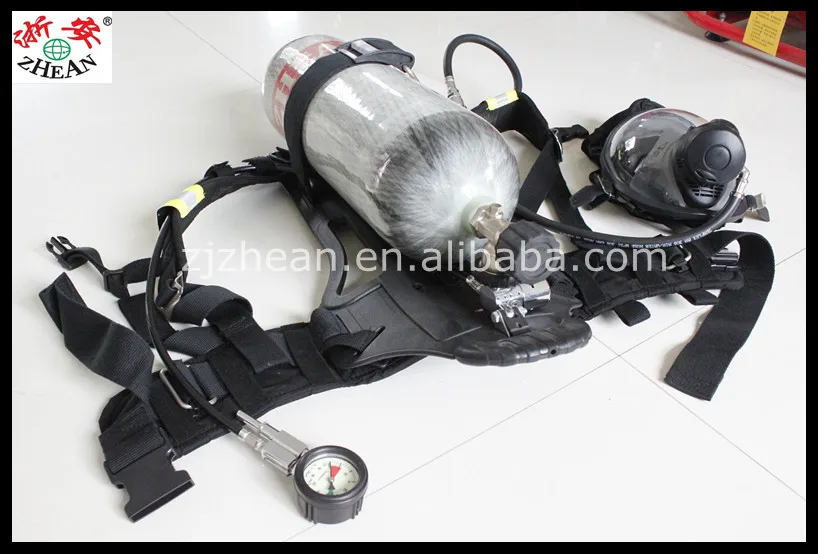

A set contain with parts as following

1. back support(weight:1.95kg)

Consist of back support, shoulder5 straps and belt, it can be adjusted rapidly to make the SCBA cling to body back and hip

2.air supply valve (weight:0.3kg)

The air supply valve is a positive pressure valve, which has more than 300L/min air supply quantum, it is composed of reinforced nylon shell with high strength, open lever and other uints.

3.decompressor(weight:0.5kg)

Decompressopm valve is an equipemnt to make high pressure air decompress to 0.8±0.2Mpa constant output pressure and then provide air for air supply valve

4. Full mask(weight:0.52kg)

 Full face mask is a positive pressure mask with single visors, wide field, good transparence, and double - deck annular slice sealing

Feature: flame-resistance, wear comfortable, safe, fit all different sharps of faces, anti-fog,  reliably

5. cylinder(weight:4.1kg)

two material for choose,

a. high strength steel air bottle

 b. carbon fiber composite air bottle

6.Medium-pressure pipeline (weight:0.2kg)

Medium-pressure pipeline cinsist of rubber tube and air supply valve

7. High pressure pipeline, high pressire gauge and residual gas warning siren(weight:0.3kg)

The high pressure pipeline is pressure-proof rubber pipe, which assures the responsibility for transporting high pressure to the high pressure gauge and residual gas warning system

8. Packing(plastic box:4.4kg, carton:1.3kg)

color: blank, or can be customized by your reqquirement

Total weight: 13.55kg
