factory LED Dimmer 48VD poultry lighting T5 T6 T8 T10 T12 TUBE waterproof IP67

Product Overview

Description

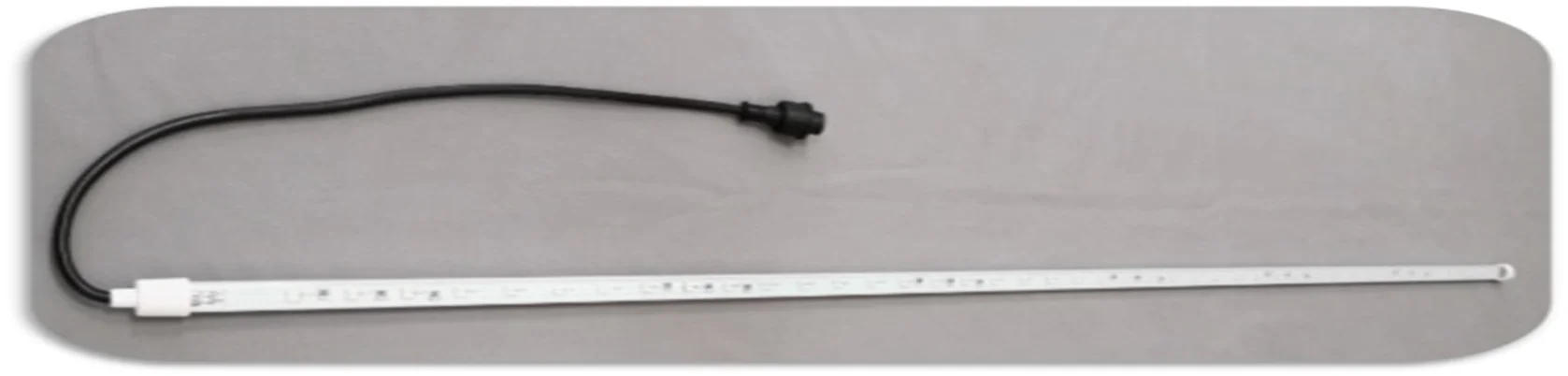

 POULTRY LED BEST LIGHT

Feature:

DC 48V, higher security.

No stroboscopic reduces the stress reaction of poultry and improve production efficiency.

IP67 waterproof grade can eliminate the trouble of removing and assembling lamps and lanterns in the cleaning operation.

Long life, high-quality LED chip, stable and reliable performance, unique design, life up to 30000 hours.

Professional lighting scheme design of poultry, so that the caged poultry evenly exposed to light, reduce stress response, improve immune function and survival rate, to avoid uneven growth of poultry due to uneven light defects.

The special luminous angle of the T5 shell is suitable for the H type cage in the middle of the water tank and feeding trough. The illumination difference between the bottom and the edge of the light is less than 8 LUX.

Scope of application: Broiler, Egg hen

Type of poultry house: Open cage, H-shaped cage

Technical parameters:

Parameter	Value	Parameter	Value
In-put Voltage	48VDC	Light efficiency	80 lm/W
CCT	3000~5000K	CRI	80
Humidity	95RH	Life	30000h
Waterproof grade	IP67	Operating temperature	-20~45Deg.
Size	Φ15/20*1.1/1.2/1.5m	Storage temperature	-30~55Deg.

Specification:

Part No.	Shell Tape	Length of shell(m)	Power(W)	Initial luminous flux(lm)
FBYZ-042A-001	T5(Φ15)	1.2	4	400
FBYZ-042-011	T5(Φ15)	1.1	4	400
FBYZ-056-019	T5(Φ15)	1.5	4	300
FBYZ-042-043	T5(Φ15)	1.2	6	600
FBYZ-042-040	T6(Φ20)	1.2	10	1000

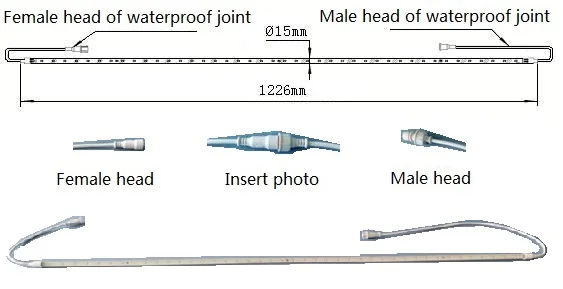

Out-line Dimension:(Unit: mm)

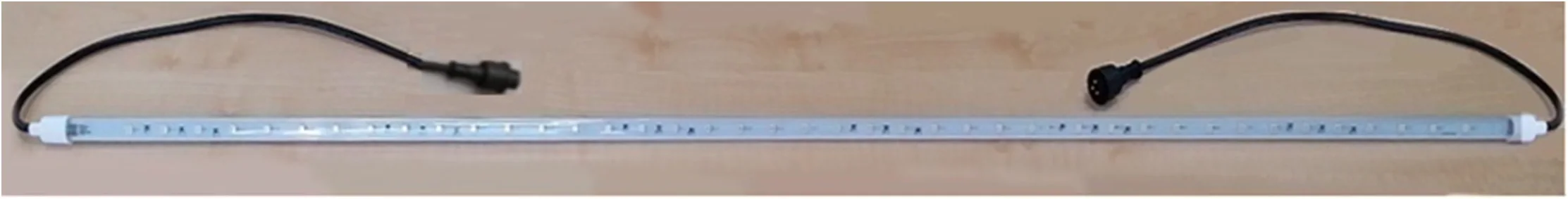

 FBYZ-140-040 LED Blue-White LIGHT

Feature:

DC 48V, higher security.

No stroboscopic reduces the stress reaction of poultry and improve production efficiency.

IP67 waterproof grade can eliminate the trouble of removing and assembling lamps and lanterns in the cleaning operation.

Long life, high-quality LED chip, stable and reliable performance, unique design, life up to 30000 hours.

Professional lighting scheme design of poultry, so that the caged poultry evenly exposed to light, reduce stress response, improve immune function and survival rate, to avoid uneven growth of poultry due to uneven light defects.

T6 blue and white bioluminescence. Blue light can make poultry mood stable, when catching chicken will not produce stress reaction to reduce meat quality. Warm white light can stimulate poultry to eat, accelerate the growth process, improve growth quality.

Scope of application: Broiler, Egg hen.

Type of poultry house: Open cage, H-shaped cage.

Technical parameters:

Parameter	Value	Value
Color	White	Blue
In-put Voltage	33~48VDC	33~48VDC
Power	10W	10W
CCT	3000K	---
Initial luminous flux	1000 lm	---
CRI	80	80
Life	30000h	30000h
Operating temperature	-20~45Deg.	-20~45Deg,
Storage temperature	-20~55Deg.	-20~55Deg.
Humidity	95RH	95RH
Waterproof grade	IP67	IP67
Size	(T6)20*1220mm	(T6)20*1220mm

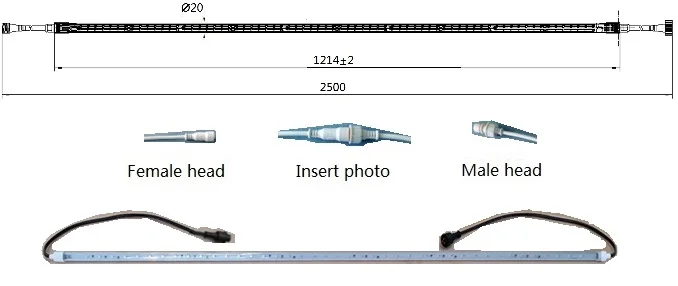

Out-line Dimension:(Unit: mm)



FBYZ-098-021 LED GOOD LIGHT

Feature:

Professional poultry lighting scheme design, so that the caged poultry evenly light, avoid uneven growth of poultry due to uneven light defects.

T8 Tube unique luminous angle, suitable for the trough, trough in the middle of the cage H age. The illumination difference between the bottom and the edge of the lamp is less than 8 Lux.

Using special spectrum, let broiler quiet reduce stress response, improve immune function, high survival rate, feed-meat ratio than the European Index.

Scope of application: Broiler, Brooding, Stud pig.

Type of poultry house: Caged, Flat Breeding, Pig houses.

Technical parameters:

Parameter	Value	Parameter	Value
In-put Voltage	48VDC	Light efficiency	80 lm/W
Power	16W	Initial luminous flux	1400 lm
CCT	3000~5000K	CRI	80
Humidity	95RH	Life	30000h
Waterproof grade	IP66	Operating temperature	-20~45Deg.
Size	(T8)26*1210mm	Storage temperature	-30~55Deg.

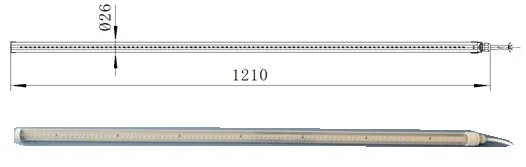

Out-line Dimension:(Unit: mm)
