Product Overview

Description

 PL-SM Shearing Machine, Changshu Shearing Machine For Textile



-Usage:



Shearing Machine For Textile is suitable for shearing plain weaving  fabric ,knitting,blanket,woolen,polar fleece,velours,plush,velvet,terry and so on.



-Technical Parameters of Shearing Machine For Textile:



1	Working width	1800mm,2000mm,2100mm,2200mm,2500mm,2700mm(optional)
2	Max.speed	45m/min(Adjustable)
3	Total Power	7.5Kw(dust absorption excluded)
4	Speed of shearing cylinder	200~1250rpm(adjustable)
5	Number of spiral	20/22/24/28pieces
6	Dimensions	4000mm(L)*4160mm(W)*2450mm(L)



-Characteristics of Shearing Machine For Textile:



1. The most important part, high precision shearing unit is of HEUSCH from Germany, which is trustworthy to make the excellent shreaing.



2. PLC controlling system has been adopted increasing the automation of this shearing machine which also provides a easy maintenance for this machine.



3. The shearing cylinder and the cleaning box are individually driven by special motors. The Shearing Machine For Textile speed is adjustable, by means of inverter controlling.



4. Fabric tension is managed by inveter, which offers easy adjustment and assures the reliable quality on shearing.



5. The tension of V belt for driving shearing cylinder can be adjusted pneumatically to maintain a constant tension which offers a good drive and promotes the effeciency.



6. The distance between the cloth and the cutting edge of the shearing cylinder is displayed digitally which can also be adjusted electrically with the precision of 0.01mm.



7. Seams detector prevents the cloth seam from getting cut by the shearing cylinder.



8. A metal detector is optional which can make it safer in operation by auto stop when alarm.



9. An auto centering device is optional at the feeding bracket which could spread and ensure the fabrics fed in center position automatically to save manpower.



10.Shearing Machine For Textile equipped with dust absorption device and dust abatment.



11.Electrostatic eliminate is optional at the plaiting device.



- Shearing Machine For Textile detail pictures:

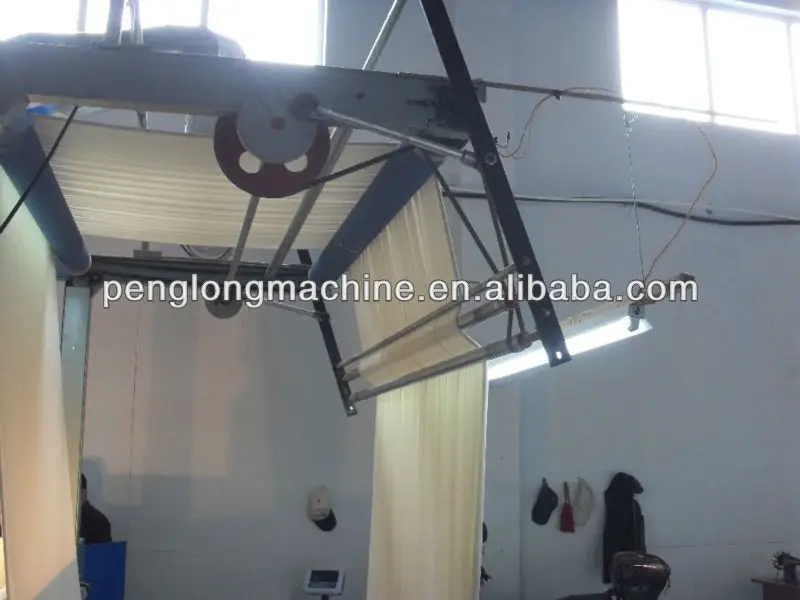

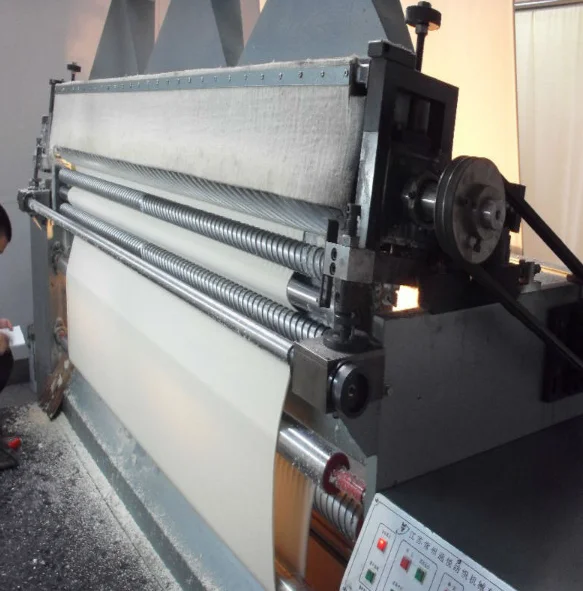

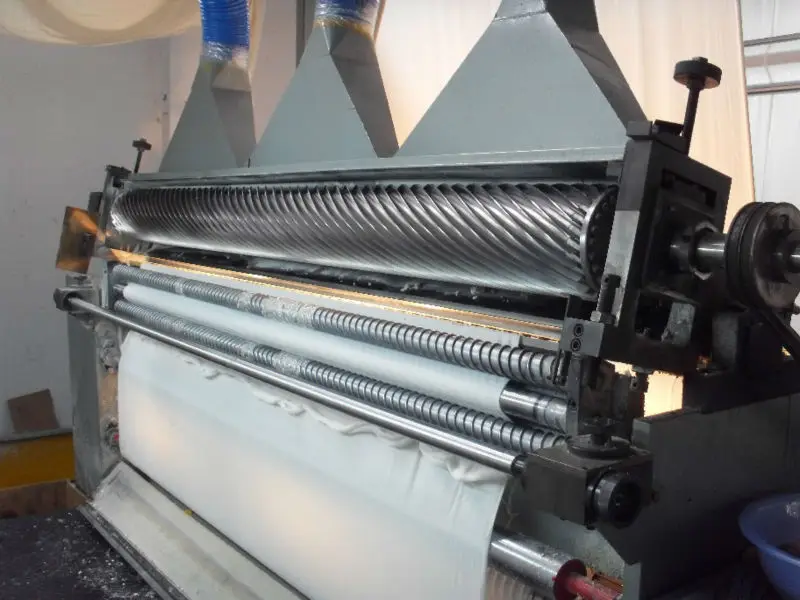

1.Spreading Roller: Four pieces of sprial spreading rollers have ben adopted to eliminate any curled fabric edge.

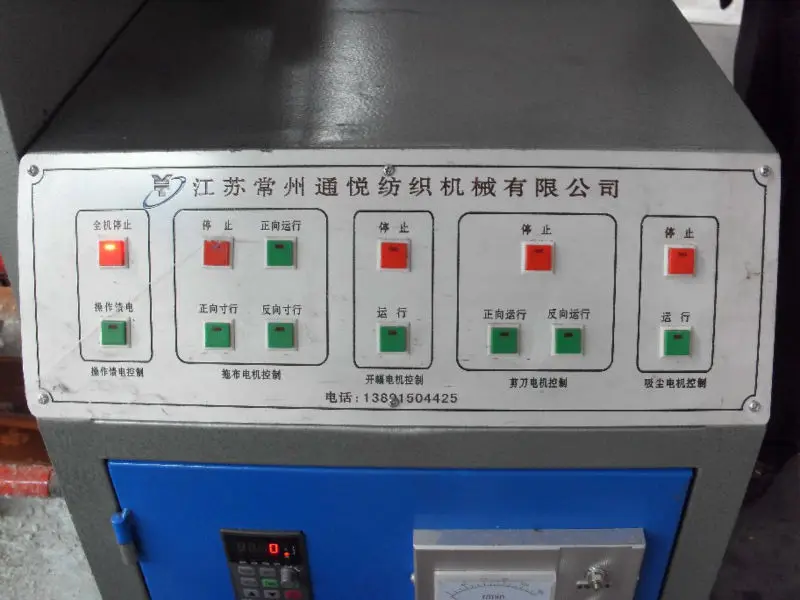

2.Cantrol panel: Switches including REV,FWD,Edge alignment,Stop,Expanding roller,Top light,Bottom light,Speed,Tension etc.





3.



-About us





-Exporting Countries



1.Asian Countries: Bangladesh,Saudi Arabia,Thailand,Vienam,Sri Lanka,Irap,Iran,Singapore.



2.Europe and America Countries:America,Portland,France,Ukraine,Britain,Russia.



3.Africa Countries: Ethiopia,Uganda,South Africa.



4.Oceanica: Australia



5.South America: Argentina,Peru,Venezuela,Uruguay,Chile,Brazil.



 Welcome to inquiry Changshu Shearing Machine For Textile !!!



You are warmly welcome to visit our factory!!!
