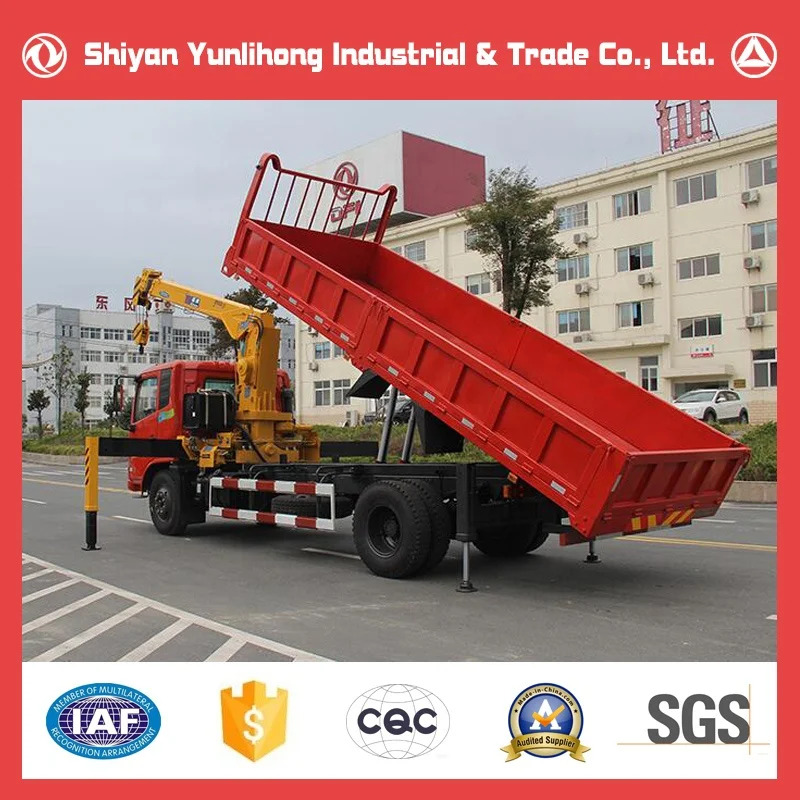

Dongfeng 4x2 15 ton 6 wheel Dump Truck With mounted 8 Tons Telescopic Boom Mounted Crane For Sale
- Category: >>>
- Supplier: Shiyan Yunlihong Industrial & Trade Co. Ltd.
Share on (1037625249):
Product Overview
Description
Dongfeng 4x2 Dump Truck Loading 10 Ton With 8 Tons Telescopic Boom Mounted Crane For Sale
Product Introduction
Medium Duty Load
This truck is mainly used in constrction,Load weight 15 ton.
Powerful Engine
DCEC engine 190hp, displacement 5900cc .This brand engine have after sale-service in all over the world,so it's convinence for maintenance.
Manaul Transmission
Fast brand gear box, it's Eaton technology.8 gears with synchronizer, easier to operate.
Strong Axle
Dongfeng Dana axle, front 5 ton, rear 10 ton.
Strengthen Frame
In order to improve the bearing capacity ,we use high strength steel and double deck.
Crane
Straight crane, max lift weight 8 ton.
Product Description
Items | Descriptions | Specifications | |
General
| Vehicle name | Crane truck | |
Driving type | 4x2 | ||
The total mass(kg) | 15900 | ||
Curb weight(kg) | 5805 | ||
9900 | |||
Overall dimensions (mm) | 8220x2480x3850 | ||
Cargo box size(mm) | 5300x2300x550 | ||
Engine
| Fuel type | Diesel | |
Engine brand | DCEC | ||
Engine model | B190-33 | ||
Engine power(kw) | 140 | ||
Displacement(ml) | 5900 | ||
Emission standard | Euro III | ||
Chassis
| Gear box | 8JS85T | |
Cab | One and half row | ||
Steering wheel | LHD or RHD | ||
Axle | 2 | ||
Front/rear axle load(T) | 5T/10T | ||
Tire specification | 10.00R20 | ||
Wheelbase (mm) | 4500 | ||
Wheel tread(mm) | 1900/1800 | ||
Front/rear suspension(mm) | 1250/2470 | ||
Approach/departure angle | 23/12 | ||

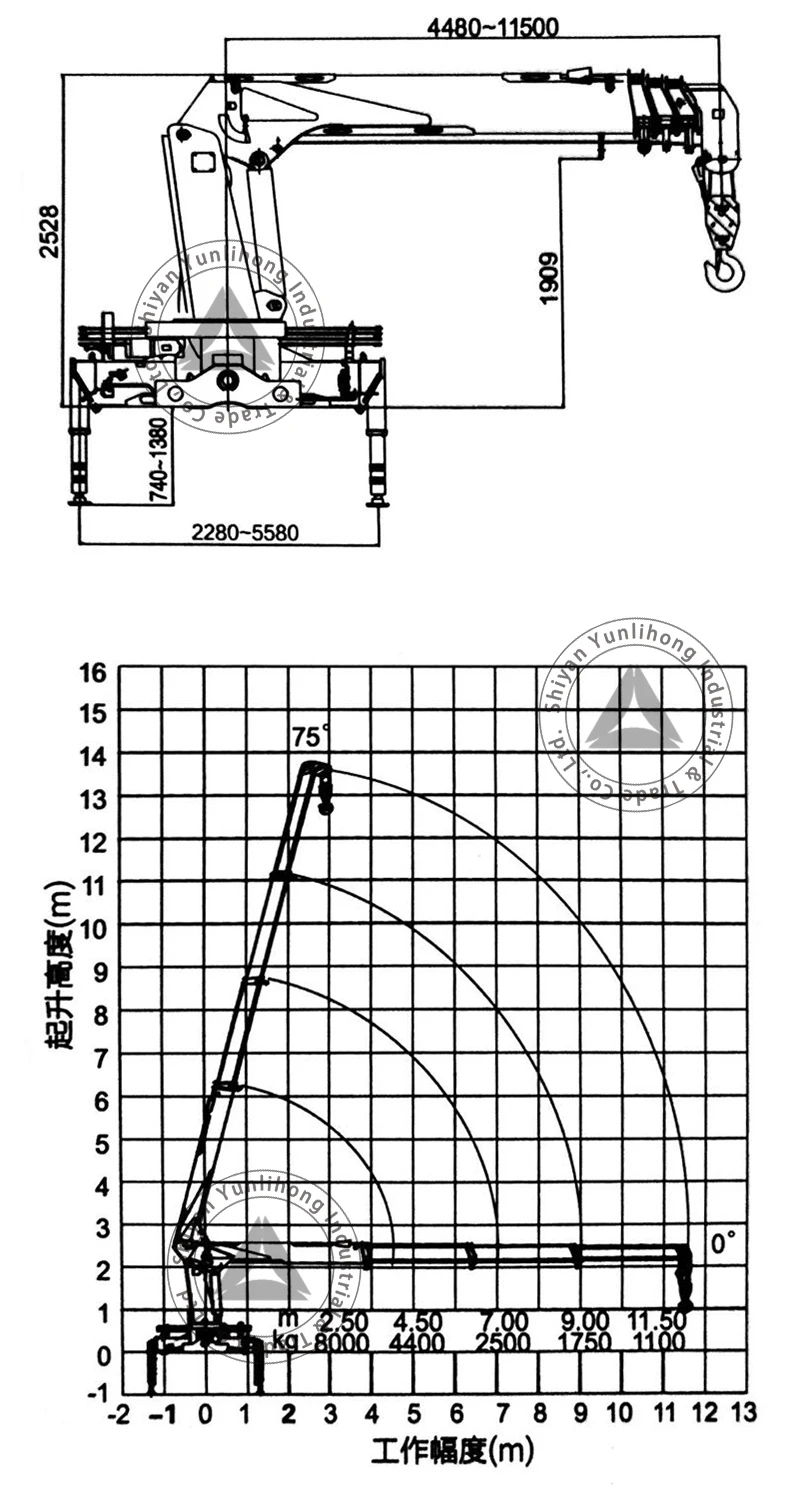

Crane
| Model | SQ8SK3Q | |
Type | 4-straight arm | ||
Max lifting capacity | 8000kg | ||
Max lifting moment | 20T.m | ||
Crane weight | 3315kg | ||
Installation space | 1200 | ||
Rotation angle | 360° | ||
Lift capacity(kg/m) | 8000/2.5,4400/4.5,2500/7,1750/9,1100/11.5 | ||

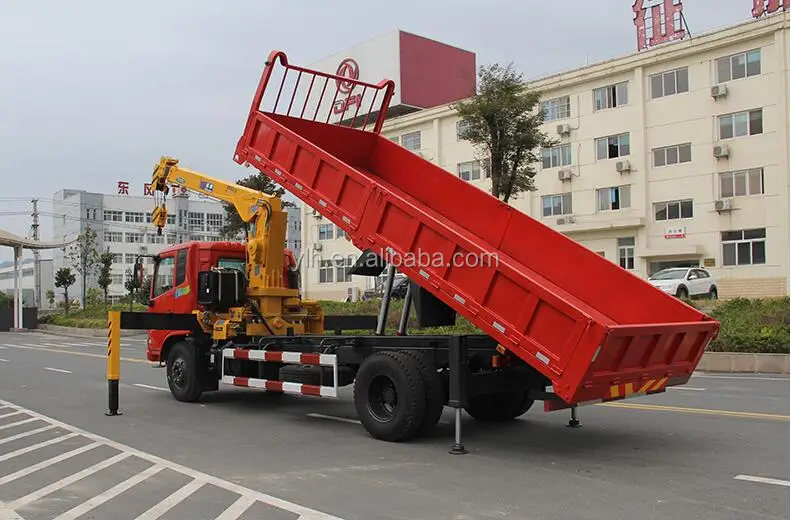

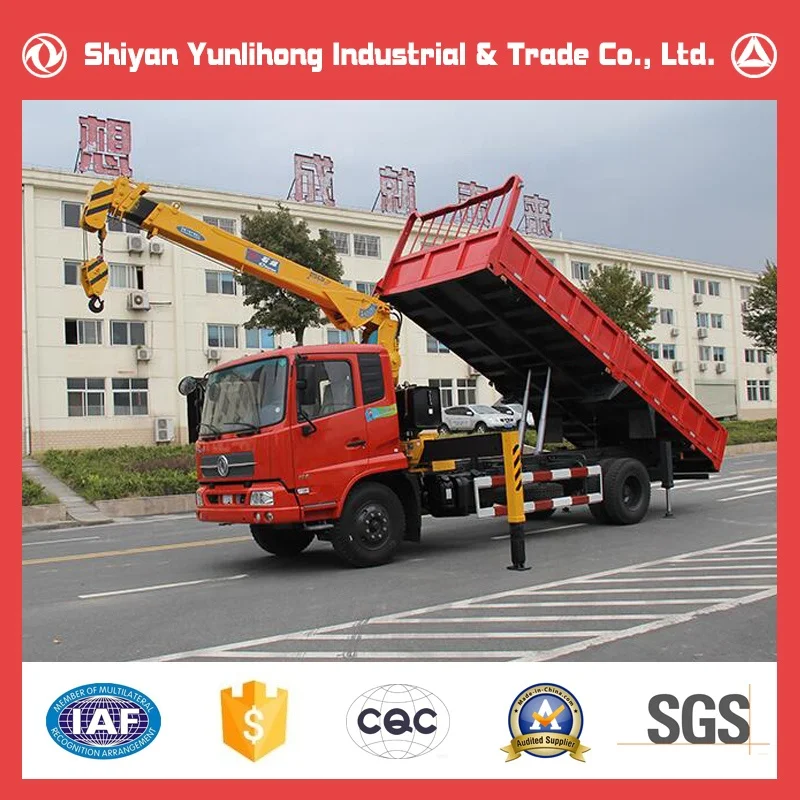

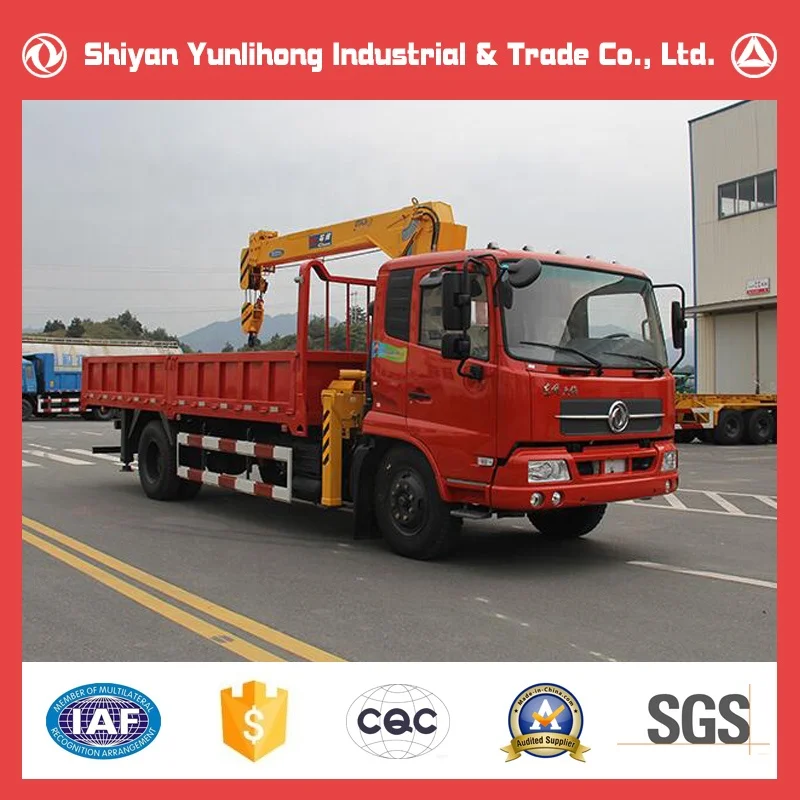

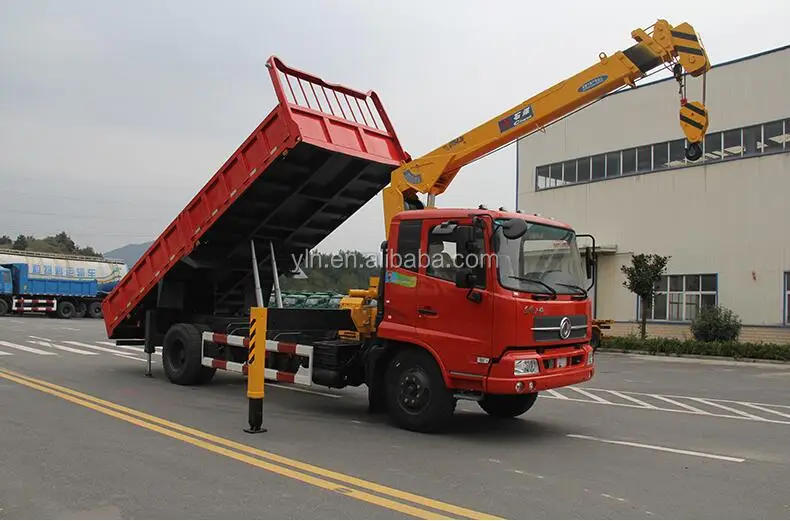

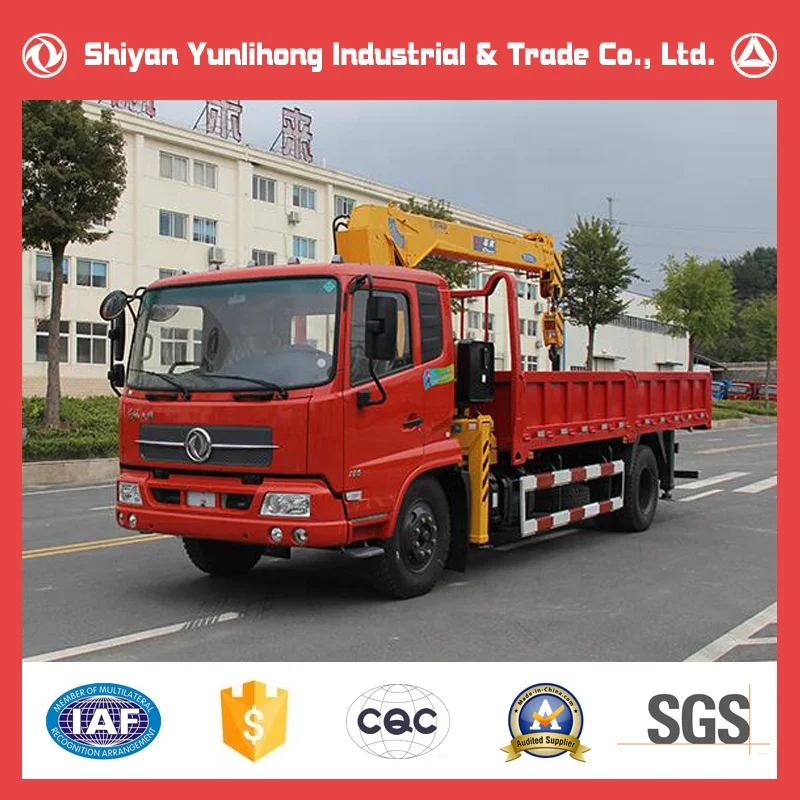

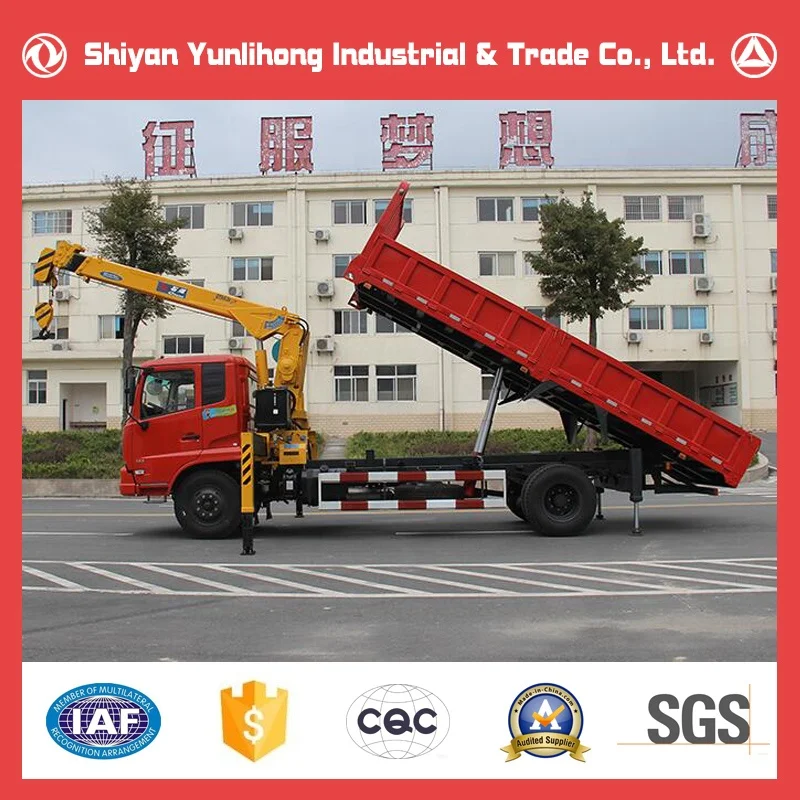

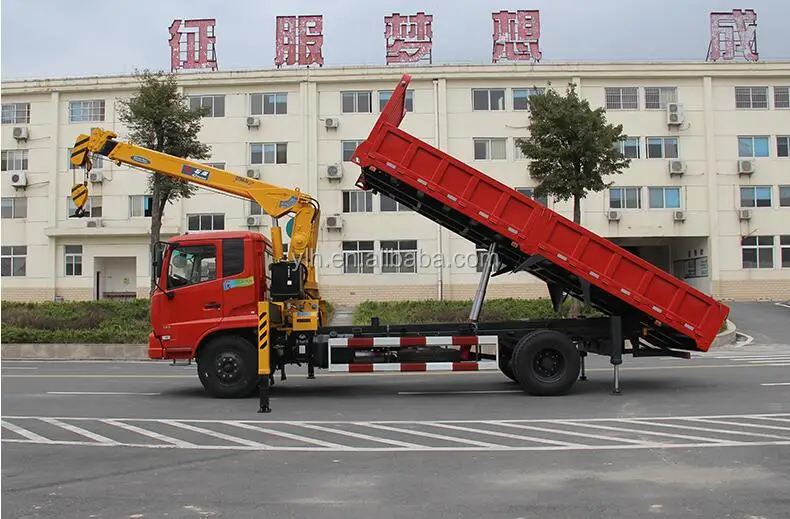

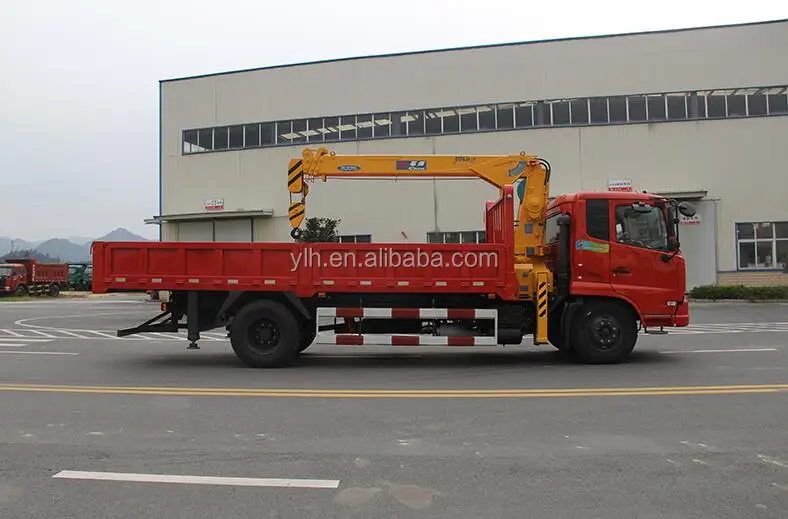

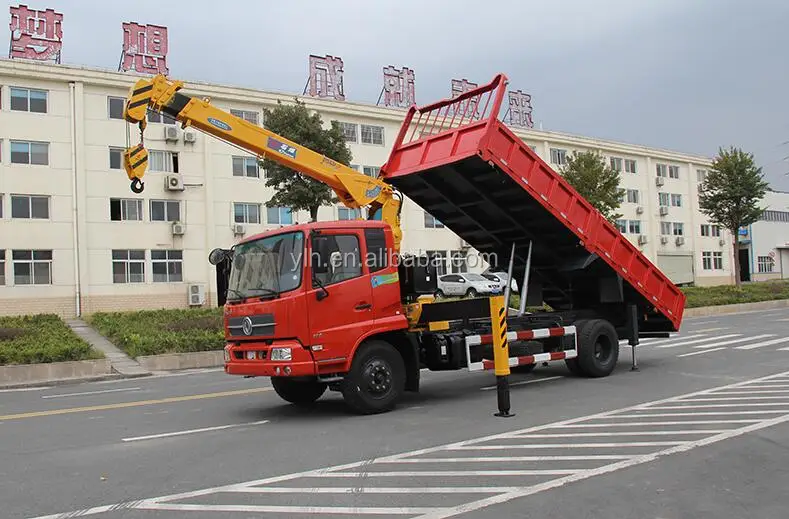

Detailed Images
