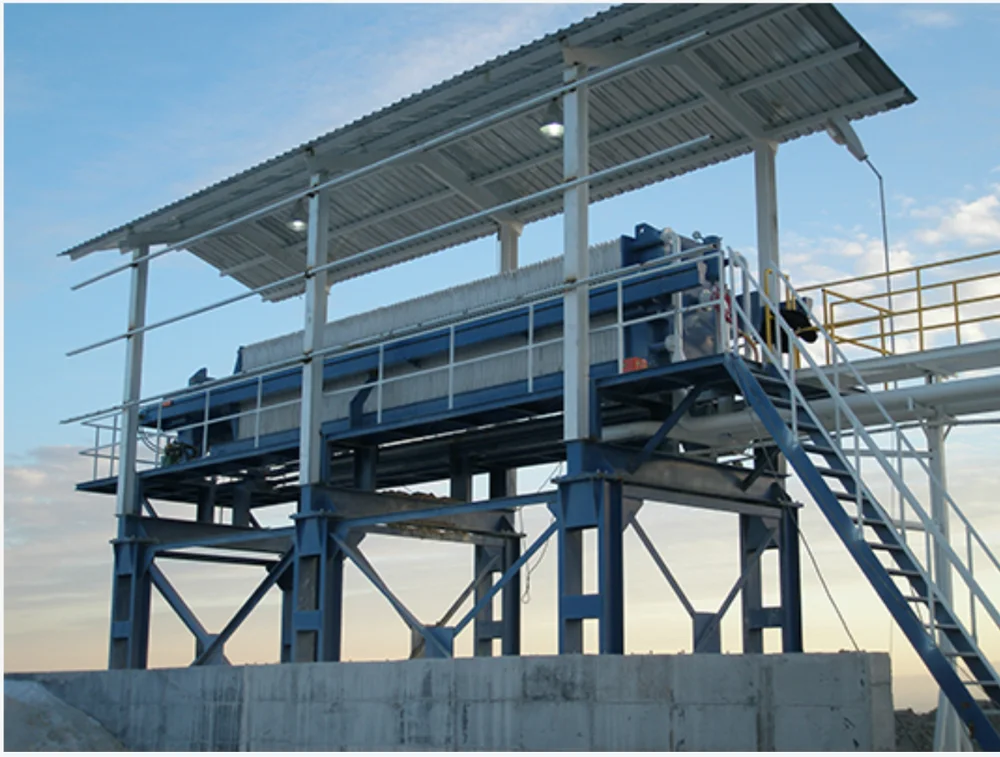

Filter Press Sludge Dewatering / filterpress

Product Overview

Description

We are one of the major manufacturers in sludge handling industry. High dewatering effiiciency, chepaer investment & capital  costs. Supervising is also availiable.

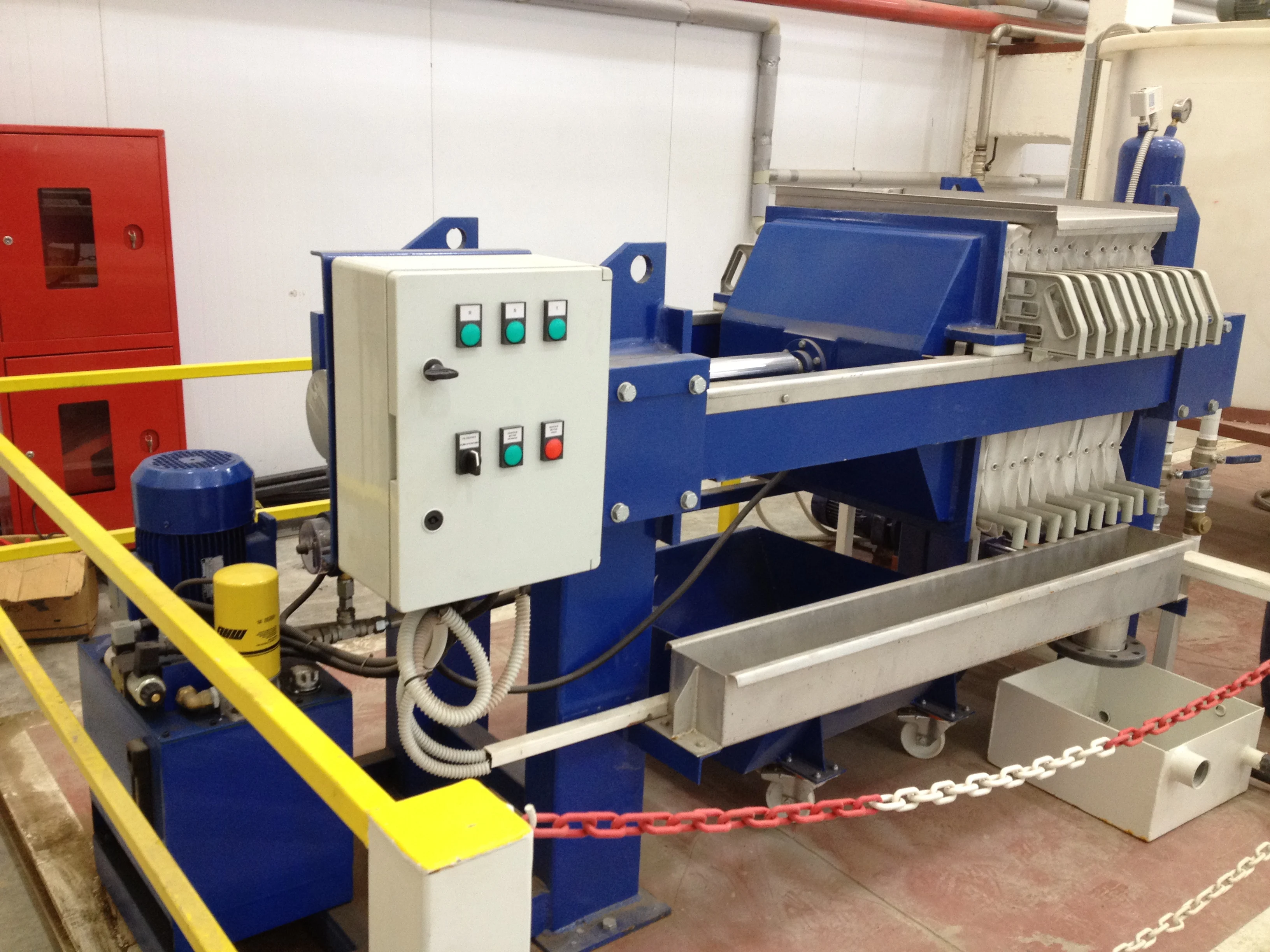

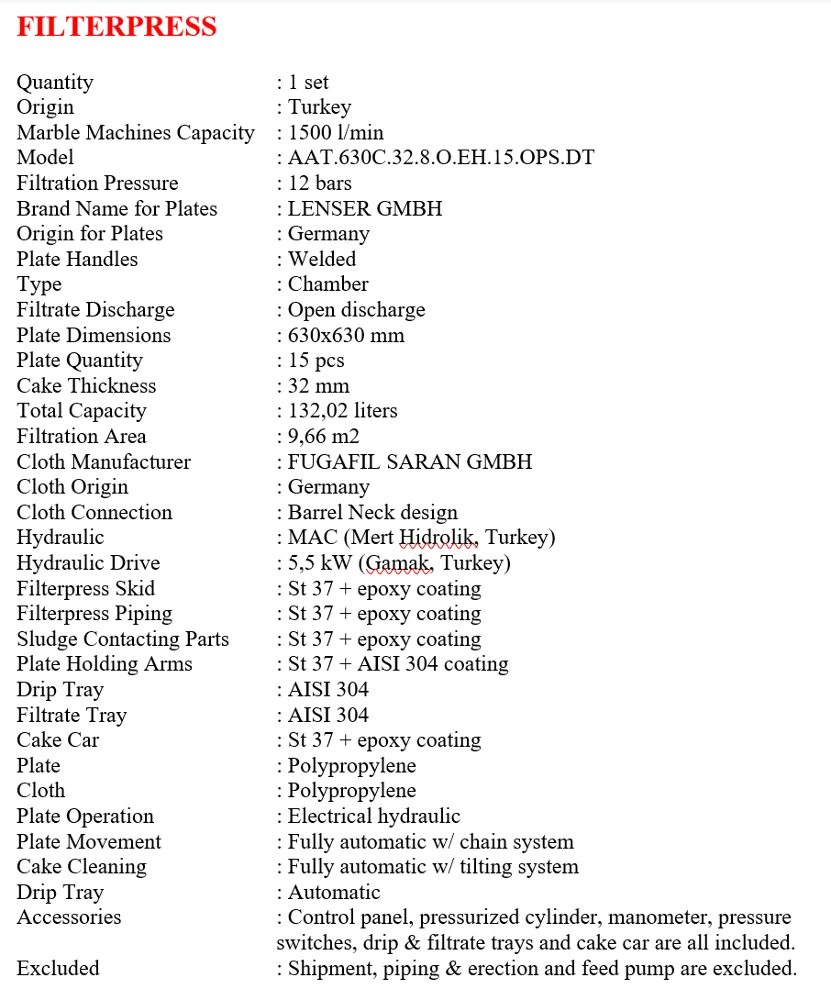

FILTERPRESS



Quantity                                 : 1 set

Origin                                     : Turkey

Model                                     : AKTIFPAK FP630

Filtration Pressure                  : 12 bars

Brand Name for Plates           : LENSER GMBH

Origin for Plates                     : Germany

Plate Handles                         : Welded

Type                                        : Chamber

Filtrate Discharge                  : Open discharge

Plate Dimensions                   : 630x630 mm

Plate Quantity                        : 15 pcs

Cake Thickness                      : 32 mm

Total Capacity                        : 132,02 liters

Filtration Area                        : 9,66 m2

Cloth Manufacturer                : FUGAFIL SARAN GMBH

Cloth Origin                           : Germany

Cloth Connection                   : Barrel Neck design

Hydraulic                               : MAC (Mert Hidrolik, Turkey)

Hydraulic Drive                     : 5,5 kW (Gamak, Turkey)

Filterpress Skid                      : St 37 + epoxy coating

Filterpress Piping                   : St 37 + epoxy coating

Sludge Contacting Parts         : St 37 + epoxy coating

Plate Holding Arms               : St 37 + AISI 304 coating

Drip Tray                               : AISI 304

Filtrate Tray                           : AISI 304

Cake Car                                : St 37 + epoxy coating

Plate                                       : Polypropylene

Cloth                                      : Polypropylene

Plate Operation                      : Electrical hydraulic

Plate Movement                     : Fully automatic w/ chain system

Cake Cleaning                        : Fully automatic w/ tilting system

Drip Tray                               : Automatic

Accessories                            : Control panel, pressurized cylinder, manometer, pressure

switches, drip & filtrate trays and cake car are all included.

Excluded                                : Shipment, piping & erection and feed pump are excluded.

Delivery Place                        : EXW Istanbul, Turkey

Delivery Period                      : 6-8 weeks
