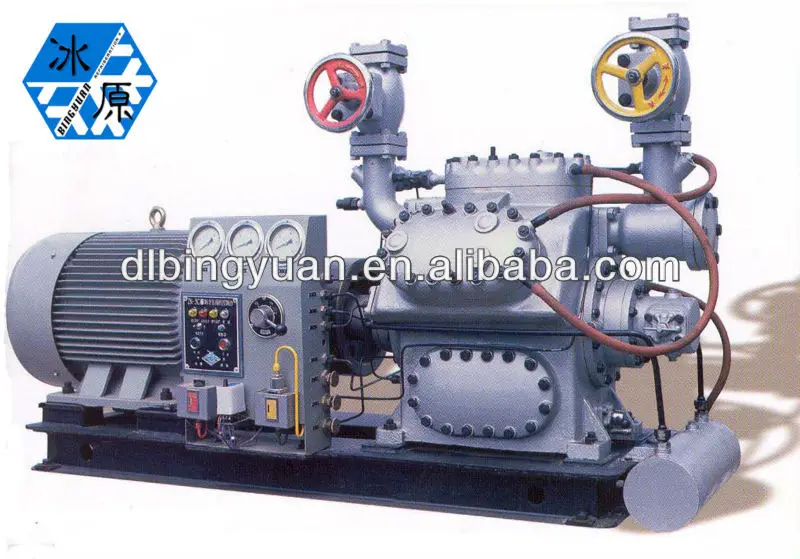

ammonia Compressor for refrigeration
ammonia Compressor for refrigeration
ammonia Compressor for refrigeration

ammonia Compressor for refrigeration

Share on (1044218183):


Price:

Quantity:


Product Overview

Description


4ASJ17.jpg4AV10.jpg6AW10.jpg8AS10.jpgAMMONIA COMPRESSOR.jpgJZY4AV17.jpgJZY6AW17.jpgJZY8ASJ17.jpgSCREW COMPRESSOR.jpgSNV30074.jpg.jpgSNV30077.JPG) High efficiency and save energy. Comparing with single condensing unit, this parallel condensing unit can save energy over 30% because of controlling the different quantity of compressor on or off automatically.

2) Compact system. All main components including compressor, liquid receiver, the gas fluid separator, oil separator, the middle chiller and electric control panel are concentrated completely on the same frame for saving the space in the engine room; The pipeline and the electric cable consumption will be reduced a lot and the construction cycle can be short too because of the high integrated design idea.

3) Reliable running. All main parts such as valves, gauges and automatic electric parts are all recognized everywhere in the world.

4) High intellectualized design. The microcomputer will control all system automatically, the running time will be accumulated and all main protection functions such as phase fail protection, heat relay protection and high and low pressure protection are included

Compressor, piston compressor, refrigeration compressor, freezer
100 Series Reciprocating Refrigeration Compressor Unit
product description: when condensing temp.≤40oC, evaporating temp. at single stage 5-30oC,at double stage -25-45oC, this series of compressor can be widely used in air conditioning and refigeration applications.
Application condition
Item\\Refrigerant
Single Stage Refrigerant
Double Stage Refrigerant
R717,R22
R717,R22
R717,R22
Low Pressure Stage
High Pressure Stage
Max. exhaust pressure MPa
≤1.5
≤0.7
≤1.5
Max. exhaust temp.
≤150
≤120
≤150
Max. pressure difference MPa
≤1.4
≤0.8
≤1.4

Technical Data

Item
unit
JZ2AZ10
YF4AV10
JZ6AZW10
JZ8AS10
JZ4ASJ10
JZ8ASJ10
Unit
Capacity
Normal condition
Kw
26.7
54
81.4
108
tk=35,
t0=-35,
17.5
tk=35,
t0=-5,
37.2
Air conditioning condition
Kw
54
116
174.4
232.6
Shaft Power
Normal condition
Kw
8.12
16
23.8
31.6
10.1
20.4
Air conditioning condition
Kw
12
24
36
48
Compressor
Piston No.
pcs
2
4
6
8
high pressure stage1
low pressure stage 3
high pressure stage2
low pressure stage 6
Capacity Regulation

0,1/2,1
0,1/3,
2/3,1
0,1/4,1/2,
3/4,1
0,1/3,
2/3,1
0,1/3,
2/3,1
Cooling Water Flow Rate
Kg
300
500
750
1000
500
1000
Motor
Power
Normal Condition
Kw
13
22
37
45
15
30
Air Conditioning Condition
Kw
15
30
45
55
Voltage
Normal Condition
V
380
Air Conditioning Condition
V




Company Information
