8Ohm,100W tweeter horn speaker
- Category: >>>
- Supplier: Guangzhou Panyu District Shiji Hiwell Audio Equipment Factory
Share on (1044631877):
Product Overview
Description

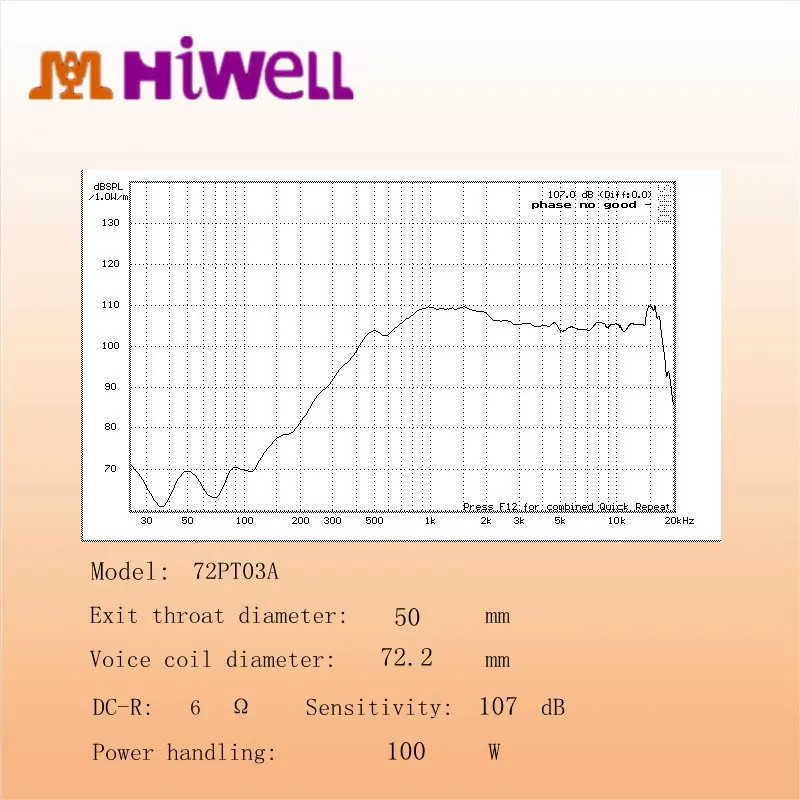

| Specifications | ||
| Nominal Diameter | 170/6.7 | mm/inch |
| Nominal Impedance | 8 | Ohm |
| Minimum Impedance | 6.5 | Ohm |
| Power handling | ||
| (1kHz-20kHz) | ||
| Nominall | 100 | Watts |
| Continuous Program | 200 | Watts |
| Sensitivity (1W/1m)3 | 107 | dB |
| Frequency Range | 800-18000 | Hz |
| Voice Coil Diameter | 72.2/2.8 | mm/inch |
| Winding Material | Aluminium | |
| Former Marerial | KSV | |
| Recommended Crossover5 | 1 | kHz |
| Re | 6 | Ohm |
| Le | 0.14 | mH |
| Exit Throat Size | 51/2.0 | mm/inch |

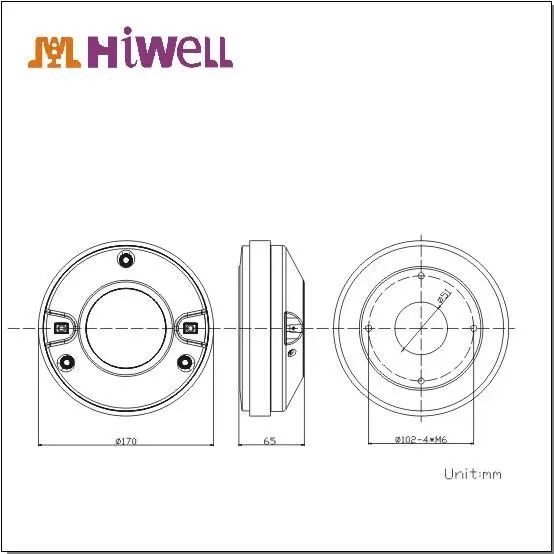

| Mounting and Shipping Information | ||
| Baffie Cutout Diameter | 170/6.7 | mm/inch |
| Flang and Gasket Tickness | 65/2.6 | mm/inch |
| Net Weight | 4.7 | Kg |
| Shipping Weight | 5 | Kg |
| Shipping BOX | 180×180×80 | mm |
R&D Capacity

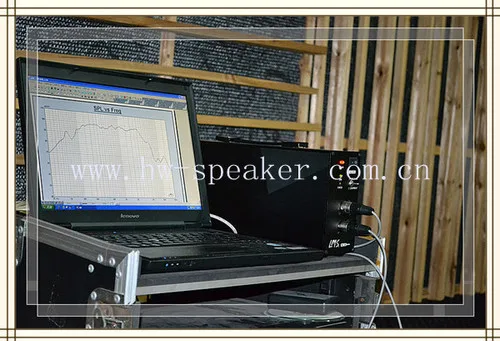

LMS Test Software
