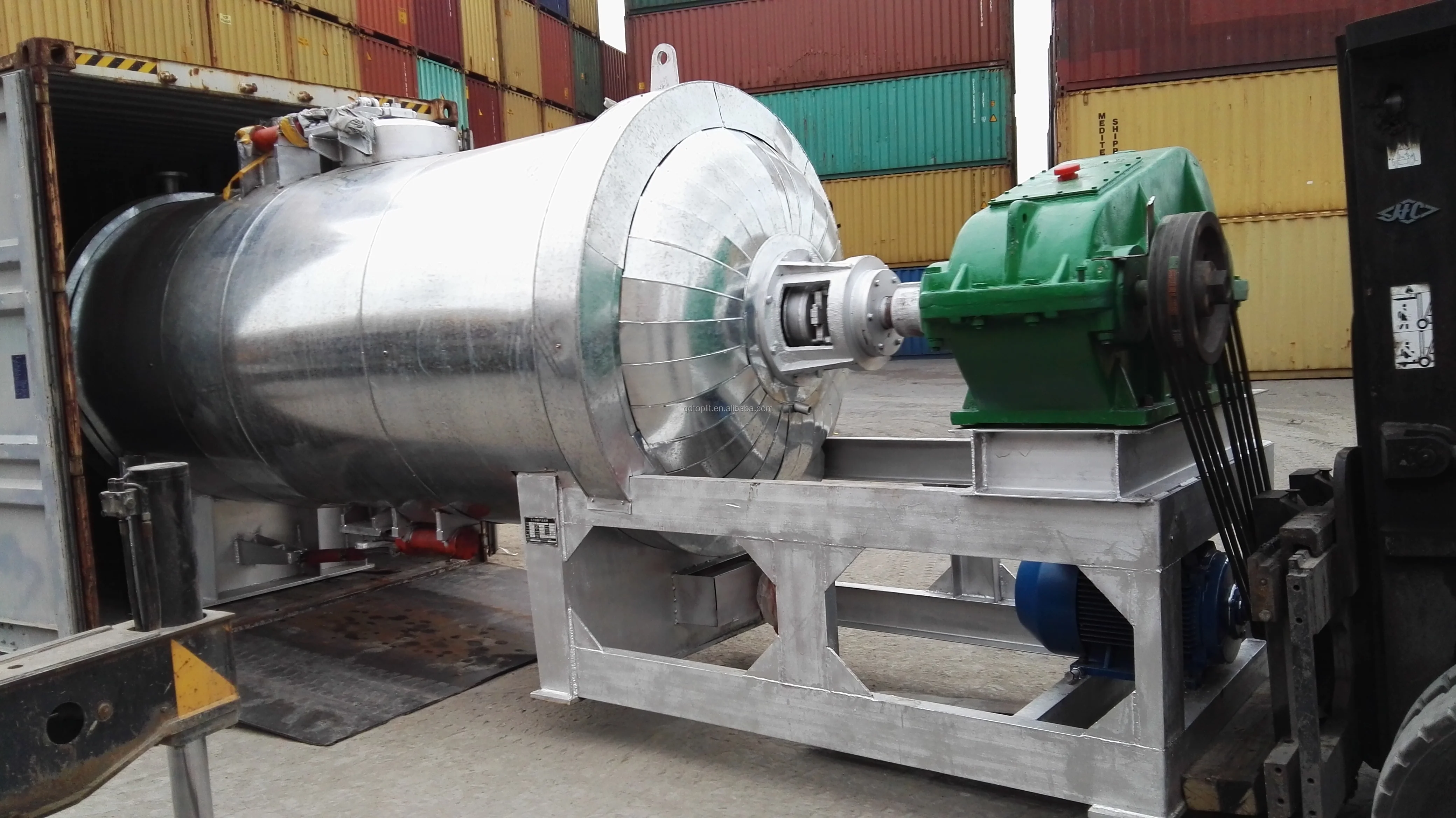

China Best Reclaimed Rubber Devulcanizing Machine / Dynamic Devulcanizer
- Category: >>>
- Supplier: Qingdao Toplit Industry Co. Ltd.
Share on (1044718417):
Product Overview
Description
Reclaimed Rubber Devulcanizer
(Whatsapp & Wechat: 0086 13963993705)
We are professinal manufacturer and exporter of reclaimed rubber devulcanizing equipments, we promise the best quality and lowest price, Welcome you to visit our factory in future.
1.Type: 4M3 / 6M3 / 8 M3 / 10M3 / 12 M3
2. Inside Pressure: 4 Mpa (design as per clients ' requirements)
3. Heating methods: conduction oil heating ; electricity heating or electricity heating conduction oil.
4.Main Technical Specifications:
| 1. item | 4.0CBM dynamic devulcanizer | 6CBM dynamic devulcanizer | 8CBM dynamic devulcanizer | 10CBM dynamic devulcanizer |
| 2. designed pressure | 4.0MPA | 4.0MPA | 4.0MPA | 4.0MPA |
3. (2) electricity heating power | Q245, 10mm 150kw | Q245R, 10mm 185kw | Q245R, 10mm 245kw | Q245R, 12mm 275kw |
| 4. heating type | conduction oil or electricity | conduction oil or electricity | conduction oil or electricity | conduction oil or electricity |
| 5. devulcanizer materials | Q345R, 26mm | Q345R, 26mm | Q345R, 26mm | Q345R, 28mm |
| 6. reducer type | ZQ650 | ZQ650 | ZQ850 | ZQ1000 |
| 7. door open & close type | hydraulic & automatic | hydraulic & automatic | hydraulic & automatic | hydraulic & automatic |
| 8. main motor power | 15kw | 22kw | 30kw | 45kw |
| 9. hydraulic station motor power | 3.0kw | 3.0kw | 3.0kw | 3.0kw |
5. Features:
The devulcanizer adopts a new technology of devulcanization.Compared with traditional devulcanizing equipments,it is advanced in the following points.
1). The reclaim powder no need to be ground so fine and the devulcanizing time is shortened;Reclaim softener, reclaiming agents and rubber powder can be put together into the devulcanizer;To open and lock the devulcanizing vessel is automatized during the working process.
2).The devulcanizer is a horizontal pressurized vessel with mixing paddles fixed in it. The mixing shaft with paddles can rotate dockwise and anti-clockwise.The left and right rotating paddles push the materials in the vessel moving along the shaft to be well mixed and equally heated.
3).The devulcanizer employs a hydraulic system to open,close and lock up the feeding door and the discharging door.
4).For our oil heating form, the heating , tempreture are very equal on the surface of the main tank. we promise the point.
6. Contact informations:
E-mail: mark at qdtoplit dot com
Mobile Phone No.: +86 13963993705. (whatsapp & wechat)

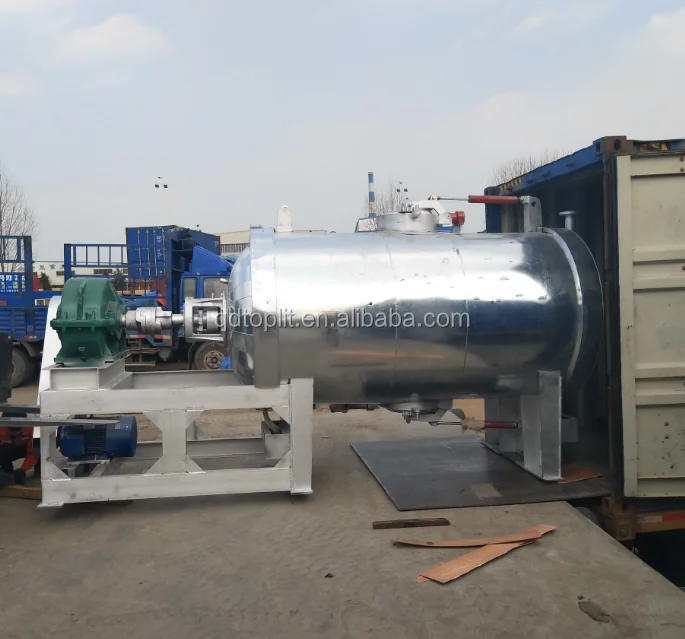

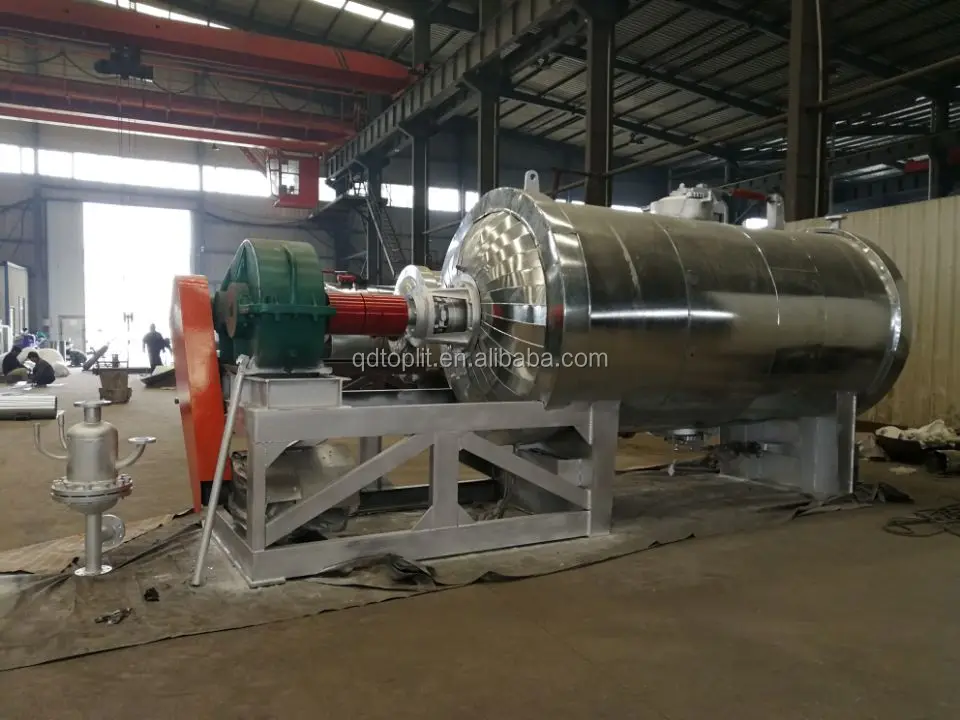

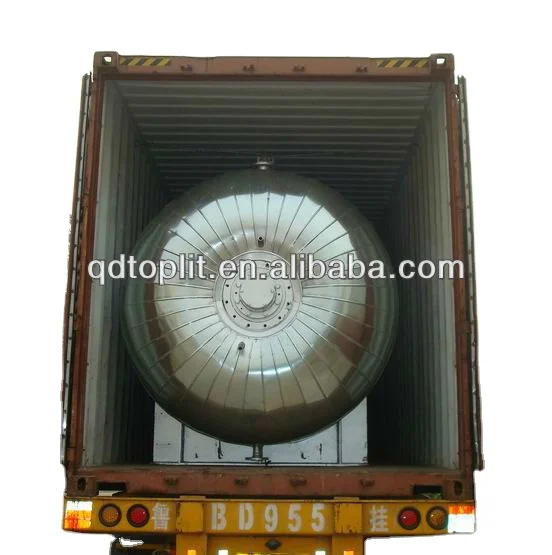

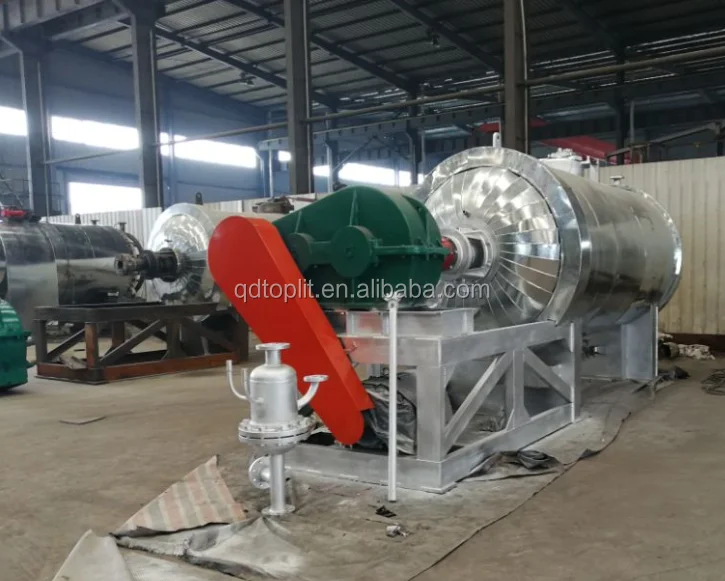

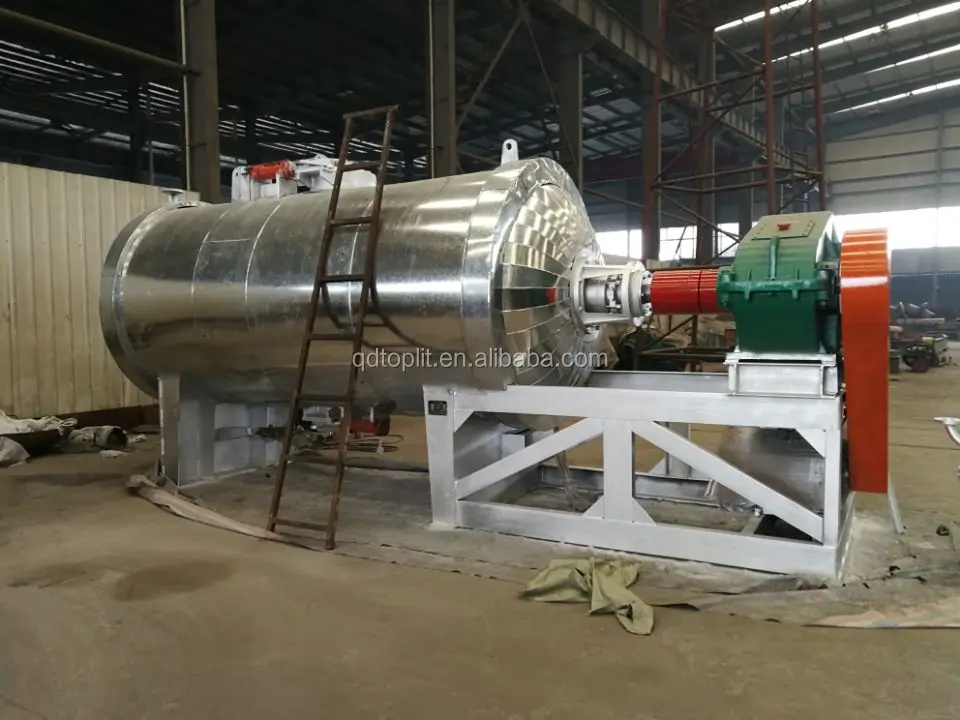

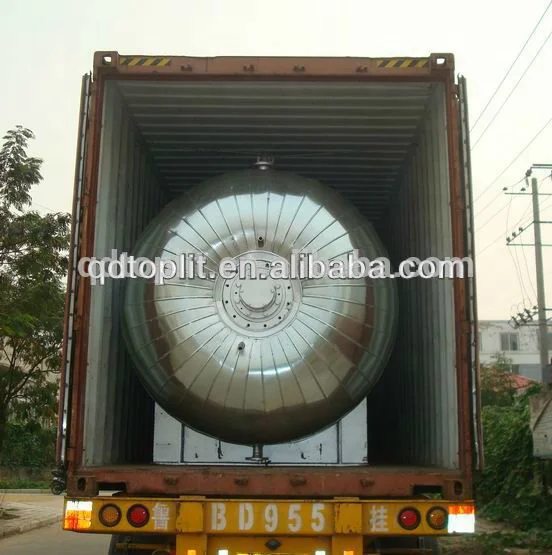

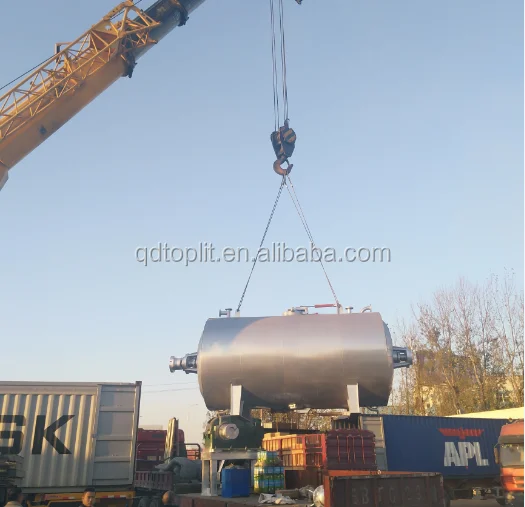

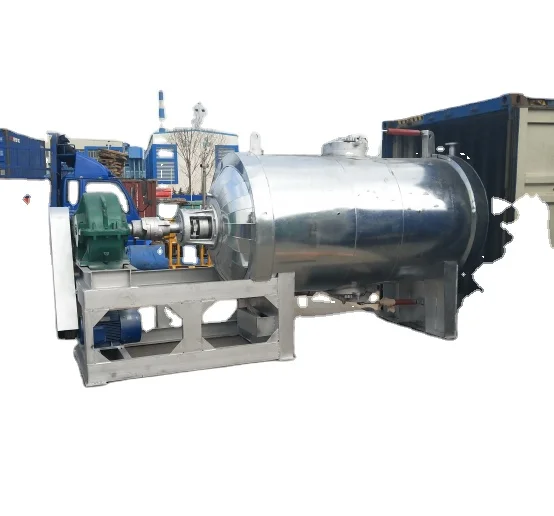

7. Reference photos:
