Factory Wholesale Wind Turbine Generator Inverter 6000W /6kw for wind generator system
- Category: >>>
- Supplier: Suzhou Maili Electrical Appliance Co. Ltd.
Share on (1044952418):
Product Overview
Description
Factory Wholesale Wind Turbine Generator Inverter 6000W /6kw for wind generator system :
1.Main Application
<1> Office equipment series: Computers, Printers, Copiers, Scanners, digital camera, etc.
<2> Household appliances series: Vacuum cleaners, Fans, Lighting, Electric cutting knife, Television, Sewing machines, Electric fans, AC, etc.
<3> Kitchen utensils series: Microwave ovens, Refrigerators, Freezers, Coffee machines, Blenders, Oven, induction cooker, etc.
<4> Electronics Series: TV, VCR, Game consoles, Radios, Power amplifiers, Audio equipment, Monitoring equipment, Terminal equipment, Intelligence platforms, Satellite communications equipment. <5> In-car or on-boat devices series: Military vehicle, police cars, medical ambulance, ships, traffic lights, and etc.
2.Design specifications
1.the input voltage: DC12V 24V 48V ;
2. AC Output Voltage: AC220~240V ;
3. Frequency: 50HZ or 60HZ;
4.Efficiency: 85%;
5.overload ways: automatic protection, automatic recovery;
6.Protection: overload, over-temperature protection, reverse polarity
3.The basic parameters
| Model | P6000-12-110 | P6000-24-110 | P6000-48-110 | P6000-12-220 | P6000-24-220 | P6000-48-220 |
| Rated Power | 6000W | 6000W | 6000W | 6000W | 6000W | 6000W |
| Peak power | 12000W(wihin 5 millisecond) | |||||
| DC input voltage | 12V | 24V | 48V | 12V | 24V | 48V |
| AC output voltage | 110VAC±10% | 220VAC±5% | ||||
| No-load current | <2.7A(DC13V) | <1.7A(DC26V) | <1.5A(DC52V) | <2.7A(DC13V) | <1.7A(DC26V) | <1.5A(DC52V) |
| AC Output frequency | 50HZ±1%/60HZ±1% | |||||
| AC Output wavaform | Pure sine wave | |||||
| Waveform distortion | THD<3%(Linear load) | |||||
| Full load efficiency | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) | >86%(DC13V) | >88%(DC26V) | >90%(DC52V) |
| DC input voltage range | 10.6V~15.5V | 21.6V~30V | 43.2V~63V | 10.6V~15.5V | 21.6V~30V | 43.2V~63V |
| Low voltage alarm | 10.5±0.3V | 21±0.6V | 41.8±1.2V | 10.5±0.3V | 21±0.6V | 41.8±1.2V |
| Low voltage shutout | 9.5±0.2V | 19±0.3V | 38±0.4V | 9.5±0.2V | 19±0.3V | 38±0.4V |
| Over voltage protection | 16±0.5V | 31±1V | 65±2V | 16±0.5V | 31±1V | 65±2V |
| Low volatge recovery | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V | 11.8±0.3V | 23.6±0.4V | 47.2±0.8V |
| Over voltage recovery | 15.7±0.3V | 31.8±0.4V | 63±1V | 15.7±0.3V | 31.8±0.4V | 63±1V |
| Over-load protection | 111%~113% | |||||
| Protective function | Low voltage:LED red light turn on,buzzer warning, automatic recovery | |||||
| Over voltage:LED red light turn on ,automatic recovery | ||||||
| Over-load: LED red light on,machine locked, need to be rebooted | ||||||
| Over temperature:LED red light turn on,buzzer warning, automatic recovery | ||||||
| Short circuit(within 2 seconds):automatic recovery | ||||||
| Iutput reverse connection :Fuse burn-out | ||||||
| Work temperature | –10°C- +50°C | |||||
| Storage temperature | –30- +70°C | |||||
| Humidity | 20%~90%RH without condensation | |||||
| work altitude | within 1200m | |||||
| Size | 545*199*146mm | |||||
| Net weight | 14±0.05kg/pc | 13.46±0.07kg/pc | 13.2±0.07kg/pc | 14±0.05kg/pc | 13.46±0.07kg/pc | 13.46±0.05kg/pc |
| Package size | 665*285*240mm(1pc) | |||||
| Gross weight | 17.2±0.1kg/pc | 15.8±0.1kg/pc | 15.2±0.1kg/pc | 17.2±0.2KG/pc | 15.8±0.1kg/pc | 15.4±0.1kg/pc |

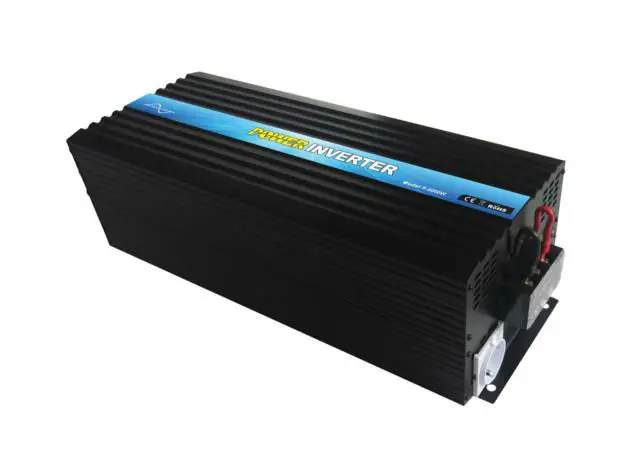

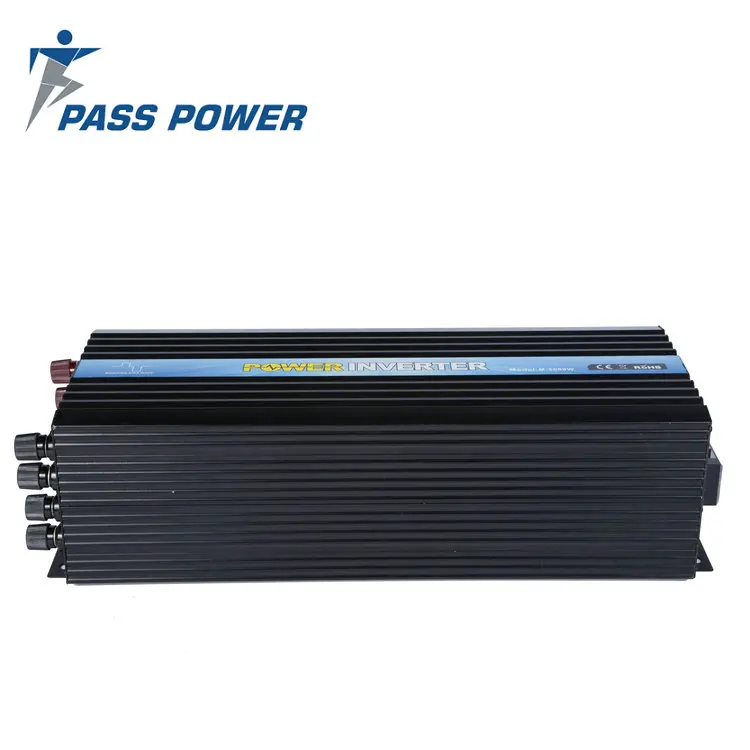

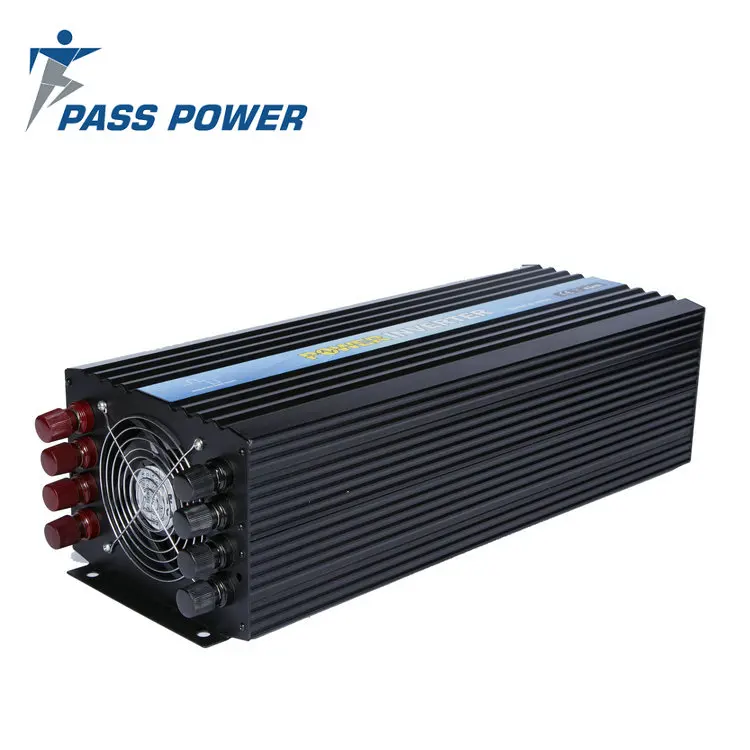

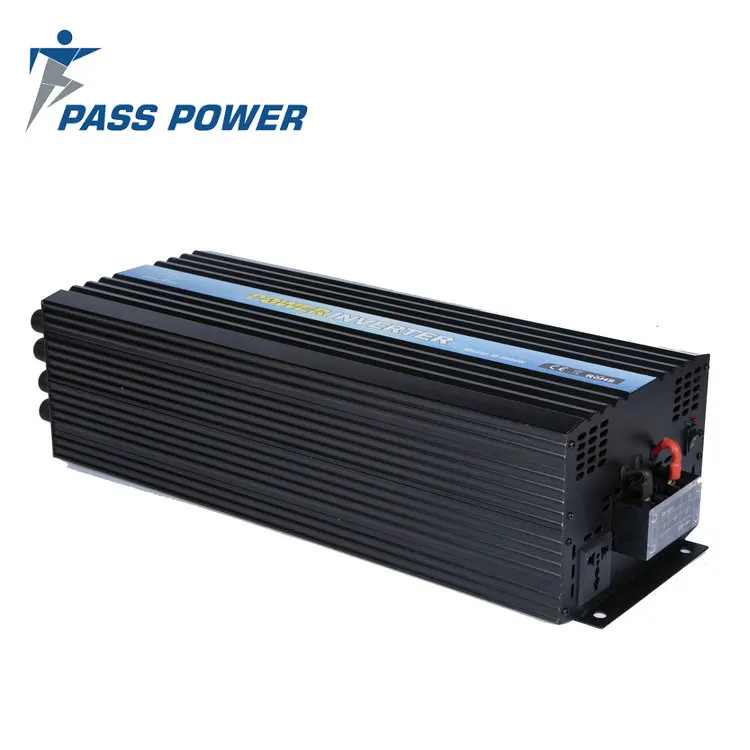

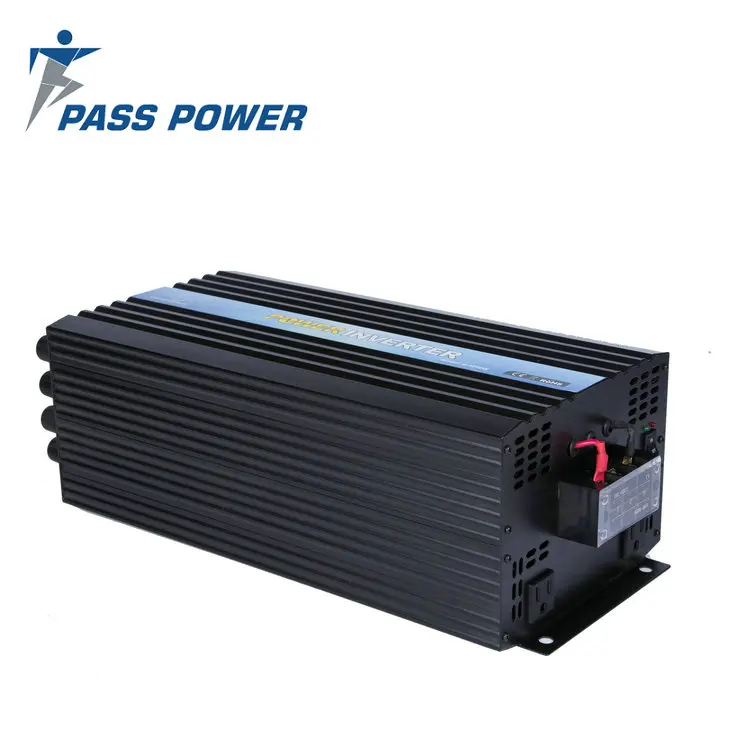

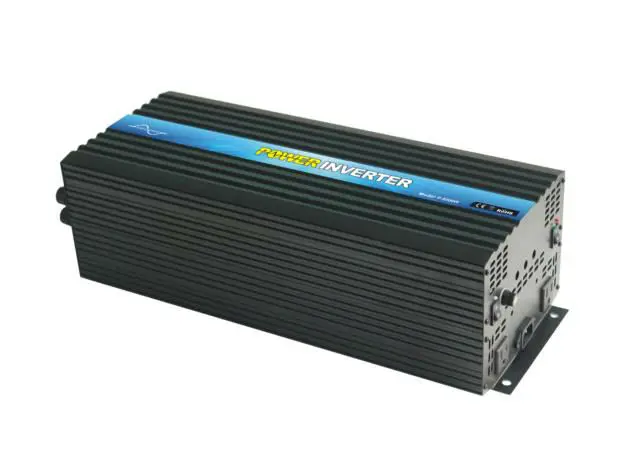

4.Product display
