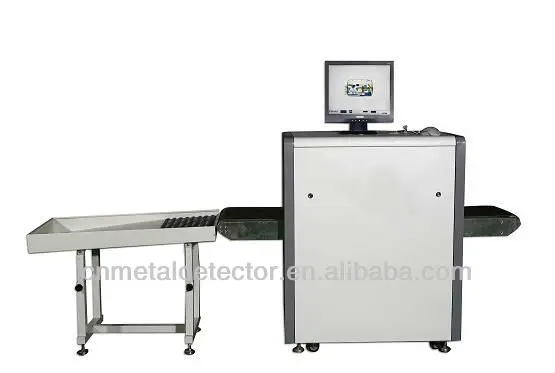

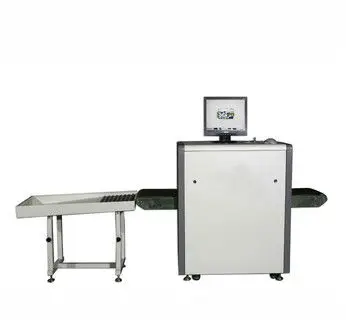

X-ray Baggage Scanner
Model: TX-5030A------ Popular economic Version
The TX-5030A easily accommodates the inspection of hand baggage and parcels.
General Specification
Tunnel Size: 500(W)*300(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 20kg
Dose per Inspection: <2.9 μGy/h
Resolution: <0.101mm Metal Wire
Penetration: 8mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)
X-ray Generator
Generate direct: Upward
Generate angle: 60 degree
Anode Voltage: 80Kv
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%
Image System
X-ray Sensor: L-Shaped Photodiode Array (monoenergetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord, 17 inch
Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image rtrieval.
Image Grey Level: 4096
Image Max Resolution: 1024 * 1280 pixel
Image Processing: 24bit for processing real time
Image storage: Storage 60000 pictures in real time
Zones & Zoom: 1-9 Image regions, 2,4,8,16 Times Enlarge, Whole screen continuous observation
Installation Data
Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)
Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.0 KW (max), 0.3KW(working)
Noise: <65db
